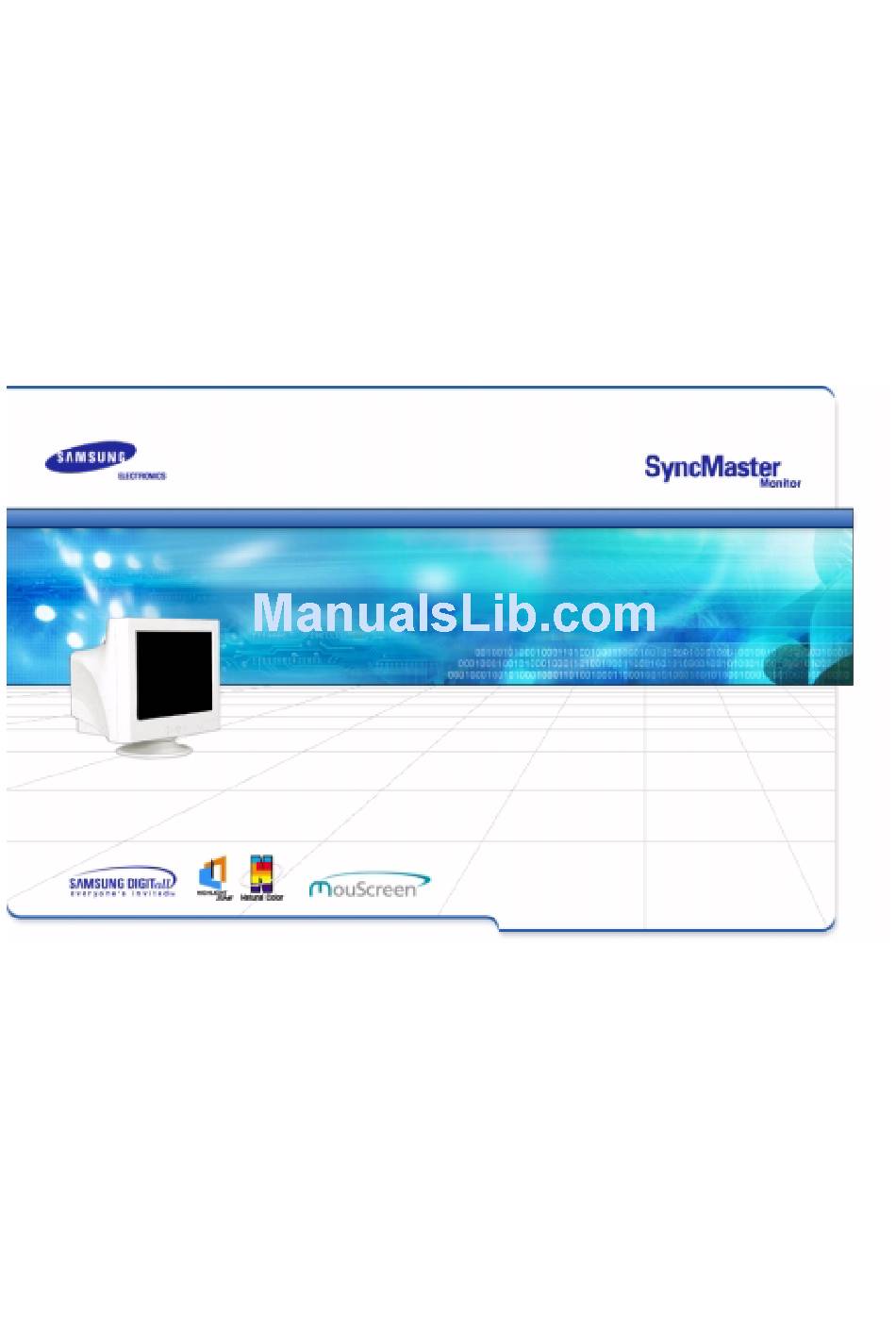

Samsung SyncMaster 757P User Manual

Samsung syncmaster 757p: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Samsung SyncMaster 757P

Summary of Contents for Samsung SyncMaster 757P

  • Page 2 Power Installation Cleaning Other Introduction Unpacking Front Rear Bottom Setup Connecting Your Monitor Installing the Monitor Driver — Windows 2000 — Other Operating System Base Installation User’s Manual On-Screen Display General Highlight Zone MouScreen™ S/W Troubleshooting Check List Q & A...

  • Page 3: Safety Instructions

    Safety Instructions Notational Warning/Caution Failure to follow directions noted by this symbol could result in bodily harm or damage to equip- ment. Notation Conventions Prohibited Do not disassemble Do not touch User’s Manual Important to read and understand at all times Disconnect the plug from the outlet Grounding to prevent an electric shock...
  • Page 4 If the size of your monitor is small, or if the same image is present for long periods of time, you may see afterimages due to damage to the flourescent substance on the inside of the CDT.
  • Page 5 Safety Instructions Power • Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time. • Failure to do so may cause an electric shock or fire. • Do not connect too many extension cords or plugs to an outlet. •...
  • Page 6 Do not cover the vents on the monitor cabinet. • Bad ventilation may cause a breakdown or fire. • Put your monitor in a location with low humidity and a mini- mum of dust. • An electric shock or fire could result inside the monitor.

  • Page 7: Installation

    Do not use the monitor without the monitor stand. • It could break down or cause a fire due to bad ventilation. • If the monitor must be used without the supplied stand, take steps to insure proper ventilation. User’s Manual...
  • Page 8 You can prevent the coated CDT from being damaged or the monitor cabinet from being dissolved, cracked or discolored. • You can buy a recommended detergent at any Samsung Service Center. • If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.
  • Page 9 Do not place any heavy objects on the monitor. • This may cause an electric shock or a fire. • For each hour of looking at the monitor, you should let your eyes rest for 5 minutes. • This will reduce eye fatigue.
  • Page 10 Safety Instructions Other • Do not try to move the monitor by pulling on the wire or the sig- nal cable. • This may cause a breakdown, electric shock or a fire due to damage to the cable. • Do not move the monitor right or left by pulling only the wire or the signal cable.
  • Page 11 Introduction Unparking • Monitor and Stand (Some models include a stand attached. ) Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. User’s Manual • Power Cord • Stand •...
  • Page 12 Use this button to turn the monitor on and off. Note: See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. User’s Manual...
  • Page 13 (The configuration at the back of the monitor may vary from product to product.) 1. Power port 2. Signal Cable 3. BNC Connectors (Option) Connect the signal cable to the BNC signal port on the back of your monitor. 4. USB Connector Note: See Connecting Your Monitor for further information regarding cable connections.
  • Page 14 Connect the signal cable to the video port on your computer, video board, video card, or graphics card. Connect the power cord for your monitor to the power port on the back of the monitor. You can separate the base from the monitor.

  • Page 15: Connecting Your Monitor

    Setup Connecting Your Monitor 1. Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2. Connect the signal cable to the video port on your computer, video board, video card, or graphics card.
  • Page 16 Internet web site : Windows ME/98/95 1. Insert CD into the CD-ROM driver. 2. Click "Windows ME/98/95 Driver". 3. Choose your monitor model in the model list, then click the "OK" button. 4. Click the "Install" button in the "Warning" window. http://www.samsung-monitor.com/ (Europe) http://www.samsungmonitor.com/...
  • Page 17 5. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage http://www.samsung-monitor.com/. 6. Monitor driver installation is completed.
  • Page 18 Setup When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions as appropriate for the operating system you have.
  • Page 19 5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button. 6. Select "Don't search ,I will.." then click "Next" and then click "Have disk". 7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.
  • Page 20 Setup This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage http://www.samsung-monitor.com/. 9. Click the "Close" button then click "OK" button continually. 10. Monitor driver installation is completed.
  • Page 21 8. Click the "Have Disk" button 9. Specify A:\(D:\driver) then click "OK" button. 10. Select "Show all devices" and choose the monitor that corresponds to the one you connected to your computer and click "OK". 11. Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue box.
  • Page 22 5. Set a Keyboard for your computer. 6. The next screen is for setting your monitor. 7. First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.) 8. Set a vertical frequency for your monitor. (You can enter the frequency directly.) 9.

  • Page 23: Base Installation

    User’s Manual Setup Base Installation Tilt/Swivel Base With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle. Note: The base is detachable.
  • Page 24 2. Align the tabs on the base with the corresponding slots on the bottom of the monitor. 4. Push the base toward the front of the monitor until the release latch clicks into the locked position. * Do not bend the snap.
  • Page 25 5. Squeeze and pull up on the release latch on the base. Note: The base will align with the monitor slots in only one position. User’s Manual 6. Push the base toward the back of the monitor and lift up to remove the base.

  • Page 26: On-Screen Display

    On-Screen Display 1. Highlight button: The Highlight Zone ensures clear images on TVs, video conferencing systems or photos by emphasizing a certain area on the screen. 2. Exit button: Use this button to Exit the active menu or the OSD. 3.

  • Page 27: Osd Lock/Unlock

    On-Screen Display Menu How to adjust Brightness/Contrast Adjust Brightness and Contrast. Push the ◀▶ ◑ ) or ▲ ▼ will appear. Push the ▲ button to increase the brightness or the the brightness. Push the ◀ button to increase the contrast or the contrast.
  • Page 28 On-Screen Display Menu How to adjust Position Follow these instructions to change the Position of the monitor's entire display. Push the Menu( ) button. Push the Menu( ) button to open the Position adjustment screen. Use the buttons to change the vertical position of the monitor's ▲...
  • Page 29 On-Screen Display Menu How to adjust Zoom Follow these instructions to get a close-up or a longshot view of the monitor's viewing area. Push the Menu ( ) button. Push the ◀ button or ▶ button until the Position/Size screen is displayed.
  • Page 30 On-Screen Display Menu How to adjust Pincushion/Trapezoid Adjust the pincushion setting when the sides of the display are bowed in or bowed out; adjust the trapezoid setting when the top or bottom of the display is too large or small. Push the Menu ( ) button.

  • Page 31: Sidepin Corner

    On-Screen Display Menu How to adjust Sidepin Corner Adjust the sidepin corner correction when the sides of the display are bowed in or bowed out; adjust the side pin corner correction when the top or bottom of the display is too large or small. Push the Menu( ) button.
  • Page 32 On-Screen Display Menu How to adjust Color1 Color temperature is a measure of the 'warmth' of the image colors. The available range is between 5000 to 9300K. Follow these steps to change the color temperature and adjust individual R,G,B color control. Note: Recall does not reset the color settings.

  • Page 33: Clear Moire

    On-Screen Display Menu How to adjust Color3 Color temperature is a measure of the 'warmth' of the image colors. The available range is between 5000 to 9300K. Follow these steps to change the color temperature and adjust individual R,G,B color control. Note: Recall does not reset the color settings.
  • Page 34 On-Screen Display Menu How to adjust Linearity Adjust the linearity setting when the display image is compressed at the left,right or top,bottom. Push the Menu( ) button. Push the ◀ button or ▶ button until the Screen OSD is displayed. Push the ▲...
  • Page 35 The Degauss feature will remove color impurities caused by magnetic fields. Do not use the Degauss feature more than once within a 30-minute period. Note: The monitor may buzz momentarily, the image colors may change and the image will jiggle for a few seconds. These effects are normal.

  • Page 36: Video Input Level

    0.7 V or 1.0 V. Sync. Input Type(Option) Use this menu to set your monitor to the correct type of synchronization. Select 'Separate' if the computer is sending a separate synchronization signal. Select 'Sync. on Green' if the computer expects the monitor to synchronize with the green signal it sends.

  • Page 37: Display Timing

    You can see the frequency (user control mode) used by the user, the polarity of the operational signals, the default frequency (default mode) set when you buy the monitor and the resolution level. Note: These screens do not allow any changes to the settings, they are for information only.

  • Page 38: Menu Position

    On-Screen Display Menu How to adjust Menu Position You can change the position where the OSD menu appears on your monitor. Push the Menu( ) button. Push the ◀ button or ▶ button until the Menu screen is displayed. Push the ▲...
  • Page 39 On-Screen Display Menu How to adjust Languages Follow these steps to change the language used in the menu. You can choose one of ten languages. English, German,French, Italian, Portuguese, Spanish, Swedish, Russian, Polish ,or Magyar. (Some OSD languages may not appear in some areas.) The language chosen affects only the language of the OSD.
  • Page 40 On-Screen Display The Highlight Zone function can be optimized with a moving image and so please use it in the moving image screen. Menu How to adjust Highlight Zone This function is to execute or cancel the Highlight Zone. Push the Highlight ( ) button.
  • Page 41 On-Screen Display Menu How to adjust Size This function is to adjust the size of the Highlight Zone. Push the Highlight ( ) button. Push the ◀ button or ▶ button to select the Screen Size Adjustment and then push the Menu ( Push the ◀...
  • Page 42 On-Screen Display Menu How to adjust Color This function is to adjust the color of the Highlight Zone. Push the Highlight ( ) button. Push the ◀ button or ▶ button to select the Color Adjustment and then push the Menu ( Push the ▲...
  • Page 43 On-Screen Display Menu How to adjust Sharpness This function is to adjust the sharpness of the Highlight Zone. Push the Highlight ( ) button. Push the ◀ button or ▶ button to select the Sharpness Adjustment and then push the Menu ( Push the ◀...
  • Page 44 On-Screen Display MouScreen Screen 1. Brightness Use this to adjust the brightness of the screen. 2. Contrast Use this to adjust the clearness of the screen 3. Color Temperature Use this to adjust the color temperature of the screen from 9300K (bluish colors) to 5000K (reddish colors). User’s Manual...
  • Page 45 On-Screen Display MouScreen Geometry 1. Position Use this to adjust the position of the screen vertically or horizontally. 2. Size Use this to adjust the size of the screen vertically or horizontally. 3. Pincushion Use this to make the right and left vertical pins of the screen straight. 4.
  • Page 46 On-Screen Display MouScreen Highlight Zone 1. Position Use this to adjust the size of the Highlight Zone vertically or horizontally. You cannot use this function if the Highlight Zone Full Screen function is on. 2. Size Use this to adjust the size of the Highlight Zone vertically or horizontally. You cannot use this function if the Highlight Zone Full Screen function is on 3.
  • Page 47 On-Screen Display MouScreen More 1. Moire Use this to remove circle or arc wavy patterns. 2. Side Pin Corner Use this to keep the side pins of the screen facing the opposite direction. 3. Side Pin Balance Use this to keep the side pins of the screen facing the same direction. 4.Degauss Use this to remove spots on the screen, which are caused due to magnetic fields.
  • Page 48 Use this to save the updated content in the current tab. 3. Reset Use this to make the current status of the monitor the same as the status when you bought it. This may take time, as it needs to bring and process all the initial data.

  • Page 49: Troubleshooting

    The monitor is in PowerSaver mode. Press a key on the keyboard or move the mouse to activate the monitor and restore the image on the screen. Unlock the OSD by pressing the MENU button for at least 10 seconds.
  • Page 50 The screen is out of focus or OSD cannot be adjusted. Check List Check the monitor configuration to see if it is in Interlace Mode. (Interlace Mode: Vertical frequency 43Hz, 87Hz(i), etc) Are there any magnetic products such as a power adapter, speaker...
  • Page 51 User’s Manual Solutions Enter the OSD and perform a "Degauss". Keep the monitor away from any magnetic products. Adjust the frequency properly by referring to the video card manual and the Preset Display Modes. (The maximum frequency per resolution may differ from product to product.)
  • Page 52 Troubleshooting Check List Check the following items if there is trouble with the monitor. 1. Check if the power cord and the cable are properly connected to the computer. 2. Check if the computer beeps more than 3 times when booting.
  • Page 53 How can I change the frequency? How can I adjust the resolution? How can I set the Power Saving function? The monitor makes a sound when it is turned How can I clean the outer case/Picture tube? User’s Manual Answer Frequency can be changed by reconfiguring the video card.
  • Page 54 Answer Check the USB port of the monitor if there is a root port or a hub USB port connected to the main body of the computer. If it is not connected properly, the following message will appear and you cannot execute the program.
  • Page 55 Troubleshooting Q&A Question There is no Highlight Zone although I turned the Highlight Zone on. The Position, Size and the Zoom functions of the Highlight Zone do not work. Answer Check to see if the Contrast value of the Highlight Zone is 0 or if you changed the mode without closing the program.

  • Page 56: Self-Test Feature Check

    3. Turn on the monitor. If your monitor works normally, the following screen appears. Failure of any of the boxes to appear indicates a problem with your monitor. This box also appears during normal operation if the video cable becomes disconnected or damaged.

  • Page 57: Werning Messages

    If there is no image on the screen or an "Sync. Out of Range" message comes up, disconnect the cable from the computer while the monitor is still powered on. If there is a message coming up on the screen or if the screen goes white, this means the monitor is in working condition.

  • Page 58: Specifications

    Synchronization Horizontal Vertical Input Signal Definition Video Signal Sync Signal Display Color Unlimited SyncMaster 757p Full square type 17"(43cm) (40.6cm viewable) 90° 0.22 mm (Horizontal) Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Multi-layer coated with anti-static 312 ±...
  • Page 59 Storage Plug and Play Capability This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.
  • Page 60 Specifications General General Model Name Picture Tube Type Deflection angle Dot Pitch Screen type Maximum Flicker-Free Resolution 1600 Dots, 1200 Lines @76Hz Flicker-Free Display Active Display Horizontal Vertical Synchronization Horizontal Vertical Input Signal Definition Video Signal Sync Signal Display Color Unlimited SyncMaster 750p Full square type...
  • Page 61 Storage Plug and Play Capability This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.
  • Page 62 Specifications Preset Timing Modes If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

  • Page 63: Normal Operation

    This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you move the computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.
  • Page 64 Suite 201, Mt. Arlington, NJ 07856 Tel. : (973)601-6000, 1-800-SAMSUNG (1-800-726-7864) Fax. : (973)601-6001 http://samsungmonitor.com/ BRAZIL Samsung Eletronica da Amazonia Ltda.R. Prof. Manoelito de Ornellas, 303, Terro B Chacara Sto. Antonio, CEP : 04719-040 Sao Paulo, SP SAC : 0800 124 421 http://www.samsung.com.br/ CANADA Samsung Electronics Canada Inc.
  • Page 65 • Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm •...
  • Page 66 UL Listed personal computer with similar configuration. Before making the connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage rating. For 120 Volt applications, use only UL Listed detachable power cord with NEMA configuration 5-15P type (parallel blades) plug cap.
  • Page 67 Canada. • MPR II Compliance This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields. • European Notice (Europe only) Products with the CE Marking comply with both the EMC Directive (89/336/EEC), (92/31/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
  • Page 68 Nature. There are also other characteristics of a monitor, such as energy consumption levels, that are important from both the working and natural environment viewpoints. Since all types of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy.
  • Page 69 Information Regulatory TCO Development Unit 1996-11-29 On the page this folder you will find a brief summary of the environmental requirements met by this product. The complere environmental criteria document may be ordered from: TCO Development Unit S-11494 Stockholm Sweden Fax: +46 8 782 92 07 E-mail (Internet): development@tco.se Current information regarding TCO'95-approved and labelled products may also be obtained via the Internet, using the...
  • Page 70 User’s Manual Information Regulatory • TCO'99-Ecological requirements for personal computers (TCO applied model only) Congratulations! You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 71 User’s Manual Information Regulatory TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings.

  • Page 72: Natural Color

    The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
  • Page 73 Before Execution Check the USB port of the monitor if there is a root port or a hub USB port connected to the main body of the computer. If it is not connected properly, the following message will appear and you cannot execute the program.
  • Page 74 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
