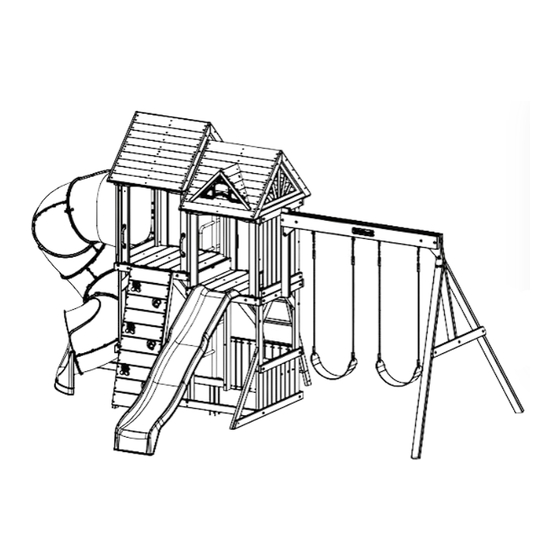

Page 1 [8' 11-1/2”] 2.73 m INSTALLATION AND OPERATING INSTRUCTIONS FOR 24/7 ONLINE PARTS REPLACEMENT 9409715 Rev 04/12/2023 parts.kidkraft.com parts.kidkraft.eu KidKraft, Inc. KidKraft Netherlands BV 4630 Olin Road Olympisch Stadion 8 TWO-PERSON ASSEMBLY TIME WARNING. ONLY FOR OUTDOOR ASSEMBLY 10 - 14 HOURS...
Page 2 Congratulations on purchasing a KidKraft product! Our items are made of high-quality, durable Cunninghamia Lanceolata wood from the cypress family. Lumber from these trees are known for their light weight and excellent strength. The porosity of this wood allows the moisture to absorb and evaporate in the fibers, resisting rot and bugs.
Page 3: Warnings And Safe Play Instructions
Orientate slide such that it gets the least amount of exposure to the sun. europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 4 6 ft. (1.8m) 6 ft. Denotes Use Zone with Protective Surfacing (1.8m) 6 ft. 6 ft. (1.8m) (1.8m) Use Zone for Single-Axis Swings Use Zone for Multi-Axis Swings From the CPSC Outdoor Home Playground Safety Handbook. At http://www.playgroundregs.com/resources/CPSC%20324.pdf customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 5: Instructions For Proper Maintenance
Instructions for Proper Maintenance Your KidKraft Play System is designed and constructed of quality materials with your child’s safety in mind. As with all outdoor products used by children, it will weather and wear. To maximize the enjoyment, safety and life of your Play Set, it is important that you, the owner, properly maintain it.
Page 6 About Our Wood KidKraft Premium Play Systems uses only premium playset lumber, ensuring the safest product for your children’s use. Although we take great care in selecting the best quality lumber available, wood is still a product of nature and susceptible to weathering which can change the appearance of your set.
Page 7 KidKraft Limited Warranty MISSING OR DAMAGED PARTS: KidKraft will replace any parts within 90 days from date of purchase found to be missing from or damaged in the original packaging. See Fig.1 Fig. 1 Product Age (All Parts) Consumer Pays...
Page 8: Tools Required
Washer larger than 1/4” (6.4mm). Note: Wafer head bolts with blue lock Flat tight or a bolt with a Ny-Lok nut do T-Nut Washer NOT require a lock washer. (Hammer into place) Do not crush wood! customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 9 5/8" x 5 3/8" x 32 15/16" 2x - 11256 - 15.9 mm x 136.5 mm x 729 mm - 35811256 5/8" x 5 3/8" x 28 11/16'' europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 10 1x - 11268 - 15.9 mm x 80.9 mm x 787.4 mm - 35811268 5/8'' x 3 3/16' x 31'' 1x - 11269 - 15.9 mm x 136.5 mm x 787.4 mm - 35811269 5/8'' x 5 3/8'' x 31'' customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 11 1 1/2" x 1 1/2" x 15 3/8" 1x - 11283 - 38.1 mm x 38.1 mm x 338 mm - 36411283 1 1/2" x 1 1/2" x 13 5/16" europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 12 2x - 1749 - 34.9 mm x 85.7 mm x 2019.3 mm - 3641749 1 3/8" x 3 3/8" x 79 1/2" 1x - 1755 - 25.4 mm x 88.9 mm x 1028.7 mm - 3641755 1" x 3 1/2" x 40 1/2" customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 13 28.6 mm x 422 mm x 796.9 mm 38.1 mm x 338.6 mm x 503 mm 1 1/8'' x 16 5/8'' x 31 3/8'' 1-1/2" x 13 5/16" x 19 13/16” europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 14 S37 - #7 x 5/8" - 52433009 70 x S7 - #12 x 2" - 52433620 25.4mm 15.9mm 50.8mm WL3 - 1/4 x 1-3/8" - 52613216 17 x WL5 - 1/4 x 2-1/2" - 52613222 6.4 x 34.9mm 6.4 x 63.5mm customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 15 G22 - 5/16 x 5" - 53703350 7.9 x 127mm 8 x G35 - 5/16 x 3-1/4" - 53703331 7.9 x 82.6mm 12 x G36 - 5/16 x 2-3/4" - 53703323 7.9 x 69.9mm europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 16 H7 - 1/4 x 5-1/2" - 53703252 6.4 x 139.7mm H8 - 1/4 x 4-1/4" - 53703241 6.4 x 108mm H10 - 1/4 x 2-1/4" - 53703221 6.4 x 57.2mm - 9200014 - #2 x 2 9200019 4.8mm customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 17 1x - 9320890SL 1x - 9200186 1x - 9320791 1x - 9320881 - 9320382 - 9320482 2x - 9200087 1x - 9330908 1x - 3330909 2 x - 52040302 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 18 1x - D1 (9200015) 1x - 1/8 x 3” (3.2 x 76.2mm) - 9300183 - 3310130 - 3310131 2x - (9200157) 31x - (54902200) 1x - 3310124 1x - 3310132 1x - (9200156) 1x - (53452209) 30x - (53453202) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 19: Order Replacement Parts
Inventory Parts - Read This Before Starting Assembly STOP STOP STOP STOP Inventory should be completed before starting installation. KidKraft will not cover costs of any additional installation trip due to missing or damaged pieces. This is the time for you to inventory all your hardware, wood and accessories, referencing the parts identification sheets.
Page 20 11241 Right 11241 Left Note hole orientation. Hammer T-Nut into the hole. 11241 Wood Parts Hardware 34.9 mm x 85.7 mm x 2209.8 mm (1 3/8” x 3 3/8” x 87”) 11241 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 21 Flush Wood Parts Hardware 25.4 mm x 76.2 mm x 791.4 mm (1” x 3” x 31 3/16”) 7.9 x 63.5 mm (5/16 x 2-1/2”) (LW2, FW2) 11258 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 22 Make sure the assembly is square. 11258 Flush Pre-assembled 11258 T-Nuts. Flush Wood Parts Hardware 25.4 mm x 76.2 mm x 791.4 mm (1” x 3” x 31 3/16”) 7.9 x 63.5 mm (5/16 x 2-1/2”) (LW2, FW2) 11258 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 23 Wood Parts Hardware 7.9 x 69.9 mm (5/16 x 2-3/4”) (LW2, FW2) 31.8 mm x 76.2 mm x 791.4 mm (1 1/4” x 3” x 31 3/16”) 11246 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 24 Hammer T-Nut into the hole! Hardware customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 25 31.8 mm x 76.2 mm x 1604.2 mm (1 1/4” x 3” x 63 3/16”) 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2, TN2) 11257 #8 x 63.5 mm (#8 x 2-1/2") europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 26 Wood Parts Hardware 34.9 mm x 85.7 mm x 2032 mm (1 3/8” x 3 3/8” x 80”) 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2, TN2) 11243 #8 x 63.5 mm (#8 x 2-1/2") customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 27 31.8 mm x 76.2 mm x 840.2 mm (1 1/4” x 3” x 33 1/16”) 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2, TN2) 11244 #8 x 63.5 mm (#8 x 2-1/2") europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 28 Wood Parts Hardware 31.8 mm x 76.2 mm x 833.8 mm (1 1/4” x 3” x 32 13/16”) 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2, TN2) 11284 #8 x 63.5 mm (#8 x 2-1/2") customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 29 23.8 mm x 108 mm x 808.4 mm (15/16” x 4 1/4” x 31 13/16”) #8 x 63.5 mm (#8 x 2-1/2") 11286 #8 x 76.2 mm (#8 x 3”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 30 11242 11242 Left Right 11242 Note hole orientation. Hammer T-Nuts into the hole. Wood Parts Hardware 34.9 mm x 85.7 mm x 2032 mm (1 3/8” x 3 3/8” x 80”) 11242 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 31 11259 Wood Parts Hardware 25.4 mm x 76.2 mm x 1342.8 mm (1” x 3” x 52 7/8”) 7.9 x 63.5 mm (5/16 x 2-1/2”) (LW2, FW2) 11259 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 32 Make sure the assembly is square. 11258 Flush Pre-assembled 11258 T-Nuts. Flush Wood Parts Hardware 25.4 mm x 76.2 mm x 791.4 mm (1” x 3” x 31 3/16”) 7.9 x 63.5 mm (5/16 x 2-1/2”) (LW2, FW2) 11258 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 33 Wood Parts Hardware 7.9 x 69.9 mm (5/16 x 2-3/4”) (LW2, FW2) 31.8 mm x 76.2 mm x 791.4 mm (1 1/4” x 3” x 31 3/16”) 11246 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 34 Flush Wood Parts Hardware 31.8 mm x 76.2 mm x 873.5 mm (1 1/4’’ x 3’’ x 34 3/8’’) 6.4 x 63.5 mm (1/4 x 2-1/2”) (FW1) 10374 6.4mm x 57.2mm (1/4 x 2-1/4”)(FW1, LW1, TN1) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 35 Hammer T-Nut into the hole! Hardware europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 36 Make sure the assembly is square. Flush Pre-assembled T-Nuts Hardware 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2) #8 x 63.5 mm (#8 x 2-1/2") customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 37 31.8 mm x 76.2 mm x 830.7 mm (1 1/4” x 3” x 32 11/16”) 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2, TN2) 11285 #8 x 63.5 mm (#8 x 2-1/2") europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 38 Wood Parts Hardware 31.8 mm x 76.2 mm x 837.1 mm (1 1/4” x 3” x 32 15/16”) 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2, TN2) 11245 #8 x 63.5 mm (#8 x 2-1/2") customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 39 15.9 mm x 85.7 mm x 514.3 mm (5/8” x 3 3/8” x 20 1/4”) 36 x #8 x 34.9 mm (#8 x 1-3/8”) 11287 15.9 mm x 63.5 mm x 514.3 mm (5/8” x 2 1/2” x 20 1/4”) 11289 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 40 15.9 mm x 85.7 mm x 514.3 mm (5/8” x 3 3/8” x 20 1/4”) 28 x #8 x 34.9 mm (#8 x 1-3/8”) 11287 15.9 mm x 101.6 mm x 514.3 mm (5/8” x 4” x 20 1/4”) 11288 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 41 38.1 mm x 38.1 mm x 735 mm (1 1/2” x 1 1/2” x 28 15/16”) 7.9 x 82.6 mm (5/16 x 3-1/4”) (LW2, FW2 x 2, LN2) 11262 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 42 11263 5/8" (15.9mm) 11263 Wood Parts Hardware 38.1 mm x 38.1 mm x 731.5 mm (1 1/2” x 1 1/2” x 28 13/16”) 7.9 x 82.6 mm (5/16 x 3-1/4”) (LW2, FW2 x 2, LN2) 11263 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 43 11265 Wood Parts Hardware 25.4 mm x 63.5 mm x 714 mm (1” x 2 1/2” x 28 1/8”) #12 x 50.8 mm (#12 x 2”) 11265 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 44 25.4 mm x 125 mm x 725.8 mm (1” x 4 15/16” x 28 9/16”) #12 x 50.8 mm (#12 x 2”) 11264 15.9 mm x 136.5 mm x 787.4 mm (5/8’’ x 5 3/8’’ x 31’’) 11269 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 45 Flush Wood Parts Hardware 31.8 mm x 63.5 mm x 805 mm (1 1/4” x 2 1/2” x 31 11/16”) #8 x 76.2 mm (#8 x 3”) 11261 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 46 Hammer T-Nut into the hole! Hardware customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 47 (15.9mm) Wood Parts Hardware 31.8 mm x 63.5 mm x 742 mm (1 1/4” x 2 1/2” x 29 3/16”) #8 x 76.2 mm (#8 x 3”) 11260 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 48 Note: Structure partly removed for clarity. Flush Wood Parts Hardware 7.9 x 69.9 mm (5/16 x 2-3/4”) (LW2, FW2, TN2) 31.8 mm x 76.2 mm x 791.4 mm (1 1/4” x 3” x 31 3/16”) 11252 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 49 34.9 mm x 85.7 mm x 901.7 mm (1 3/8” x 3 3/8” x 35 1/2”) 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2, TN2) 11292 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 50 15.9 mm x 136.5 mm x 787.4 mm (5/8’’ x 5 3/8’’ x 31’’) #8 x 34.9 mm (#8 x 1-3/8”) 11267 15.9 mm x 80.9 mm x 787.4 mm (5/8’’ x 3 3/16’ x 31’’) 11268 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 51 11266 Wood Parts Hardware 15.9 mm x 136.5 mm x 787.4 mm (5/8’’ x 5 3/8’’ x 31’’) 20 x #8 x 34.9 mm (#8 x 1-3/8”) 11266 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 52 Tight Tight 11267 11269 x 5 per board 11267 Wood Parts Hardware 15.9 mm x 136.5 mm x 787.4 mm (5/8’’ x 5 3/8’’ x 31’’) 10 x #8 x 34.9 mm (#8 x 1-3/8”) 11267 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 53 11266 Wood Parts Hardware 15.9 mm x 136.5 mm x 787.4 mm (5/8’’ x 5 3/8’’ x 31’’) 20 x #8 x 34.9 mm (#8 x 1-3/8”) 11266 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 54 10800 Flush Flush Underneath View Wood Parts Hardware 31.8 mm x 76.2 mm x 384.1 mm (1 1/4’’ x 3’’ x 15 1/8’’) 7.9 x 76.2 mm (5/16 x 3”) (FW2 x 2, LW2, LN2) 10800 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 55 Note: Structure partly removed for clarity. 10800 10800 10800 10800 Pre-drill each hole using a 1/8" drill bit for WL5. 10800 10800 Underneath View Hardware 6.4 x 63.5 mm (1/4 x 2-1/2”) (FW1) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 56 Underneath View 10799 Flush 10799 Flush Wood Parts Hardware 31.8 mm x 76.2 mm x 330.2 mm (1 1/4” x 3” x 13”) 7.9 x 76.2 mm (5/16 x 3”) (FW2 x 2, LW2, LN2) 10799 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 57 10799 10799 10799 10799 10799 10799 Pre-drill each hole using a 1/8" drill bit for WL5. 10799 Underneath View Hardware 6.4 x 63.5 mm (1/4 x 2-1/2”) (FW1) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 58 Note hole orientation Flush 11250 11250 11250 Tight Wood Parts Hardware #8 x 76.2 mm (#8 x 3”) 31.8 mm x 76.2 mm x 825.5 mm (1 1/4” x 3” x 32 1/2”) 11250 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 59 Hammer T-Nut into the hole. Hardware Hardware europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 60 Flush 11251 11251 11251 11251 11251 Tight Wood Parts Hardware 12 x #8 x 76.2 mm (#8 x 3”) 31.8 mm x 76.2 mm x 860.4 mm (1 1/4” x 3” x 33 7/8”) 11251 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 61 31.8 mm x 85.7 mm x 860.4 mm (1 1/4” x 3 3/8” x 33 7/8”) 11253 31.8 mm x 76.2 mm x 791.4 mm (1 1/4” x 3” x 31 3/16”) 11254 #8 x 50.8mm (#8 x 2”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 62 31.8 mm x 76.2 mm x 837.1 mm (1 1/4” x 3” x 32 15/16”) 11247 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2, TN2) 7.9 x 63.5 mm (5/16 x 2-1/2”) (LW2, FW2, TN2) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 63 31.8 mm x 76.2 mm x 825.5 mm (1 1/4” x 3” x 32 1/2”) #8 x 22.2 mm (#8 x 7/8”) 2 x 9206570 11250 7.9 x 63.5 mm (5/16 x 2-1/2”) (LW2, FW2, TN2) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 64 Hardware 31.8 mm x 76.2 mm x 805.3 mm (1 1/4” x 3” x 31 11/16”) 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2) 11248 7.9 x 63.5 mm (5/16 x 2-1/2”) (LW2, FW2, TN2) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 65 7.9 x 120.7 mm (5/16 x 4-3/4”) (LW2, FW2) 31.8 mm x 76.2 mm x 805.3 mm (1 1/4” x 3” x 31 11/16”) 11249 7.9 x 63.5 mm (5/16 x 2-1/2”) (LW2, FW2, TN2) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 66 15.9 mm x 85.7 mm x 822.2 mm (5/8” x 3 3/8” x 32 3/8”) 28 x #8 x 34.9 mm (#8 x 1-3/8”) 11290 15.9 mm x 101.6 mm x 822.2 mm (5/8” x 4” x 32 3/8”) 11291 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 67 Hardware 38.1 mm x 136.5 mm x 1765.3 mm (1 1/2” x 5 3/8” x 69 1/2”) 6.4 x 140 mm (1/4 x 5-1/2”) (FW1, LW1, TN1) 1772 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 68 Failure to do so could Open side of result in premature failure of the Hook faces swing hanger or swing chain. backward Other Parts 9201563 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 69: Front View
9200182 1772 SW Beam Front FRONT VIEW 1/2” 9/16” 12.8mm 14.2mm Other Parts Hardware 2 x 9200182 7.9 x 50.8 mm (5/16 x 2”) (FW2 x 2, LN2) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 70 SW Beam Back 1773 Note hole orientation Wood Parts Hardware 38.1 mm x 136.5 mm x 1765.3 mm (1 1/2” x 5 3/8” x 69 1/2”) 6.4 x 140 mm (1/4 x 5-1/2”) (FW1, LW1, TN1) 1773 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 71 Failure to do so could Open side of result in premature failure of the Hook faces swing hanger or swing chain. backward Other Parts 2 x 9201563 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 72 9200182 9200182 1773 SW Beam Back 9200182 Rotated View 1/2” Use the 12.8mm outermost hole FRONT VIEW 9/16” 14.2mm Other Parts Hardware 2 x 9200182 7.9 x 50.8 mm (5/16 x 2”) (FW2 x 2, LN2) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 73 7.9 x 120.7 mm (5/16 x 4-3/4”) (FW2 x 2, LN2) 1755 34.9 mm x 85.7 mm x 1117.6 mm (1 3/8” x 3 3/8” x 44”) 1756 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 74 1749 1749 1756 1749 Wood Parts Hardware 34.9 mm x 85.7 mm x 2019.3 mm (1 3/8” x 3 3/8” x 79 1/2”) 7.9 x 101.6 mm (5/16 x 4”) (FW2 x 2, LN2 ) 1749 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 75 Tighten all bolts. Hardware 7.9 x 120.7 mm (5/16 x 4-3/4”) (FW2 x 2, LN2) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 76 Note both metal plates face inside 1773 1772 Wood Parts Hardware 34.9 mm x 85.7 mm x 136.5 mm (1 3/8” x 3 3/8” x 5 3/8”) 6.4 x 108 mm (1/4 x 4-1/4”) (LW1, FW1, TN1) 4919 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 77 Side with Overhang 1772 Hardware 7.9 x 50.8 mm (5/16 x 2”) (FW2 x 2, LN2) 7.9 x 127 mm (5/16 x 5”) ( FW2 x 2, LN2) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 78 Note: Structure partly removed for clarity. 1772 1772 Hardware 7.9 x 50.8 mm (5/16 x 2”) (FW2 x 2, LN2) 7.9 x 127 mm (5/16 x 5”) ( FW2 x 2, LN2) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 79 Center Note: Structure partly removed for clarity. 3320353 Center 3320353 Hardware Other Parts 1 x 3320353 #6 x 25.4 mm (#6 x 1”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 80: Inside View
38.1 mm x 38.1 mm x 390 mm (1 1/2” x 1 1/2” x 15 3/8”) #12 x 50.8 mm (#12 x 2”) (FW0) 11282 38.1 mm x 38.1 mm x 338 mm (1 1/2” x 1 1/2” x 13 5/16”) 11283 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 81 11281 Wood Parts Hardware 38.1 mm x 38.1 mm x 523 mm (1 1/2’’ x 1 1/2’’ x 20 9/16’’) #8 x 76.2 mm (#8 x 3”) 11281 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 82 #8 x 34.9 mm (#8 x 1-3/8”) 11278 15.9 mm x 85.7 mm x 462 mm (5/8’’ x 3 3/8’’ x 18 3/16’’) 11279 15.9 mm x 85.7 mm x 290 mm (5/8’’ x 3 3/8’’ x 11 7/16’’) 11280 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 83: End View
34.9 mm x 63.5 mm x 1307.3 mm (1 3/8” x 2 1/2” x 51 1/2”) 11276 23.8 mm x 76.2 mm x 418 mm (15/16” x 3” x 16 7/16”) 11060 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 84 11277 11277 KidKraft logo located on the bottom. 2 1/4" (57.2mm) Flush Wood Parts Hardware #8 x 34.9 mm (#8 x 1-3/8”) 15.9 mm x 76.2 mm x 456.5 mm (5/8” x 3” x 18”) 11277 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 85 Pre-drill each hole using a 1/8" drill bit for WL5. Note: Structure partly removed for clarity. Center in the opening Flush Flush Hardware 6.4 x 63.5 mm (1/4 x 2-1/2”) (FW1) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 86 #12 x 50.8 mm (#12 x 2”) 11272 15.9 mm x 136.5 mm x 457 mm (5/8’’ x 5 3/8’’ x 18’’) 11273 15.9 mm x 136.5 mm x 457 mm (5/8’’ x 5 3/8’’ x 18’’) 11274 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 87 9320195 9320195 9320295 9320295 9320195 Hardware Other Parts 7.9 x 32 mm (5/16 x 1-1/4”) (FW0, LW1, BN1) 9320295 #8 x 25.4 mm (#8 x 1”) 9320195 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 88 Note: Structure partly removed for clarity. Center in the opening Flush Flush Pre-drill each hole using a 1/8" drill bit for WL5. Hardware 6.4 x 63.5 mm (1/4 x 2-1/2”) (FW1) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 89 Pre-drill S7 holes using a 1/8” drill bit. Flush 11273 Hardware #8 x 34.9 mm (#8 x 1-3/8”) #12 x 50.8 mm (#12 x 2”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 90 Complete this step four times 3310121 3310121 Hardware Other Parts 32 x 6.3 x 19 mm (1/4 x 3/4”) (LN1) 3310121 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 91 3310130 3310131 Hardware Other Parts 6.3 x 19 mm (1/4 x 3/4”) (LN1) 3310130 3310131 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 92 3310124 3310121 Hardware Other Parts 3310124 6.3 x 19 mm (1/4 x 3/4”) (LN1) 3310121 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 93 53453202 54902200 54902200 53453202 53453202 54902200 Align each elbow using the molded arrows. 54902200 53453202 Other Parts 54902200 1/4” x 12.7mm 53453202 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 94 53453202 54902200 54902200 53453202 53453202 54902200 Align each elbow using the molded arrows. 54902200 53453202 Other Parts 18 x 54902200 18 x 1/4” x 12.7mm 53453202 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 95 Use a 7/16” open end wrench to hold nut and then tighten bolt with Quadrex Driver. 3310124 3310121 3310132 3310121 3310132 Hardware Other Parts 6.4 x 19 mm (1/4 x 3/4”) (LN1) 3310132 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 96 Tighten all slide bolts before the clamp rings go on in the next step. 54902200 54902200 53453202 53453202 54902200 53453202 54902200 53453202 54902200 53453202 Align each elbow using the molded arrows. 54902200 53453202 Other Parts 54902200 1/4” x 12.7mm 53453202 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 97 90 degrees to install 9300130 9300130 bolts. Hardware Other Parts 10 x 6.4 x 25.4 mm (1/4 x 1”) (LN1) 10 x 9300130 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 98 1” deep. Pre-drill S7 holes using a 1/8” drill bit. Making sure the pre-drilled holes are a minimum of 1” deep. Hardware 10 x #12 x 25.4mm (#12 x 1”) #12 x 50.8mm (#12 x 2”) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 99 Install PB6 (1/4 x 1” Pan Bolt) with flat washer (FW0) Hardware Other Parts 6.4 x 25.4 mm (1/4 x 1”) (FW0) 9200158 #12 x 25.4mm (#12 x 1”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 100 31.8 mm x 76.2 mm x 880.8 mm (1 1/4’’ x 3’’ x 34 11/16’’) #8 x 63.5mm (#8 x 2-1/2”) 11270 31.8 mm x 76.2 mm x 510 mm (1 1/4’’ x 3’’ x 20 1/16’’) 11271 6.4 x 108mm (1/4 x 4-1/4”)(FW1, LW1, TN1) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 101 Hardware Other Parts #7 x 15.87mm (#7 x 5/8”) 54902200 9200157 #12 x 25.4mm (#12 x 1”) 1/4 x 14.5mm 9200156 53452209 #8 x 50.8mm (#8 x 2”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 102 7310149-1 Note: Pre-drill all holes using a 1/8” drill bit before installing the pan screws. Place Slide centered in the opening. 7310149-1 7310149-1 Other Parts Hardware 1 x 7310149-1 #12 x 50.8 mm (#12 x 2”) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 103 11294 Wood Parts Hardware 31.8 mm x 69.9 mm x 800 mm (1 1/4’’ x 2 3/4’’ x 31 1/2’’) #8 x 76.2 mm (#8 x 3”) 11294 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 104 Complete this step twice Flush 11293 Flush Wood Parts Hardware 31.8 mm x 49 mm x 934 mm (1 1/4’’ x 1 15/16’’ x 36 3/4’’) #8 x 76.2 mm (#8 x 3”) 11293 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 105: Top View
31.8 mm x 371.2 mm x 796.9 mm (1 1/4’’ x 14 5/8’’ x 31 3/8’’) 9465 31.8 mm x 364.8 mm x 796.9 mm (1 1/4’’ x 14 3/8’’ x 31 3/8’’) 9480 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 106 9466 9466 Tight Tight x 2 per side Tight Wood Parts Hardware #8 x 50.8mm (#8 x 2”) 28.6 mm x 422 mm x 796.9 mm (1 1/8’’ x 16 5/8’’ x 31 3/8’’) 9466 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 107 Complete this step twice Flush Hardware 16 x #8 x 50.8 mm (#8 x 2”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 108 Complete this step twice 9200647 9200632 9200632 9200647 Hardware Other Parts 36 x #8 x 22.2 mm (#8 x 7/8”) 9200632 12 x 9200647 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 109 11295 Wood Parts Hardware 31.8 mm x 69.9 mm x 103 mm (1 1/4’’ x 2 3/4’’ x 4 1/16’’) #8 x 76.2 mm (#8 x 3”) 11295 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 110 38.1 mm x 338.6 mm x 503 mm (1-1/2” x 13 5/16” x 19 13/16”) #8 x 22.2 mm (#8 x 7/8”) 3330504 38.1 mm x 338.6 mm x 503 mm (1-1/2” x 13 5/16” x 19 13/16”) 9200632 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 111 (355mm) 9122 Wood Parts Hardware 34.9 mm x 85.7 mm x 254 mm (1 3/8” x 3 3/8” x 10”) #8 x 50.8 mm (#8 x 2”) 9122 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 112 11295 Hardware #8 x 63.5 mm (#8 x 2-1/2") customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 113 11256 11256 Wood Parts Hardware 15.9 mm x 136.5 mm x 729 mm (5/8” x 5 3/8” x 28 11/16’’) #8 x 34.9 mm (#8 x 1-3/8”) 11256 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 114 Note: Structure partly removed for clarity. 11294 11293 11294 Flush Center Hardware #8 x 76.2 mm (#8 x 3”) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 115 Rotated View Flush 11295 11295 Note: Structure partly removed for clarity. Hardware #12 x 50.8 mm (#12 x 2”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 116 Note: Structure partly removed for clarity. 11293 Flush Center Hardware #8 x 76.2 mm (#8 x 3”) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 117: Inside View
Note: Structure partly removed for clarity. 11256 11256 Inside View Hardware #8 x 34.9 mm (#8 x 1-3/8”) europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 118 Note: Structure partly removed for clarity. Hidden 9330518 9330518 Center in the opening 9330518 Inside View Hardware Other Parts 18 x #8 x 22.2 mm (#8 x 7/8”) 2 x 9330518 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 119 Wood Parts Hardware 15.9 mm x 136.5 mm x 837.1 mm (5/8” x 5 3/8” x 32 15/16”) #8 x 34.9 mm (#8 x 1-3/8”) 11255 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 120 11255 Underneath View Do not attach screw for this hole Wood Parts Hardware 15.9 mm x 136.5 mm x 837.1 mm (5/8” x 5 3/8” x 32 15/16”) #8 x 34.9 mm (#8 x 1-3/8”) 11255 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 121 Pre-drill each hole using a 1/8" drill bit for WL3. Note: Structure partly removed for clarity. 9320040 9320040 6” (152mm) 9320040 Hardware Other Parts 6.4 x 34.9 mm (1/4 x 1-3/8”) (FW1) 9320040 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 122 Pre-drill each hole using a 1/8" drill bit for WL3. Note: Structure partly removed for clarity. 9320040 9320040 9320040 6” (152mm) Hardware Other Parts 6.4 x 34.9 mm (1/4 x 1-3/8”) (FW1) 9320040 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 123 Note: Structure partly removed for clarity. Slide [9330908] tight beside [3330909] on the left. Hardware Other Parts 3330909 #6 x 15.9 mm (#7 x 5/8”) 52040302 9320881 9320382 9330908 9320482 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 124 Note: Structure partly removed for clarity. 9320791 Underneath View Center Underneath View 9320888SL 9320889SL 9320890SL Hardware Other Parts #8 x 22.2 mm (#8 x 7/8”) 9320888SL 9320791 9320889SL 9320890SL customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 125 POUR LES ENFANTS DE 3 À 10 ANS D'ÂGE; limite de 110 Livres par enfant. Nombre maximum d’ utilisateurs, installation et d'utilisation; d'autres informations sont disponibles sur: removed for clarity. www.KidKraft.com Contact us at: KidKraft Dallas, TX 75244 USA 1-800-933-0771 Tracking Number: Número Numèro de Suivi:...
Page 126 13" In Ground In Ground In Ground 13" (330mm) (330mm) (330mm) In Ground (330mm) Rotated View Hardware Other Parts #12 x 25.4 mm (#12 x 1”) 7 x 9290318 #12 x 50.8 mm (#12 x 2”) customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 127 9200166 9200166 3200157 9200166 3200157 3200157 Hardware Other Parts 6.4 mm x 50.8 mm (1/4 x 2”)(FW1 ,LN1) 9200166 3200157 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 128 Make sure the Fireman Pole is straight and that the bottom of the pole is inserted into the ground as needed. Hardware Other Parts 7.9 x 50.8 mm (5/16 x 2”) (LW2, FW2 x 2, LN2) 9200186 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 129 Hammer U-Style Ground Stakes into the holes in the plate until they are fully anchored into the ground. 9200087 9200087 Other Parts 2 x 9200087 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 130 Note: Structure partly removed for clarity. 9206570 x 3 per bracket Hardware Other Parts #8 x 22.2 mm (#8 x 7/8”) 3 x 9206570 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
Page 131 Note: Structure partly removed for clarity. 9206570 x 3 per bracket Hardware Other Parts #8 x 22.2 mm (#8 x 7/8”) 3 x 9206570 europecustomerservice@kidkraft.com parts.kidkraft.eu +31 20 305 8620 M-F from 09:00 to 17:30 (GMT+1)
Page 132 3724943 3724943 3724943 Note: Structure partly removed for clarity. Other Parts 2 x 3724943 customerservice@kidkraft.com parts.kidkraft.com 1.800.933.0771 972.385.0100...
