Euro Style NORNA-79 Assembly Instructions Manual

Assembly Instructions

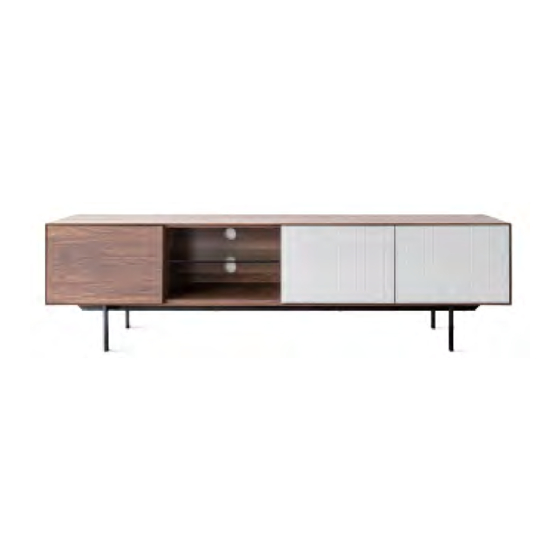

NORNA-79 Media Stand
A (12 pcs) B (24 pcs)
8x35mm 15x12mm
F (12 pcs) G (16 pcs)
4x15mm 6x20mm
K (24 pcs) L (24 pcs)
6x10x2mm 6x14x2mm
3.28.22 so
C (24 pcs) D (3 pcs)
7x35mm 3x12mm
H (8 pcs) I (2 pcs)
6x55mm 6.5x47mm 4x70x50mm
M (4 pcs) N (12 pcs)
20mm
E (9 pcs)
3.5x12mm
J (1 pc) P (3 pcs)
T (4 pcs)
O (3 pcs)

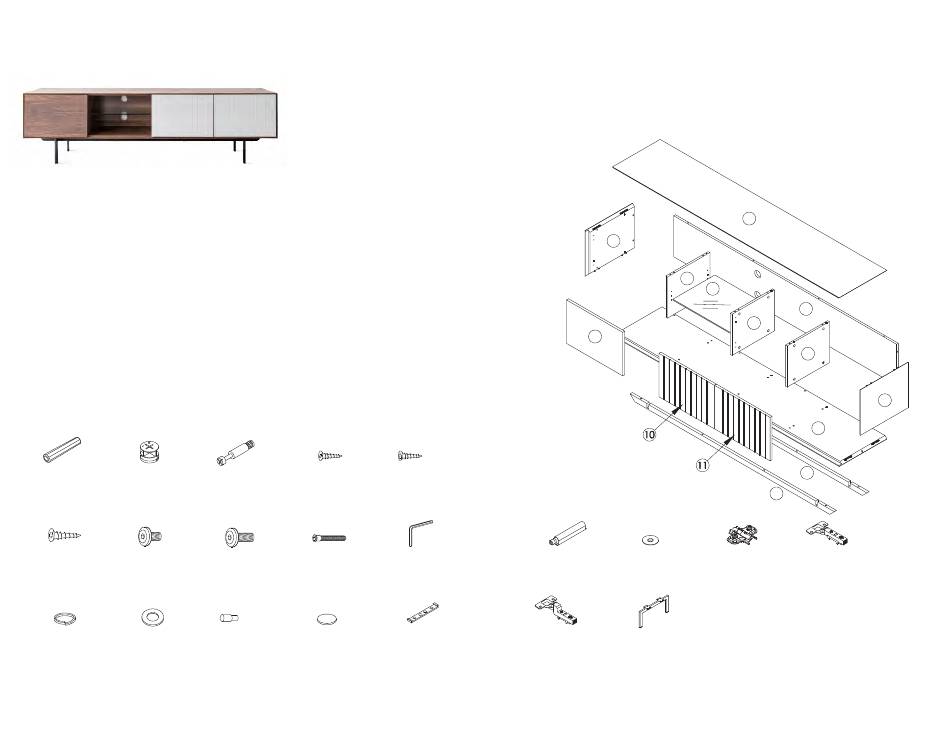

PLEASE NOTE: Check that you have received all
components and hardware before assembling.
If you are missing any parts, contact your retailer.
1
3
5
8
6
9
13
Q (3 pcs) R (6 pcs)
U (2 pcs)
410x200x63mm
During assembly, hand tighten screws only. When
the screws are in place, tighten completely.
12
7
4
2
13
S (2 pcs)
1 of 8
