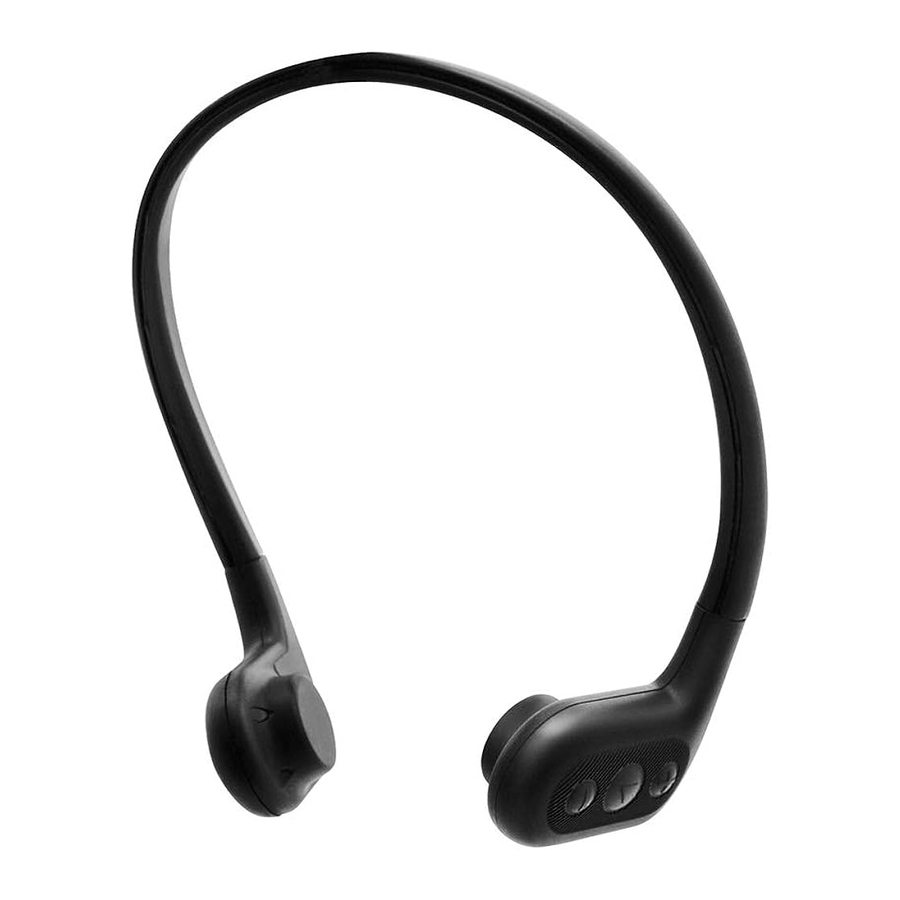

Tayogo WB02 - Bone Conduction Waterproof Smart Headset Manual

Key Features

1. 8GB memory Mp3 player supporting most of music file.
2. Water resistant IPX68 which can all the headset to be used 5 meters under water.
3. Bluetooth headset.
4. Equipped with bone conduction speakers, the headset lets you hear sounds from both the speakers and the surrounding environment.
5. with built-in FM to reach your favorite FM channels.
6. with APP to control the headset easily.
7. Steps record function.

What are bone conduction headphones

Skull Auditory ossicle Cochlea Auditory nerve

1. While ordinary headphones convey sounds through the eardrums, bone conduction headphones convey sounds by conducting vibrations directly to the auditory ossicles and cochlea through the skull.
2. Since they do not cover the ears, you can enjoy music coming from the headphones and still hear sounds from the surrounding environment. This feature reduces the strain on the eardrums as compared to ordinary headphones that cover the ears.

About Water Resistance

1. This product has water resistance of IPX68, which can be used up to 5 meters under water for up to 5 hours.
2. Don't use it over 5 meters deep, Don't use it when deep diving.
3. The headphone jack lid is not water resistant, water going into the jack does not affect the product as we have water resistance for inside conduction.
4. Please wash the product with clean water after swimming, open the cover and make it dry indoor.
5. Please charge or connect to PC after the product is totally dry. If you charge while the jack is wet, it will be dangerous and manufactory is not responsible.

Product Specification

Music file support: MP3, WMA, APE, FLAC, WAV
Memory: 8GB
Bluetooth: Version 4.2
Interface: 2.5mm Jack
Battery: Li-ion battery 300mA
Speaker: Bone conduction Speaker
Playing time: up to 5 hours (for MP3 mode),up to 4 hours(for Bluetooth mode), up to 3 hours (for FM mode)
Dimension: L149×W130×H50mm
Weight: 58Gram

Package includes

Parts

1. Next/Volume +
2. Power/Play/Pause
3. Prev/Volume -
4. Interface: 2.5 mm Jack
5. LED Indicator

MP3 playing blinks blue (order play/shuffle play blinks fast or slowly)
Pause is full blue; FM playing blinks yellow, searching channels blinks fast
Pause is full yellow; Charging blinks red; Charging fully is full blue;
Low battery blinks red fast for 30 seconds and turns off.

Before Usage

Charging

Remove the interface lid, plug the jack with attached USB cable, connect to the PC port or 5V 1A USB adapter; Charging time is around 2 hours.
Copy music: Connect the USB cable to computer, click"my computer", find"Tayogo WB01", copy your music from computer and paste to"Tayogo WB01".

Wearing

Wear the product per the picture, headphone with buttons is on your right hand. Put the headphones on your skull.

Install Anti-shock sticker

If you fell the speaker vibrating too strongly, install the stickers on your headphones.

Install Anti-shock rings

Put the anti-shock rings on the headphones to reduce the vibration.

Adjust the frame size

The frame is made by flexible and strong PP material. You can bend to enlarge it if you feel the frame too tightly.
Note: Please don't bend the connection part which is fragile and will break the frame.

Swimming buds

If you go swimming, please use it before going water, which will avoid water going into your ears, and increase the sound quality under water.
Note: Swimming buds is with L and R mark for left or right ear.

Tayogo WB02 includes: Bluetooth Headset, MP3 Playing, FM Playing, Sports & APP Operation

Tayogo APP

Search "Tayogo" in iOS APP store or Google Play Store (for Android), download and run. Easily add or add your playlist, switch from different playing mode and check your sports record.

Pair Tayogo Force with your mobile phone, run the App and bind Tayogo WB02. Register first with your mobile phone number (please select your country code) and you can log in the App to conrol the Tayogo WB02.

MP3 Playing Mode

Press and hold the volume + button to switch between Bluetooth pairing / MP3 / FM radio modes
To Copy Music files onto the Tayogo MP3 player:

1. Remove 2.5MM jack lid, connect it with the attached cable to the USB port of your computer.
2. Go to "my computer" and locate the "WB02" device. Drag and drop your favorite music files (in either. APE, .FLAC, .MP3, .WAV or. WMA file formats) onto the "WB02" device.
   The music files can be stored in separate folders or all together at the root directory level.
   There is 8GB of storage space available on the Tayogo WB02 MP3 player.
   Note: The device can also be used as a USB thumb drive to store files.

   Increase the headphone volume
   Press twice to advance to the next song; Press and hold for 3 seconds to change between Bluetooth pairing, MP3 player and FM radio modes.
   Decrease the headphone volume
   Press twice to advance to the previous song; Press and hold for 3 seconds to switch between play in order, shuffle or play single song (repeat) modes.

FM Radio Mode

Press and hold the Volume + button to switch between Bluetooth pairing / MP3 / FM radio modes
NOTE: This is not a professional FM radio. The number of stations that the device is able to tune and receive will vary by location. Only local stations broadcasting with a strong signal can be received.

Increase the headphone volume
Press twice to advance to the next FM frequency; Press and hold for 3 seconds to change between Bluetooth pairing, MP3 player and FM radio modes.
Decrease the headphone volume;
Press twice to advance to the previous FM frequency; Press and hold for 3 seconds to search all the FM frequecncies available

Using the Device as a Hands Free Headset

The button:
Press the button once to accept an in-coming phone call.
Press the button twice to reject an in-coming call or to re-dial the last number
Press the button to end a call (while talking)
Press and hold for 3 seconds to power the Tayogo Force off.

Note: Phone calls from your Bluetooth paired smart phone take priority and will override both the MP3 player and FM radio mode functionality.
Note: If the Tayogo experiences a connection issue or stops playing MP3 songs/FM radio, you can restart the headphones by pressing and holding the button for 8 seconds.
Note: If the device is not Bluetooth connected to a smartphone, it will automatically power itself off after no movement is detected for a period of 5 minutes.

My Sports

Tayogo WB02 will start recording steps once power on. You can see your steps at APP after synchronisation. Also can be shared at WeChat groups.

Note: Please update your steps record data by Tayogo App daily. The headset will overwrite prvious record and will save only TODAY's record. While Tayogo APP can store your every day's record.

Tayogo Technology Manufactory
Add: 5F Block F, No. 8 East, Shangxue Tech. Park, Bantian, Shenzhen, China
Tel: +86 755 8939 5050
Fax: +86 755 8939 7785
E-mail: sales@tayogo.com
Website: www.tayogo.com
