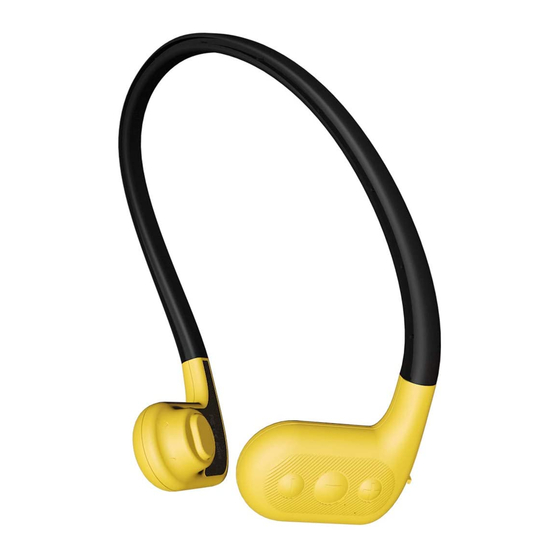

tayogo WB02 Instruction Manual

Using the Device as a "Hands Free" Headset
The button:
Press the button once to accept an in-coming phone call.
Press the button twice to reject an in-coming call or to re-dial the last number
Press the button to end a call (while talking)
Press and hold for 3 seconds to power the Tayogo Force off.
Bone Conduction Waterproof
Note: Phone calls from your Bluetooth paired smart phone take priority and will override
both the MP3 player and FM radio mode functionality.
Smart Headset Instruction Manual
Note: If the Tayogo experiences a connection issue or stops playing MP3 songs/FM radio,
you can restart the headphones by pressing and holding the button for 8 seconds.
Note: If the device is not Bluetooth connected to a smartphone, it will automatically power
itself off after no movement is detected for a period of 5 minutes.
Model: WB02
My Sports
Tayogo WB02 will start recording steps once power on. You can see your steps at
APP after synchronisation. Also can be shared at WeChat groups.
Note: Please update your steps record data by Tayogo App daily. The headset will over-
write prvious record and will save only TODAY's record. While Tayogo APP can store your
every day's record.
Thank you for purchase this product.Please
read these instructions carefully before using
this product, and save this manual for future
use.
Key Features
1.8GB memory Mp3 player supporting most of music file.
2.Water resistant IPX68 which can all the headset to be used 5 meters under water.
3.Bluetooth headset.
4.Equipped with bone conduction speakers, the headset lets you hear sounds from both the
speakers and the surrounding environment.
5.with built-in FM to reach your favorite FM channels.
6.with APP to control the headset easily.
7.Steps record function.
What are bone conduction headphones?
1.While ordinary headphones convey sounds through the eardrums, bone
conduction headphones convey sounds by conducting vibrations directly to the
auditory ossicles and cochlea through the skull.
2.Since they do not cover the ears, you can enjoy music coming from the
headphones and still hear sounds from the surrounding environment. This
feature reduces the strain on the eardrums as compared to ordinary
headphones that cover the ears.
Skull Auditory ossicle Cochlea Auditory nerve
Skull
(Temporal bone)
Vibration
Auditory ossicle
Auditory nerve
Cochlea
Eardrum
About Water Resistance
1.This product has water resistance of IPX68, which can be used up to 5 meters
under water for up to 5 hours.
2.Don't use it over 5 meters deep, Don't use it when deep diving.
3.The headphone jack lid is not water resistant, water going into the jack does not
affect the product as we have water resistance for inside conduction.
4.Please wash the product with clean water after swimming, open the cover and
make it dry indoor.
5.Please charge or connect to PC after the product is totally dry. If you charge while
the jack is wet, it will be dangerous and manufactory is not responsible.
Product Specification
Music file support: MP3, WMA, APE, FLAC, WAV
Memory: 8GB
Bluetooth: Version 4.2
Interface: 2.5mm Jack
Battery: Li-ion battery 300mA
Speaker: Bone conduction Speaker
Playing time: up to 5 hours (for MP3 mode),up to 4 hours(for Bluetooth mode)
up to 3 hours (for FM mode)
Dimension: L149×W130×H50mm
Weight: 58Gram
Package includes
USB Cable 1pc
Bone conduction MP3 1pc
Swimming buds 2pcs
Carrying bag 1pc
Anti-shock Sticker 2pcs
Anti-shock ring 2pcs
Tayogo Technology Manufactory
Add : 5F Block F, No. 8 East, Shangxue Tech. Park, Bantian,
Shenzhen, China
Tel : +86 755 8939 5050 Fax : +86 755 8939 7785
E-mail : sales@tayogo.com
Website : www.tayogo.com
