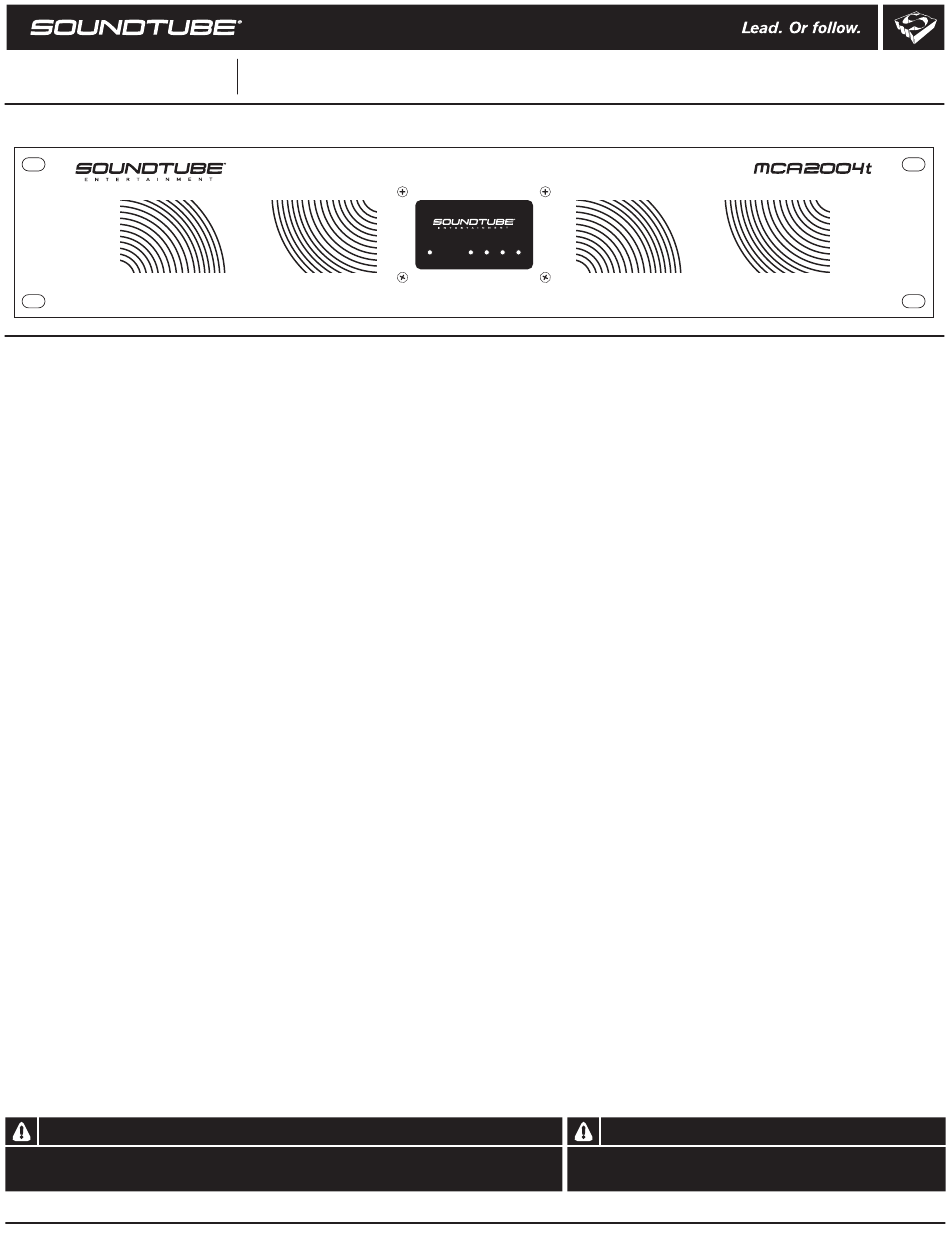

SoundTube MCA2004t Installation Manual

MCA2004t
MCA2004t, AUDIO DISTRIBUTION AMPLIFIER INSTALLATION MANUAL

FEATURES:

• 200W at 8 ohms direct or 70V, 100V constant voltage outputs
• 100W at 4 ohms direct or 25V constant voltage output
• 4 channel class D amplifier
• Matrix mixer connects inputs to outputs
• Selectable 70Hz high pass and low pass filtering
• 2 switchable subwoofer channels with 120Hz low pass and
120Hz selectable high pass filtering
• Euroblock balanced and unbalanced inputs
• Selectable auto signal sense and deep sleep trigger modes
• Peak-clipping limiter
• High current euroblock output connectors
• Forced air cooling with variable speed thermostatically controlled fan
• Overload, short circuit, DC offset, and thermal protection circuits
• Power/sleep, limiting and protection LED indicators
• Compact 2U rack space chassis
• Selectable amp status monitoring
Warning
SoundTube amplifiers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
MCA2004t
© 2022 SoundTube Entertainment, Inc. All rights reserved. Rev2.24.23
Install Instructions For:
MCA2004t

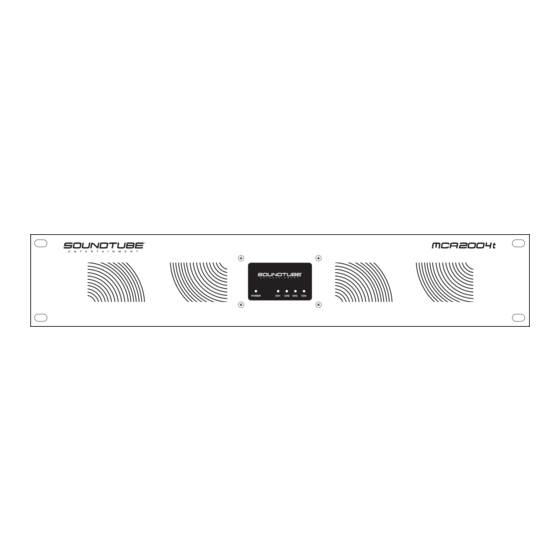

POWER CH1 CH2 CH3 CH4

DESCRIPTION:

The SOUNDTUBE MCA2004t audio distribution amplifier is a high-
performance audio amplifier that is designed for continuous use in commer-
cial and professional applications. The high efficiency Class " D" amplifier
design offers high performance in a compact design.
Performance features of the SOUNDTUBE MCA2004t amplifier a re f l exible
audio input connections for both balanced and unbalanced audio signals.
The amplifier input uses two removable euroblock style connectors to
interface with the input source. The amplifier's input routing feature allows
the distribution of the input signal to the selected output. This feature
allows all connected speakers to be driven by a single or multiple sources.
The amplifier offers 70Hz switchable h igh p ass filters to a v o i d over dr iven
bass distortion and speaker line transformer saturation from low frequencies.
"SUB" or subwoofer mode is another feature offered by the MCA2004t. This
mode allows Channel 1 and Channel 2 to be switchable subwoofer outputs.
This mode applies a 120Hz low pass filter to either, or both Channel 1 and
Channel 2 and allows for a 120Hz high pass filter to the remaining channels.
When this mode is selected for a particular channel, the output impedance
will be automatically changed to 4 ohms.
This amplifier has auto signal sense or a deep sleep trigger, as well as
an auxiliary port used to remotely monitor the health of the amplifier.
The SOUNDTUBE MCA2004t's
temperature, short circuit, DC offset, and current overload protection.
This amplifier i s designed to provide long term reliability of operation and
includes several features to ensure many years of trouble-free operation.
Warning
Do not spec or install amplifier near support beam, ventilation duct or
other structure that may interfere with amplifier function or dispersion.
protection circuitry
|
913.663.5600 www.mseaudio.com
includes
