D-Link DIR-816 Quick Installation Manual

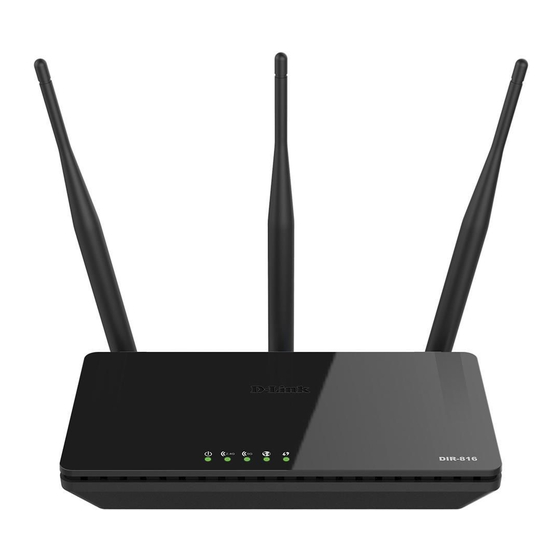

Wireless ac750 dual band router with 3g/lte support and usb port
Hide thumbs Also See for DIR-816:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Installation Guide
DIR-816
Wireless AC750 Dual Band Router with 3G/LTE
Support and USB Port

Advertisement

Table of Contents
loading

Related Manuals for D-Link DIR-816

Summary of Contents for D-Link DIR-816

  • Page 1 Quick Installation Guide DIR-816 Wireless AC750 Dual Band Router with 3G/LTE Support and USB Port...

  • Page 2: Before You Begin

    If any of the items are missing, please contact your reseller. The “User Manual” and “Quick Installation Guide” documents are available on D-Link website (see www.dlink.ru). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.

  • Page 3: Default Settings

    Network key (PSK password) bottom panel of the device Router DIR-816 with default settings cannot connect to the Internet. To get started, please set your own password for access to the web-based interface and change the WLAN name (SSID); then, if needed,...

  • Page 4: System Requirements And Equipment

    DIR-816 Quick Installation Guide System Requirements and Equipment A computer with any operating system that supports a web browser. • A web browser to access the web-based interface of the router: • ◦ Apple Safari 8 and later ◦ Google Chrome 48 and later ◦...

  • Page 5: Pc With Ethernet Adapter

    DIR-816 Quick Installation Guide CONNECTING TO PC PC with Ethernet Adapter 1. Make sure that your PC is powered off. 2. Connect an Ethernet cable between any of LAN ports located on the back panel of the router and the Ethernet port of your PC.
  • Page 6 DIR-816 Quick Installation Guide Obtaining Address Automatically in OS Windows XP 1. Click the Start button and proceed to the Control Panel > Network and Internet Connections > Network Connections window. 2. In the Network Connections window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed.
  • Page 7 DIR-816 Quick Installation Guide 4. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 5. Click the ОК button in the connection properties window. Now your computer is configured to obtain an IP address automatically.
  • Page 8 DIR-816 Quick Installation Guide Obtaining Address Automatically in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 9 DIR-816 Quick Installation Guide 6. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 7. Click the OK button in the connection properties window. Now your computer is configured to obtain an IP address automatically.

  • Page 10: Pc With Wi-Fi Adapter

    DIR-816 Quick Installation Guide PC with Wi-Fi Adapter 1. To connect via USB modem: connect your USB modem to the USB port located on the back panel of the router. In some cases you will need to reboot the router after connection of the USB modem.

  • Page 11: Configuring Wi-Fi Adapter In Os Windows Xp

    3. Search for available wireless networks. 4. In the opened Wireless Network Connection window, select the wireless network DIR-816 (for operating in the 2.4GHz band) or DIR- 816-5G (for operating in the 5GHz band) and click the Connect button. 5. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Network key and Confirm network key fields and click the Connect button.

  • Page 12: Configuring Wi-Fi Adapter In Os Windows 7

    DIR-816 Quick Installation Guide Configuring Wi-Fi Adapter in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 13 Quick Installation Guide 6. In the opened window, in the list of available wireless networks, wireless network DIR-816 (for operating in the 2.4GHz band) or DIR-816-5G (for operating in the 5GHz band) and click the Connect button. 7. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Security key field and click the OK button.

  • Page 14: Configuring Router

    DIR-816 Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface Start a web browser. In the address bar of the web browser, enter the IP address of the router (by default, the following IP address is specified: 192.168.0.1). Press the Enter key.
  • Page 15 DIR-816 Quick Installation Guide If you configured the device previously, after access to the web-based interface the login page opens. Enter the username (admin) in the Username field and the password you specified in the Password field, then click the LOGIN button.
  • Page 16 DIR-816 Quick Installation Guide The Summary page displays general information on the router and its software.
  • Page 17 DIR-816 Quick Installation Guide The Home page displays links to the most frequently used pages with device's settings. Other settings of the router are available in the menu in the left part of the page. Go to the relevant section and select the needed page or run the wizard...

  • Page 18: Initial Configuration Wizard

    DIR-816 Quick Installation Guide Initial Configuration Wizard In order to start the Initial Configuration Wizard manually, go to the Initial Configuration section. Click the OK button and wait until the factory default settings are restored. Then click the START button.

  • Page 19: Selecting Operation Mode

    DIR-816 Quick Installation Guide Selecting Operation Mode In order to connect your device to a wired ISP, on the Device mode page, from the Connection method list, select the Wired connection value. Then from the Work mode list select the Router value. In this mode you can configure a WAN connection, set your own settings for the wireless network in the 2.4GHz and 5GHz bands, configure LAN ports to connect an STB or VoIP...
  • Page 20 DIR-816 Quick Installation Guide In order to connect your device to a wireless ISP (WISP), on the Device mode page, from the Connection method list, select the Wi-Fi value. Then from the Work mode list select the WISP Repeater value. In this mode you can connect your device to another access point, configure a WAN connection, set your own settings for the wireless network in the 2.4GHz and...

  • Page 21: Creating 3G/Lte Wan Connection

    DIR-816 Quick Installation Guide Creating 3G/LTE WAN Connection This configuration step is available for the 3G/LTE modem mode. 1. If the PIN code check is enabled for the SIM card inserted into your USB modem, enter the PIN code in the PIN field and click the APPLY button.

  • Page 22: Changing Lan Ipv4 Address

    This configuration step is available for the Access point, Repeater, and Client modes. 1. If the LAN IPv4 address of DIR-816 coincides with the LAN IPv4 address of the router to which it connects, then set another LAN IPv4 address of DIR-816 in the IP address field.
  • Page 23 DIR-816 Quick Installation Guide Wi-Fi Client This configuration step is available for the WISP Repeater, Repeater, and Client modes. 1. On the Wi-Fi Client page, in the Wireless Networks section, select the network to which you want to connect. When you select a network, the Network name (SSID) and BSSID fields are filled in automatically.

  • Page 24: Configuring Wired Wan Connection

    DIR-816 Quick Installation Guide Configuring Wired WAN Connection This configuration step is available for the Router and WISP Repeater modes. You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection.
  • Page 25 DIR-816 Quick Installation Guide PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoE + Dynamic IP (PPPoE Dual Access): Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.
  • Page 26 DIR-816 Quick Installation Guide PPTP + Dynamic IP or L2TP + Dynamic IP: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.
  • Page 27 DIR-816 Quick Installation Guide If your ISP uses MAC address binding, select the Clone MAC address of your device checkbox. If the Internet access is provided via a VLAN channel, select the Use VLAN checkbox and fill in the VLAN ID field.

  • Page 28: Configuring Wireless Network

    DIR-816 Quick Installation Guide Configuring Wireless Network This configuration step is available for the 3G/LTE modem, Router, Access point, WISP Repeater, and Repeater modes. 1. On the Wireless Network 2.4 GHz page, in the Network name field, specify your own name for the wireless network in the 2.4GHz band or leave the value suggested by the router.
  • Page 29 DIR-816 Quick Installation Guide 4. If you want to create an additional wireless network isolated from your LAN in the 2.4GHz band, select the Enable guest network checkbox (available for the 3G/LTE modem, Router, and WISP Repeater modes only). 5. In the Network name field, specify your own name for the guest wireless network or leave the value suggested by the router.

  • Page 30: Configuring Lan Ports For Iptv/Voip

    DIR-816 Quick Installation Guide Configuring LAN Ports for IPTV/VoIP This configuration step is available for the Router and WISP Repeater modes. 1. On the IPTV page, select the Is an STB connected to the device checkbox. 2. Select a free LAN port for connecting your set-top box.

  • Page 31: Changing Web-Based Interface Password

    DIR-816 Quick Installation Guide Changing Web-based Interface Password On this page you should change the default administrator password. You may set any password except admin. Use digits, Latin letters (uppercase and/or lowercase), and other characters available in the US keyboard layout.

  • Page 32: Configuring Local Area Network

    DIR-816 Quick Installation Guide Configuring Local Area Network Go to the Connections Setup / LAN page. If needed, change the IPv4 address of the router's LAN interface and the mask of the local subnet. To do this, click the IPv4 tab and specify needed values in the IP address and Subnet mask fields in the IP section.
  • Page 33 DIR-816 Quick Installation Guide IPv4 address assignment. By default, the built-in DHCP server of the router assigns IPv4 addresses to the devices of the LAN. If you want to manually assign IPv4 addresses, disable the DHCP server (click the IPv4 tab and select the Disable value from the Mode drop-down list in the DHCP section).

  • Page 34: Specifications

    DIR-816 Quick Installation Guide SPECIFICATIONS Hardware · MT7620A (580MHz) Processor · 64MB, DDR2 · 16MB, SPI Flash · 10/100BASE-TX WAN port Interfaces · 4 10/100BASE-TX LAN ports · USB 2.0 port · POWER LEDs · 2.4G WLAN · 5G WLAN ·...
  • Page 35 DIR-816 Quick Installation Guide Software · Support of IEEE 802.1X for Internet connection Network functions · DHCP server/relay · DHCPv6 server (Stateful/Stateless), IPv6 prefix delegation · DNS relay · Support of DNSv6 AAAA records · Dynamic DNS · Static IP routing ·...
  • Page 36 DIR-816 Quick Installation Guide Software · Local and remote access to settings through TELNET/WEB Management (HTTP/HTTPS) · Bilingual web-based interface configuration management (Russian/English) · Notification on connection problems and auto redirect to settings · Firmware update via web-based interface ·...
  • Page 37 DIR-816 Quick Installation Guide Wireless Module Parameters · 802.11a (typical at room temperature 25 °C) Transmitter output 15dBm at 6, 9, 12, 18, 24, 36, 48, 54Mbps power · 802.11b (typical at room temperature 25 °C) The maximum value of 15dBm at 1, 2, 5.5, 11Mbps...
  • Page 38 DIR-816 Quick Installation Guide Wireless Module Parameters Receiver sensitivity · 802.11a (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C) -93dBm at 6Mbps -92dBm at 9Mbps -91dBm at 12Mbps -90dBm at 18Mbps -86dBm at 24Mbps -84dBm at 36Mbps...
  • Page 39 DIR-816 Quick Installation Guide Wireless Module Parameters -90dBm at MCS2 -86dBm at MCS3 -84dBm at MCS4 -78dBm at MCS5 -77dBm at MCS6 -75dBm at MCS7 5GHz, HT40 -90dBm at MCS0 -89dBm at MCS1 -87dBm at MCS2 -84dBm at MCS3 -79dBm at MCS4...
  • Page 40 DIR-816 Quick Installation Guide Wireless Module Parameters HT80 -85dBm at MCS0 -84dBm at MCS1 -83dBm at MCS2 -80dBm at MCS3 -76dBm at MCS4 -72dBm at MCS5 -70dBm at MCS6 -68dBm at MCS7 -63dBm at MCS8 -61dBm at MCS9 · Modulation schemes 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM...
  • Page 41 DIR-816 Quick Installation Guide Supported USB modems · Alcatel X500 · D-Link DWM-152C1 · D-Link DWM-156A6 · D-Link DWM-156A7 · D-Link DWM 156A8 · D-Link DWM-156C1 · D-Link DWM-157B1 · D-Link DWM-157B1 (Velcom) · D-Link DWM-158D1 · D-Link DWR-710 ·...
  • Page 42 DIR-816 Quick Installation Guide Supported USB modems · Huawei E3131 · Huawei E3272 · Huawei E3351 · Huawei E3372 · Huawei E367 · Huawei E392 · Megafon M100-1 · Megafon M100-2 · Megafon M100-3 · Megafon M100-4 · Megafon M150-1 ·...

  • Page 43: Safety Rules And Conditions

    DIR-816 Quick Installation Guide SAFETY RULES AND CONDITIONS Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged. The device should be used only as intended in accordance with the documents.

  • Page 44: Technical Support

    Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e- mail/Internet.
