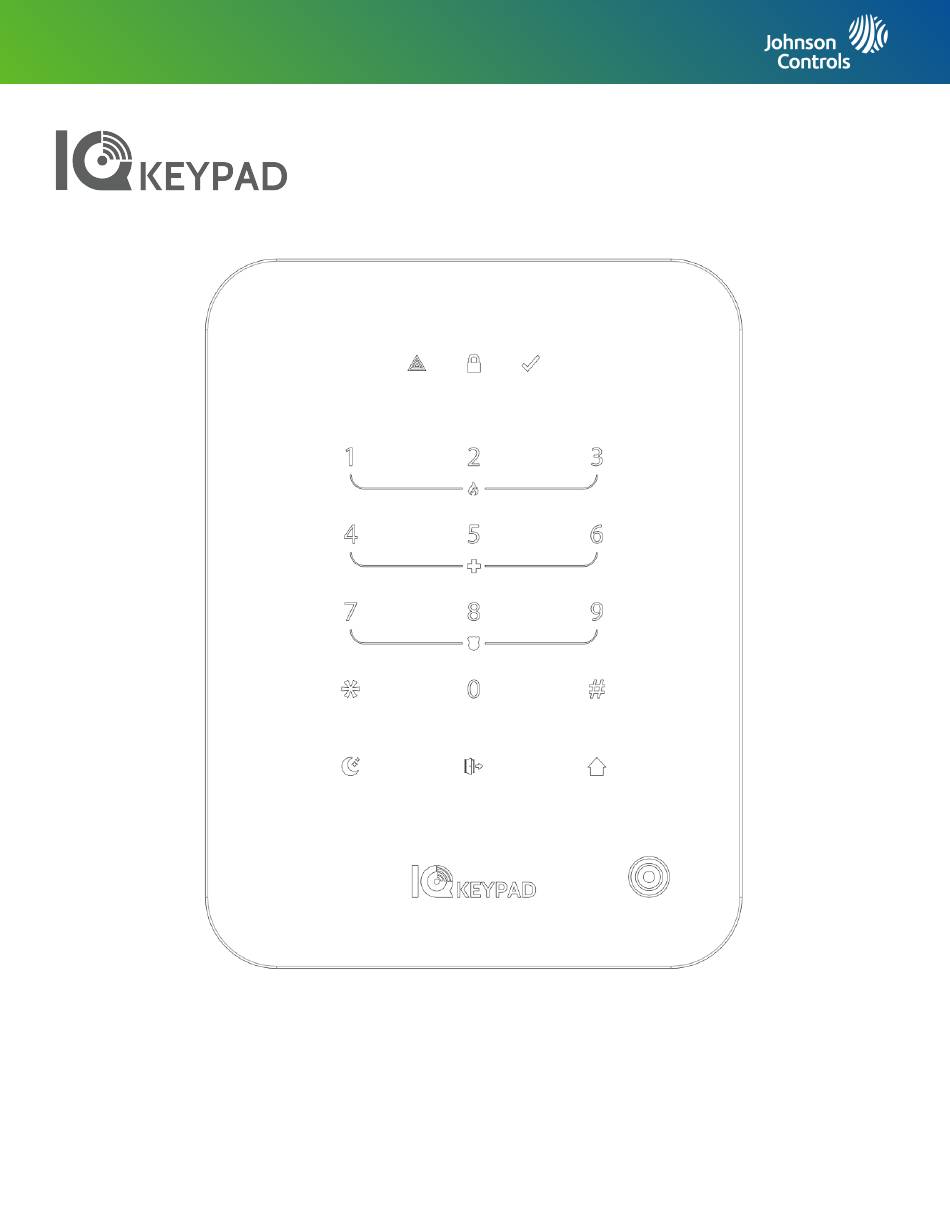

IQ KEYPAD USER GUIDE
IQ Keypad is a battery powered, capacitive touch keypad for use with compatible IQ4 NS, IQ4 Hub &
IQ Panel 4 platforms via the PowerG protocol. It provides an easy and intuitive interface to control
basic features of the system. This manual covers both IQ Keypad-PG and IQ Keypad Prox-PG models.
Document: IQKP-UG
Version: 1.0.0
Date: 06/09/2023
Advertisement
Table of Contents
Related Manuals for Johnson Controls IQ KEYPAD
Summary of Contents for Johnson Controls IQ KEYPAD
- Page 1 IQ KEYPAD USER GUIDE IQ Keypad is a battery powered, capacitive touch keypad for use with compatible IQ4 NS, IQ4 Hub & IQ Panel 4 platforms via the PowerG protocol. It provides an easy and intuitive interface to control basic features of the system. This manual covers both IQ Keypad-PG and IQ Keypad Prox-PG models.
- Page 2 Armed Status Disarmed Status Trouble LED Fire Emergency (1+3) Hold for 2 sec Aux Emergency (4+6) Hold for 2 sec Police Emergency (7+9) Hold for 2 sec Arm Night Arm Stay Arm Away Prox Tag Reader (IQ Keypad Prox-PG only)
- Page 3 No Trouble System Trouble FLASHING Keypad Low Battery ARMING KEYS: Arming keys are the primary way of controlling the system from the IQ Keypad. Description Arm Stay Arm Away Arm Night NOTE: Press and hold arming keys for two seconds. If successful, the Armed Status LED will flash twice. If communication is not successful, the keypad flashes all keypad number LED’...
- Page 4 PROX TAG SUPPORT: For “IQ Keypad Prox-PG” models that support Prox Tags, you may Arm with a Prox Tag in place of a 4 - 6 digit code if Secure Arming is enabled and by pressing the Arming icon of choice, followed by presenting your tag in front of the bullseye icon on the lower right hand side of the keypad.
- Page 5 PARTITION ARMING: The Hash Menu on the IQ Keypad allows access to Partition Arming functionality. It may also act as a “Home” button to back out of any button press activity and start over. See table below for a list of functions.
- Page 6 LEGAL FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 7 LEGAL ISED CANADA RF EXPOSURE STATMENT This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and any part of your body.
