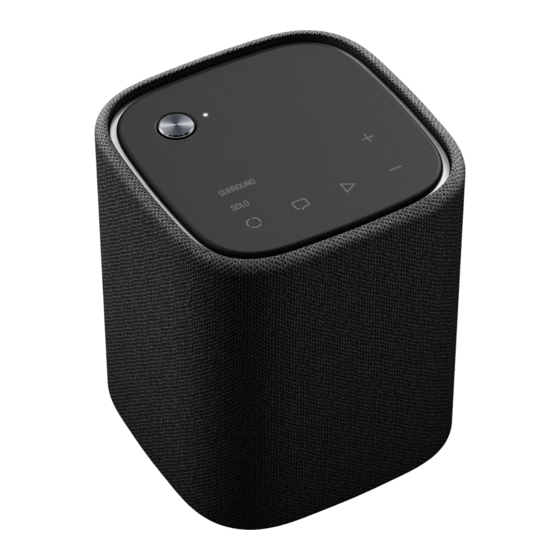

Yamaha TRUE X SPEAKER 1A User Manual

Hide thumbs Also See for TRUE X SPEAKER 1A:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Wireless Speaker
EN
WS-X1A

Advertisement

Table of Contents
loading

Related Manuals for Yamaha TRUE X SPEAKER 1A

Summary of Contents for Yamaha TRUE X SPEAKER 1A

  • Page 1 User Guide Wireless Speaker WS-X1A...

  • Page 2: Table Of Contents

    CONTENTS CONTENTS INTRODUCTION  3 About the provided manuals............... 3 Features.................... 4 ACCESSORIES  5 Included accessories.................. 5 PART NAMES AND FUNCTIONS  6 Top controls/Front.................. 6 Rear/Bottom....................  7 PREPARATION  8 Charging the unit.................. 8 Turning the unit on and off (standby)............ 9 USING THIS UNIT AS A BLUETOOTH® SPEAKER  11 Listening to audio from a Bluetooth device..

  • Page 3: Introduction About The Provided Manuals

    This document explains basic connection methods and operations. User Guide (this manual) This guide explains all functions of this unit. This guide is only provided on the Yamaha website. TRUE X SURROUND Connection and Operation Guide This guide explains the connection method when using this unit as a surround speaker for the sound bar.

  • Page 4: Features

    In addition to using this unit as a Bluetooth speaker, you can also use it as a surround speaker for your home theater by connecting it to a Yamaha sound bar. Using this unit as a Bluetooth speaker You can use the unit as a Bluetooth speaker by connecting it to a smartphone or other mobile device.

  • Page 5: Accessories Included Accessories

    ACCESSORIES > Included accessories ACCESSORIES Included accessories Make sure you have received all of the following accessories: USB cable (for charging this unit; 1 m, Type-A to Type-C) (×1) Additional Information (TRUE X SURROUND) (×1) Quick Start Guide (×1) Safety Brochure (×1)

  • Page 6: Part Names And Functions

    The unit’s mode changes each time this button is pressed. The SURROUND or SOLO lamp shows the selected mode. SOLO: This mode is used when using this unit alone as a Bluetooth speaker (p.11). SURROUND: This mode is used when using the unit in combination with a Yamaha sound bar (p.13). Q (Clear Voice) button and lamp Enable or disable the Clear Voice function.

  • Page 7: Rear/Bottom

    USB port (Type-C) Connect the included USB cable (for charging this unit) (p.8). Charging terminal (bottom) Use when charging the unit by placing it on a charging cradle (Yamaha CC-T1A; sold separately). Related links “Playing surround sound of the sound bar” (p.13)

  • Page 8: Preparation Charging The Unit

    Use a commercially available USB power adapter that can output DC 5 V (2 A or more) when charging the unit. A charging cradle (Yamaha CC-T1A; sold separately) can also be used to charge the unit. CAUTION Do not charge the unit when it is wet. Charging with liquid or foreign matter on the terminals may cause fire, explosion, battery fluid leakage, electric shock, or malfunction.

  • Page 9: Turning The Unit On And Off (Standby)

    PREPARATION > Turning the unit on and off (standby) Turning the unit on and off (standby) To turn the unit on/off, follow the instructions below. 1 ・ ・ ・ 2 ・ ・ ・ Press and hold the power button to turn the power on. The power lamp flashes to inform you of the remaining battery level.
  • Page 10 PREPARATION > Turning the unit on and off (standby) NOTE This unit will automatically switch to standby in any of the following situations (Auto Standby): When SOLO mode is selected No playback and no control operations for 20 minutes or more No control operations for eight hours or more, regardless of playback When SURROUND mode is selected Not connected to the sound bar for 20 minutes or more...

  • Page 11: Using This Unit As A Bluetooth® Speaker

    On the Bluetooth device, enable the Bluetooth function. On the Bluetooth device, select this unit (Yamaha WS-***) from the list of available devices to connect to. The model name of your product (X1A) is displayed in place of ***. If a passkey is required, enter the number “0000”.
  • Page 12 USING THIS UNIT AS A BLUETOOTH® SPEAKER > Listening to audio from a Bluetooth device Start playback of audio on the Bluetooth device. Related links “PART NAMES AND FUNCTIONS” (p.6)

  • Page 13: Using This Unit As A Surround Speaker

    Playing surround sound of the sound bar Real surround sound can be achieved just by using this unit as a surround speaker for the sound bar. For information on compatible Yamaha sound bars and connection methods, visit the following website: https://manual.yamaha.com/av/truexsur/...

  • Page 14: Troubleshooting

    “Restarting or initializing (factory reset) the unit” (p.22) If the unit still does not function properly even after doing so, turn off the unit and contact the nearest authorized Yamaha dealer or service center. When this unit is connected to the sound bar See also the following guide when this unit is connected to a sound bar.
  • Page 15 TROUBLESHOOTING > When a problem occurs The unit cannot be charged/It takes a long time to charge A USB power adapter that is not compatible with the unit is being used. Use a USB power adapter that can output DC 5 V (2 A or more). “Charging the unit” (p.8) The USB power adapter’s output is not stable.
  • Page 16 TROUBLESHOOTING > When a problem occurs The unit cannot be turned on The power button is not being pressed and held. To turn on the unit, press and hold the power button for at least three seconds. “Turning the unit on and off (standby)” (p.9) The remaining battery level is low.
  • Page 17 The rechargeable battery in the unit has deteriorated. If the unit turns off immediately even after fully charging, the rechargeable battery may be deteriorated. Contact the nearest authorized Yamaha dealer or service center.
  • Page 18 TROUBLESHOOTING > When a problem occurs The unit cannot be connected to a Bluetooth device The name of this unit is not displayed in the list of available devices to connect to on the Bluetooth device. Try disabling and re-enabling the Bluetooth function of the Bluetooth device. The name of this unit may then be displayed.
  • Page 19 TROUBLESHOOTING > When a problem occurs No sound The unit and Bluetooth device are not connected. Connect to the Bluetooth device. “Listening to audio from a Bluetooth device” (p.11) The volume is too low Turn up the volume. “Top controls/Front” (p.6)
  • Page 20 TROUBLESHOOTING > When a problem occurs Broken, distorted, or unusual sound is heard from the unit The volume is too high. Turn down the volume. “Top controls/Front” (p.6) Electromagnetic waves being emitted from devices using the 2.4 GHz frequency band (such as microwave ovens or wireless routers) are obstructing the wireless communication.
  • Page 21 TROUBLESHOOTING > When a problem occurs Noise is emitted from electronic devices installed near the unit The Bluetooth connection is unstable. Install this unit away from electronic devices.

  • Page 22: Restarting Or Initializing (Factory Reset) The Unit

    TROUBLESHOOTING > Restarting or initializing (factory reset) the unit Restarting or initializing (factory reset) the unit If the unit does not function properly after following the instructions described in “When a problem occurs”, restart or initialize (factory reset) the unit. Restarting the unit Press and hold the power button for at least 10 seconds to restart the unit.

  • Page 23: List Of Lamp Displays

    TROUBLESHOOTING > List of lamp displays List of lamp displays The status of this unit is shown by the color of the lamp (white, blue, or orange) and by glowing/flashing. Power lamp Power status Status of the unit Solution In the process of starting up ―...
  • Page 24 * If an error occurs and the unit does not function properly even after following the instructions to solve the problem, turn off the unit and contact the nearest authorized Yamaha dealer or service center. When the unit is connected to the sound bar See also the following guide when this unit is connected to a sound bar.

  • Page 25: Appendix Specifications

    APPENDIX > SPECIFICATIONS APPENDIX SPECIFICATIONS Bluetooth Bluetooth version Bluetooth Version 5.0 Supported profiles A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) Maximum communication range 10 m (33 ft) (without interference) Power Built-in rechargeable battery Lithium-ion battery Continuous playback time SOLO mode: approx.

  • Page 26: Trademarks

    APPENDIX > Trademarks Trademarks The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Yamaha Corporation is under license. Other trademarks and trade names are those of their respective owners.
  • Page 27 Stylesheet Name: 01_YMH_PDF_Manual_A5_AV_En-Multi Layout Folder: YMH_PDF_Manual_A5_AV Stylesheet Version: 2022.12.12 Yamaha Global Site https://www.yamaha.com/ Yamaha Downloads https://download.yamaha.com/ © 2023 Yamaha Corporation Published 07/2023 NV-A0 AV21-0061...
