VG2791R Series
LCD Monitor
User Guide

Advertisement

loading

  Related Manuals for Asus VG2791R Series

  Summary of Contents for Asus VG2791R Series

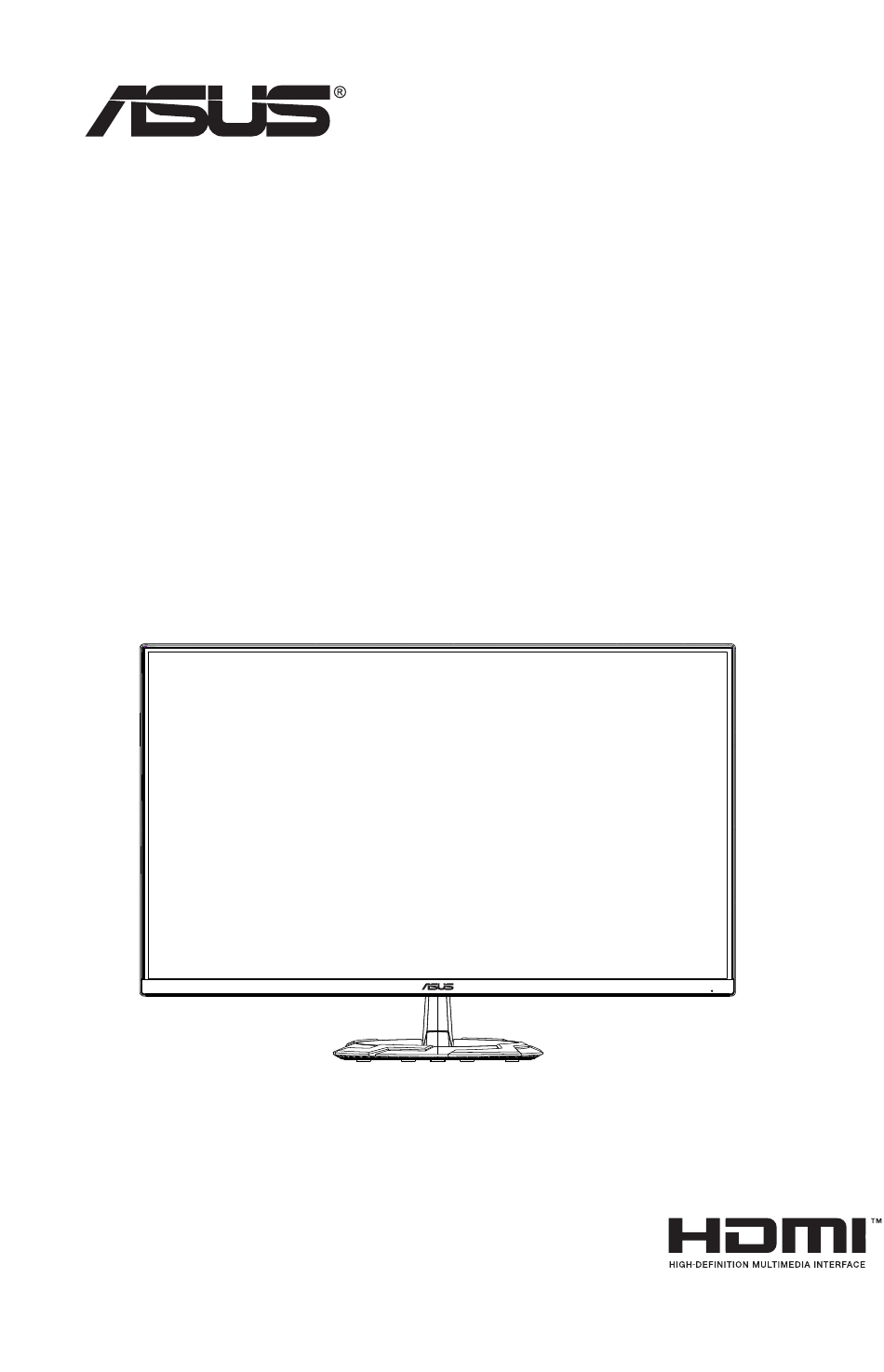

  • Page 1 VG2791R Series LCD Monitor User Guide...
  • Page 2: Table Of Contents

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
  • Page 3: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.
  • Page 4 Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to ra n or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • Page 5: Care & Cleaning

    WARNING Usage of other than specifie head- or earphones can result in hearing loss due to excessive sound pressures. Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor.
  • Page 6 Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
  • Page 7: Welcome

    ® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...
  • Page 8: Assembling The Monitor

    Assembling the monitor To assemble the monitor: Place the display flat on a cloth on the table, Then attach the base to the arm and fix with the screw to join them tightly. You can easily tighten the screw by fingers. Adjust the monitor to the angle that is most comfortable for you. -5 ~ 22 Outline dimension Unit: mm [inch] Chapter 1: Product Introduction...
  • Page 9: Connect Cables

    Connect cables 1.5.1 Rear of the LCD monitor DC-IN Port Audio - out Port HDMI 2 Port HDMI 1 Port DisplayPort Port ASUS LCD Monitor VG2791R Series...
  • Page 10: Monitor Introduction

    Monitor introduction 1.6.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. Menu Close Power Off GamePlus GameVisual Power Indicator: • The color definition of the power indicator is as the below table. Status Description White...
  • Page 11 • function needed. Press to go off, and exit. GamePlus GamePlus — Main Menu Crosshair GamePlus GamePlus Crosshair (Practice Mode) Timer FPS Counter Display Alignment GamePlus — GamePlus — Timer FPS counter GamePlus GamePlus ASUS LCD Monitor VG2791R Series...
  • Page 12 GameVisual Function The GameVisual function helps you select among different picture modes in a convenient way. To active GameVisual: Press the GameVisual hotkey repeatedly to select. • Scenery Mode: This is the best choice for scenery photo displaying with GameVisual Video intelligence Technology.
  • Page 13: Detaching The Arm/Stand (For Wall Mount)

    Figure 2 • The wall mount kit ( 75 x 75 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 12 kg (Screw size: M4 x 10 mm). ASUS LCD Monitor VG2791R Series...
  • Page 14: Adjusting The Monitor

    Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle.
  • Page 15: Osd (On-Screen Display) Menu

     or  buttons, according to the indicators on the menu, to make your changes. Select the to return to previous menu or to accept and return to previous menu. ASUS LCD Monitor VG2791R Series...
  • Page 16: Osd Function Introduction

    3.1.2 OSD Function Introduction Gaming ASUS TUF Gaming VG2791R Gaming Racing Mode DisplayPort 1920x1080@ 144Hz OD(Tracefree) GameVisual GamePlus Adaptive-Sync/FreeSync Premium ELMB S h a do w B oo st OD(Tracefree): Improves the gray level response time of the LCD panel.
  • Page 17 Contrast: The adjusting range is from 0 to 100. • VividPixel: Enhances the outline of the displayed picture and generates • high-quality images on screen. ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • Aspect Control: Adjusts the aspect ratio to Full, or 4:3 • •...
  • Page 18 Color Set a desired color setting from this menu. ASUS TUF Gaming VG2791R Color Racing Mode DisplayPort 1920x1080@ 144Hz Colo r Temp. Sa tura tion Skin To ne Color Temp : Contains 4 modes including Cool, Normal, Warm, and •...
  • Page 19 Sound: Sets the sound related settings from this menu. •. Volume: The adjusting range is from 0 to 100. Mute: Toggles the monitor sound between on and off. ECO.Mode: reduces power consumption. •. Power.Indicator: Turn the power LED indicator on/off. •. ASUS LCD Monitor VG2791R Series...
  • Page 20 Power.Key.Lock: Enables or disables the power key. •. Key.Lock: To disable all function keys. Press over 5 seconds to •. cancel the key lock function. •. OSD.Setup: Adjusts the OSD timeout from 10 to 120 seconds. Enables or disables the DDC/CI function. Adjusts the OSD background from opaque to transparent.
  • Page 21: Specification

    612.6mm x 362.5mm x 37.7mm (For VESA Wall Mount) Box Dimension (WxHxD) 692mm x 499mm x 183mm Net Weight (Esti.) 3.6kg Gross Weight (Esti.) 6.1 kg Voltage Rating AC: 100-240V DC: 19V, 2.1A (AC adapter) Temperature(operation) 0℃~40℃ ASUS LCD Monitor VG2791R Series...
  • Page 22: Troubleshooting (Faq)

    Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. •...
  • Page 23: Supported Timing List

    VESA Modes, User Available Timing Resolution Refresh Rate Horizontal Frequency 848x480 60Hz 31.02kHz 1280x720(RB) 60Hz 44.444kHz 1280x720 60Hz 44.772kHz 1280x720 75Hz 56.456kHz 1280x768(RB) 60Hz 47.396kHz 1280x800(RB) 60Hz 49.306kHz 1280x800 60Hz 49.702kHz 1280x800 75Hz 62.795kHz 1366x768 60Hz 47.712kHz ASUS LCD Monitor VG2791R Series...
  • Page 24 1440x900(RB) 60Hz 55.469kHz 1440x900 75Hz 70.635kHz 1680x1050(RB) 60Hz 64.674kHz 1920x1080 60Hz 66.587kHz SD/HD Timings HDMI/DP,CEA-861B Formats, SD/HD Supported Primary Timings of Resolution Refresh Rate Horizontal Frequency 640 x 480 P 4:3 59.94/60Hz 31.469kHz 720 x 480 P 4:3 59.94/60Hz 31.469/31.5kHz 720 x 480 P 16:9 59.94/60Hz 31.469 / 31.5kHz...
