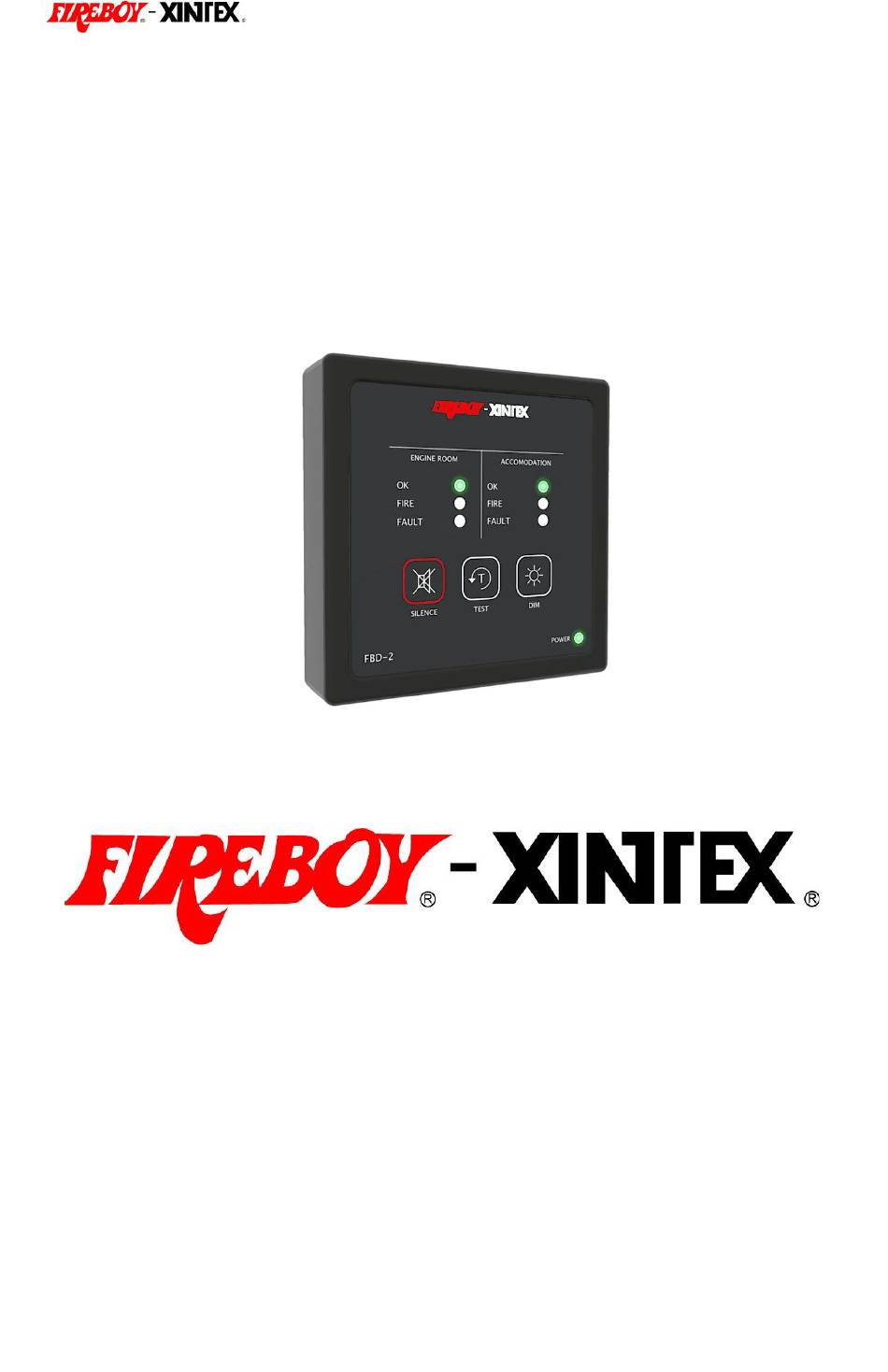

- Page 1 FBD-2 Manual FBD-2 Fire Alarm Panel www.fireboy-xintex.com Part Number 18165, A, 05/01/2023...
- Page 2 FBD-2 Safety Instructions Important Before starting with installation of the FBD-2 Fire alarm panel, we recommend you read the important information below. Qualification The installation of the product detailed in this manual must be done by a certified installation company. If not, the warranty becomes void.
-
Page 3: Table Of Contents
Key Switch Input ........................6 Fault Output ........................... 6 Alarm Output ......................... 6 Buzzer Output ........................6 2. CONFIGURING THE FBD-2 FIRE ALARM PANEL ..............7 Short Circuit as Alarm ......................7 3. USER MANUAL ........................8 Operation ..........................8 Silence Button ........................ -
Page 4: Installation Manual
FBD-2 1. Installation Manual Units The fire alarm panel comes in the option shown in Table 1. Unit Number of zones FBD-2 Table 1: Unit options Mechanical Installation The unit consists of two parts. The front panel and a backplate. The backplate can be mounted on a wall or console. -
Page 5: Technical Specifications
FBD-2 Technical Specifications Specification Description Supply voltage 9-32V DC Zone loop voltage 24V DC (regardless of input voltage) Minimum alarm current 15mA Maximum current per zone 400mA Maximum sensors per zone EOL resistor 5.6kΩ Potential free transistor output (Fault, Alarm) -
Page 6: Connecting Sensors
Power supply The FBD-2 has a main and backup power supply input. A fault will be indicated on the front and the fault output will be activated when one of the supplies fails. If only one supply is needed, the main and backup supplies must be connected together to avoid generating a fault. -
Page 7: Configuring The Fbd-2 Fire Alarm Panel
FBD-2 2. Configuring the FBD-2 Fire alarm panel Short Circuit as Alarm Some older non EN54 or BS5839 compliant systems do not use internal resistors. These systems cause a short on the zone loop when a fire is detected. When such a system is used, the alarm panel needs to be set to “short circuit as fire”... -
Page 8: User Manual
There are two fault situations: Short: There is a short in the zone cabling. The FBD-2 removes the power from the zone and indicates a fault situation. When the “SILENCE” button is pressed the alarm will be muted, the “FAULT” LED will light up without blinking and the “OK”... -
Page 9: Troubleshooting
FBD-2 Do not use aggressive cleaning agents! 5. Troubleshooting Symptom Possible Cause Test and Remedies Check if power supply is Green LED is not flashing Power supply is not connected connected Green LED light up without Micro controller is in error. -
Page 10: Notes
FBD-2 Notes ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ _____________________________________________________ Part Number 18165, A, 04/03/2023... - Page 11 FBD-2 1 Year Limited Warranty This Warranty is in lieu of all other expressed or implied Warranties. Seller warrants title, materials, and workmanship on equipment, except components manufactured by others for which the Seller assigns, as permitted, the original manufacturer’s warranty.
