1. Specifications
Input sensor type
Accuracy
Sensor input range
Response time
Display resolution
Control mode
Timer range (HH:MM)
Main output voltage
Power supply
Power consumption
Working ambient
temperature
Dimensions
Mounting cutout
2. Front Panel
Descriptions
1. PV window. Display the probe reading (and timer if the timer function is enabled).
2. SV window. Display the set value in either temperature or in power percentage.
No part of this manual shall be copied, reproduced, or transmitted in any way without the prior, written consent of Auber Instruments. Auber
Instruments retains the exclusive rights to all information included in this document.
DSPR-5 User Manual
Ver 0.9 (June 6, 2023)
Thermocouple: K
RTD (Resistance Temperature Detector): PT100, PT1000
NTC Thermistor (Negative Temperature Coefficient): 50K at 25°C
± 0.2% of full scale
Thermocouple Type K: 0°F ~ 2372°F, ‐17°C ~ 1300°C
RTDs: 0°F ~ 932°F, ‐17°C ~ 500°C
NTC Thermistor 50K: 32°F ~ 392°F, 0°C ~ 200°C
≤ 0.5 s
1°C or °F
Automatic (PID, ON/OFF), manual
00 H 00 M to 99 H 59 M
12 VDC for solid‐state relay
85 V ~ 260 V AC / 50 ~ 60 Hz
≤ 5 Watt
32°F ~ 122°F, 0°C ~ 50°C
48 x 48 x 120 mm (W x H x D)
45 x 45 mm
6
5
4

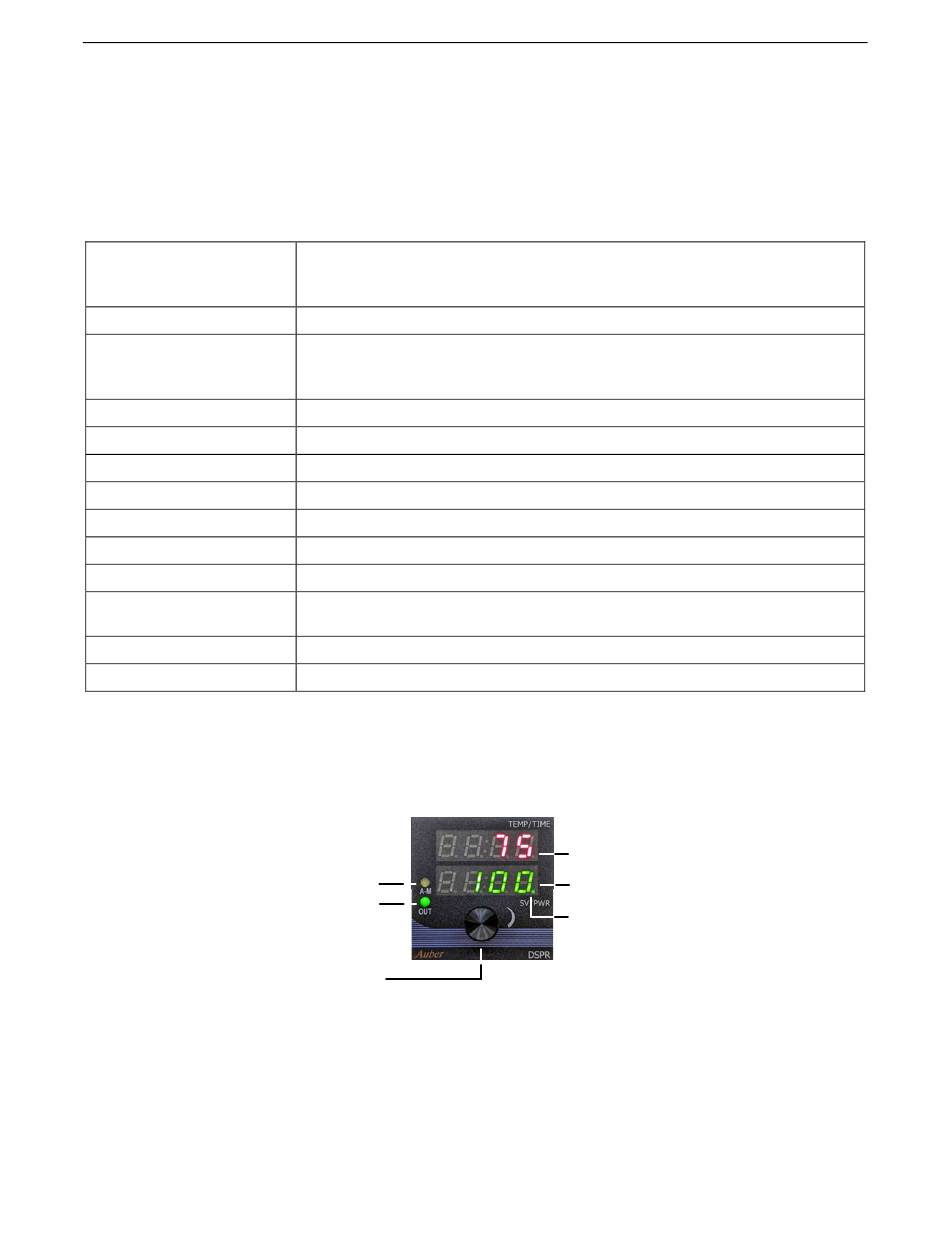

Figure 1. Front panel of DSPR‐5.
Copyright 2007‐2023, Auber Instruments. All Rights Reserved.
www.auberins.com
1
2
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Auber Instruments DSPR-5
Summary of Contents for Auber Instruments DSPR-5
- Page 1 Auber Instruments, Inc. www.auberins.com DSPR-5 User Manual Ver 0.9 (June 6, 2023) 1. Specifications Thermocouple: K Input sensor type RTD (Resistance Temperature Detector): PT100, PT1000 NTC Thermistor (Negative Temperature Coefficient): 50K at 25°C Accuracy ± 0.2% of full scale Thermocouple Type K: 0°F ~ 2372°F, ‐17°C ~ 1300°C Sensor input range RTDs: 0°F ~ 932°F, ‐17°C ~ 500°C NTC Thermistor 50K: 32°F ~ 392°F, 0°C ~ 200°C Response time ≤ 0.5 s Display resolution 1°C or °F Control mode Automatic (PID, ON/OFF), manual Timer range (HH:MM) 00 H 00 M to 99 H 59 M Main output voltage 12 VDC for solid‐state relay Power supply 85 V ~ 260 V AC / 50 ~ 60 Hz Power consumption ≤ 5 Watt Working ambient 32°F ~ 122°F, 0°C ~ 50°C temperature Dimensions ...
-
Page 2: Terminal Assignment
Auber Instruments, Inc. www.auberins.com 3. Editing Indicator. If this dot light up, the set value has been changed by the user and has not been saved. 4. Rotary knob. Rotate to adjust values. Press down to confirm selection or to access menus. 5. OUT indicator. To indicate the output status from the controller. 6. A‐M indicator. Auto/manual indicator. The yellow LED turns on in manual control mode. 3. Terminal Assignment ‐ Output (to SSR) DC 12V DSPR‐5 Power Input AC 85V – 260V ‐ Figure 2. Terminal assignment of DSPR‐5. 4. Getting Started Before you connect the power to this controller or install it to a control panel, please read the manual thoroughly to understand how the controller works. You should understand the following before you start using the controller: 1. Identify the correct terminals for connecting the power supply, the temperature sensor, the output to drive external solid‐state relays. 2. Understand what information will be conveyed by each of the display window and each indicator. 3. Familiar with how to change the set temperature or power percentage on the controller. 4. Familiar with how to access the menus and understand what each parameter does. ... -
Page 3: Changing The Set Value
Auber Instruments, Inc. www.auberins.com Type K: connector the positive lead to #4 and the negative lead to #5. PT1000 RTD: connect sensor leads to #4 and #5. No polarity. NTC 50Kohm thermistor: connect sensor leads to #4 and #5. No polarity. PT100 RTD: connect two wires of the same color to #4 and #5; connect the other lead to #6. The input sensor type on the controller, parameter “Sn” (Sn), must be set to match the actual sensor type that is connected. By factory default, the controller is set to ready type K thermocouple (K). Please see section 8.2 for details. 5.3. Control Output The output signal from this controller is a 12VDC signal, which can be used to drive solid‐state relays. The output status is indicated by the green OUT LED on the front panel. 6. Changing the Set Value The default Set Value (SV) is 100°F. To change the Set Value: 1. Turn the knob and a flashing dot will appear on the lower right corner of the SV window. 2. Turn the knob to clockwise to increase the SV; turn the know counter‐clockwise to decrease the SV. Once get to the desired SV, press down the knob to save the new value. Otherwise, the old SV will be restored. 3. Once the new SV is confirmed, the dot in the lower right corner will go away. 4. The SV can be changed continuously between the temperature value and the power percentage value. Please see the next section for details. 5. -
Page 4: Access The Menu
Auber Instruments, Inc. www.auberins.com Manual Control Mode When the SV is set to a percentage value, the controller works in manual control mode, which means the controller will send the power percentage determined by the user. The lower window will show letter “P” on the left to indicator the SV is a percentage value. The yellow A‐M indicator should be on. Auto Control Mode Manual Control Mode Figure 3. Compare the differences of the display on a DSPR‐5 in Auto Control Mode with the SV set at 100°F (left) and the controller in Manual Control Mode with the SV set at 100% output (right). Please see the two images in Figure 3, which show a controller in Auto Mode on the left, and a controller in Manual Mode on the right. The controller in Manual Mode has the A‐M indicator turning on and the letter “P” (P) in the lower window. To switch between Auto Mode and Manual Mode: 1. Simply turn the knob to change the SV to either a temperature (auto mode) or a percentage value (manual mode). The SV can be changed continuously from 0% to 100% to 0°F to 932°F. 2. As the SV value transits between percentage value “P 100” and temperature value “0” degree, the lower window to prompt either “TEMP” (temp) or “PCT” (Pct) briefly to indicate the new SV will be a temperature value or a percentage value. 3. When the SV is set to a percentage value, the lower window will show letter “P” on the left and the A‐M indicator will turn on. 4. When the SV is set to a temperature value, the lower window will only show a number and the A‐M indicator will turn off. 8. Access the Menu Press down the knob and hold it for 2 seconds to bring up the menu. The top window will show “go to” (GOTO). Turn the knob to change the lower window to “CTRL” (CTRL) or “SYST” (SYST), then press ... - Page 5 Auber Instruments, Inc. www.auberins.com 8.1. Control Configuration (CTRL) Table 1. Parameters in CTRL menu. Name Symbol Description Range Default Details P Proportional 0 ~ 9999 20 Unit in degrees. Larger the value, wider the band, band weaker action from the proportional control. If P = 1, I = 0, D = 0, it is ON/OFF control mode. I Integral time 0 ~ 9999 100 Unit in seconds. Larger the value, weaker/slower the action from the integral control. D Derivative 0 ~ 9999 10 Unit in seconds. Larger the value, stronger the action time from the derivative control. T Control cycle 2 ‐ 120 2 Unit in seconds. time ...
- Page 6 Auber Instruments, Inc. www.auberins.com MmOL MMOL Manual Y, N N Enable output in open‐loop situation (sensor failure mode open‐ or no sensor is connected). Only applies to manual loop mode. N: disable output in open‐loop situation (i.e., no sensor is connected). Y: enable output in open‐loop situation. mSV Maximum 0 ~ 2372 932 The upper limit of temperature SV. Set Value VER Firmware Firmware version number. Display only. version (Current firmware ver1.2.1) RST Factory reset N, Y N N: no action. Y: reset all parameters to factory default values. 9. Reset the Timer Important Note: this operation is only available to situations: ...
