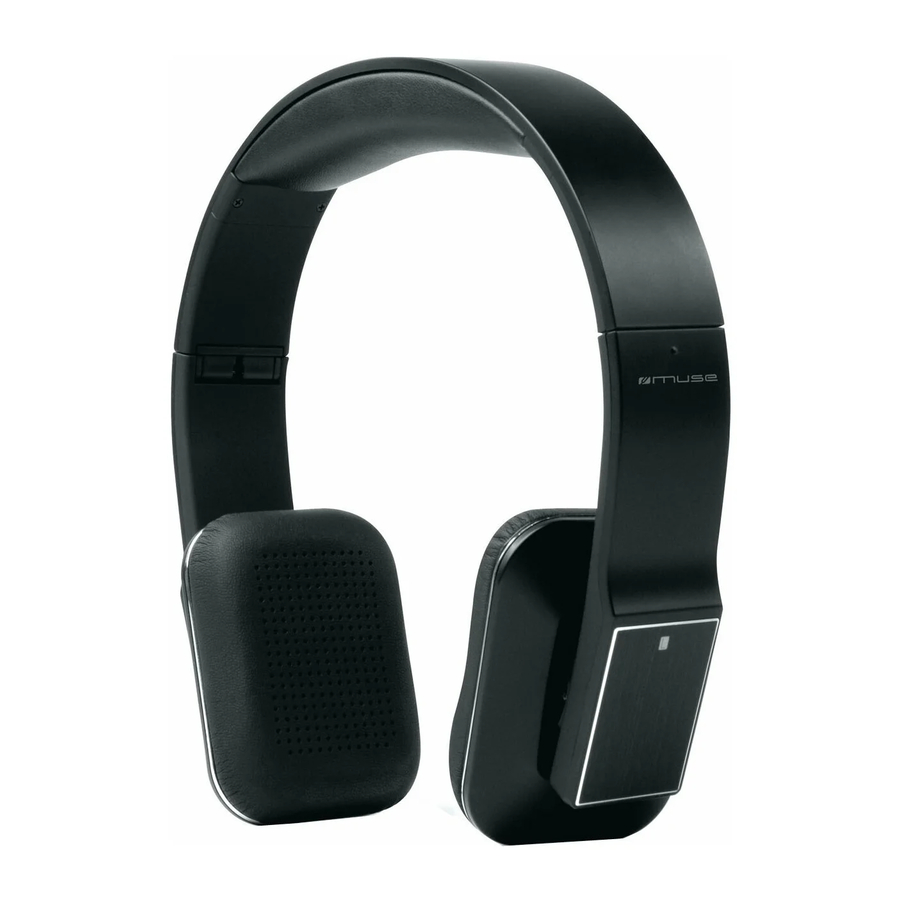

Muse M-280 BT - Wireless Bluetooth Stereo Headphones Manual

DEVICE OVERVIEW

Read the instructions carefully before operating the unit.

LOCATION AND DESCRIPTION OF CONTROLS

1. Microphone
2. Multi-function button(MFB)
3. ► Next
4. Pause/play
5. ◄ Previous
6. Aux-in jack
7. LED indicator
8. DC input (USB cable jack)
9. Volume down
10. Volume up
11. Right speaker
12. Left speaker

POWER SUPPLY

Batteries

This headphone is equipped with a rechargeable lithium-ion polymer battery.

Charging the headphone

Use the provided USB cable. Connect one end to the headphone and the other end to a computer or use an adaptor (sold separately) and connect it to a wall socket.
Red LED on: Charging
Red LED off: finish charging

Note: Please note that the USB cable can only be used for charging and not for data transfer. USB cable can be used during playback.

Using the built-in battery

This headphone is equipped with a rechargeable lithium-ion polymer battery. Charge this battery for at least 3 hours before using the headphone for the first time. This battery can be recharged at any time independently of the fact that it is completely loaded or not.

• Charge the internal battery only when you are ready to re-use the device again.
• When using the device in battery, the ambient temperature must be 5°C (41°F) at 35°C (95°F)
  For a longer service life it is recommended to charge the battery indoor.
• The integrated battery of this device may present a risk of fire or chemical burn if mistreated.
• The unit must not be exposed to excessive heat such as sunshine, fire or similar heat source.

GETTING STARTED

Turning on/off the headphone

Remark: In order to save power, the headphone will turn off automatically if no devices can be connected after 5 minutes.

Pairing the headphone with Bluetooth devices

1. Turn off the Bluetooth functionality of other devices that were paired with your headphone.
2. Turn on Bluetooth functionality on your Bluetooth device. Typically, Bluetooth controls are found on the device's tools or settings menu (see your user manual). Turn on Bluetooth connectivity and make your device "discoverable".
3. Ensure the headphone in OFF mode, press and hold MFB button for 7~8 seconds until red and blue LED indicator flash alternately which will put the headphone in pairing mode(Pairing mode will last 2 minutes, If no devices can be connected over 2 minutes, the headphone goes to standby mode automatically)
4. Choose "add a new Bluetooth device" or "setup Bluetooth device" on your device. It will start to search. (keep the headphone and your device within 1 meter when pairing).
5. After your device and the "M-280BT" have discovered each other, a "Pairing Successful" or similar message should appear on your device, blue LED indicator flashes twice every 4 seconds. If your device prompts you for a pass code, please enter 0000. On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.

Remark:

• If pairing is failed, please turn off the headphone first and then re-pair according to steps 2~5 mentioned above.
• After pairing is successful, the headphone and device will remember each other, they will no need to re-pair next time. The headphone can remember 8 paired devices that they are successful to pair previous. when the number of paired devices exceeds 8, the first one will be replaced.
• Next time the headphone is powered on, it will automatically try to re-establish a link with the most recently linked Bluetooth device. If you want to pair it with other devices, please turn off the Bluetooth function of last connected devices first and pair the headphone with new device according to step 2~5 mentioned above.

Play MUSIC from Bluetooth devices

Make sure the Bluetooth connection between the headphone and the device is active.

1. To start play, press on unit.
2. To pause/resume play, press again.

Note: blue LED indicator flashes 3 times every 4 seconds when music is playing.

Play from an external device

The Bluetooth will disconnect between headphone and your device automatically if you plug 3.5mm audio input, and the Aux in is available in this time. You can also listen to an external audio device through this headphone.

1. Connect the Aux-in link cable(supplied) to:
   • the AUX IN jack (3.5mm) of the unit, the Bluetooth light will cut off once the cable is connected with the headphone.
   • the headphone jack on an external device.
2. Start to play the device.

Note: please unplug the Aux-in link cable if you don't want to play with it.

Adjust volume level

During play, press +/- to increase/decrease the volume level.
Sometimes volume adjustment made on your device will also affect volume output from the speaker.

Changing tracks/songs

To skip to the previous/next songs, press the◄ or ► button to change.

Incoming calls

When you receive an incoming call, music audio will automatically mute. Once the call has ended, it depends entirely on you mobile phone whether the current track will return to playback or not.

MAKING CALLS AND ANSWER CALLS

Before making a call used with your mobile phone, you need to pair and link your Bluetooth-enabled phone with the unit.

1. Basic operation:

Functions	Status of headphone	Operation
Cancel a call	Calling	Short press MFB once
Answer a call	Incoming ringing	Short press MFB once
Reject a call	Incoming ringing	Long press MFB for 2 seconds and release it until listen a tone.
End a call	During a call	Short press MFB once
Volume up	During a call	Short press + button
Volume down	During a call	Short press – button
Transfer conversation to mobile phone	During a call	Long press MFB for 2 seconds
Transfer conversation to headphone.	During a call	Long press MFB for 2 seconds
Microphone mute	During a call	Double click MFB
Cancel mute	During a call (microphone mute)	Double click MFB
Voice dial	Standby mode (connected device)	Long press button for 2 seconds
Redial the last number	Standby mode (connected device)	Double click MFB
Remove paired list	Turned off	Press MFB and play/pause button for 8 seconds simultaneously, and release it until the red and blue(or purple) LED on at the same time.

2. Three-ways call operation

Excessive pressure form earphones and headphones can cause hearing loss.

Note:

• Not all the mobile phones support all the functions listed above. Please refer to your mobile phone user's manual.
• Different function and prompt tone according to different mobile phone.
• When the volume is adjusted to max or min, you will hear one prompt tone.
• When pressing the answer button on some mobile phones, the call will be transferred to the mobile phone. You can switch the call to the headphone by using the conversation switch button or through operating on the mobile phone. Please refer to your mobile phone user manual for further information.

LED INDICATOR

1. Charging

2. Pairing with Bluetooth device

3. Indication tone

WEAK BATTERY ALARM

If the battery is weak, "Dong...Dong...Dong..." warning will alert and RED LED flash twice every 30 seconds which it remind you that the battery life will not last to playing, please recharge the battery of the headphone.

FACTORY RESET

When the headphone is turned off, long press MFB and button simultaneously for 8 seconds until the red and blue LED on.

TROUBLE SHOOTING GUIDE

Warning

• This unit will not operate or may operate improperly with some Bluetooth mobile phones / audio players.
• There are many mobile phones in the market. We cannot guarantee the compatibility of all mobile phones together with the unit.
• If you found the conversation is not clear, try to move closer to the microphone.
• Never expose the product to fire as this could result in personal injury.
• Do not store the product in extremely cold or warm environments.
• Never dismantle the product.
• Never let children play with the product.
• Do not expose the product to dampness or moisture
• The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

SPECIFICATIONS

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive.)
