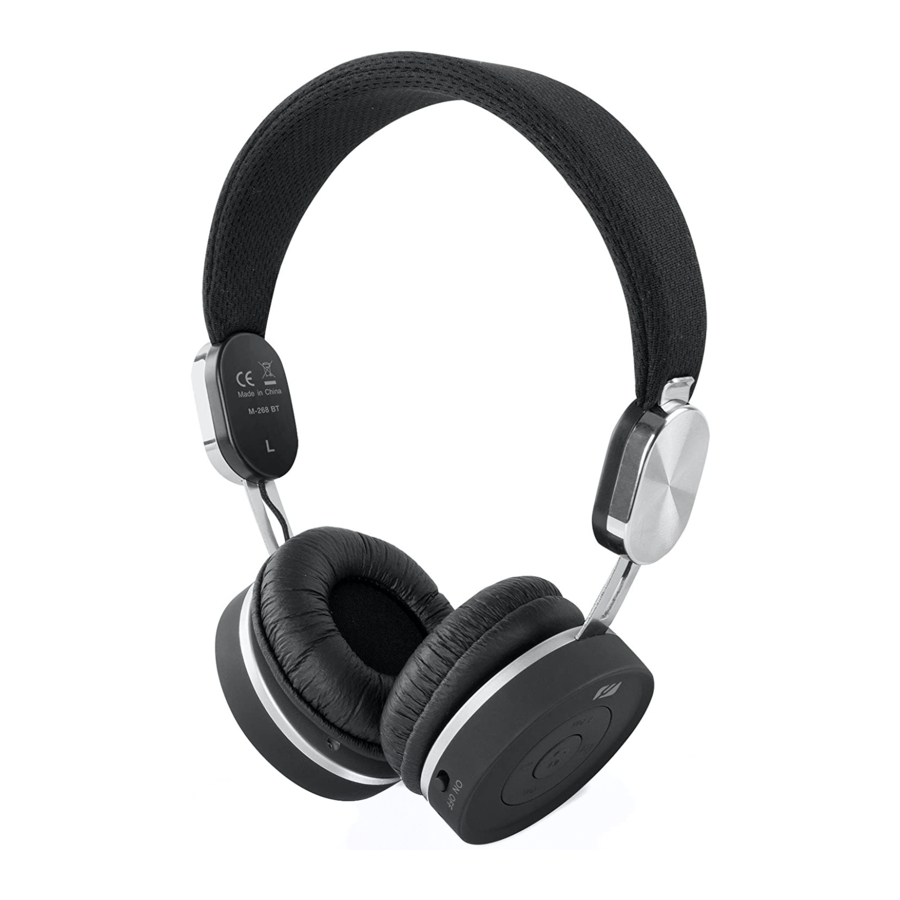

Muse M-268 BT - Wireless Bluetooth Stereo Headphone Manual

LOCATION OF CONTROLS

Please read the instruction carefully before operating the unit.

1. To turn unit on / off
2. Bluetooth indicator
3. Charging indicator (Red for charging, Green for fully charged)
4. USB port for charging
5. Microphone
6. VOL+ / VOL- : To adjust volume
7. : Previous/ Next
8. : Play/Pause; Answer call / End call; Reject call;
   Redial call
9. Speakers

POWER SUPPLY

Charging the headphone
This headphone is equipped with a rechargeable lithium polymer battery. Use the provided USB cable. Connect one end to the headphone and the other end to a computer or use an adaptor (sold separately) and connect it to a wall socket.
Red LED on: Charging
Green LED on: Fully charged
Note: Please note that the USB cable can only be used for charging and not for data transfer.
It is recommended do not to charge the headphone during the music playback.

Using the built-in battery

Note: If you didn't use the headset for a long time, the battery may dry up. At this time, you have to charge the battery at least 5 hours.

GETTING STARTED

Turning on / off the headphone

Pairing the headphone with Bluetooth devices
The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

1. Turn on the headset, the blue LED indicator will start blinking rapidly. You will hear an indication sound to indicate it is in pairing mode.
2. On the Bluetooth device, enable Bluetooth and select "M-268 BT" from the Device List (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use"0000". Some Bluetooth devices will ask you to accept the connection. You will hear an indication voice when pairing is successful. The blue LED indicator stops blinking and stays lit.

Remarks:

Hereby, NEW ONE S.A.S, declares that this MUSE M-268 BT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.muse-europe.com/conformity/M-268BT.pdf

Play music from Bluetooth devices

Adjust volume level
Adjust the volume using the VOL+ / VOL- Volume buttons. You can also adjust the volume on the device to which you are paired.

Changing tracks/songs
To skip to the previous/next songs, press the or button to change.

MAKING CALLS AND ANSWERING CALLS

Before making a call used with your mobile phone, you need to pair and link your Bluetooth-enabled phone with the headphone.

Answer a Call

Reject a Call
To reject the call, press and hold the button for 3 seconds to reject call when the call is ringing.
NOTE: When you receive an incoming call, music audio will automatically mute. Once the call has ended, it depends entirely on you mobile phone whether the current track will return to playback or not.

Redial Call
Press and hold button for 3 seconds to redial.

Translation the call between mobile phone and the headphone
During a call, press or button to transfer the call to mobile phone. Press again the or button to transfer the call back to the headphone.

WEAK BATTERY ALARM

When the battery is low, the red indicator will start to blink slowly. The headset will switch to standby mode automatically when the battery is too low to work.

TROUBLE SHOOTING GUIDE

MORE INFORMATION

To prevent possible hearing damage, do not listen at high volume levels for long periods.

RECOMMENDATIONS

MAINTENANCE

• This unit will not operate or may operate improperly with some Bluetooth mobile phones / audio players.
• There are many mobile phones in the market. We cannot guarantee the compatibility of all mobile phones together with the headphone.
• If you found the conversation is not clear, try to move closer to the microphone.
• Never expose the product to fire as this could result in personal injury.
• Do not store the product in extremely cold or warm environments.
• Never dismantle the product.
• Never let children play with the product.
• Do not expose the product to dampness or moisture
• The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

SPECIFICATIONS

Weight: 157 g
Battery type: 3.7V 500mAh Lithium-ion Polymer battery
Bluetooth version: V2.1+EDR
Operating time: Up to 8 hours at 60% volume
Max output: 2 X 10mW
Charging voltage: 5.0V 500mA
Working distance: 5-10 meters measured in open space.
(Wall and structures may affect range of device).

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive.)
