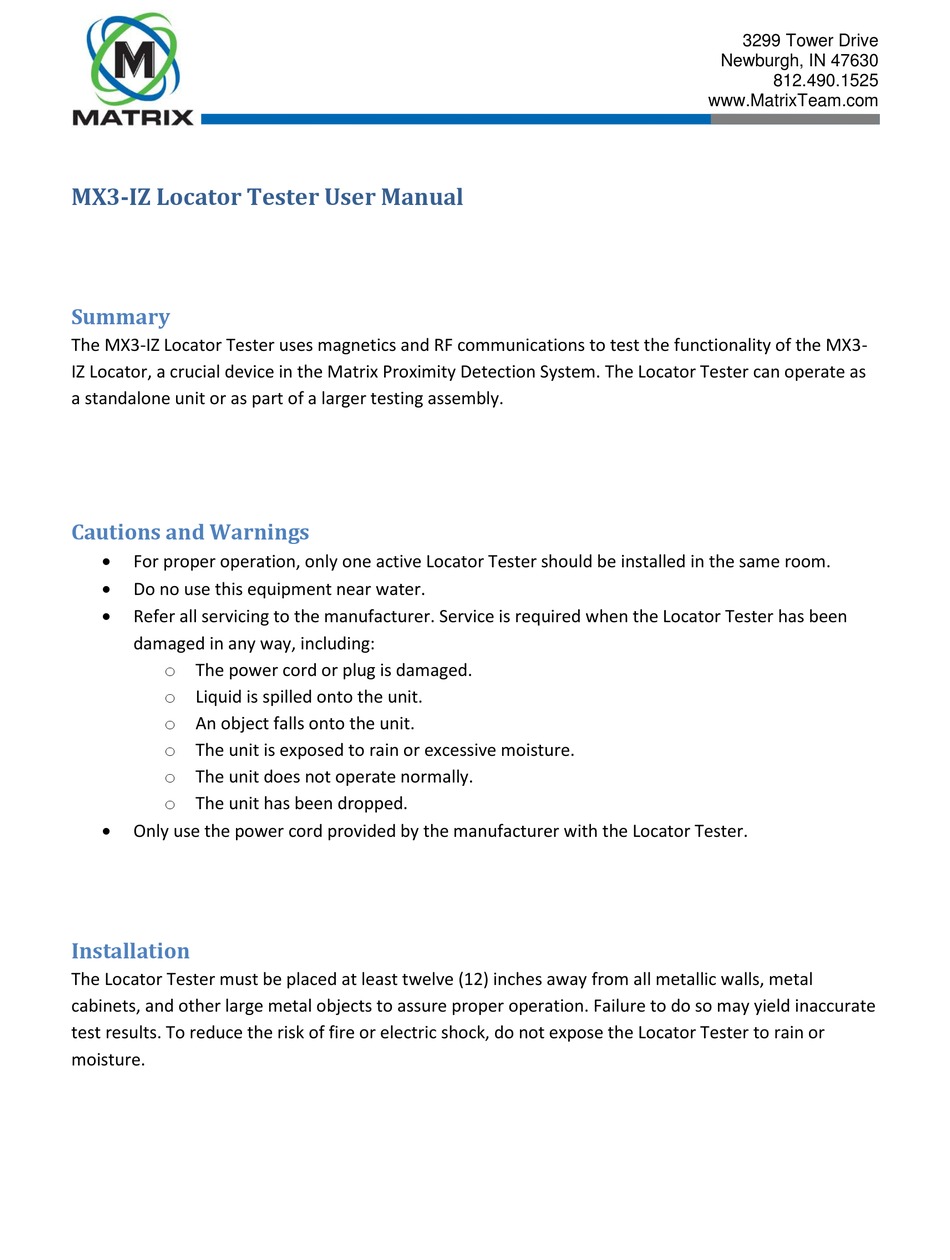

MX3-IZ Locator Tester User Manual
Summary
The MX3-IZ Locator Tester uses magnetics and RF communications to test the functionality of the MX3-
IZ Locator, a crucial device in the Matrix Proximity Detection System. The Locator Tester can operate as
a standalone unit or as part of a larger testing assembly.
Cautions and Warnings
For proper operation, only one active Locator Tester should be installed in the same room.
Do no use this equipment near water.
Refer all servicing to the manufacturer. Service is required when the Locator Tester has been
damaged in any way, including:
o The power cord or plug is damaged.
o Liquid is spilled onto the unit.
o An object falls onto the unit.
o The unit is exposed to rain or excessive moisture.
o The unit does not operate normally.
o The unit has been dropped.
Only use the power cord provided by the manufacturer with the Locator Tester.
Installation
The Locator Tester must be placed at least twelve (12) inches away from all metallic walls, metal
cabinets, and other large metal objects to assure proper operation. Failure to do so may yield inaccurate
test results. To reduce the risk of fire or electric shock, do not expose the Locator Tester to rain or
moisture.
3299 Tower Drive
Newburgh, IN 47630
812.490.1525
www.MatrixTeam.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Matrix MX3-IZ
Summary of Contents for Matrix MX3-IZ
- Page 1 MX3-IZ Locator Tester User Manual Summary The MX3-IZ Locator Tester uses magnetics and RF communications to test the functionality of the MX3- IZ Locator, a crucial device in the Matrix Proximity Detection System. The Locator Tester can operate as a standalone unit or as part of a larger testing assembly.
- Page 2 3299 Tower Drive Newburgh, IN 47630 812.490.1525 www.MatrixTeam.com The Locator Tester is ready to test Locators when its screen is blue, the correct serial number and firmware version are displayed, and the screen reads “Tester is ready. Hold button to test”. After initiating the test, follow any onscreen prompts until the test is finished.
- Page 3 3299 Tower Drive Newburgh, IN 47630 812.490.1525 www.MatrixTeam.com Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 3299 Tower Drive Newburgh, IN 47630 812.490.1525 www.MatrixTeam.com Innovation, Science, and Economic Development Canada (ISED) Statement This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 5 3299 Tower Drive Newburgh, IN 47630 812.490.1525 www.MatrixTeam.com Contact Information North America Matrix Design Group, LLC www.matrixteam.com 1 (866) 200-6904 support@matrixteam.com South Africa Monitech www.monitechmining.com +27 11 395 3937 sales@monitech.co.za...
