Front Panel Section - Sony STR-DE997 Service Manual

STR-DE997
Ver 1.1

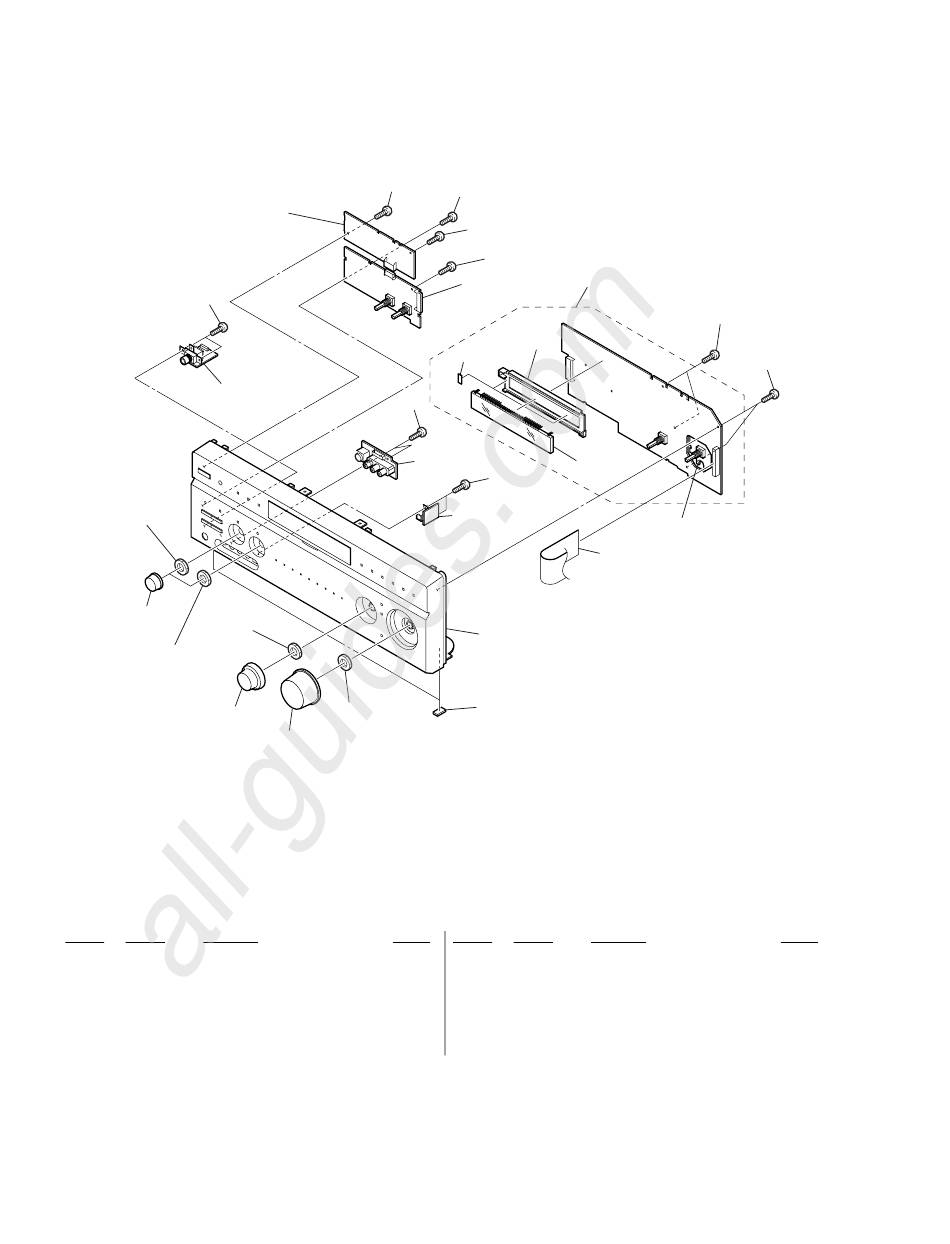

5-2. FRONT PANEL SECTION

not supplied
(POWER board)
54
not supplied
(HP board)
supplied with
RV101
supplied with
60
RV104
supplied with
RV105
59
Ref. No. Part No. Description
51 X-4956-471-1 PANEL ASSY, FRONT (US)
51 X-4956-473-1 PANEL ASSY, FRONT (CND)
52 4-232-113-01 KNOB (VOL)
53 4-977-358-01 CUSHION
54 4-951-620-01 SCREW (2.6X8), +BVTP
55 A-4753-074-A DISPLAY BOARD, COMPLETE
56
All manuals and user guides at all-guides.com
54
54
57
54
not supplied
(FRONT AV board)
not supplied
(OPT3 board)
supplied with
RV103
52
Remark Ref. No.
* 57
54
54
55
not supplied
(TUNING board)
56
FL101
54
58
51
53
Part No. Description
56 4-244-786-01 HOLDER, FL (DE9)
4-955-901-01 CUSHION (FL)
58 1-773-331-11 WIRE (FLAT TYPE) (31 CORE)
59 4-252-931-01 KNOB (FUNC)
60 4-252-389-01 KNOB (MENU)
FL101 1-518-969-11 VACUUM FLUORESCENT DISPLAY
54
54
not supplied
(VOLUME board)
Remark
