Summary of Contents for Moducase Sixth165

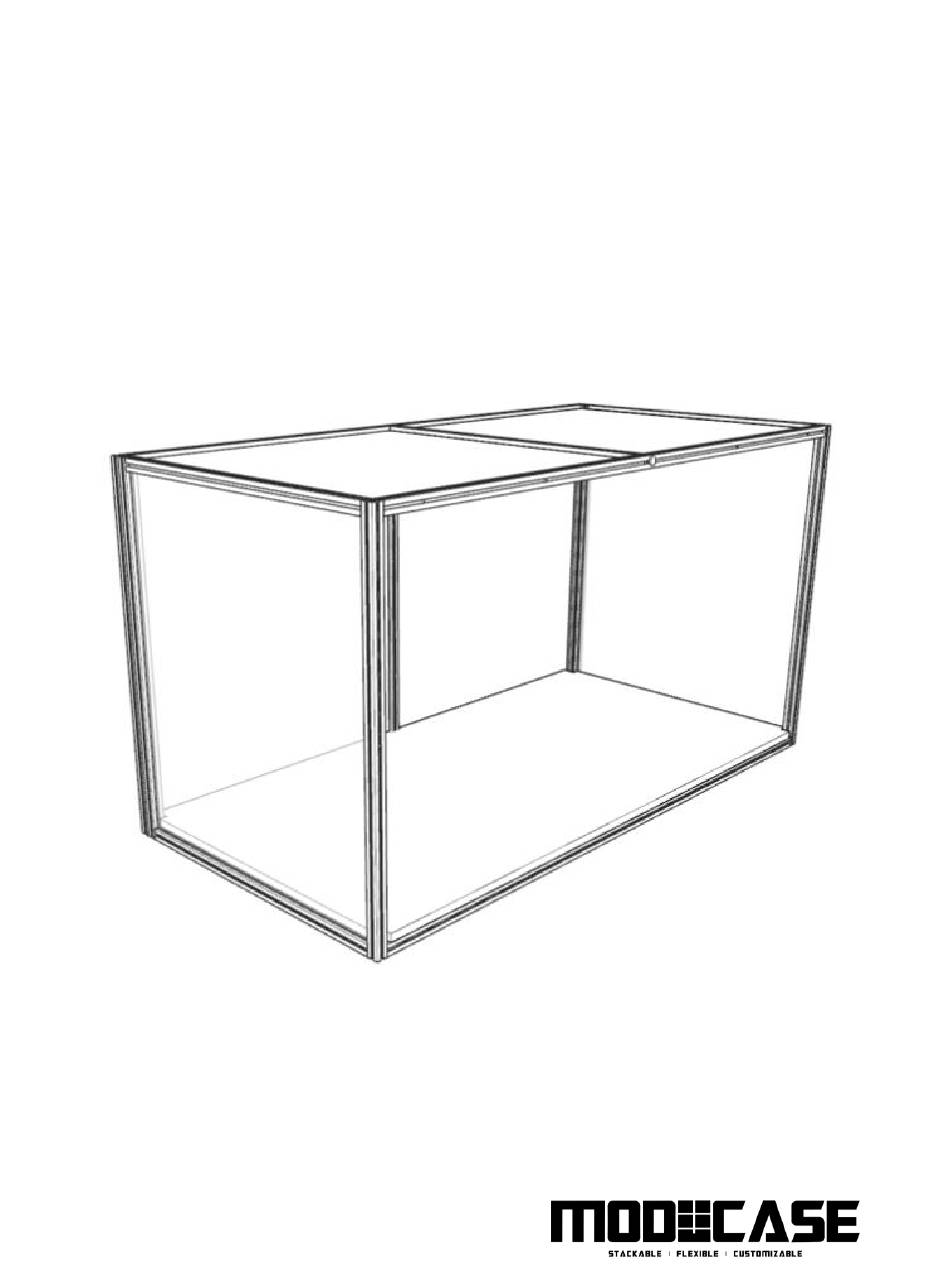

- Page 1 DF SERIES DF120 Sixth Series Sixth165...
- Page 2 Quick overview of aluminum frame Front Frame Joints uses M5x20mm (3/4”) bolts x 20 and washers x 20...
- Page 3 *Note If you have adjoining displays, please DO NOT insert Rubber slots on the back of the front frame and Side frame bar before assembly of displays.
- Page 4 Display Frame Contents • Side frame top/bottom bar with screws (Side frame top/bottom bar) x 4 units • Back frame top/bottom bar with screws (Back frame top/bottom bar) x 2 units • Side frame back bar (side frame back bar) x 2 units...
- Page 5 • Top/bottom middle bar with 1 side screw (Top/bottom middle bar) x 2 units • Back frame middle bar (back frame middle bar) x 1unit...
- Page 6 *Orientation of bar Through hole facing sideways Slot in Top/bottom middle bar *End with screw slot in...
- Page 8 *Rubber slot facing up...
- Page 9 *Orientation of backpanel Wire holes downwards Back panel...
- Page 11 Back panel *Rubber slot facing up...
- Page 12 Backpanel holes at top...
- Page 13 *Rubber slot facing up...
- Page 14 Top panel Top panel...
- Page 15 Side panel Side panel...
- Page 17 Hole with screw thread at bottom...
