Summary of Contents for Moducase DF120

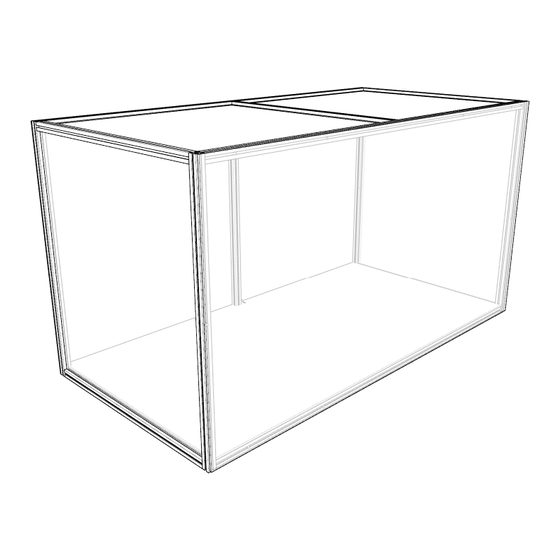

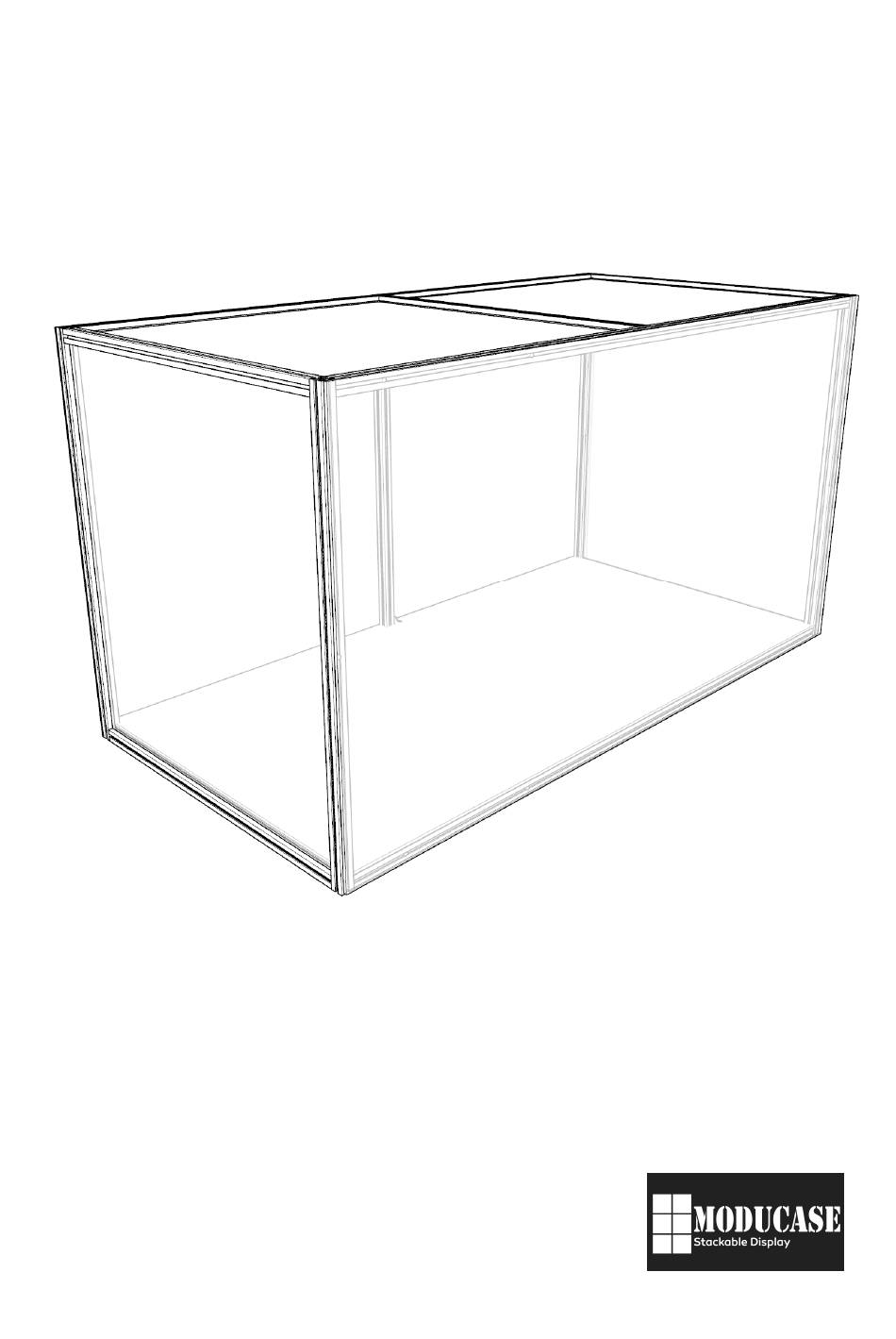

- Page 1 DF version modular display case Model: DF120...
- Page 2 Front frame – With magnet Back frame – No magnet...
- Page 3 1. Back frame *Note Extrusion with a loose screw is top side...
- Page 4 Slide loose screw to centre position **Take note of frame orientation. Back frame’s extrusion with loose screw should be facing up...
- Page 5 Screw centre top support onto back frame...
- Page 6 2. Top panel (Inner side facing down) Screw holes face front *Tear off protection films 3. Side Panel Flip unit, rest on the back. Tear off protection film...
- Page 7 5. Slide in front frame Top direction, with nut Top direction, with nut Top panel Top panel Top direction Top direction Slide loose screw to the centre Slide loose screw to the centre...
- Page 8 6. Secure front frame Enhanced display weight loading. If enhanced is not included in your display, please skip to step 8. 7. Enhancement installation a. Insert and align sliding nut on front and back bottom frame to position and screw aluminium bar in Angle bracket 4x Nut 18x...
- Page 9 Front Back Insert at an angle and push in Align according to the “This position” label...
- Page 10 b. Insert angle bracket and screw it at 4 corner Back Front Insert 4x sliding nut at an angle and push in Secure angle bracket with M5 black bolts Proceed to step 9...
- Page 11 8. Align centre support bar Insert at an angle and push in Align according to the “This position” label...
- Page 12 9. Insert 16x sliding nut Insert at an angle and push in...
- Page 13 10. Push sliding nut on back frame to position, according to the back panel’s hole. Screw on back panel with 16x M5 screw. ( backdrop panel’s Inner side facing display) 11. Flip display to rest on the back *Take note of the orientation of the display case Top orientation, with nut...
- Page 14 12. Insert L-bracket and screw it to frame orientation, with nut...
- Page 15 13. Flip unit to rest on the bottom frame Top orientation, with nut Back Front...
- Page 16 14. Insert bottom panel 15. Insert Front cover...
- Page 17 16. Insert top panel rubber Rubber slot (Shaded grey) Front Flip the display to rest on the ba...
- Page 18 17. Screw in front safety hand screw...
