GE APCA12NXMS Owner's Manual And Installation Instructions page 10

Installation Instructions

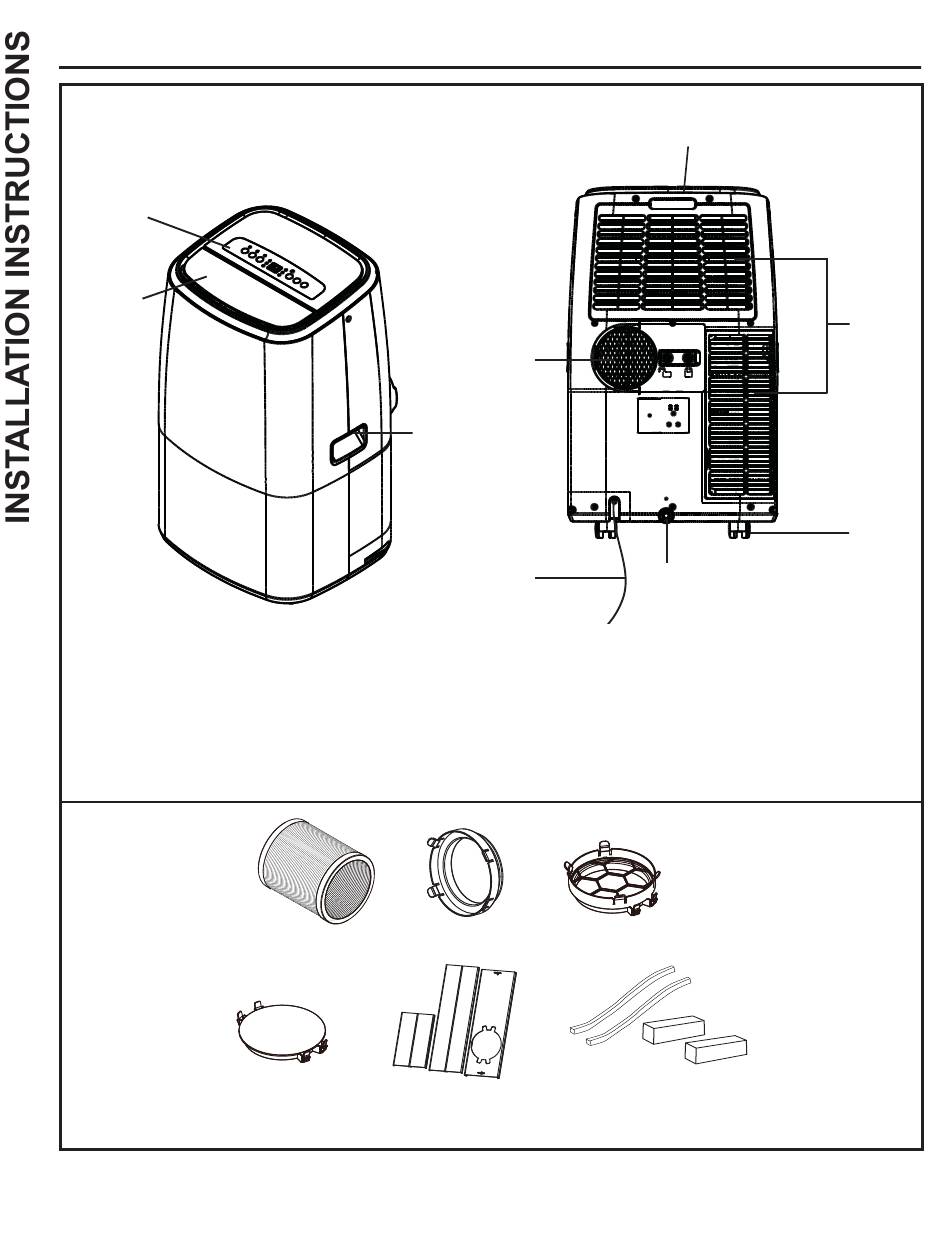

PARTS INCLUDED
(Appearance may vary)
2
1
1. Air Outlet
2. Control Panel
3. Handle
4. Air Inlet
5. Air Exhaust
6. Caster
7. Power Cord
10
3
Hose Connector
Exhaust Hose
Cover #5
Window Panel and
Extension Panel (3)
9
5
8
7
8. Lower Drain
NOTE: Please ensure if the water outlet drain
is securely installed before use.
9. Filter Panel
Hose Connector
Foam Seals
4
6
49-7820
