Page d'accueil > Produits > Unités de régulation > Débit variable > TROX UNIVERSAL > BE-LCD

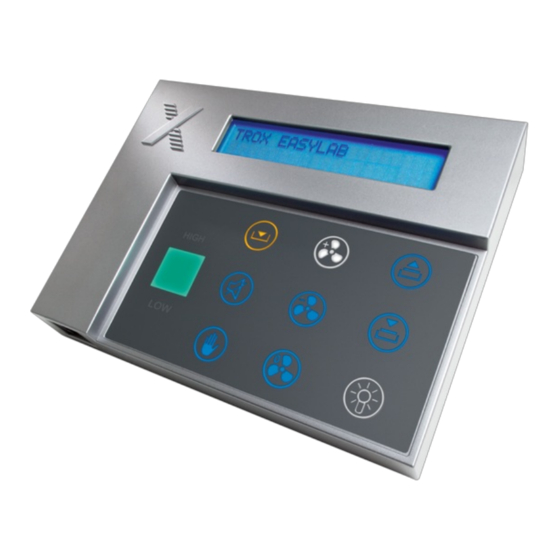

CONTROL PANEL TYPE
BE-LCD
TEXT DISPLAY
BE-LCD
FOR EASYLAB FUME CUPBOARD CONTROLLERS OR
ROOM CONTROLLERS, WITH TEXT DISPLAY
Control panels to be used with fume cupboard controllers or room controllers, for
displaying operating values, activating functions and signalling operating states
Signalling of safety-related functions for fume cupboards according to
EN 14175 or of operating states for rooms
Display of actual values, setpoint values and status messages
Wireless communication with Bluetooth module
40-character text display
Push buttons for the operating mode default setting and for specific
functions
Project-specific range of functions with configurable push buttons
Integral service socket for configuration and diagnosis
Casing suitable for flush mounting to fume cupboard side frame, or for
surface mounting on a wall
Application
CONTROL PANEL
DISPLAY, FUNCTION
BUTTONS WITH STATUS
DISPLAY
Advertisement
Related Manuals for Trox BE-LCD
Summary of Contents for Trox BE-LCD

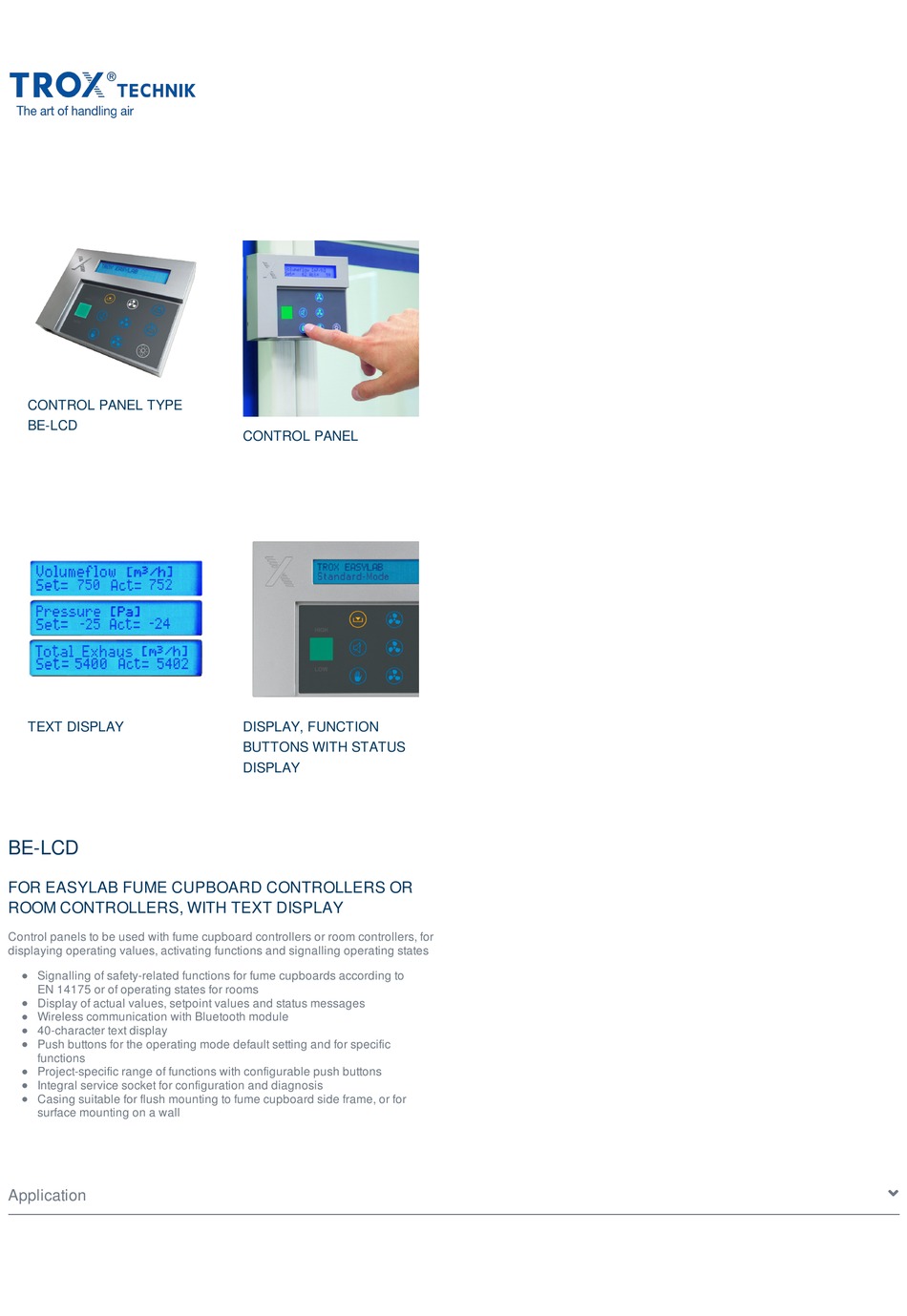

- Page 1 Page d'accueil > Produits > Unités de régulation > Débit variable > TROX UNIVERSAL > BE-LCD CONTROL PANEL TYPE BE-LCD CONTROL PANEL TEXT DISPLAY DISPLAY, FUNCTION BUTTONS WITH STATUS DISPLAY BE-LCD FOR EASYLAB FUME CUPBOARD CONTROLLERS OR ROOM CONTROLLERS, WITH TEXT DISPLAY...
-
Page 2: Information Technique
Application Control panels Type BE-LCD for displaying and operating the aerodynamic functions of fume cupboards or rooms Display of actual values, setpoint values, and operating states either as text or on the status display Optical and acoustic alarms Operating mode default setting... - Page 3 The BE-LCD control panel is used to display and control the most critical aerodynamic and safety-related functions of a fume cupboard or a room. Users obtain information regarding the condition of the fume cupboard or room and can select among various operating modes. The individual display elements...
- Page 4 ③ Sash monitoring warning display ④ Status display (green, yellow, red) with text HIGH and LOW ⑤ Connection socket for service and commissioning ⑥ Acoustic alarm acknowledgement ⑦ Manual control ⑧ Selection of operating mode ⑨ Lighting or other equipment (RMF) ⑩...
- Page 5 Service is due (option) Power supply failure (EASYLAB controller with expansion module EM-TRF-USV) Smoke extract is active Extract air scrubber is active Device faults (various codes) Display of face velocity actual value at fume cupboards (option for fume cupboards with face velocity transducer) Control panel for room controllers Functions Configurable, optical and acoustic signalling of the safety-related functions of a room with up to 24 EASYLAB controllers...
- Page 6 Type BE-LCD Control panel with 40-character display Fume cupboard control, Room control Application Displaying and operating the aerodynamic functions of fume cupboards Status display to EN 14175 Connection to fume cupboard controller EASYLAB TCU3 Two control panels can be used for each fume cupboard controller, e.g. for fume cupboards with sash windows on two sides...
- Page 7 Text display of operating values, system states and faults in various languages Information about the safety of the user's workplace Controls Function buttons to switch operating modes, automatic sash device or fume cupboard lighting BE-LCD as control panel for fume cupboards, typical configuration and display example...
- Page 8 Controller faults are signalled to the room control panel as an configurable consolidated alarm. The necessary data is exchanged between the controllers via the EASYLAB communication cable. BE-LCD as room control panel, typical configuration and display example ...
- Page 9 Installation and commissioning Mounting on the fume cupboard, using the adapter: right-hand side frame, left-hand side frame, above the sash, or below the sash Mounting on walls or furniture, also directly on junction boxes Connect the control panel to the EASYLAB controller TCU3 or to TAM Controller recognises the control panel If necessary, make project-specific adjustments using the EasyConnect configuration software On the left-hand side frame...
- Page 10 Above the sash...
- Page 11 Below the sash...
- Page 12 BE-LCD, mounted on a fume cupboard ① Pluggable adapter that provides four different viewing angles Fixing the base plate to a junction box...
- Page 13 ① Base plate ② Junction box, 60 mm minimum depth Fixing the base plate to the wall BE-LCD, wall mounting without adapter...
- Page 14 Page d'accueil > Produits > Unités de régulation > Débit variable > TROX UNIVERSAL > BE-LCD Connection of commissioning and service devices with a cable ① Connecting cable...
