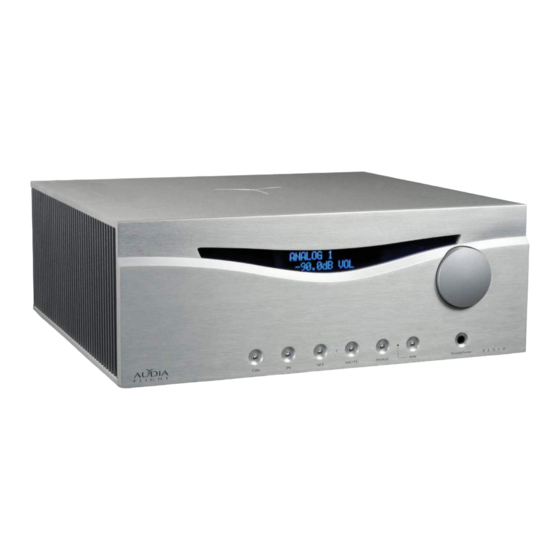

Audia Flight FLS 10 Owner's Manual

Audia Flight FLS 10 Owner's Manual

Balanced stereo integrated amplifier

Advertisement

Quick Links

Owner's manual
FLS 10
Balanced Stereo Integrated
Amplifier

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLS 10 and is the answer not in the manual?

Questions and answers

brendan o sullivan
February 10, 2025

how do I connect a subwoofer to the FLS 10 integrated amp.?

Summary of Contents for Audia Flight FLS 10

  • Page 1 Owner’s manual FLS 10 Balanced Stereo Integrated Amplifier...
  • Page 3 Dear Customer, Audia Flight congratulates you and thanks you for choosing one of its products to set up your sound system. The FLS 10 balanced stereo integrated amplifier has been patiently designed with the intention of be- ing one of the best equipment available and capable of driving any loudspeaker system on the market today.
  • Page 4 Make sure it is close to the source components so that the length of connecting cables is as short as possible. In the case sources are not close to the FLS 10, it is preferable to use balanced interconnection cables.
  • Page 5 The polarity of the pin XLR input is shown on the diagram below: Communications between Audia Flight and other brands On the rear of FLS 10 balanced stereo integrated amplifier you find a pair (output/input) of 3.5 mm jack plug for trigger use.
  • Page 6 Right channel Left channel Outputs RCA Inputs XLR Inputs XLR Inputs RCA Inputs Outputs XLR RCA Rec Rec RCA XLR Removable covers for AC power main In-Out Output Right Output Left loudspeakers optional input cards and switch on trigger loudspeakers Dispaly On/Off Input Speakers...
  • Page 7 fitted with an effective earth connection, whose absence may cause malfunction. Protections For your and amplifier safety, FLS 10 balanced stereo integrated amplifier is provided with electronic protection systems that may be involved in following circumstances: • excessive temperature of output stage •...
  • Page 8 + 10 dB (maximum). It is also used to navigate through menus that can be accessed by different modes of front buttons. • On / Off By pressing “ON” button, FLS 10 changes sta- tus, from ON to OFF (stand-by) or vice versa. Led on front panel is amber when stand-by sta- tus, blue when active status.
  • Page 9 • Phase By pressing “PHASE” button, overall phase will be changed. Selected entry is displayed. For each input selected phase will be saved. Function is NOT available on the remote. • SPK By pressing “SPK” button, output will be acti- vated or deactivated.
  • Page 10 • Set This button provides access to several modes of use of amplifier. First action of this key gives access to first mode SET GAIN INPUT, other choices are accessible by rotating the volume knob or pushing « + » or « - » button on remote. Here is a chart of the various modes and their meanings summary: Keys actions Display on screen...
  • Page 11 • Mode SET NAME INPUT By this function you can rename each input us- ing up to 8 alphanumeric characters. By pressing « SET » mode, access SET NAME INPUT is given. On second raw is shown the selected input. By turning volume knob, input changes and it is displayed.
  • Page 12 By pressing « SET » mode, access SET DIRECT INPUT is given. On second raw is shown the selected input. By turning volume knob, input changes and it is displayed. Further confirming SET, NO (direct status inac- tive) is shown flashing. Status can be changed as active (YES) by rotating knob.
  • Page 13 • Mode SET LOAD DEFAULT This mode allows you to undo any configura- tion selected by the SET menu and so to reset device back in its original state from factory. By pressing « SET » mode, access SET LOAD DEFAULT is given.
  • Page 14 Optional boards The FLS 10 balanced stereo amplifier has two small removable panels on the back where it is possible to insert several optional boards including phono MM/MC, DAC, analog input and more. Please visit our website to see latest news and optional cards for your product.
  • Page 16 Via Alfio Flores, 7 00053 Civitavecchia (RM) - Italy www.audia.it Made in Italy...
