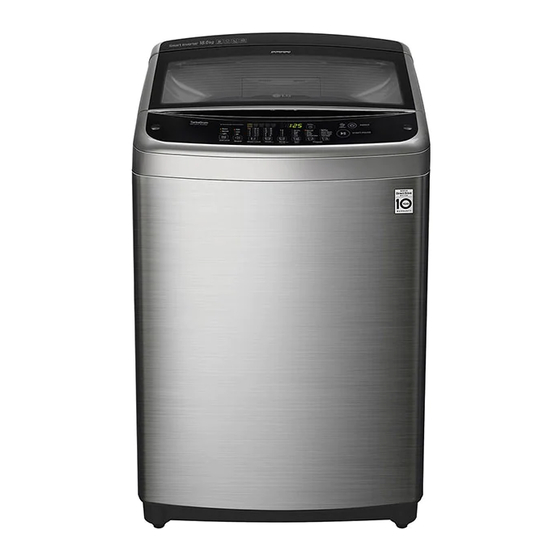

LG T1866NEFTU Owner's Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Washer
  5. T1866NEFTU
  6. Owner's manual

LG T1866NEFTU Owner's Manual

Hide thumbs Also See for T1866NEFTU:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully. This will simplify
installation and ensure that the product is installed correctly and safely. Leave
these instructions near the product after installation for future reference.
EN
ENGLISH
T1866NEFTU
MFL68780957
Rev.00_012919
Copyright © 2019 LG Electronics Inc. All Rights Reserved
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T1866NEFTU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG T1866NEFTU

Summary of Contents for LG T1866NEFTU

  • Page 1 Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH T1866NEFTU www.lg.com MFL68780957 Rev.00_012919 Copyright © 2019 LG Electronics Inc. All Rights Reserved...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS This manual may contain images or content different from the model you purchased. This manual is subject to revision by the manufacturer. SAFETY INSTRUCTIONS ..............4 IMPORTANT SAFETY INSTRUCTIONS ............4 INSTALLATION ................10 Parts ........................10 Accessories .....................10 Specifications ....................11 Installation Place Requirements..............12 Connecting the Supply Hose................13 Installing the Drain Hose .................15...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. This symbol is displayed to indicate matters and operations that can cause risk.
  • Page 5 Installation • Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug. • This appliance should only be transported by two or more people holding the appliance securely. •...
  • Page 6 • Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded. • Do not modify the power cord provided with the appliance. Operation •...
  • Page 7 • In case of flood, disconnect the power plug and contact the LG Electronics customer information centre. • Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.
  • Page 8 • Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet. • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
  • Page 9 Disposal • Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse. • Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

  • Page 10: Installation

    INSTALLATION Parts a Door Tempered Glass Dispenser Drawer Softener Dispenser Bleach Dispenser Lint Filter Drum Leveling Feet Drain hose Water Supply Hose Accessories Tie strap (Optional) 2 water supply hoses Drain hose Anti-rat cover (Optional) Screw for Anti-rat cover (Optional) (Hot + Cold) •...

  • Page 11: Specifications

    Specifications Model T1866NEFTU Power Supply 230 V~, 50 Hz Rate Input 200 W Size 632 mm (W) x 670 mm (D) x 1020 mm (H) Product Weight 44.5 kg Allowable Water Pressure 30 - 800 kPa (0.3 - 0.8 kgf/cm Max.

  • Page 12: Installation Place Requirements

    Installation Place • If it is impossible to avoid positioning the appliance next to a gas cooker or coal burning Requirements stove, an insulation (85x60 cm) covered with aluminum foil on the side facing the cooker or stove must be inserted between the two Location appliances.

  • Page 13: Connecting The Supply Hose

    Connecting the Supply Connecting Hose to Water Tap Hose Connecting Screw-Type Hose to Tap • Before connecting the water supply hose to with Thread the water tap, check the hose type and then choose the correct instruction. Screw the hose connector onto the water supply tap.
  • Page 14 Push the adapter onto the end of the tap Remove the guide plate if the tap is too large so that the rubber seal forms a watertight to fit the adapter. connection. Tighten the four fixing screws. Guide plate Push the adapter onto the end of the tap Push the supply hose vertically upwards so that the rubber seal forms a watertight so that the rubber seal within the hose can...

  • Page 15: Installing The Drain Hose

    Installing the Drain Hose Connecting Hose to Appliance Attach the hot water line to the hot water inlet on Before connecting the drain hose, check your drain the back of the washing machine. Attach the cold hose model and choose the correct instruction. water line to the cold water inlet on the back of the washing machine.
  • Page 16 Non-pump Model Positioning the Drain Hose • The length of the drain hose should not exceed Push the elbow hose toward the body of the 3 m. washing machine. • Do not place the drain hose on a threshhold of 6 cm or more.

  • Page 17: Leveling The Appliance

    Leveling the Appliance Assembling the Anti-Rat Cover (Optional) If the floor is uneven, turn the adjustable feet as required (Do not insert pieces of wood etc. under Insert the Anti-Rat cover to the assembling hole the feet). Make sure that all four feet are stable from the front or back of the washing machine.

  • Page 18: Operation

    OPERATION Using the Appliance Choose the desired wash programme. • Press the Program button repeatedly until Before the first wash, select a washing programme the desired programme is selected. (Normal, add a half load of detergent), allow the washing machine to wash without clothing. This will remove residue and water from the drum that may have been left during manufacturing.

  • Page 19: Sorting Laundry

    Sorting Laundry Caring before loading. • Combine large and small items in a load. Load large items first. Look for a care label on your clothes. • Large items should not be more than half • This will tell you about the fabric content of the total wash load.

  • Page 20: Adding Cleaning Products

    Adding Cleaning Products • Dilute liquid detergent with water and pour into the drum, start the cycle. • Using liquid detergent without diluting, or Detergent Dosage leaving laundry for a long time after pouring diluted liquid detergent into the drum might •...
  • Page 21 Adding Fabric Softener NOTE • Do not mix with detergent or bleach. • Dilute fabric softener with water. Undiluted • Never pour fabric softener directly on clothes. It fabric softener may result in spots that look like may stain them. oil stain.

  • Page 22: Control Panel

    Control Panel Power Button Program Button • Press the Power button to turn the • Programmes are available according to washing machine on. laundry type. • The appliance will automatically turn off • Lamp will light up to indicate the selected once a certain time has passed after the programme.

  • Page 23: Washing Programme

    Washing Programme Duvet Use this programme to wash a blanket or Wash cycles are designed for the best wash bedclothes with hand wash sign. performance for each type of load. Select the programme that best matches the load contents • Cashmere bedclothes, acrylic blanket, mixed for maximum wash performance and fabric care.
  • Page 24 Silent Quick Wash Use this programme to wash quietly in silent Use this programme to wash lightly soiled clothes especially during late night and dawn. for a short time. This programme’s recommended laundry amount is under 3 kg. • This programme takes longer washing time than the Normal programme.

  • Page 25: Option Programme

    Option Programme Wash • Press the Wash button to change laundry time. Soil Level • Adjusting the wash level setting will modify the cycle times and/or wash actions. Press the • This button allows you to select the strength of Wash button until the desired wash level is the wash action.
  • Page 26 Delay Soak • You can set a time delay so that the washing • Soak can be selected to wash heavily soiled machine will start automatically and finish after laundry by soaking in water for some time to a specified time interval. remove dirt and grime.

  • Page 27: Manual Washing

    Manual Washing When you need a Rinse/Spin, Spin, Rinse, or Wash cycle only, these can be set manually. Rinse, Spin Spin only Rinse only Wash only t or s Press the Power button. Press the Rinse Press the Rinse Press the Wash Press the Spin button.

  • Page 28: Special Functions

    Special Functions Child Lock Use this option to disable the controls. This feature can prevent children from changing programmes or operating the appliance. Locking the Control Panel Press and hold the Temp. and Rinse buttons simultaneously for 3 seconds. ‘[L’ and the remaining time are alternatively shown on the display while they are locked.

  • Page 29: Smart Functions

    Customer Information Centre analysis. Use this function if you need an accurate diagnosis NOTE by an LG Electronics customer information centre • The Smart Diagnosis™ function depends on when the appliance malfunctions or fails. Use this the local call quality.

  • Page 30: Maintenance

    MAINTENANCE Tub Clean WARNING Tub Clean is a special cycle to clean the inside of • Unplug the washing machine before cleaning to the washing machine. Perform this cycle regularly. avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, Remove any clothing or items from the electric shock, or death.

  • Page 31: Cleaning The Water Inlet Filter

    Cleaning the Water Inlet Cleaning the Lint Filter Filter (Optional) • Turn off the supply taps to the machine if the The filter is an important part for an efficient washing machine is to be left for any length of washing performance result, so it needs special time (e.g.
  • Page 32 Type 1 Type 2 Push down on the release tab on the top of Push down on both sides of the release tab of the filter cover and pull forward. the filter cover and pull forward. Open the lid, remove the lint and then wash Open the lid and remove the lint.

  • Page 33: Caution On Freezing During Winter

    Caution on Freezing During Winter • When frozen, the product does not operate normally. Make sure to install the product where it will not freeze during winter. • In case the product must be installed outside on a porch or in other outdoor conditions, make sure to check the following.

  • Page 34: Troubleshooting

    TROUBLESHOOTING The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service: Diagnosing Problems Symptoms Reason...
  • Page 35 Symptoms Reason Solution • Dispenser compartment is overfilled causing bleach or softener to dispense immediately. Bleach or softener ALWAYS measure bleach to prevent overfilling. dispensed too soon. • Close the dispenser drawer slowly. Bleach or softener was • Always use the dispensers to ensure that Staining added directly to the laundry products are properly dispensed at the...
  • Page 36 Symptoms Reason Solution Control panel has • This is normal. Press the Power button to turn powered off due to the washing machine on. inactivity. Washing machine is • Make sure cord is plugged securely into a unplugged. working outlet. Water supply is turned •...
  • Page 37 Symptoms Reason Solution • Make sure the inlet filters on the fill valves are Filter clogged. not clogged. Supply hoses may be • Check that supply hoses are not kinked or kinked. clogged. Washing machine not filling properly Insufficient water •...

  • Page 38: Error Messages

    Error Messages Symptoms Reason Solution The door is not closed • Close the door completely. If the error code is properly. not released, call for service. • Check nothing is caught under the door, including shipping materials or lothing. Door lock switch error. •...
  • Page 39 Symptoms Reason Solution UE rebalancing • The automatic attempt to rebalance the load was operation is not not successful. The cycle has been paused to successful. allow the load to be manually adjusted. • Add more items to allow the washing machine to The load is too small.

  • Page 40: Warranty

    • Costs associated with removal of your Product from your home for repairs. • The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including LG’s owner’s and installation manuals.
  • Page 41 Memo...
  • Page 42 Memo...
  • Page 43 Memo...
  • Page 44 LG Electronics South Africa Call an LG Support representative on the toll free number : 0800 545454 Monday to Friday : 07h00 - 21h00 Saturday : 08h00 - 17h00 Sunday : 08h00 - 16h00...
