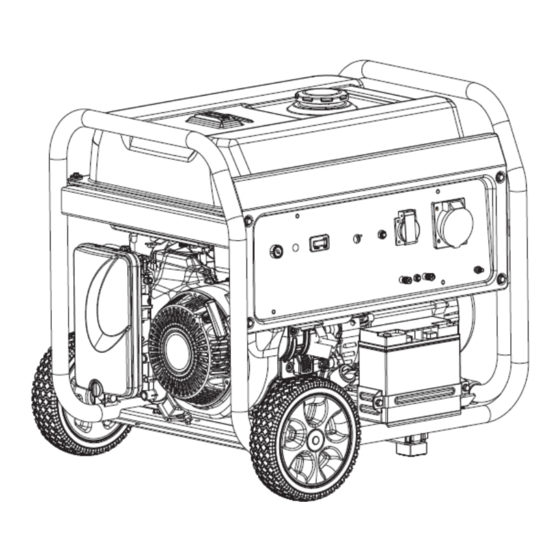

- Page 1 Generator Owner’s manual PORTABLE GENERATOR Owner’s Manual X30 - X40 - X50 - X60 - X60E - X70T - X70MTE SAVE THIS MANUAL FOR FUTURE REFERENCE IMPORTANT SAFETY INSTRUCTIONS ARE INCLUDED IN THIS MANUAL...
- Page 2 Generator Owner’s manual...
-
Page 3: Table Of Contents
Generator Owner’s manual Content INTRODUCTION ................................. 4 CHAPTER 1 – SAFETY RULES ............................4 CHAPTER 2 – GENERAL INFORMATIÓN ........................7 2.1 Unpacking ................................ 7 2.1.1 Packing contents ............................7 2.2 Assembly ................................7 2.2.1 Assembling the accessory kit ........................7 CHAPTER 3 –... -
Page 4: Introduction
Generator Owner’s manual Safety Symbols and Meanings: INTRODUCTION Thank you for purchasing powered by HONDA product. We appreciate your business. Our generator is driven by a compact air-cooled engine with high performance, which can supply electrical power to operate power tools on job sites, or to run home appliances during outage;... - Page 5 Generator Owner’s manual Fuel and its vapours are extremely Generator voltage could cause electrical flammable and explosive which could shock or burn resulting in death or serious cause burns, fire or explosion resulting injury. in death, serious injury and/or property damage. •...
- Page 6 Generator Owner’s manual WHEN TESTING FOR ENGINE SPARK • Use approved spark plug tester. • DO NOT check for spark with spark removed. Starter and other rotating parts could entangle hands, hair, clothing, or accessories resulting in serious injury. • NEVER operate generator without protective housing or covers.
-
Page 7: Chapter 2 - General Informatión
Generator Owner’s manual CHAPTER 2 – GENERAL INFORMATIÓN 2.1 Unpacking • Set the carton on a rigid flat surface. • Remove everything from carton except generator. • Open carton completely by cutting each corner from top to bottom. • Leave generator on carton to install wheel kit. 2.1.1 P acking contents 1-Owner’s Manual... -
Page 8: Chapter 3 - Features And Controls
Generator Owner’s manual CHAPTER 3 – FEATURES AND CONTROLS Read this Operator’s Manual and safety rules before operating your generator. Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. We reserve the right to change the panel according to different countries. -
Page 9: Chapter 4 - Pre-Use Checks
Generator Owner’s manual CHAPTER 4 – PRE-USE CHECKS Do not overfill the fuel tank. Leave room for fuel expansion. IF the fuel tank is too full, 4.1 Engine oil filling it can spill over the HOT engine Properly add the oil before using the generator Use and cause a FIRE or EXPLOSION. -
Page 10: Chapter 5 - Use And Handling
Generator Owner’s manual • Attach the terminal cover again so that the cable is protected CHAPTER 5 — USE AND HANDLING 5.1 Engine start-up Never start or stop the engine with electrical devices plugged into receptacles and on devices. Unplug all electrical charges from the unit before starting For starting, firmly grab the starter knob and pull slowly the engine. -
Page 11: Electrical Connection Of Loads
Generator Owner’s manual again at position 1/2 until the engine runs smoothly and • Plug and turn on electrical charges. then in the fully ON position again. • Add the nominal powers of all the loads to be connected at once. This total must not be greater than (a) the rated power/amperage of the generator or (b) circuit breaker If the battery is not available, use the of the receptacle supplying the power. -
Page 12: Low Oil Stop
(1) Perform the service more frequently when using it in zones Dusty. Models with GP engine (Model X30): (2) The service of these parties shall be performed by their service concessionaire, unless you have the right tools and possess sufficient mechanical knowledge. -
Page 13: To Clean The Generator
Generator Owner’s manual dust, dirt, oil, moisture or other foreign substances are • Fill the engine with the recommended oil. (See "Before visible on the outside. starting the generator.") • Clean the spilled oil. Never insert an object or tool between •... -
Page 14: Valve Clearance
Generator Owner’s manual • Wash the item in a solution of the machine, and will make it easier to start the engine cooking detergent and hot when you use it again. water, and then rinse it Cleaning thoroughly, or wash it in non- If the machine is running, wait for it to cool for at least inflammable solvent half an hour before cleaning. - Page 15 Generator Owner’s manual • Start and run the engine until it stops due to lack of fuel. • While the engine is still hot, drain the oil from and fill with the recommended grade. • Remove the spark plug and pour approximately 15 ml of engine oil into the cylinder.
-
Page 16: Chapter 8 - Technical Specifications
Generator Owner’s manual CHAPTER 8 – TECHNICAL SPECIFICATIONS Generator model GP200H VXH3 GX200RT2-VPM4 GX270RT-VPX5 Model 196cc 196cc 270cc Displacement 4.3kW 4.3kW 6.3kW Max. Power(kW) Engine 3.3kW 3.3kW 4.6kW Rated Power（kW） Recoil Recoil Recoil Starting system Fuel oil tank volume (L) 0.6L 0.6L 1.1L... - Page 17 Generator Owner’s manual [17]...
- Page 18 Generator Owner’s manual [18]...
- Page 19 Generator Owner’s manual Greens Power Products, S.L. www.hondaencasa.com AVDA. RAMON CIURANS, 2 Pol. Ind. Congost 08530 La Garriga (BCN) - Spain Tel. +34 93 860 50 25 Fax. +34 93 871 81 80 [19]...
