Angelo Decor Pond Building AD40401 Instructions

400gph pump and nozzle

Advertisement

Quick Links

TROUBLESHOOTING
Always disconnect the pump from the power supply before handling.
If the pump, nozzles or optional water feature fail to operate:
Check to make sure the power cord is plugged in and the receptacle has
power running to it.
Check to ensure pump is fully submersed in water.
Check the tubing for kinks or obstructions, and pump outlet is clear of objects.
Check if water features or fountain nozzles are clean and clear.
Check the spray nozzles for obstructions or a loose connection
Check water inlet for any obstructions.
If water flow has not returned:
Remove front cover and impeller cover to access rotor area.
Rotate the rotor to ensure it is not broken or jammed. Remove the
rotor to check it is free from any debris.
Rinse the cover and re-assemble.
LIMITED WARRANTY
These components are warranted to the original user against defective materials and
workmanship for a period of 12 months. Our limited warranty does not cover any costs
associated with the installation or removal of products subject to warranty claims or the cost
of return. The warranty will commence from the date of purchase. Replacement liability is
limited to any part or parts of the unit which have failed due to defective material or
workmanship. Proof of purchase is required for all claims against the limited warranty. This
warranty does not extend to damage of the product or part resulting from accident, misuse,
alteration, neglect, abuse, improper installation or normal wear and tear to the product(s).
This limited warranty extends only to the original user of the product.
For more information on this and other products, please visit our web site:
www.angelodecor.com
PLEASE DO NOT RETURN THIS UNIT TO THE STORE.
To contact us regarding this unit, your options include:
Email:customersupport@angelodecor.com | Phone: (780) 453 - 6646 | Fax: (780) 453- 6620
Angelo Décor International Inc. | 15840 – 118
th
Avenue | Edmonton, AB |T5V 1C4
AD40401
400gph Pump and Nozzle Instructions
THANK YOU FOR BUYING A POND BUILDING SERIES™ PRODUCT.

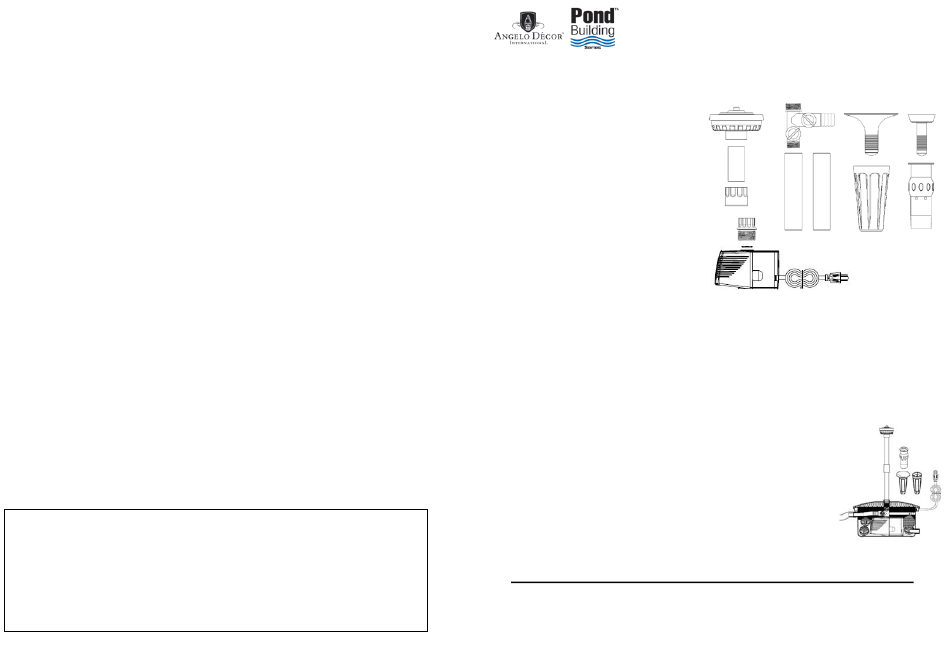

PACKAGE CONTENTS
01. Tiered Spray Nozzle
02. Dual Feature Diverter
03. Bell Spray Nozzle Head
04. Trumpet Spray Nozzle Head
05. Riser Tube Coupler
06. Threaded Mounting Adapter
07. Riser Tube Pump Connector
08. Riser Tube (2)
09. Bell and Trumpet Nozzle Base
10. Foaming-Jet Spray Nozzle
11. 400gph Pump with Pre-Filter
IMPORTANT! - BEFORE YOU BEGIN
This pump is designed for use in "clean water applications", if you are using ONLY the
integrated pre-filter cartridge. It is not compatible with salt water.
Using this series of pump in an outdoor functional pond environment without using proper
filtration will cause increased maintenance and could result in pump failure due to a
build-up of debris. This type of improper pump care is not covered under warranty.
We strongly recommend the use of a filter box for use
in any pond application.
The Included Pump Pre-filter
provides basic filtration, however a filter box
should be used with any pond application
that includes fish and plants.
QUESTIONS?
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
U
Visit our website
(www.angelodecor.com)
videos on how to assemble and properly use your product.
03
02
01
05
06
07
08
09
11
Diagram #1
Pond Filter Box 600 using
Diverter and Tiered Nozzle
Diagram # 2
for more information and
04
10
