GATEMAN A200-CH - Digital Door Lock Quick Manual
![]()
Must Read This
- This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
- This product(A200-CH) is Z-Wave security enabled device.
- Security Enabled Z-Wave Controller must be used in order to fully utilize this product.
Parts
Front (Front body)

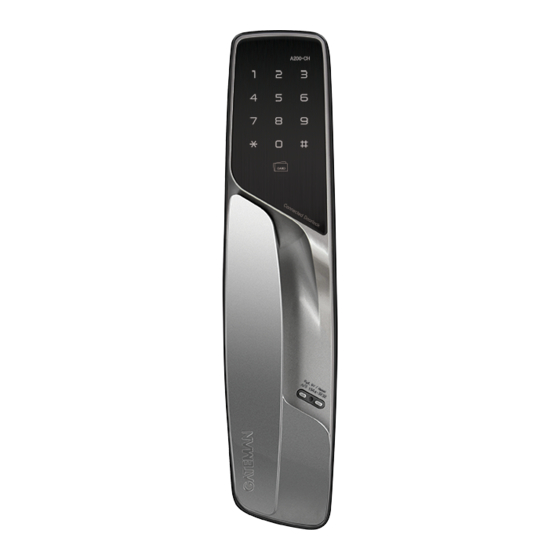

![GATEMAN - A200-CH - Parts - Front Parts - Front]()
Install the Front Body on the outside of Door.
![]() | Keypad(10-Key) |
![]() | Battery Change Lamp |
![]() | CardKey reader |
![]() | Pull bar |
![]() | Reset |
![]() | Emergency power supply terminal |
Back (Main body)
![GATEMAN - A200-CH - Parts - Back Parts - Back]()
Install the Back Body on the inside of door.
![]() | 1.5V AA Alkaline batteries | ![]() | Safe button |
![]() | Registration button | ![]() | Battery cover |
![]() | SD Card Slot | ![]() | Slot for Remote controller module (Option) |
![]() | Auto / Manual relock setting button | ![]() | Mortise |
![]() | Volume switch | ![]() | Door status check sensor |
![]() | Internal forced lock switch | ![]() | Hook deadbolt |
![]() | Lock status check lamp | ![]() | Double swing latch bolt |
![]() | Push bar | | |
- SD Card Slot can be used for camera function adopted models only.
Please do not put anything, if product is not a camera model.
Master Code: The Master Code is used for programming and for feature settings.
It must be created prior to programming the lock.
The Master Code will also operate(unlock/lock) the lock.
User Code: The User Code is used for operating the lock.
Maximum number of user codes are 30.
Visitor Code: The Visitor Code is used for temporary visitors.
The Code is different from User Code.
Onetime Code: The Code can be used for just one time. It will be deleted after being used.
User Number:
The User Number is given to each user, and it's for Master Code holder to manage.
| Touch the keypad of the Front Body with your palm to begin. |
| Press button on the Touchscreen. |
| Press button on the Touchscreen. |
| Press (Registration)button inside the Battery Cover. |
| Enter User Fingerprint (Up to 20EA) |
![]() | Enter User Code (4~10digits). |
![]() | Enter Master Code (4~10digits). |
![]() | Enter Visitor Code (Only 4 digits). |
![]() | Enter Onetime Code (Only 4 digits). |
![]() | User Slot Number should be 2 digits. |
![]() | Rotation area to add more features. |
- Network Module Setting: This setting becomes available through the Main Menu(9) and allows the lock to connect with Controllers.
- Reset locally: Z-Wave Module exclusion by compulsion.
- To include to a Z-Wave network:
- Touch keypad with palm
- Enter User code(Normal Mode only. Enter Master code if operating Master Mode.)
- Press 'R' button [Registration] from the inside of battery cover.
- Press 9,#,1,# on the keypad (by sequence)
- Wait until 'Ding dong dang' melody play than press 'R' button [Registration]
- To exclude to a Z-Wave network:
- Touch keypad with palm
- Enter User code(Normal Mode only. Enter Master code if operating Master Mode.)
- Press 'R' button [Registration] from the inside of battery cover.
- Press 9,#,3,# on the keypad (by sequence)
- Wait until 'Ding dong dang' melody play than press 'R' button [Registration]
- To reset to factory defaults:
※ Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. (User code or master code remains the same. Only network settings reset to factory defaults.)
- Touch keypad with palm
- Enter User code(Normal Mode only. Enter Master code if operating Master Mode.)
- Press 'R' button [Registration] from the inside of battery cover.
- Press 9,#,9,# on the keypad (by sequence)
- Wait until 'Ding dong dang' melody play than press 'R' button [Registration]
※ Information about association group
- Grouping: 1 available
- Group identifiler: 1
- Maximum number of devices: 5
- Description: Z-Wave Plus Lifeline
- This product should be in group 1. It does not support to control other devices.
※ Information about configuration parameters
Configuration Parameter | Parameter Number | Size (byte) | Description |
Silent mode on/off | 1 | 1 | level control, 1, 2, 3 default is 3 1 and 3 for models with no spoken prompts default is 3 or high |
Auto Relock on/off | 2 | 1 | 0 x 00 = OFF, 0 x FF = ON default is 0 x 00 or OFF |
Relock time | 3 | 1 | 10 to 180 seconds default is 30 seconds |
User Code
![GATEMAN - A200-CH - Normal Mode - User Code Normal Mode - User Code]()
![GATEMAN - A200-CH - Master Mode - User Code Master Mode - User Code]()
