Redundant Power Unit
Fault-tolerant networking
◆ Four redundant power supply ports
◆ AC line draws power from different supply circuit
◆ DC line provides backup power to one attached device
◆ Supports backup primary and PoE power
◆ Thermal overload protection
◆ Over-voltage protection for each output channel
◆ Over-current protection can shut down the RPU
◆ Short-circuit protection against output channels

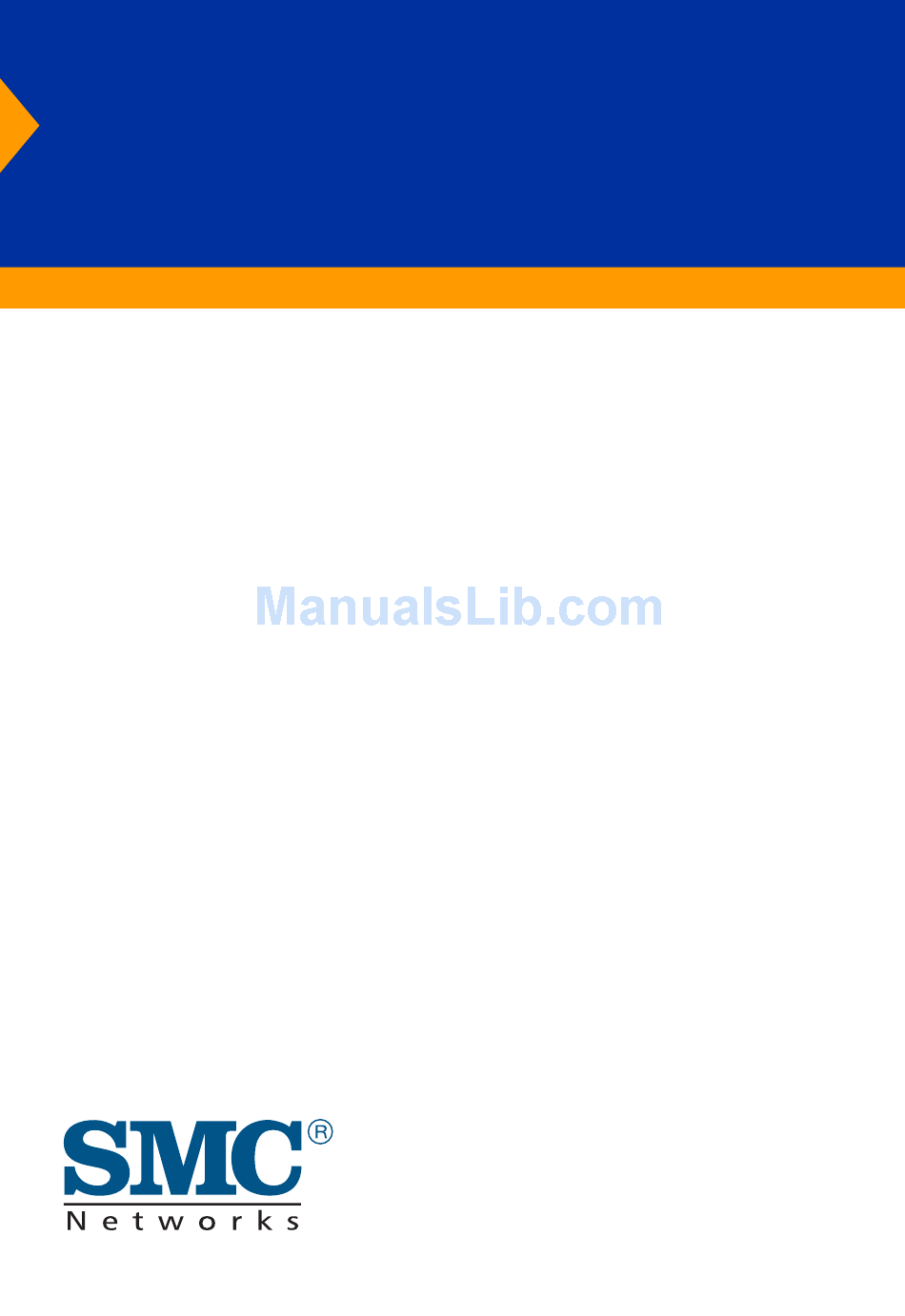

User Guide

SMCRPUPOE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMCRPUPOE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks SMCRPUPOE

Summary of Contents for SMC Networks SMCRPUPOE

  • Page 1: User Guide

    ◆ DC line provides backup power to one attached device ◆ Supports backup primary and PoE power ◆ Thermal overload protection ◆ Over-voltage protection for each output channel ◆ Over-current protection can shut down the RPU ◆ Short-circuit protection against output channels User Guide SMCRPUPOE...
  • Page 3 Redundant Power Unit User Guide Four redundant power supply ports 38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 August 2005 Pub. # 150200052600A R01...
  • Page 4 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.

  • Page 5: Limited Warranty

    All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term.
  • Page 6 RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.

  • Page 7: Industry Canada - Class B

    OMPLIANCES FCC - Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications.
  • Page 8 OMPLIANCES EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain. This information technology equipment complies with the requirements of the Council Directive...

  • Page 9: Safety Compliance

    Australia AS/NZS 3548 (1995) - Class B SMC contact for products in Australia is: SMC Communications Pty. Ltd. Suite 18, 12 Tryon Road, Lindfield NSW2070, Phone: 61-2-94160437 Fax: 61-2-94160474 Safety Compliance Please read the following safety information carefully before installing the RPU: Warning: Installation and removal of the unit must be carried out by qualified personnel only.
  • Page 10 OMPLIANCES Important! Before making connections, make sure you have the correct cord set. Check it (read the label on the cable) against the following: Power Cord Set U.S.A. and Canada Denmark Switzerland U.K. Europe Veuillez lire à fond l'information de la sécurité suivante avant d'installer le RPU: AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à...
  • Page 11 • L’appareil fonctionne à une tension extrêmement basse de sécurité qui est conforme à la norme IEC 60950. Ces conditions ne sont maintenues que si l’équipement auquel il est raccordé fonctionne dans les mêmes conditions. France et Pérou uniquement: Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimenta- tions sont du type impédance à...

  • Page 12: Warnings And Cautionary Messages

    OMPLIANCES • Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen Sicherheitsnormen erfüllt. • Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben. • Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.

  • Page 13: Manufacturing Materials

    All printed documentation for this product uses biodegradable paper that originates from sustained and managed forests. The inks used in the printing process are non-toxic. Purpose This guide details the hardware features of the SMCRPUPOE redundant power supply, including it’s physical and performance-related characteristics, and how to install the unit. OMPLIANCES...
  • Page 14 OMPLIANCES...

  • Page 15: Table Of Contents

    About the Redundant Power Unit ....1-1 Overview ........... 1-1 Features and Benefits .
  • Page 16 ABLES Table 1-1 Port Status LEDs ........1-3 Table 1-2 System LEDs .
  • Page 17 Figure 1-1 Front and Rear Panels ......1-2 Figure 1-2 LEDs ......... 1-3 Figure 2-1 Attaching the Brackets .
  • Page 18 IGURES...

  • Page 19: Overview

    EDUNDANT Overview This Redundant Power Unit (SMCRPUPOE) can supply backup power to one of four switches in the event of an AC loss or failure of an internal power supply. Features and Benefits • Monitors power status for up to four attached switches and provides power to first attached unit with a detected power failure.

  • Page 20: About The Redundant Power Unit

    BOUT THE EDUNDANT • Over-voltage protection shuts down an output channel if the voltage exceeds a preset threshold. • Over-current protection shuts down the RPU if the output load exceeds a preset threshold. • Short-circuit protection prevents the RPU from being damaged from a short circuit on any output channel.

  • Page 21: Leds

    LEDs The following diagram and tables describe the functions of the LEDs. Link (Yellow) Flashing Fast* BOUT THE Figure 1-2 LEDs Table 1-1 Port Status LEDs Activity Status (Green) The port does not have a valid connection to a switch. Flashing There is a valid connection to a switch that is Fast*...
  • Page 22 BOUT THE EDUNDANT Link (Yellow) Flashing Fast* (All ports) * The fast flashing behavior is approximately three flashes per second. The slow flashing behavior is approximately one flash per second. Condition On Green Flashing Yellow Thermal On Green Flashing Yellow Power On Green OWER...

  • Page 23: Installing The Redundant Power Unit

    EDUNDANT Installation The RPU may be placed on a desktop or mounted in a rack. Caution: DO NOT place the RPU on the floor as the case is not waterproof. It is recommended that this RPU be installed in a network equipment rack. Selecting a Site RPU units can be mounted in a standard 19-inch equipment rack or on a flat surface.

  • Page 24: Equipment Checklist

    Then, before beginning the installation, be sure you have all other necessary installation equipment. Package Contents • Redundant Power Unit (SMCRPUPOE) • Three AC Supply Power Cord — US, Continental Europe, and UK • Four DC Backup Power Cords with IEC connectors on both ends (length 152 cm/5 ft each) •...

  • Page 25: Optional Rack-Mounting Equipment

    Optional Rack-Mounting Equipment If you plan to rack-mount the RPU, be sure to have the following equipment available: • Four mounting screws for each device you plan to install in a rack—these are not included • A screwdriver (Phillips or flathead, depending on the type of screws used) Mounting RPU units can be mounted in a standard 19-inch equipment rack or on a...

  • Page 26: Figure 2-1 Attaching The Brackets

    NSTALLING THE EDUNDANT To rack-mount devices: 1. Attach the brackets to the device using the screws provided in the Bracket Mounting Kit. 2. Mount the device in the rack, using four rack-mounting screws (not provided). Figure 2-2 Installing the RPU in a Rack OWER Figure 2-1 Attaching the Brackets...
  • Page 27 Montage (Rack Mounting Instructions - German) SMCRPUPOE -Einheiten können an ein standardmäßiges 19-Zoll Einrichtungsrack, einen Arbeitstisch oder ein Regal montiert werden. Folgend finden Sie die Montageanweisungen für jeden Positionstyp. Rack-Montage Beachten Sie die folgenden Faktoren, bevor Sie die Rack-Montage beginnen: •...

  • Page 28: Desktop Or Shelf Mounting

    NSTALLING THE EDUNDANT Desktop or Shelf Mounting 1. Attach the four adhesive feet to the bottom of the first RPU unit. Figure 2-3 Attaching the Adhesive Feet 2. Set the device on a flat surface near an AC power source, making sure there are at least five centimeters or two inches of space on all sides for proper air flow.

  • Page 29: Connecting Switches To The Rpu

    Connecting Switches to the RPU Caution: DO NOT connect the RPU to an AC power source until DC power cords have been connected to the supported switches. To connect switches to the RPU: 1. Connect one end of an AC cord to the AC socket on each supported switch, and the other end to a grounded power outlet.

  • Page 30: Figure 2-5 Connecting The Rpu In A Stack

    NSTALLING THE EDUNDANT Figure 2-5 Connecting the RPU in a Stack Note: For International use, you may need to change the AC line cord. You must use a line cord set that has been approved for the socket type in your country.

  • Page 31: Troubleshooting

    Diagnosing RPU Indicators Symptom Power LED is Off Link LED is Off All Link LEDs are flashing fast* Activity and Link LEDs are both flashing fast* Fan LED is Flashing Yellow ROUBLESHOOTING Table A-1 Troubleshooting Chart Action • Internal power supply is disconnected. •...

  • Page 32: Power And Cooling Problems

    ROUBLESHOOTING Symptom Fan LED is Off Thermal LED is Flashing Yellow * The fast flashing behavior is approximately three flashes per second. The slow flashing behavior is approximately one flash per second. Power and Cooling Problems If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply.

  • Page 33: Specifications

    Physical Characteristics Ports 4 RPU DC power outlets (IEC socket 216C743-07) LEDs Port: Link, Activity System: Power, Fan, Thermal Weight 5 kg (11 lbs) Size 44.0 x 32.3 x 4.3 cm (17.34 x 12.6 x 1.69 in.) Temperature Operating: 0 to 45 °...
  • Page 34 PECIFICATIONS Power Consumption 570 W (Maximum) Maximum Current 7 A @ 110 VAC 3 A @ 220 VAC Overload Protection Ports are shutdown when output exceeds 200 W @ 12 V or 360 W @ -50 V. Power Supply Parameter Voltage: Initial Accuracy Minimum current...

  • Page 35: Compliances

    Compliances CE Mark Emissions AS/NZS 3548 (1995) Class B EN 50081/2-1 EN 55022 (CISPR 22) Class B EN 60555-2 Class B EN 60555-3 EN 61000-3-2/3/4/6 FCC Class B Industry Canada Class B VCCI Class B Immunity EN 55024 Safety CSA/ C US (CSA22.2 No.60950-1 & UL60950-1) CB: IE 60950-1 TÜV/GS (EN 60950-1) PECIFICATIONS...
  • Page 36 PECIFICATIONS...
  • Page 37 adhesive feet, attaching 2-6 air flow requirements 2-1 brackets, attaching 2-4 CE Mark 1-2 compliances 1-1 EMC B-3 safety B-3 contents of package 2-2 cooling problems A-2 cord sets, international 2-8 desktop mounting 2-5 EC conformance 1-2 EMC/safety compliance 1-1 equipment checklist 2-2 front panel of RPU 1-2 grounding for racks 2-3...
  • Page 38 NDEX compliances B-3 environmental B-1 physical B-1 power B-1 standards compliance B-3 IEEE B-3 standards compliance 1-1 Index-2 surge suppressor, using 2-2 temperature within a rack 2-3 troubleshooting power and cooling problems A-2 RPU indicators A-1...
  • Page 40 PRC: Taiwan: Asia Pacific: Korea: Japan: Australia: India: If you are looking for further contact information, please visit www.smc.com. 38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 (800) SMC-4-YOU 34-91-352-00-40 44 (0) 871 277 98 02 33 (0) 1 55 64 04 55...
