Summary of Contents for auer Edel 200 WATER/2

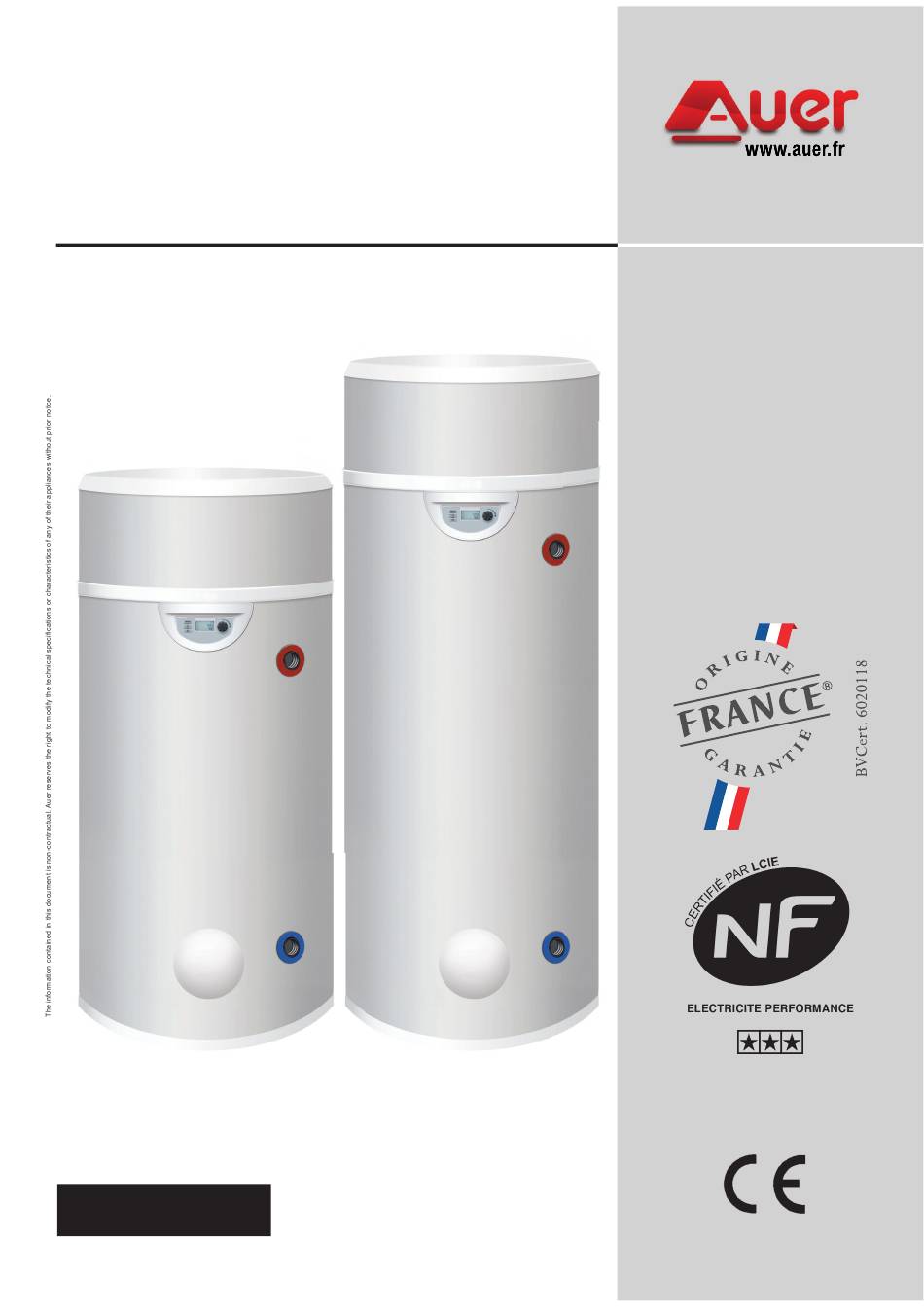

- Page 1 Edel WATER/2 Heat pump water heater Using calories drawn from the return fl ow of underfl oor heating Installation manual Edel 200 WATER/2 Ref. 352420 Edel 270 WATER/2 Ref. 352430 Made in France Manual ref: 1898151 Edition n : 22.30...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1-SAFETY ............. 4 5 - SET-UP AND USE .......... 15 5.1 - Control panel ..................15 2- RECOMMENDATIONS ........6 5.2 - Setting the language ................16 2.1 - Storage ....................6 5.3 - Setting the date and time ...............16 2.2 - Transport ....................6 5.4 - Setting the desired water temperature ........16 2.3- Contents of packaging ................6... - Page 3 7 - WARRANTY ........... 25 7.1 - Limitations of warranty..............25 7.1.1 - General information ....................25 7.1.2 - Exclusion from warranty ..................25 7.1.2.1 - Use .......................25 7.1.2.2 - Handling ....................25 7.1.2.3 - Placement ....................25 7.1.2.4 - Electrical connections ................25 7.1.2.5 - Hydraulic connections .................25 7.1.2.6 - Accessories ....................25 7.1.2.7 - Maintenance ....................25 8 - APPENDIX .............
-
Page 4: 1-Safety
Preserving these documents Danger resulting from improper use Any work carried out by an unqualifi ed person • This manual and all other relevant documents should be given to may result in damage to the installation or in the system user. physical injury. - Page 5 Protect the appliance with: - Maintenance - Troubleshooting - • an 8A all-pole circuit breaker with a • Drainage: Turn off the power supply and the contact opening of at least 3mm. cold water, open the hot water valves and then set the safety group to the drainage position.
-
Page 6: 2- Recommendations
2- RECOMMENDATIONS The appliance can only function when fi lled with water. Never turn on the appliance if the tank has not been properly fi lled with water and completely Risk of tipping purged of air. Do not drop or lower suddenly 2.1 - Storage Once the heat pump water heater is installed in its defi nitive place, it is... -
Page 7: Introduction
3 - INTRODUCTION 3.3 - Technical specifi cations and performances 3.1 - Dimensions Water source heat pump water 200L 270 L heater 3.1.1- Heat pump water heater 200 L WATER Heat pump performance Nominal volume Max. input power 1700 1700 Water temperature range +18 to +35 +18 to +35... -
Page 8: Installation
4 - INSTALLATION For this purpose, use 4.1- Placement and positioning the three adjustable legs provided in the 4.1.1- Placement choice pocket of the manual (see below). INSTALLATION PRECAUTIONS: Adjustable legs • The appliance must not be installed near a perpetual fl ame or other source of ignition. 4.1.3 - Options •... -
Page 9: 2- Filter
4.2.2- Filter 4.2.3 - Radiators It is recommended to install a fi lter on the inlet piping of the water The heat pump water heater is not compatible with a radiator circuit heater to protect the circulator and the plated heat exchanger. (the volume of water in the radiators is insuffi cient, and condensation will form on the surface of the radiators during the summer months). -
Page 10: Thermostatic Mixing Valves Equipping The Water Loops Of
4.2.10 - Treatment of the heating circuit 4.2.6 - Thermostatic mixing valves equipping the water loops of the underfl oor heating circuit It is MANDATORY to read the additional If there are thermostatically controlled valves equipping the document concerning the quality of recirculating pumps for the underfloor heating circuit on the water used for fi lling the installation.This appliance, (rep.18), leave them permanently open (by manually... -
Page 11: 11- Purging The Installation
4.2.11- Purging the installation The oxygen present in the air is extremely corrosive. Therefore, for a permanent purging of the installation to be effective, place automatic or manual air purgers at each high point of the installation, and manual purgers on each radiator. RENDERING THE WARRANTY NULL AND VOID All deterioration of the appliance due to an inappropriate quality of water and/... - Page 12 • For installations equipped with: Resistivity <2200 Ωcm or <4500Ωcm - piping of a small diameter Complete - ceramic plate valves <1.6 meq/l <8 alkalimetric title A domestic water expansion vessel, or anti-hammer valves which are adapted to the installation should be installed as close as possible <15 mg/l to the shut-off valve.
-
Page 13: Electrical Connections
4.4.2 - External control 4.4 - Electrical connections connect heat pump water heater to the eletrical line of Only an external connection using a a pre-existing water heater which voltage free «dry contact» is authorised, otherwise there is a risk of damaging the used the peak / off -peak hours contact. -
Page 14: Peak / Off -Peak Hours Contact
4.4.2.1 - Peak / Off -peak hours contact 4.4.2.2 - Electricity provider contact It is also possible to connect the electricity provider dry contact to To prevent the electrical back-up from running during peak hours, the heat pump water heater without using programming. connect the dry contact originating from the electricity counter, to terminal 1. -
Page 15: Connection To The Photovoltaic (Pv) Function
4.4.1.3 - Connection to the photovoltaic (PV) function This function enables the appliance to operate in auto- Energy manager production mode, which means dry contact Tair that it will use the energy Tdégiv produced by the PV function to Teau supply the heat pump as well as the electrical back-up, and to heat the water in the tank. -
Page 16: Setting The Language
5.4 - Setting the desired water 5.2 - Setting the language temperature The language must be selected when the appliance is turned on for 5.4.1 - PV mode deactivated the fi rst time. Turn the dial to the left and select «English». Confi rm your choice by pressing on the dial. -
Page 17: Holiday/Temporary Standby Mode
5.5 - Holiday/temporary standby mode 5.6 - BOOST mode (for occasional use and guaranteed comfort) h ol ida y « » mode puts the appliance on standby while the frost protection mode remains active. This function can be programmed boost The «... -
Page 18: Installer Menu
• Yes: the signals from terminals 1 and 2 have priority over frost 5.9 - INSTALLER menu protection and eco mode. It may be necessary to adjust certain temperature settings to • No: frost protection and eco mode have priority over the signals heat pump water heater, from terminals 1 and 2. -
Page 19: T°C. M In I
• If a cycle is interrupted by a period where the back-up is not allowed ma x ti me ma x ti me to run (electricity provider signal or programmed time slots) it will relaunch during the next authorised period. •... -
Page 20: Resetting The Parameters
5.9.6 - Counters 5.9.4 - Resetting the parameters The «Counters» menu shows the number of start-ups from the heat Resetting the parameters allows you to return to the default settings. pump and the electrical back-up. Go to the «Installer menu», and turn the dial to «Reset PARa.». In the «Installer», menu turn the dial to «counters». -
Page 21: Maintenance And Troubleshooting
6 - MAINTENANCE AND .../... → In case of intervention on the TROUBLESHOOTING refrigerant circuit: In order to maintain effi ciency and improve durability it 1) Secure the area you will be working in. is advised that an annual maintenance check be carried 2) Inform people of the potential danger out by a qualifi ed professional. -
Page 22: Modifi Cation
• The Heat pump is not working 6.4 - Modifi cation Check that: Any modifi cation of the device is prohibited. Any replacement of • The set temperature is higher than the temperature of the water components must be done by a professional with original parts in the tank. -
Page 23: List Of Spare Parts
6.10 - List of spare parts Rep. Description 200/270L Regulation / display B4993549 Control panel display B1244096 C3S electronic circuit board controller B1244059 Display cable - length 480mm visible B1244522 Temperature sensor - lg 900mm B1244552 Temperature sensor - lg 900mm Temperature sensor - lg 700mm B1244577 (200L model) -
Page 24: Error Message Codes
6.11- Error message codes: errors, solutions and operating in case of error Note: Errors can be dismissed by briefl y pressing the dial (manual reset) Temporary operating measures Display Error Probable causes Solutions while waiting for the problem to be resolved •Voltage too high on electrical network •Electronic board defect... - Page 25 7 - WARRANTY 7.1.2.3 - Placement Cases (not limited to) where the warranty is void: The tank is guaranteed against breakage for a period of fi ve (5) years, • Placing the appliance where it can be subject to frost or other starting from the date the appliance was activated, if the warranty adverse weather conditions.
- Page 26 WATER SOURCE HEAT PUMP WATER HEATER 200L & 270L INSTALLER MANUAL...
- Page 27 8 - APPENDIX 8.1 - Wiring diagram brown black black compressor Sensor black white Power supply blue 230V ~ 50Hz blue ground green / yellow (green / yellow) black brown phase (brown) blue neutral (blue) green / yellow ground Transformer pink pink brown...
- Page 28 Rue de la République CS 40029 80210 Feuquières-en-Vimeu Spare parts department Tel. : 03 22 61 21 21 Fax : 03 22 61 33 35 E-mail : pieces@auer.fr Technical assistance service* E-mail : enr@auer.fr *Technical assistance service is reserved for professionals...
