Edel
Air source Heat Pump Water Heater
for outdoor air or non-heated ambient air
User instruction manual
The domestic hot water heater mainly operates using the integrated heat pump, as long as the air intake
is within the -7°C to 35°C temperature range.
A 1.5kW electrical backup function ensures comfort at all times, and particularly in the following cases:
- air taken in outside the operating range.
- minimum comfort function: when this function is activated, both means of heating (heat pump and
electrical backup) operate at the same time to ensure that the water temperature remains above
38°C.
- "Boost" function: when this function is activated, both means of heating (heat pump and electrical
backup) operate at the same time to reach the desired temperature quickly.
Depending on how many people are using the water and to optimise savings, we would advise you not
to set the default temperature too high ( for example at 50°C ).

1 - Control box

3
4
5
Pictograms:
..... Compressor activated
.... Fan activated
........ De-icing in progress
........ Electrical backup
activated
AIR
1
2
.... Domestic hot water
request
....... Economy mode
activated
....... Freeze protection mode
activated
...... Holiday mode activated
1 Display screen
2 Dial
3 Menu
4 On/off
5
Time setting

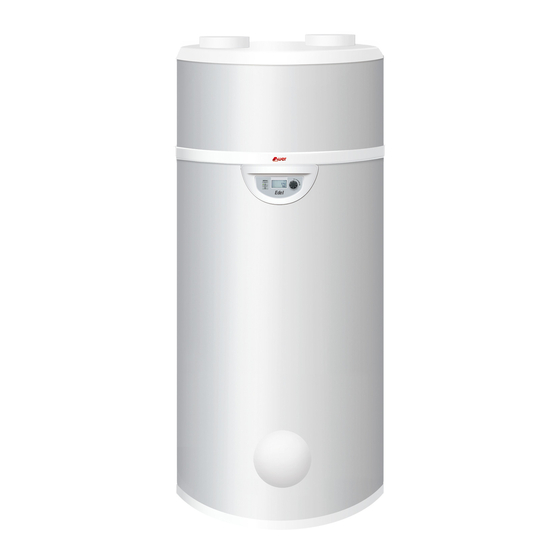

Edel Air 200
and 270 liters
Made
in France
Manual ref: 1895306
Edition n°: 15.342
