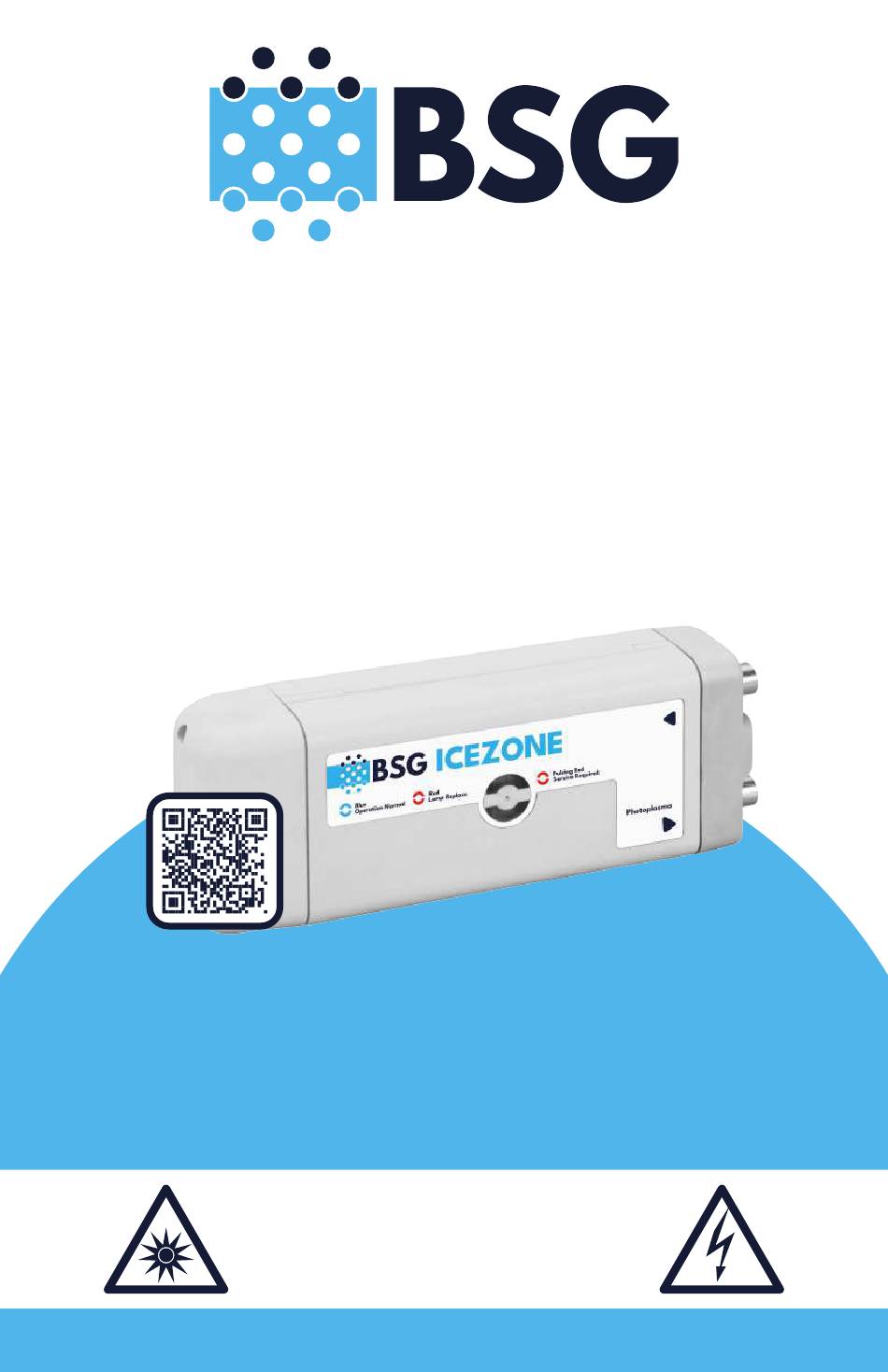

OWNER'S MANUAL
BSG ICEZONE
Automated Ice Machine Sanitation System
ICEZONE inhibits the growth of mold, slime, and
other contamination in ice machines, extending
the life of the ice maker and lowering maintenance
costs. ICEZONE delivers cleaner and healthier ice.
IMPORTANT!
▬ Only qualifi ed technicians should install this product
▬ Install in accordance with relevant building codes
▬ Read instructions carefully including safety warnings
WARNING!
Protect eyes from UV light, turn off
unit or disconnect before servicing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICEZONE 10 and is the answer not in the manual?

Questions and answers

Related Manuals for bsg ICEZONE 10

Summary of Contents for bsg ICEZONE 10

  • Page 1 OWNER’S MANUAL BSG ICEZONE Automated Ice Machine Sanitation System ICEZONE inhibits the growth of mold, slime, and other contamination in ice machines, extending the life of the ice maker and lowering maintenance costs. ICEZONE delivers cleaner and healthier ice. IMPORTANT! ▬...
  • Page 2 ICEZONE components Service Cover Lamp Seal 12V DC 25W Power Adapter Service Cover Screw Power Connection Mounting Screws/ Lamp Connector Main Body Rivets Status Indicator UV-Lamp PlasmaProtect® Tubing Lamp Life Reset Port Plasma Ports PlasmaProtect® Fittings Specifi cations Dimensions: 11.93 in (L) x 4.25 in (W) x 2.05 in (H) Electrical: Input: 100-240 V, 50/60 Hz Output: 12 V, 0.8 A (transformer rated to 2.0 A)

  • Page 3: Prior To Installation

    ICEZONE installation instructions How ICEZONE works ICEZONE ICEZONE creates a UV-plasma environment that inhibits the growth of contamination by reducing microbial load in the air and on surfaces in the treated area. Tools needed for installation ▬ 8 Foot Ladder ▬...

  • Page 4: General Installation Guidelines

    General installation guidelines BSG provides ice machine specifi c instructions for many styles of ice machines. Please download these instructions from the ICEZONE installation page on BSG’s website: www.bsg-uv.com/products/chill-ice/icezone/ The following steps outline general guidelines for ICEZONE installation on cuber style ice machines.
  • Page 5 Step 3: Mount ICEZONE Mark the location on the ice machine for the 5/32” (4mm) holes for the ICEZONE plastic mounting rivets. These holes should be located above/near the mechanical area of the ice machine and not the ice making area (food zone). Drill the three (3) 5/32”...

  • Page 6: Lamp Replacement

    Remove/Replace Replace Service Cover Lamp Cover Note: Use of non-BSG-supplied replacement UV lamps voids the warranty. Caution: UV lamps contain small amounts of mercury. Dispose of lamps in accordance with local environmental regulations. For more information visit http://lamprecycle.org Important! Reset the lamp life counter by...

  • Page 7: Troubleshooting

    Flashing Blue & Red Light Replace lamp. Confirm lamp part number. Non-BSG (Fan works) lamp may be in use; replace with BSG lamp. No Light Make sure (1) power supply is plugged in, (2) power (Fan does not work) outlet is working properly, and (3) power cord is undamaged.

  • Page 8: Warranty

    Warranty Item Coverage Period Action ICEZONE Parts 3 years Repair or replacement at BSG’s discretion UV Lamp Parts 1 Year Balance of lamp warranty coverage (Pro-rated) period credited towards purchase of replacement lamp Installation None None None Shipping None None None See warranty card in box for more details about applicable warranty terms and conditions.
