INSTRUCTION MANUAL
PIR Sensor

Features:

1.Safety Voltage: DC 12V/24V
2.Protection: IP20
3.Beam Angle: 120 degrees
4.Efficiency: >80Lm/W
5.CRI: >80

Function:

IR
I. Shielding reflective sensor dimming. Effective sensing distance of obstruction (e.g.: hand) to the
sensor is within 50mm.
II. When in effective sensing distance,
A.Occlusion time <700ms, it's for ON-OFF function
B.Occlusion time >700ms, it's for Dimming function
III. Power by default is OFF state. Dimming maximum brightness 100%, minimum brightness 2%
C.If operator action II Item A, showing the state of ON. the brightness automatically fade to
maximum after 2 seconds. If operate again, it shows the opposite state.
D.If operator action II Item B, the brightness dimming from 0. Dimming ratio is the same with the
ratio of the Occlusion duration, brightness adjustment time up to 5 seconds. If the operation above
action again after remove the obstruction, it shows the opposite state.
PIR
The integrated PIR sensor offers touchless switching of the unit when opening the furniture door

Advantages:

1. Ultra thin Design, Side-Emitting,no LED Dot visible;
2. No UV or RF interference,Eco-friendly;
3. Long life time 50,000+hrs,3 years Warranty;
4. Surface mounted with screws or 3M Tape;
5. IR Sensor and PIR Sensor Build-in.
6. CRI 80/90/95 Available.
7. Replace 35W Halogen Lamp.

Applications:

Windows, shelves,cabinets, display cabinets,furniture,bars,showrooms, museums,reading room.

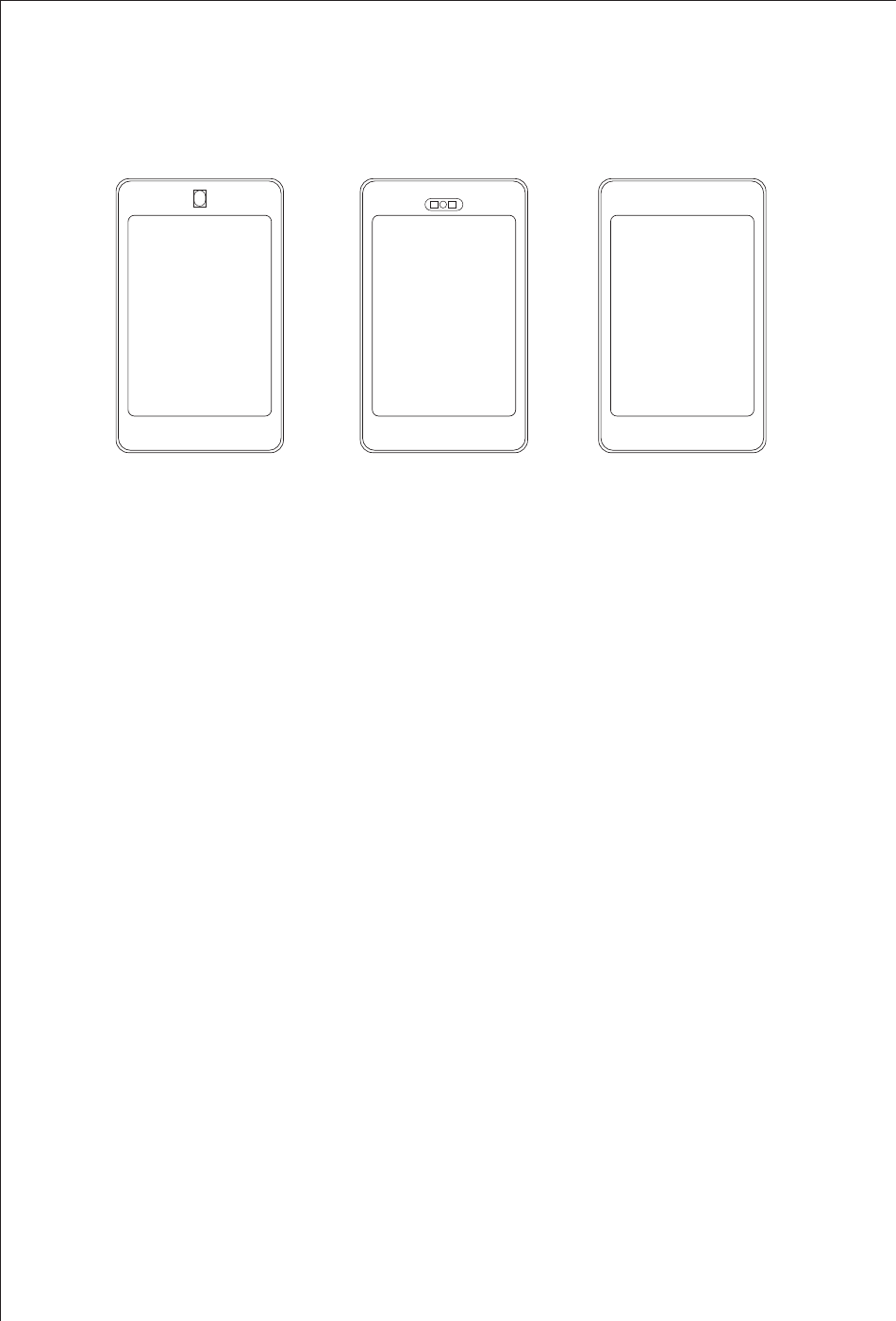

IR Sensor No Sensor
