Agrimate AM-MPT-1100-9D CHAMPION User Manual

Intercultivator/power weeder
Hide thumbs Also See for AM-MPT-1100-9D CHAMPION:

Advertisement

Quick Links

Download this manual

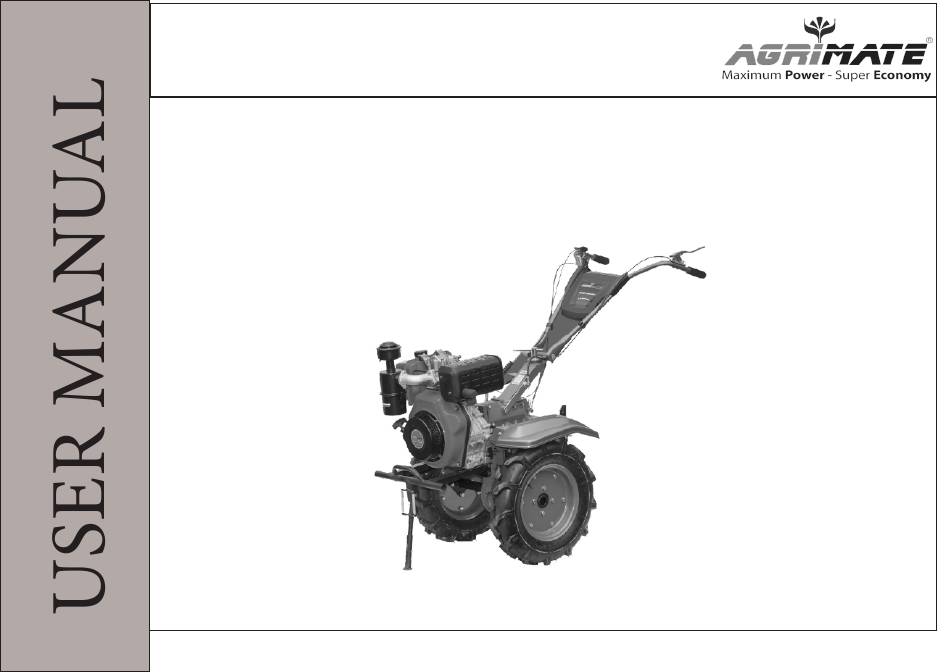

INTERCULTIVATOR/POWER WEEDER
AM-MPT-1100-9D/6D CHAMPION- 3 GEAR
TRANSMISSION DIGRAM WITH PART LIST
DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE
BEFORE OPERATING THIS MACHINE PLEASE READ THIS INSTRUCTIONS MANUAL CAREFULLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the AM-MPT-1100-9D CHAMPION and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agrimate AM-MPT-1100-9D CHAMPION

Summary of Contents for Agrimate AM-MPT-1100-9D CHAMPION

  • Page 1 INTERCULTIVATOR/POWER WEEDER AM-MPT-1100-9D/6D CHAMPION- 3 GEAR TRANSMISSION DIGRAM WITH PART LIST DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE PLEASE READ THIS INSTRUCTIONS MANUAL CAREFULLY...
  • Page 2 INTRODUCTION Dear Sir/ Madam, Thank you for choosing Agrimate product. You are the proud owner of high technology & durable machine. Trust that our Franchisee/Dealer installed the product & installed the product and explained you about the usage & service instrcuctions. Please visit our autorised dealer for your future requirement of our other equipments, genuine spares, accessories and services.

  • Page 3: Technical Parameters

    TECHNICAL PARAMETERS MODEL AM-MPT-1100-9D CHAMPION STARTING RECOIL/STARTING DISPLACEMENT 406CC FUEL TANK CAPACITY 5.5L ENGINE OIL CAPACITY 1.1L DRIVING MODEL GEAR TYPE GEAR 2 FORWARD + 1 REVERSE TILLING DEPTH ≥100MM TILLING DEPTH 850-1350MM 125/135KG...
  • Page 4 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION ENGINE SUPPORT -A...
  • Page 5 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TA01 ENGINE AM-MPT-1100-9DC-TA02 HEXAGON NUT AM-MPT-1100-9DC-TA03 STANDARD SPRING WASHER AM-MPT-1100-9DC-TA04 FLAT WASHER AM-MPT-1100-9DC-TA05 GUARD AM-MPT-1100-9DC-TA06 ENGINE CONNETING SEAT AM-MPT-1100-9DC-TA07 HEXAGONAL HEAD BOLT AM-MPT-1100-9DC-TA08 HEXAGONAL HEAD BOLT...
  • Page 6 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION GEAR BOX - B...
  • Page 7 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TB01 ENGINE GASKET AM-MPT-1100-9DC-TB17 MAIN AXLE AM-MPT-1100-9DC-TB02 FLANGE AM-MPT-1100-9DC-TB18 STOPPER SPRING AM-MPT-1100-9DC-TB03 PRESSURE RELIEF BOLT AM-MPT-1100-9DC-TB19 STEEL BALL AM-MPT-1100-9DC-TB04 STANDARD SPRING WASHER AM-MPT-1100-9DC-TB20 D GEAR AM-MPT-1100-9DC-TB05...
  • Page 8 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TB33 AM-MPT-1100-9DC-TB49 SHIFT FORK AM-MPT-1100-9DC-TB34 HEXAGON SLOTTED NUT AM-MPT-1100-9DC-TB50 OIL DIPSTICK SUBASSEMBLY AM-MPT-1100-9DC-TB35 FLAT WASHER AM-MPT-1100-9DC-TB51 INHAUL CABLE BASE AM-MPT-1100-9DC-TB36 STANDARD SPRING WASHER AM-MPT-1100-9DC-TB52 BOLT AM-MPT-1100-9DC-TB37...
  • Page 9 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION REAR UPPER GEAR BOX - C...
  • Page 10 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TC01 TRANSMISSION BOX BODY AM-MPT-1100-9DC-TC17 FLAT WASHER AM-MPT-1100-9DC-TC02 DEEP GROOVE BALL BEARING AM-MPT-1100-9DC-TC18 FLAT WASHER AM-MPT-1100-9DC-TC03 BUSH AM-MPT-1100-9DC-TC19 HEXAGONAL HEAD BOLT AM-MPT-1100-9DC-TC04 LOCK WASHER FOR ROUND NUTS AM-MPT-1100-9DC-TC20 FLAT WASHER...
  • Page 11 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION LOWER GEAR BOX- D...
  • Page 12 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TD01 HEXAGONAL FIXING SLEEVE AM-MPT-1100-9DC-TD17 HEXAGONAL HEAD BOLT AM-MPT-1100-9DC-TD02 HEXAGONAL HEAD BOLT AM-MPT-1100-9DC-TD18 O-TYPE RUBBER SEAL RING AM-MPT-1100-9DC-TD03 OUTPUT SHAFT DUST-PROOF COVER AM-MPT-1100-9DC-TD19 DRAIN PLUG BOLT AM-MPT-1100-9DC-TD04...
  • Page 13 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION HANDLE - E...
  • Page 14 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TE01 CLIP AM-MPT-1100-9DC-TE17 NON-METALLIC HEX LOCK NUT AM-MPT-1100-9DC-TE02 GEAR LEVER AM-MPT-1100-9DC-TE18 FLAT WASHER AM-MPT-1100-9DC-TE03 LOCK HANDLE AM-MPT-1100-9DC-TE19 HEXAGONAL HEAD BOLT AM-MPT-1100-9DC-TE04 WIRE CLIP AM-MPT-1100-9DC-TE20 HANDLE TUBE ASSY AM-MPT-1100-9DC-TE05...
  • Page 15 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TE33 ARMREST ASSEMBLY AM-MPT-1100-9DC-TE34 BOLT AM-MPT-1100-9DC-TE35 FLAT WASHER AM-MPT-1100-9DC-TE36 FLAT WASHER AM-MPT-1100-9DC-TE37 HEXAGON NUT AM-MPT-1100-9DC-TE38 STARTING SWITCH...
  • Page 16 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION BATTERY - F SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TF01 BATTERY CLAMP AM-MPT-1100-9DC-TF02 HEXAGON FLANGE FACE BOLT AM-MPT-1100-9DC-TF03 BOLT AM-MPT-1100-9DC-TF04 MOTOR WIRES AM-MPT-1100-9DC-TF05 MOTOR WIRES AM-MPT-1100-9DC-TF06 BATTERY AM-MPT-1100-9DC-TF07 BATTERY GASKET AM-MPT-1100-9DC-TF08 BATTERY CABLE AM-MPT-1100-9DC-TF09 HEXAGON LOCK NUT...
  • Page 17 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION FENDER - G...
  • Page 18 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TG01 FENDER, MINI-TILLER - LEFT AM-MPT-1100-9DC-TG17 HEXAGON NUT AM-MPT-1100-9DC-TG02 FENDER, MINI-TILLER - LEFT AM-MPT-1100-9DC-TG18 HEXAGONAL HEAD BOLT AM-MPT-1100-9DC-TG03 FENDER, MINI-TILLER- RIGHT AM-MPT-1100-9DC-TG19 TRAILING BODY AM-MPT-1100-9DC-TG04 FENDER, MINI-TILLER- RIGHT...
  • Page 19 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION LEFT BLADES- H SL NO PART NO DESCRIPTION AM-MPT-1100-9DC-TH01 TRIMMING WHEEL AM-MPT-1100-9DC-TH02 CYLINDER AM-MPT-1100-9DC-TH03 CYLINDER AM-MPT-1100-9DC-TH04 FLAT WASHER AM-MPT-1100-9DC-TH05 HEXAGON NUT AM-MPT-1100-9DC-TH06 CLIP AM-MPT-1100-9DC-TH07 PIN SHAFT AM-MPT-1100-9DC-TH08 ROTARY BLADE AM-MPT-1100-9DC-TH09 ROTARY BLADE AM-MPT-1100-9DC-TH10 CYLINDER...
  • Page 20 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION RIGHT BLADES- J SL NO PART NO DESCRIPTION AM-MPT-1100-9DR-TJ01 Trimming Wheel AM-MPT-1100-9DR-TJ02 Cylinder AM-MPT-1100-9DR-TJ03 Cylinder AM-MPT-1100-9DR-TJ04 Washer Flat AM-MPT-1100-9DR-TJ05 Hexagon Nut AM-MPT-1100-9DR-TJ06 Clip AM-MPT-1100-9DR-TJ07 Pin Shaft AM-MPT-1100-9DR-TJ08 Rotary Blade AM-MPT-1100-9DR-TJ09 Rotary Blade AM-MPT-1100-9DR-TJ10 Cylinder...
  • Page 21 TRANSMISSION DIAGRAM & PART LIST OF AM-MPT-9D/6D CHAMPION LEFT & RIGHT WHEEL ASSY -K SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-MPT-1100-9DR-TK01 HEXAGONAL HEAD BOLT AM-MPT-1100-9DR-TK06 REAR WHEEL SHAFT AM-MPT-1100-9DR-TK02 WHEEL HUB AM-MPT-1100-9DR-TK07 FLAT WASHER AM-MPT-1100-9DR-TK03 OUTER TUBE AM-MPT-1100-9DR-TK08 HEXAGON NUT AM-MPT-1100-9DR-TK04...

  • Page 24: Warranty Card

    WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE...
  • Page 25 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
  • Page 26 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
  • Page 27 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
  • Page 28 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...

This manual is also suitable for:

Am-mpt-1100-6d champion
