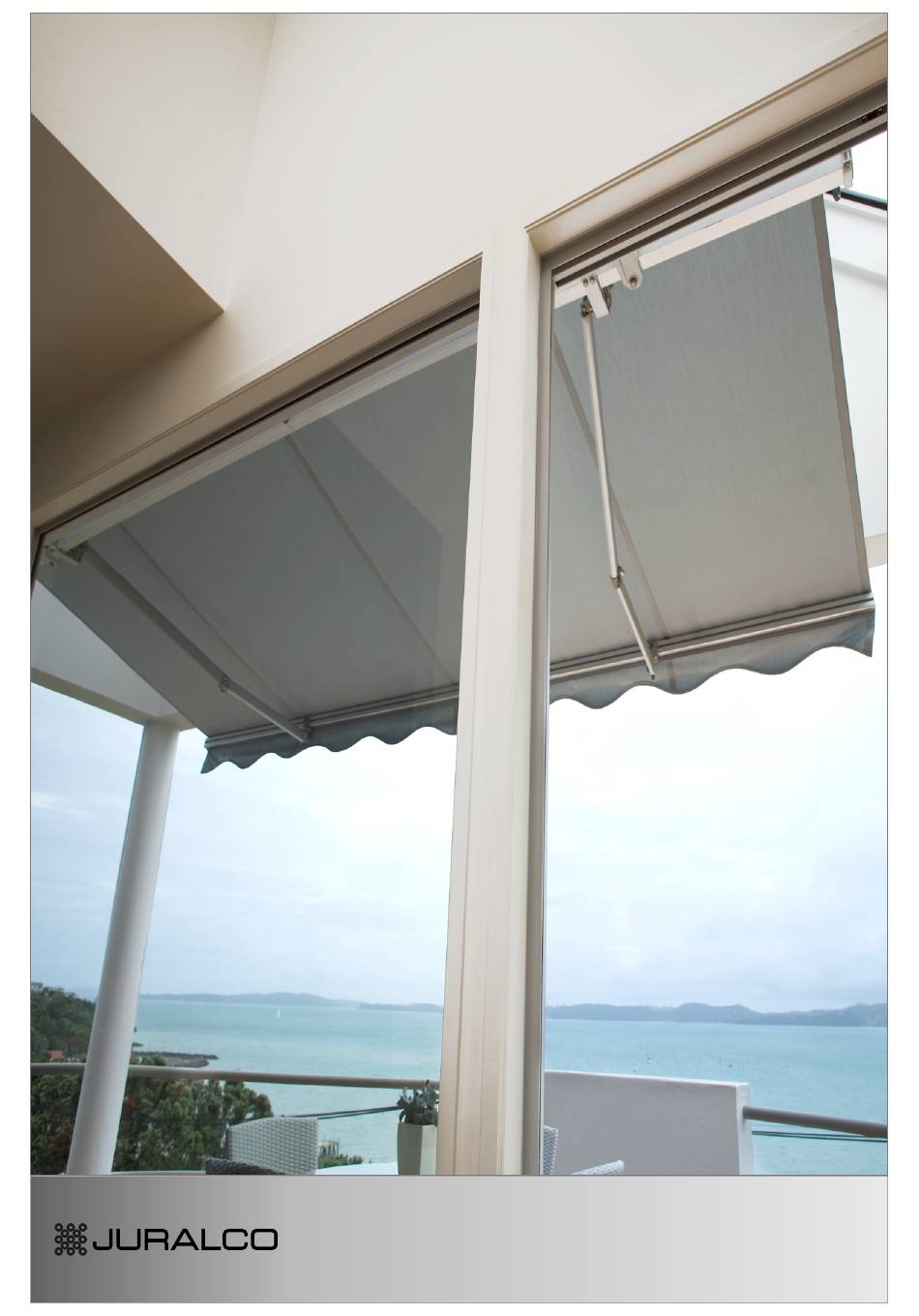

- Page 1 JURALCO DEAUVILLE AWNING SYSTEM Issue 6-23 v1 Juralco Deauville Awning System ISSUE 6-23 v1 www.juralco.co.nz ph (09) 478 8018...
- Page 2 General Description - The Juralco Deauville Awning system is available as a single unit up to 5.9m wide, with a max 3m outward awning extension. - Typical applications include Decks, Bars, Shops, Terraces, or anywhere needing protection from the sun, or unexpected light rain showers.
- Page 3 Juralco Deauville Awning System - General Descriptions General Manual (or Motorised) Gearbox Roller Tube and Mounting Brackets Awning Roll Soffit or Wall Roller Tube Brackets Back Bar Slope Adjustment Folding Arms Front Profile The Juralco Deauville awning consists of : Mounting Brackets, support the whole awning.
- Page 4 Juralco Deauville Awning System - Extrusions - Full Size 78/80 dia ROLLER TUBE, 78/80mm dia JDA/110 74/4 JDA/110 74/5.82 FRONT BAR JDA/110 71/4 JDA/110 71/5.82 BACK BAR JDA/110 75/4 JDA/110 75/5.92 Issue 6-23 v1 Juralco Deauville Awning System Page 4...
- Page 5 Juralco Deauville Awning System - Components Front Bar Roller Tube End Cap, Square Roller Tube End Cap Round 31036 End Cap,Grey End Cap JDA/403 1325 JDA/403 1326 JDA/403 9400 JDA/314 05/PC 80mm dia 80mm dia 45mmsq 13mmsq shaft 12mm dia shaft...
- Page 6 Juralco Deauville Awning System - Components Folding Arms Gearbox Handle Gearbox Handle Clip JDA/402 6500 Set = Pair, 1 x RH, 1 x LH JDA/403 9708/1.5 - 1500mm Projection (Single Wire) JDA/403 0431 - 1200mm JDA/403 9716/2 - 2000mm Projection (Single Wire)
- Page 7 Juralco Deauville Awning System - In Line Motors and Controls Tubular Motors Tubular Motors JNICE ERA M 3017 and 5012 JNICE ERA PLUS 3017 and 5012 For Switch Control For Remote Control Tubular Motors 45mm dia Push Button Limit switches...
- Page 8 Juralco Deauville Awning System - In Line Motors and Controls One switch per Single Motor only. Manual Control Use relays if more than single Motor HPM Rotary Connections at Motor Motor fully tested Switch Controls and Limits set at factory...
- Page 9 Juralco Deauville Awning System - Awning Retraction Wind Settings Wind Speed Adjustment - Awning Retraction settings At the factory, the intervention threshold to is set at level 3 and to change it you must take the following steps 01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
- Page 10 Juralco Deauville Awning System - Measuring, Brackets Measuring Angle down from Horizontal Awning on site Check List: 1 - Check the desired width and installation area, making sure there are no obstructions. Projection 2 - Check that the desired number of wall/ceiling attach brackets Drop all have secure fixing points.
- Page 11 Juralco Deauville Awning System - Installation Deauville Awning Installation Note: Prior to delivering to site, unpack and check all items 1 - Carefully unpack and check for damage. Note - BE VERY CAREFUL THE AWNING IS NOT ACCIDENTALLY CUT during unpacking.
- Page 12 Awning System - Order Form AW # Customer Contact Order No Date Juralco Juralco Juralco Select/Enter Dimensions below. Enter details/selections into all boxes. Then scan and send to sales@juralco.co.nz Unsuitable for Strong Winds Widths, min Deauville Awning Project 1945 2440 2970 3460...
- Page 13 - These are new exemptions dated Dec 2010 While every effort has been made to ensure that this information is correct at time of writing, it is provided for guidance only and Juralco will accept no liability for, nor warrants the accuracy of this guidance. It is the sole responsibility of the of the purchaser to confirm current status of consent requirements with the relevant territorial authority before purchase and installation.
- Page 14 Juralco Deauville Awning System - Powder Coating Care and Maintenance Powder Coating Installation Care Warning re use of solvents: - In some cases strong solvents are recommended for thinning various types of paints and also for cleaning up mastics and sealants.
