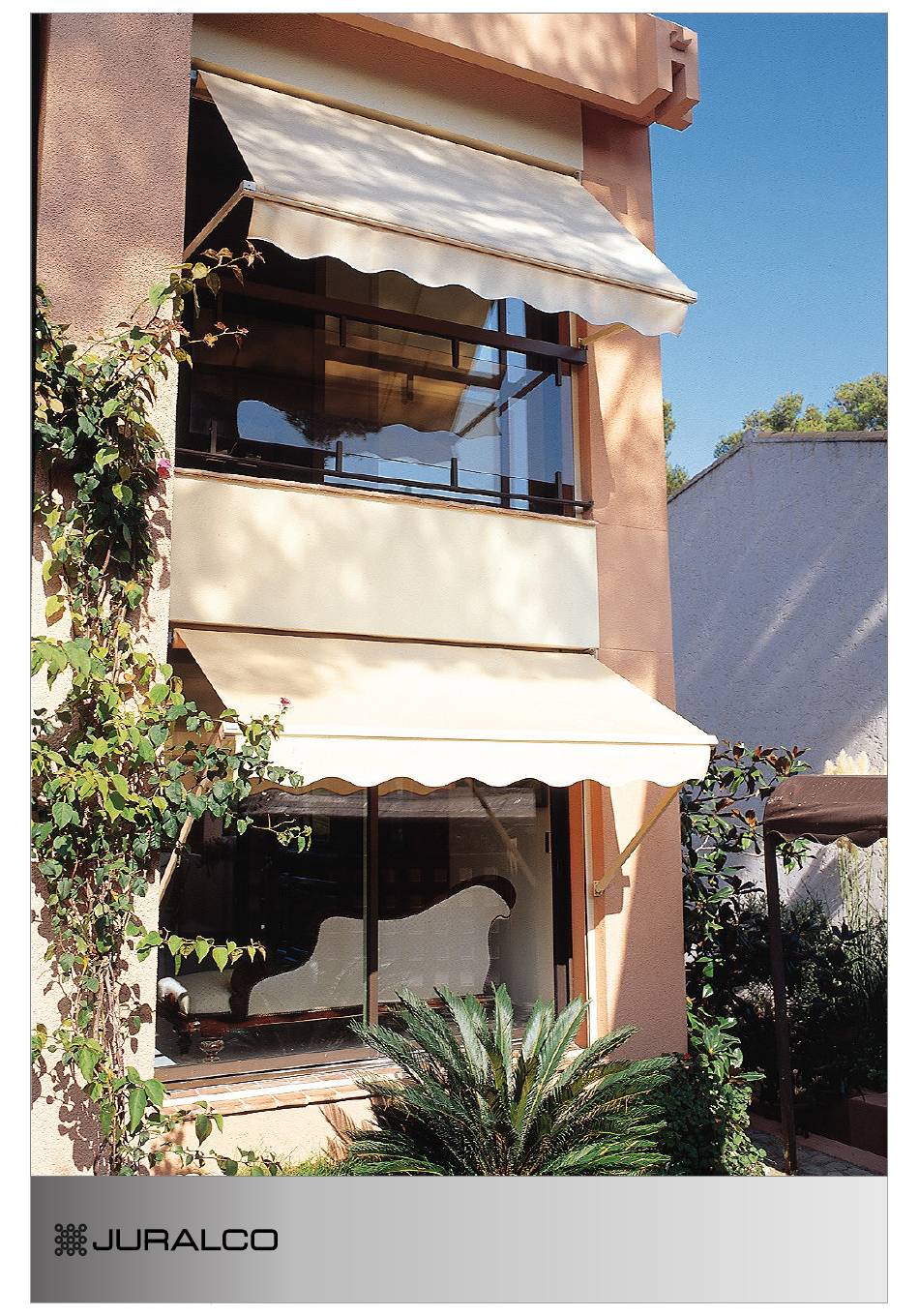

- Page 1 JURALCO BANNETTE AWNING SYSTEM Issue 4-23 v1 Juralco Bannette Awning System ISSUE 4-23 v1 www.juralco.co.nz ph (09) 478 8018...
- Page 2 ® ® Note - Powder coated prices listed in Juralco price books are for Duralloy or Duralloy Plus systems. If the Duratec system is required it ® must be specified upon placement of the order and will incur a surcharge – Duratec prices on application.
- Page 3 General Description - Pages 3 - 7 - There are two Juralco Bannette Awning systems - A Drop Arm shade awning and a vertical Drop Down curtain system. - The Drop Arm system is available as a single unit up to 5mt wide.
- Page 4 Bannette Drop Arm Overall Width, max 5.9mt The Juralco Bannette Drop Arm awning consists of : Front profile, from extruded aluminium, 45mm sq cross section to which are connected the arms, the fabrics cover and a valance. Mounting /Roller Tube Brackets, made of cast aluminium suitable Awning Fabric - Dickson or Planosol fabric ranges.
- Page 5 Overall Drop, max Sq meterage, max 10sq mt The Juralco Bannette Clear Drop awning consists of : Awning, either a clear plastic panel, complete with sewn in coloured Mounting /Roller Tube Brackets, made of cast aluminium suitable border, or a standard awning material.
- Page 6 Finishes, Cast aluminium parts - powder coated Grey. Aluminium extrusions - natural anodised. The Juralco Bannette Clear Drop Zipped awning consists of : PVC Joints, Max PVC width 1350mm. Wider curtains will have Clear Drop Zipped Extrusion, JDA 11079 made of aluminium welded vertical PVC joins.
- Page 7 Juralco Bannette Awning System - Fabric Descriptions Fabric Range Planosol Awning Fabric Planosol is manufactured from 100% acrylic fibre and will retain a light fastness rating of 6-8 on a 1-8 scale. Planosol is very tightly woven, with minimal light transmission, resulting in excellent UV protection. It has Ultraviolet Protection factor of 50+, maximum value granted for percentage of protection against UV ray and SPF 100.
- Page 8 Juralco Bannette Awning Systems - Drop Arm Awning Extrusions, Components Shade Awning Extrusions ROLLER TUBE, 78/80mm dia JDA/110 74/4 JDA/110 74/5.82 FRONT BAR JDA/110 71/4/NAT JDA/110 71/5.82/NAT 80 dia Bannette Drop Arms, Gearbox Handle Front Profile Arm Bracket Sprung Loaded...
- Page 9 JBA/403 1542 JDA/403 6607 Mount Holes 9mm dia 16.5 Juralco Bannette Awning System - Drop Arm Awning Measuring, Installation Drop Arm Measuring Awning on site Check List: Stowed 1 - Check the desired width and installation area, making sure there are no obstructions.
- Page 10 Juralco Bannette Awning System - In Line Motors and Controls Tubular Motors Tubular Motors JNICE ERA M 3017 and 5012 JNICE ERA PLUS 3017 and 5012 Tubular Motors 45mm dia Tubular Motors 45mm dia Push button Limit switches Mechanical Limit switches...
- Page 11 Juralco Bannette Awning System - In Line Motors and Controls One switch per Single Motor only. Manual Control Use relays if more than single Motor HPM Rotary Connections at Motor Motor fully tested Switch Controls and Limits set at factory...
- Page 12 Juralco Bannette Awning System - Awning Retraction Wind Settings Wind Speed Adjustment - Awning Retraction settings At the factory, the intervention threshold to is set at level 3 and to change it you must take the following steps 01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
- Page 13 AW # Customer Contact Order No Date Juralco Juralco Juralco Select/Enter Dimensions below. Enter details/selections into all boxes. Then scan and send to sales@juralco.co.nz Unsuitable for Strong Winds Projection (Arm Length) Overall width Select Projection then enter Width 750mm Overall - Overall width 1000mm min, 5920mm max.
- Page 14 Juralco Bannette Awning Systems - Drop Down Extrusions, Components Clear Drop Extrusions ROLLER TUBE, 78/80mm dia JDA/110 74/4 JDA/110 74/5.82 32 dia FRONT PROFILE JA248 80 dia Gearbox Handles Roller Tube End Cap Roller Tube End Cap JDA/403 1325 JDA/403 1326...
- Page 15 Juralco Bannette Awning System - Drop Down Measuring, Installation Clear Drop Measuring Clear Drop on site Check List: 1 - Check the desired width and installation area, making sure there are no obstructions. 2 - Check that the Mounting brackets have secure fixing points.
- Page 16 Contact Order No Date Juralco Juralco Juralco Select/Enter Dimensions below. Enter details/selections into all boxes. Then scan and send to sales@juralco.co.nz Unsuitable for Strong Winds Enter Overall Overall Drop Overall width Measurements For Clear PVC or Fabric. For Gearbox operation only Notes: - Overall width 4000mm max.
- Page 17 Juralco Bannette Awning Systems - Clear Drop Zipped Extrusions, Components Clear Drop Zipped Clear Drop Zipped Extrusion Components Clear Plastic Straps x 2 Clear Drop Down Hooks x 2 670mm x 35mm Base 35mm x 16mm 11.2mm dia Bolt TRack...
- Page 18 Customer Contact Order No Date Juralco Juralco Juralco Select/Enter Dimensions below. Enter details/selections into all boxes. Then scan and send to sales@juralco.co.nz Unsuitable for Strong Winds Enter Overall Height Overall width Overall Dimensions For Clear PVC Only. For Manual operation only Notes: - Overall width 4000mm max.
- Page 19 - These are new exemptions dated December 2010 While every effort has been made to ensure that this information is correct at time of writing, it is provided for guidance only and Juralco will accept no liability for, nor warrants the accuracy of this guidance. It is the sole responsibility of the of the purchaser to confirm current status of consent requirements with the relevant territorial authority before purchase and installation.
- Page 20 Juralco Bannette Awning System - Powder Coating Care and Maintenance Powder Coating Installation Care Warning re use of solvents: - In some cases strong solvents are recommended for thinning various types of paints and also for cleaning up mastics and sealants.
