IMX12-AI01...
DE
Kurzbetriebsanleitung
IMX12-AI01...
Weitere Unterlagen
Ergänzend zu diesem Dokument finden Sie im Internet unter
www.turck.com
Unterlagen:
■
Datenblatt
■
Sicherheitshandbuch
■
Zulassungen
■
Konformitätserklärungen
Zu Ihrer Sicherheit
Bestimmungsgemäße Verwendung
Die Messumformer-Speisetrenner der Baureihe IMX12-AI01... sind mit eigensicheren Eingangs-
kreisen ausgestattet und übertragen die analogen Messsignale aus dem explosionsgefähr-
deten Bereich in den sicheren Bereich. An den Geräten können eigensichere HART-2-Draht-
Messumformer sowie aktive und passive HART-2-Draht-Transmitter im Ex-Bereich betrieben
werden. Die Geräte sind für den Betrieb in Zone 2 geeignet. Mit den Geräten lassen sich auch
sicherheitsgerichtete Anwendungen bis einschließlich SIL2 (High- und Low-Demand gemäß
IEC 61508) aufbauen (Hardwarefehlertoleranz HFT = 0).
GEFAHR
Die vorliegende Anleitung enthält keine Informationen zum Einsatz in sicherheitsgerichteten
Anwendungen.
Lebensgefahr durch Fehlanwendung!
Bei Einsatz in sicherheitsgerichteten Systemen: Vorschriften des zugehörigen Sicherheits-
handbuchs unbedingt einhalten.
Die Geräte dürfen nur wie in dieser Anleitung beschrieben verwendet werden. Jede andere
Verwendung gilt als nicht bestimmungsgemäß. Für daraus resultierende Schäden übernimmt
Turck keine Haftung.
Allgemeine Sicherheitshinweise
■
Nur fachlich geschultes Personal darf das Gerät montieren, installieren, betreiben, paramet-
rieren und instand halten.
■
Das Gerät erfüllt die EMV-Anforderungen für den industriellen Bereich. Bei Einsatz in Wohn-
bereichen Maßnahmen treffen, um Funkstörungen zu vermeiden.
■
Für den Versorgungsstromkreis durch externe Maßnahmen verhindern, dass die Bemes-
sungsspannung durch Störungen um mehr als 40 % überschritten wird.
Hinweise zum Ex-Schutz
■
Gerät nur mit geeignetem Schutzgehäuse im Ex-Bereich einsetzen.
■
Nationale und internationale Vorschriften für den Explosionsschutz beachten.
■
Bei Einsatz des Gerätes in Ex-Kreisen muss der Anwender über Kenntnisse im Explosions-
schutz (IEC/EN 60079-14 etc.) verfügen.
■
Das Gerät nur innerhalb der zulässigen Betriebs- und Umgebungsbedingungen (siehe
Zulassungsdaten und Auflagen durch die Ex-Zulassung) einsetzen.
Auflagen durch die Ex-Zulassungen bei Einsatz in Zone 2
■
Gerät in ein Gehäuse nach IEC/EN 60079-0 mit einer Schutzart mind. IP54 nach IEC/EN 60529
montieren.
■
Gerät nur in Bereichen mit einem Verschmutzungsgrad von maximal 2 einsetzen.
■
Nicht eigensichere Stromkreise nur trennen und verbinden, wenn keine Spannung anliegt.
Produktbeschreibung
Geräteübersicht
siehe Abb. 1: Frontansicht, Abb. 2: Abmessungen, Abb. 5: Power-Bridge-Verbinder
Funktionen und Betriebsarten
Die Messumformer-Speisetrenner sind mit Eingangskreisen von 4...20 mA und Ausgangskrei-
sen von 4...20 mA (wahlweise als Quelle oder Senke) bzw. 1...5 V (Quelle) ausgestattet. Die
Eingangssignale werden im Bereich von 3,8 mA...20,5 mA ohne Beeinflussung 1:1 aus dem Ex-
Bereich in den sicheren Bereich übertragen. Darüber hinaus ist eine bidirektionale Übertragung
digitaler Signale gemäß HART-Protokoll möglich. Die Geräte mit Splitterbetrieb bilden das
Eingangssignal an Eingang [E1] an den Ausgängen [A1] und [A2] ab. Die digitalen HART-Signale
werden dabei nur an Ausgang [A1] übertragen. Die Geräte mit Power-Bridge-Anschluss bieten
zusätzlich die Möglichkeit, eine Sammelstörmeldung zu übertragen.
FR
Guide d'utilisation rapide
IMX12-AI01...
Documents complémentaires
folgende
Sur le site www.turck.com, vous trouverez les documents suivants, qui contiennent des
informations complémentaires au présent document :
■
Fiche technique
■
Manuel de sécurité
■
Homologations
■
Déclarations de conformité
Pour votre sécurité
Utilisation conforme
Les convertisseurs de mesure-séparateurs d'alimentation de la série IMX12-AI01... sont
équipés de circuits d'entrée à sécurité intrinsèque et transmettent les signaux de mesure
analogiques depuis la zone présentant un risque d'explosion jusqu'à à la zone sécurisée. Des
convertisseurs de mesure à 2 câbles HART ainsi que des transmetteurs à 2 câbles HART passifs
et actifs peuvent fonctionner sur les appareils en zone Ex. Les appareils sont conçus pour un
fonctionnement en zone 2. Des applications de sécurité jusqu'à SIL2 compris (High- et Low-
Demand selon CEI 61508) peuvent également être montées avec les appareils (Tolérance aux
pannes hardware HFT = 0).
DANGER
La notice fournie ne contient aucune information sur l'utilisation avec des applications de
sécurité.
Risque de mort en cas de mauvaise utilisation !
En cas d'utilisation avec des systèmes de sécurité, respectez impérativement les
consignes du manuel de sécurité correspondant.
Les appareils peuvent exclusivement être utilisés conformément aux indications figurant dans
la notice. Toute autre utilisation est considérée comme non conforme . La société Turck décline
toute responsabilité en cas de dommages causés par une utilisation non conforme.
Consignes de sécurité générales
■
Seul un personnel qualifié est habilité à monter, installer, utiliser, paramétrer l'appareil et à
en effectuer la maintenance.
■
L'appareil répond aux exigences CEM pour le domaine industriel. En cas d'utilisation dans
des zones résidentielles, prendre des mesures pour éviter les interférences radio.
■
Des mesures externes doivent être prises pour le circuit d'alimentation, afin d'éviter que la
tension nominale soit dépassée de plus de 40 % suite à des perturbations.
Indications relatives à la protection contre les explosions
■
Utilisez l'appareil dans la zone Ex uniquement avec un carter de protection adapté.
■
Respectez les consignes nationales et internationales relatives à la protection contre les
explosions.
■
En cas d'utilisation de l'appareil dans des zones à risque d'explosion, vous devez en outre
disposer des connaissances requises en matière de protection contre les explosions (CEI/
EN 60079-14, etc.).
■
Utilisez uniquement l'appareil dans le respect le plus strict des conditions ambiantes et des
conditions d'exploitation autorisées (voir données d'homologation et consignes relatives à
l'homologation Ex).
Exigences relatives aux certificats Ex en cas d'utilisation en zone 2
■
Montez l'appareil dans un carter conforme à la norme CEI/EN 60079-0 avec un indice de
protection IP54 minimum conformément à la norme CEI/EN 60529.
■
Utilisez l'appareil seulement dans les zones avec un degré de pollution de 2 au maximum.
■
Les circuits à sécurité électrique non intrinsèque doivent être séparés et raccordés unique-
ment lorsqu'aucune tension n'est présente.
Description du produit
Aperçu de l'appareil
voir fig. 1 : Vue avant, fig. 2 : Dimensions, voir fig. 5 : Connecteur Power Bridge
Fonctions et modes de fonctionnement
Le convertisseur de mesure-séparateur d'alimentation est équipé d'un circuit d'entrée de
4...20 mA et d'un circuit de sortie de 4...20 mA (au choix comme source ou source négative)
ou 1...5 V (source). Les signaux d'entrée sont transmis dans une plage de 3,8 mA à 20,5 mA,
sans impact 1:1 de la zone Ex vers la zone sécurisée. Par ailleurs, une transmission bidirec-
tionnelle des signaux numériques est possible suivant le protocole HART. Les appareils à
fonctionnement comminutif reproduisent le signal d'entrée [E1] au niveau des sorties [A1]
et [A2]. Les signaux numériques HART sont donc transmis uniquement au niveau de la sortie
[A1]. Les appareils équipés d'un raccordement de rail d'alimentation permettent en outre de
transmettre un message de défaut groupé.
EN
Quick Start Guide
IMX12-AI01...
Other documents
You will find the following supplementary documents online at www.turck.com:
■
Data sheet
■
Safety manual
■
Approvals
■
Declarations of conformity
For your safety
Intended Use
The isolating transducers of the IMX12-AI01... series are equipped with intrinsically safe input
circuits and transfer the analog measured signals from the Ex area to the non-Ex area. Intrinsi-
cally safe HART 2-wire transducers, as well as active and passive HART 2-wire transmitters can
be used on the devices in explosion hazardous areas. The devices are also suitable for use in
Zone 2. The devices allow safety-oriented applications up to and including SIL2 (high demand
and low demand in accordance with IEC 61508) to be constructed (Hardware fault tolerance
HFT = 0).
DANGER
These instructions do not contain any information about use in safety-oriented applications.
Risk to life due to improper use!
When using the device in safety-oriented systems: Always comply with the provisions of
the corresponding safety manual.
The devices must only be used as described in these instructions. Any other use is not in ac-
cordance with the intended use. Turck accepts no liability for any resulting damage.
General safety information
■
The device must only be mounted, installed, operated, parameterized and maintained by
trained and qualified personnel.
■
The device meets the EMC requirements for industrial areas. When used in residential areas,
take measures to prevent radio interference.
■
For the power supply, take external measures to prevent the rated volume being exceeded
by more than 40 % as the result of interference.
Notes on explosion protection
■
Only use the device in Ex areas when installed in the appropriate protective enclosure.
■
Observe national and international regulations for explosion protection.
■
When using the device in Ex circuits, the user must also have knowledge of explosion pro-
tection (IEC/EN 60079-14 etc.).
■
Only use the device within the permissible operating and ambient conditions (see approval
data and Ex approval specifications).
Requirements for Ex approval for use in zone 2
■
Mount the device in an enclosure in accordance with IEC/EN 60079-0 with a degree of
protection of at least IP54 per IEC/EN 60529.
■
Only use the device in environments that do not exceed pollution degree 2.
■
Only connect and disconnect non-intrinsically safe circuits if no voltage is applied.
Product description
Device Overview
See fig.1: Front view, fig. 2: Dimensions, fig. 5: Power Bridge connector
Functions and Operating Modes
The isolating transducers are equipped with 4...20 mA input circuits and 4...20 mA output
circuits (as source or sink), or 1...5 V (source). Input signals are transmitted 1:1 from the Ex area
to the non-Ex area in the 3.8 mA...20.5 mA range without impairment. In addition, digital sig-
nals can also be transmitted bidirectionally in accordance with the HART protocol. The devices
with splitter operation display the input signal at the input [E1] at outputs [A1] and [A2]. Digital
HART-signals are only transmitted to output [A1]. The devices with a Power bridge connection
also offer the possibility of transmitting a collective fault message.

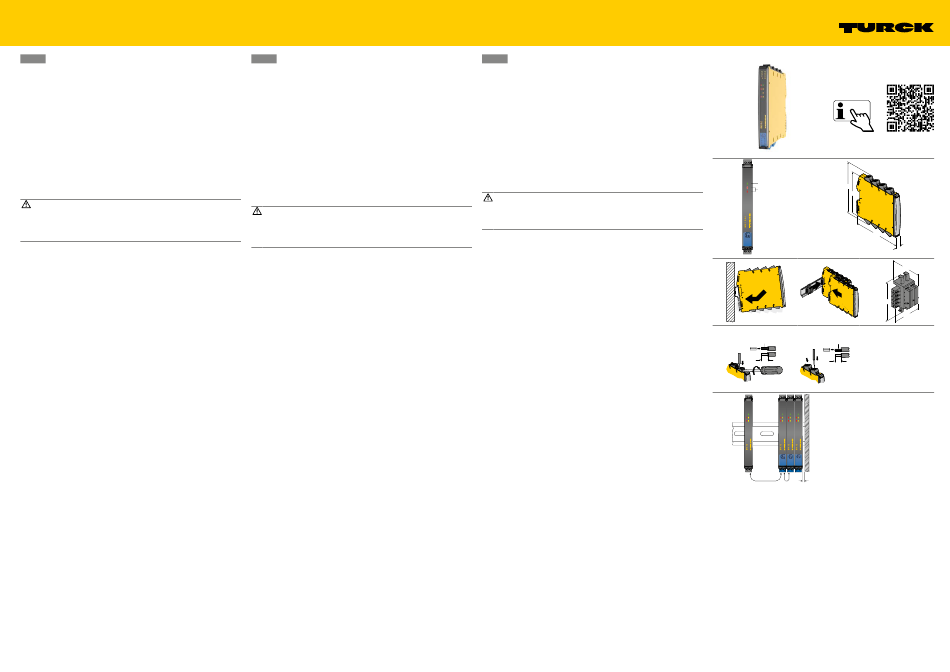

IMX12-AI01...
Isolating Transducer
Quick Start Guide
Doc. no. D201473 2306
Additional
information see
turck.com
①
②
15 16
15 16
13 14
13 14
11 12
11 12
9 10
9 10
Power
Pwr
Pwr
128
1
Ch1
Fault
2
Ch2
110
120
7
7
8
8
5
5
6
6
3
3
4
4
1
1
2
2
③
④
⑤
1
2
36,3
⑥
⑦
0.2...2.5 mm
2
0.2...2.5 mm
2
(24...13 AWG)
(24...13 AWG)
2
1
1
7 mm
7 mm
2
0.5 Nm
(4.43 LBS-inc)
⑧
15 16
15 16
15 16
15 16
15 16
15 16
15 16
15 16
13 14
13 14
13 14
13 14
13 14
13 14
13 14
13 14
11 12
11 12
11 12
11 12
11 12
11 12
11 12
11 12
9 10
9 10
9 10
9 10
9 10
9 10
9 10
9 10
Pwr
Pwr
Pwr
Pwr
Pwr
Pwr
Pwr
Pwr
1
Ch1
Ch1
1
Ch1
1
1
Ch1
Ch2
Ch2
Ch2
Ch2
7
7
8
8
7
7
8
8
7
7
8
8
7
7
8
8
5
5
6
6
5
5
6
6
5
5
6
6
5
5
6
6
3
3
4
4
3
3
4
4
3
3
4
4
3
3
4
4
1
1
2
2
1
1
2
2
1
1
2
2
1
1
2
2
≥ 50 mm
≥ 6 mm
3 mm
© Hans Turck GmbH & Co. KG | D201473 2023-06
12.5
17,7
19,4
