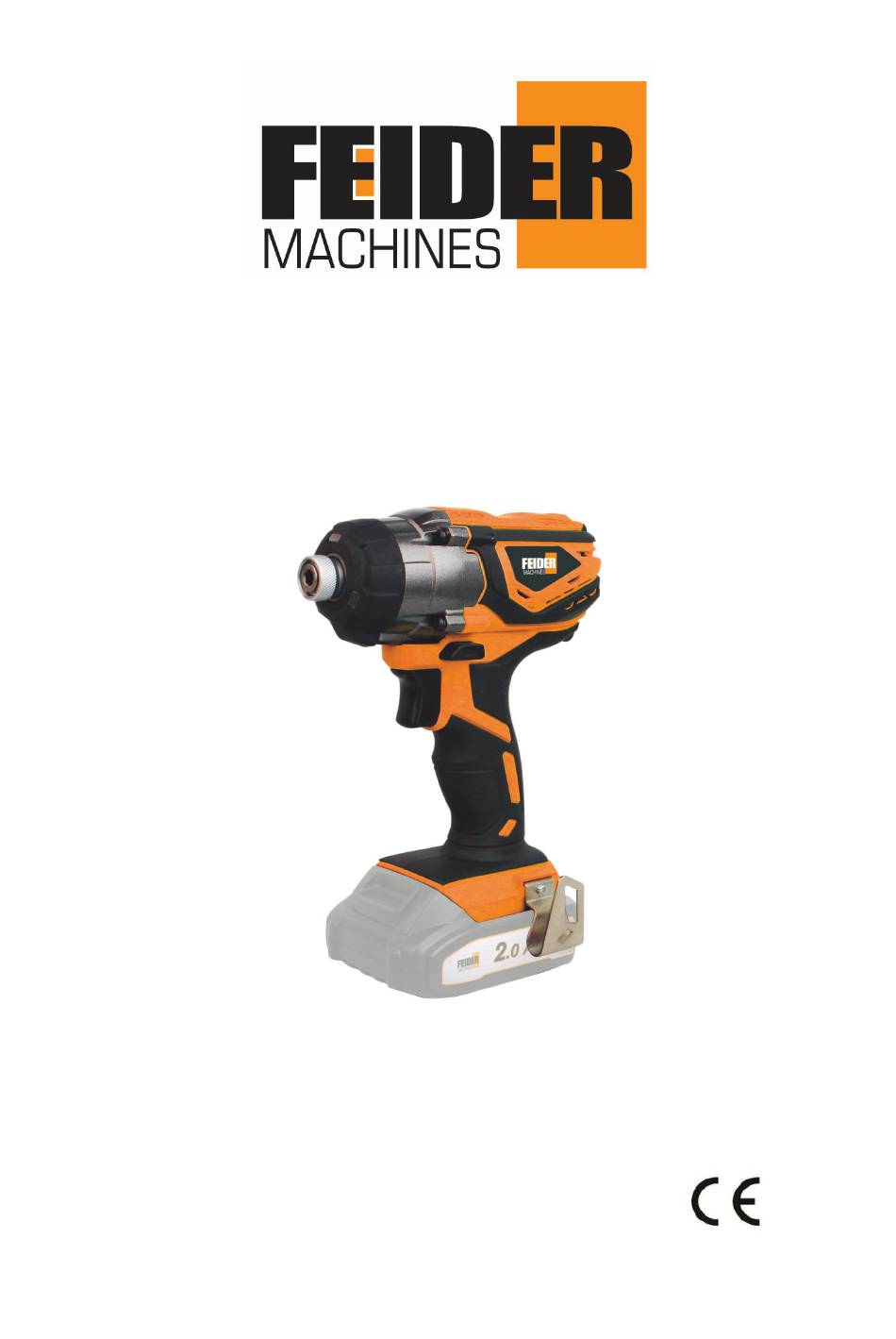

- Page 1 ORIGINAL INSTRUCTIONS CORDLESS IMPACT DRIVER FVAC20V INSTRUCTIONS MANUAL WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE! BUILDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
-
Page 2: Security Instructions
1. SECURITY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
- Page 4 5) Battery tool use and care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- Page 5 c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury. Additional instructions Before screwing into a wall, if in doubt, check with a metal / voltage detector that you are ...
-
Page 6: Your Product
2. YOUR PRODUCT a. Description 1. Bit grip 2. LED lighting 3. Forward/Reverse switch 4. ON/OFF trigger switch 5. Battery release catch (on battery) 6. Battery (not provided) 7. Belt clip attachment point 8. Hand grip IMPORTANT This tool is provided without battery and battery charger. Please buy a battery pack (battery + charger) from the same trademark of this screwdriver. -
Page 7: Operation
b. Technical data Voltage 20Vd.c. Torque max 158Nm Coupler 1/4in. No load speed 0-3000/min Sound power level 86dB(A) K= 3dB(A) Sound pressure level 75dB(A) K= 3dB(A) Vibration 8.15m/s² k=1.5m/s² Information: The declared vibration total value has been measured in accordance with a standard test ... - Page 8 To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect. Battery capacity indicator Press the switch for the battery capacity indicator .
- Page 9 b. Installation of the battery pack Warning! Always remove the battery from the tool when assembling accessories, making adjustments, during transport or when the tool is not in use. Remove the battery will prevent accidental starting which could cause severe personal injury. NOTE: To avoid serious personal injury, always remove the battery and keep your hands away from the lock button while transporting the tool.
- Page 10 d. Installing bits Put the reverse/forward on the center position. Slide the bit grip forward and hold in position (1). Insert the bit straight into bit grip (2). Slide the bit grip back slowly and release. Make sure that the bit is well installed in place. Failure when installation will create accidents and injuries e.
-
Page 11: Maintenance And Storage
g. Starting and stopping the operation Push the forward/reverse switch at the desired position (on the left for reverse position and on the right for the forward position). Push the trigger switch to start the operation. To control the speed, push lightly the trigger switch to start the operation at a low speed. -
Page 12: Cordless Impact Driver
ZI, 32 rue Aristide Bergès- 31270 Cugnaux-France Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.503 Declares that the machinery designated below: CORDLESS IMPACT DRIVER Model: FVAC20V Serial number: 20201008267-20201008566 Complies with the provisions of the Directive «machinery» 2006/42/CE and national laws transposing it:... -
Page 13: Warranty
7. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
8. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
9. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
