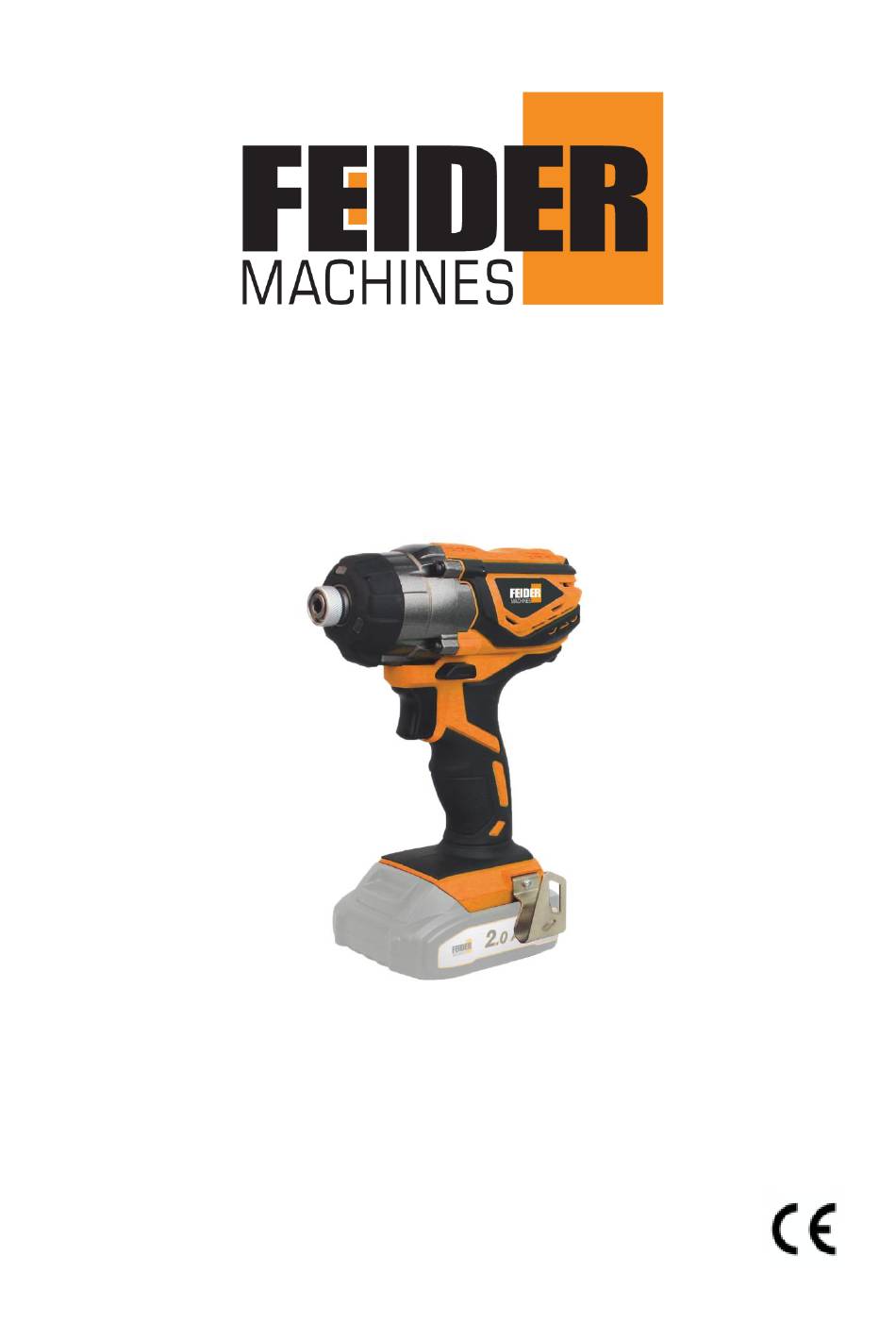

ORIGINAL INSTRUCTIONS
CORDLESS IMPACT DRIVER
FVACB20V
INSTRUCTIONS MANUAL
WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS
MACHINE
BUILDER SAS
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
MADE IN PRC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FVACB20V and is the answer not in the manual?

Questions and answers

Related Manuals for Feider Machines FVACB20V

Summary of Contents for Feider Machines FVACB20V

  • Page 1 ORIGINAL INSTRUCTIONS CORDLESS IMPACT DRIVER FVACB20V INSTRUCTIONS MANUAL WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...

  • Page 2: Security Instructions

    1. SECURITY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 3 c) Prevent unintentional starting. Ensure the switch is in the off-position connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
  • Page 4 5) Battery tool use and care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  • Page 5 Special safety instructions for battery and charger If under extreme conditions any electrolyte should escape from the battery, it's essential to avoid contact with skin. If electrolyte does come into contact with your skin, rinse it off with water. In the event of electrolyte contact with your eyes, it's essential to consult a doctor.
  • Page 6 ▪During the charge process, the current used should correspond to the current of the battery charger. ▪Never let moisture, rain or splashed water reaches the charging location. ▪The ambient temperature must not exceed 40 °C. ▪Batteries which are defective or damaged or can no longer be recharged must be disposed as a hazardous waste.
  • Page 7 Insert the battery packet into the charger. Follow the guidelines provided concerning polarity. ▪Always remove battery packet before working on the machine ▪When the battery is outside the drill, cover the contacts to avoid short circuits (e.g. from tools) ▪Do not throw batteries into water or fire, risk of explosion! ▪Protect the battery from impacts, and don't open it.

  • Page 8: Your Product

    2. YOUR PRODUCT a. Description 1. Bit grip 2. LED lighting 3. Forward/Reverse switch 4. ON/OFF trigger switch 5. Battery release catch (on battery) 6. Battery (not provided) 7. Belt clip attachment point 8. Hand grip IMPORTANT This tool is provided without battery and battery charger. Please buy a battery pack (battery + charger) from the same trademark of this screwdriver.

  • Page 9: Operation

    b. Technical data Voltage 20Vd.c. Battery Type Li-Ion Torque max Max. 160Nm Coupler 1/4in. No load speed 0-2200/0-2600/min Sound power level 95.5dB(A) K= 3dB(A) Sound pressure level 84.5dB(A) K= 3dB(A) Vibration 7.5m/s² k=1.5m/s² Information:  The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;...
  • Page 10 To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect. Battery capacity indicator Press the switch for the battery capacity indicator .
  • Page 11 b. Installation of the battery pack Warning! Always remove the battery from the tool when assembling accessories, making adjustments, during transport or when the tool is not in use. Remove the battery will prevent accidental starting which could cause severe personal injury. NOTE: To avoid serious personal injury, always remove the battery and keep your hands away from the lock button while transporting the tool.
  • Page 12 d. Installing bits Put the reverse/forward on the center position. Slide the bit grip forward and hold in position (1). Insert the bit straight into bit grip (2). Slide the bit grip back slowly and release. Make sure that the bit is well installed in place. Failure when installation will create accidents and injuries e.

  • Page 13: Maintenance And Storage

    g. Starting and stopping the operation Push the forward/reverse switch at the desired position (on the left for reverse position and on the right for the forward position). Push the trigger switch to start the operation. To control the speed, push lightly the trigger switch to start the operation at a low speed.

  • Page 14: Cordless Impact Driver

    ZI, 32 rue Aristide Bergès- 31270 Cugnaux-France Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.503 Declares that the machinery designated below: CORDLESS IMPACT DRIVER Model: FVACB20V Serial number: 20210614300-20210614899 Complies with the provisions of the Directive «machinery» 2006/42/CE and national laws transposing it:...
