Graco 240-690 Instructions-Parts List

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
Level Sensor Kit 240–690
For SuperCat Proportioning Packages
This kit includes two Part No. 193–468 level sensors,
to add to the two supplied with the proportioner.
1. Follow the Pressure Relief Procedure in your
separate proportioner manual.

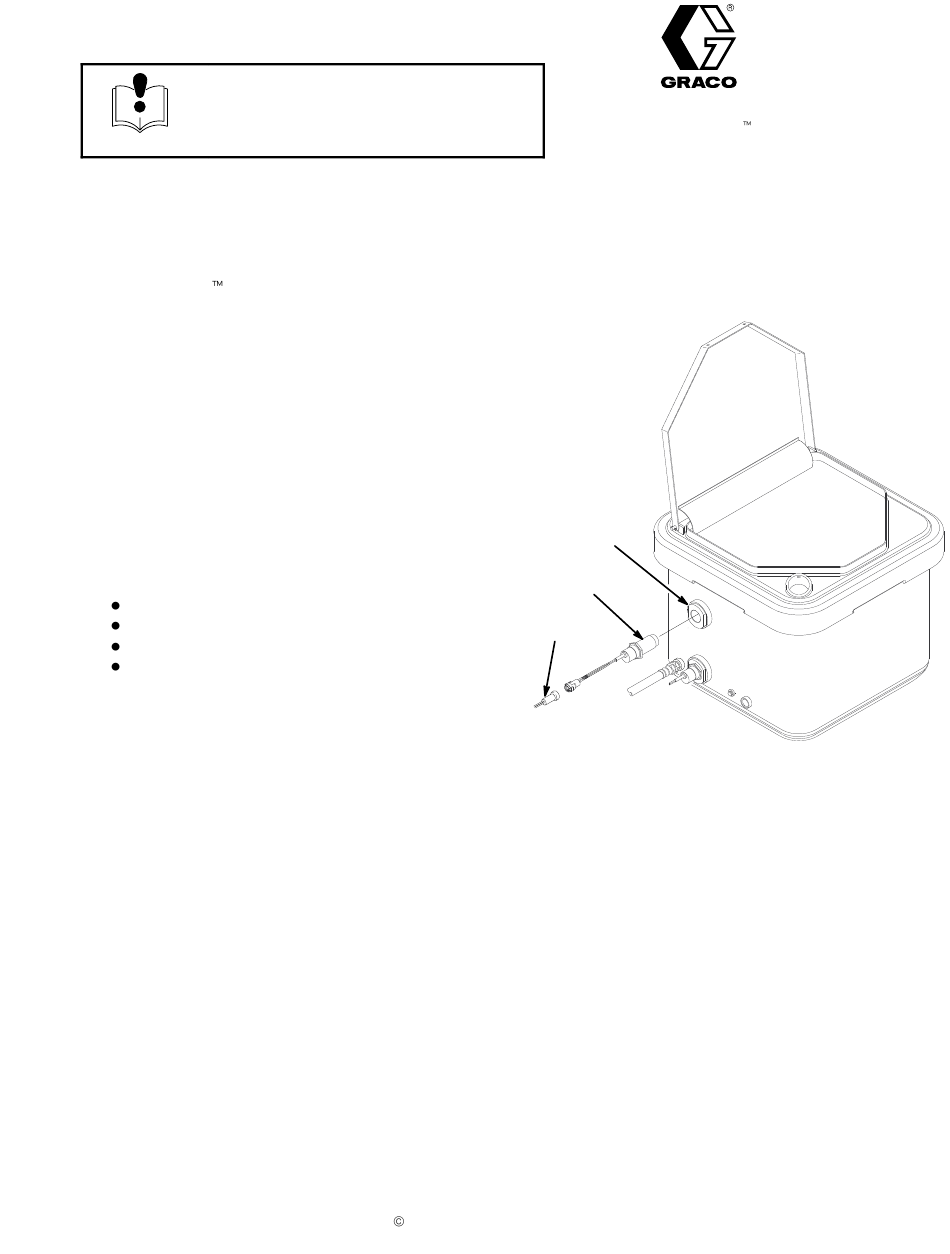

2. Screw one sensor (S) into the open sensor hous-
ing (H) of reservoir A (either the high or low hous-
ing, depending on how the system has been
setup). Screw the second sensor into the open
sensor housing of reservoir B.
3. The connectors (C) are labeled:
HI LEVEL A SENSOR
LO LEVEL A SENSOR
HI LEVEL B SENSOR
LO LEVEL B SENSOR
They are secured to the proportioner frame or
inside the split corrugated conduit near the reser-
voirs. Connect the appropriate labeled connector
to the sensor.
4. Refer to your separate proportioner manual for the
setup procedure for the additional level sensors.
