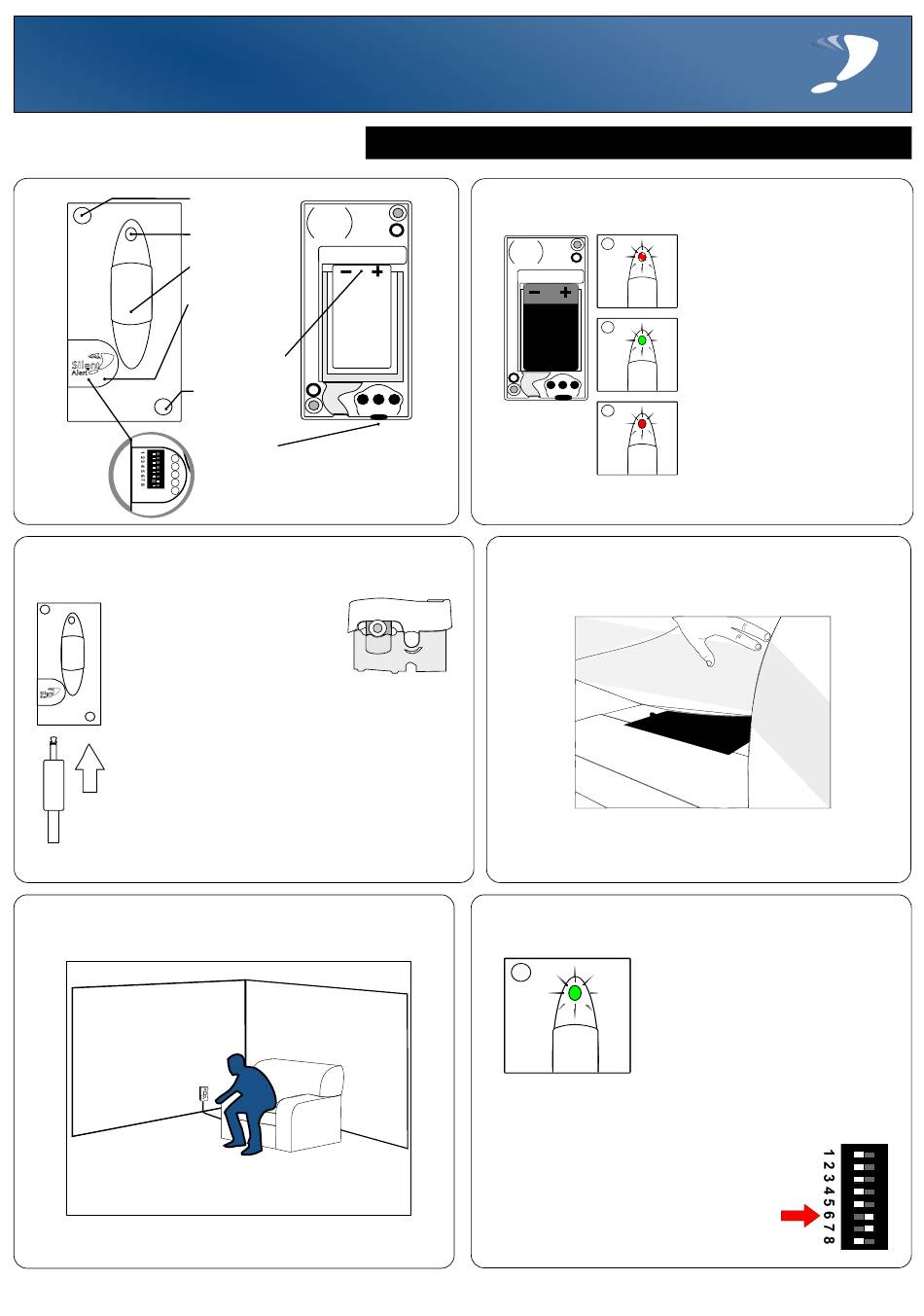

Silent Alert CL4A-2212-EU MKII Quick Start Manual

Quick start guide
Mini Chair Leaving Monitor

PM5 Activation

Configuration
Pressure pad
2.
The monitor is activated using a chair pressure pad
Plug the PM5 plug into the
socket on the monitor
The monitor may transmit the first
time the connection is made, this
The 3.5mm jack socket will trigger
the unit on a short circuit only.
!
The Mini Monitor socket can be used with auxiliary equipment that presents a short
circuit to a 3.5mm jack plug. DO NOT connect the unit to voltage or damage may occur
to the unit. If in doubt, please call 01246 450789.
4.
As the user stands up the monitor will send a
signal to the Pager or SignWave.
WARNING! Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.
CL4A-2212-EU MKII
Screw cap
Status light
Test button
CCD4A-2220-EU
CARE CALL
MINI MAGNETIC
DOOR MONITOR
USE ALKALINE PP3
9 V BATTERY ONLY
switch Cover
Batch 06/01/14
www.silent-alert.co.uk
Clofield Ltd. UK
Tel: 01246-260045
Keys 1-4 System
PP3 battery
Channel
Key 5=10 Sec Delay
Key 6=20 Sec Delay
Keys 5+6=30 Sec Delay
contacts
Key 7 Leave ON
Key 8 Not Used
USE WITH MAGNET SUPPLIED
Screw cap
socket
Configuration switches shown
with cover removed. Do not alter
these without referring to page 2
(PM5).
is normal.
Any questions? Call us on 01246 450789
1.
Install a 9 volt PP3 alkaline or lithium battery
making sure to observe the correct polarity.
CCD4A-2220-EU
CARE CALL
MINI MAGNETIC
DOOR MONITOR
USE ALKALINE PP3
9 V BATTERY ONLY
Batch 06/01/14
PP3 Battery www.silent-alert.co.uk
Clofield Ltd. UK
Tel: 01246-260045
Keys 1-4 System
Channel
Key 5=10 Sec Delay
Key 6=20 Sec Delay
Keys 5+6=30 Sec Delay
Key 7 Leave ON
Key 8 Not Used
USE WITH MAGNET SUPPLIED
To repeat the battery check remove the battery, press the test
button then re-insert the battery to start the sequence again.
3.
Place the pad under the chair cushion ensuring
When installing the pad make sure the cable can't
5.

Fidget delay

After 3 - 4 seconds the monitor will trigger. However,
if the person sits back down the light will switch off
and the monitor will not transmit.
If this delay is not required or if
the monitor is being used to detect
an open circuit switch key 6 to on.
The unit will now send radio as
soon as it is triggered.
Silent
Alert
When a battery is first fitted the
indicator light will flash red then
green a few times.
The light will then will flash
green several times to show the
battery voltage.
9 flashes = 9Volts in the battery.
If the light flashes red at this
point the battery is flat
and will need to be replaced.
the pad is not folded.
cause a trip hazard.
To prevent the unit triggering
when the user changes position in
their seat the monitor has a
'fidget' delay.
If the person releases the
pressure from the pad a timer will
start, this is indicated by the green
light flashing on the monitor.
