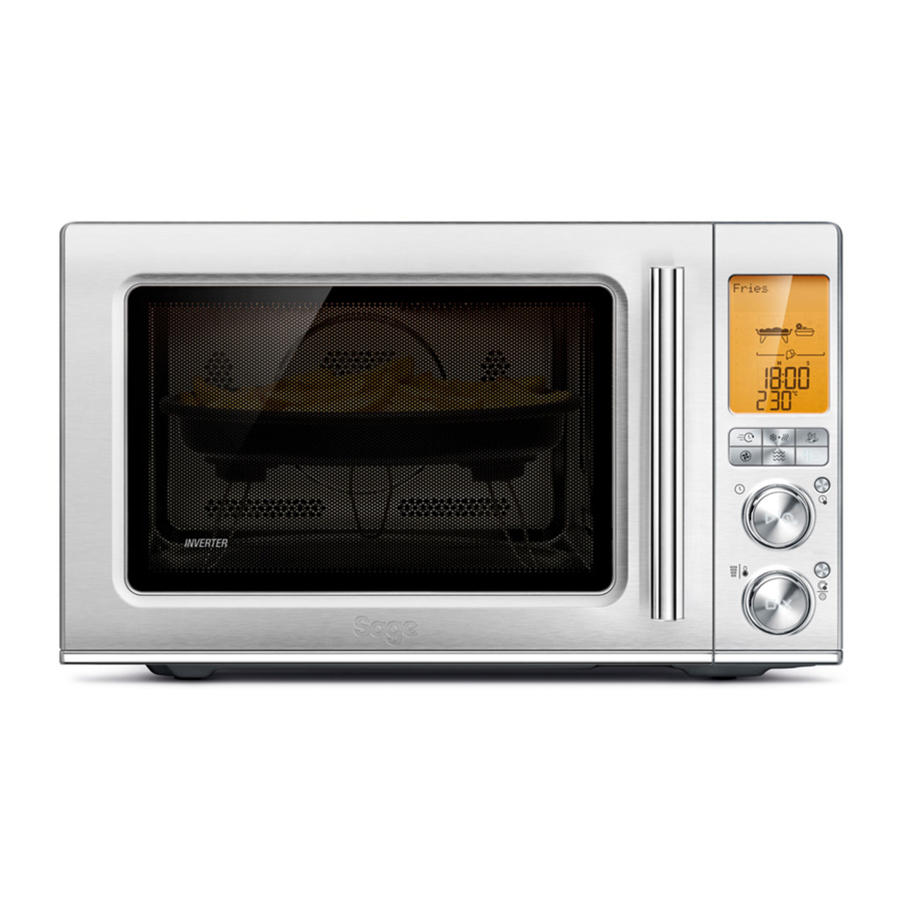

Sage the Combi Wave BMO870 / SMO870 - Microwave Oven 3 in 1 Manual

GROUNDING INSTRUCTIONS

Improper use of the grounding can result in a risk of electric shock.

• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire and grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
• Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

NOTE
Do not use an adapter plug with this appliance.

SPECIFICATIONS

These specifications may change without notice.
FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

Components

1. Viewing window
2. Door handle Pull handle to open.
3. LCD screen
4. Function buttons
   FAST COMBI, FROM FROZEN, AIR FRY, OVEN, MICROWAVE, FOOD MENU
5. A BIT MORE™
6. Instant +30/START button and TIME/Select dial Each press adds 30 second increments at 100% power.
7. TURNTABLE OFF button
   Press once to stop the turntable from rotating during cooking. Press again to reactivate the turntable.
8. ADJUST dial & STOP/CLEAR button
   Turn dial to adjust the power level, weight & quantity that corresponds with the food type selected. Press once to pause without cancelling the program. Press twice (or more if necessary) to clear the display.
9. Shortcuts panel Refer to operation section for detailed explanation.
10. Microwave Guide Cover
    Do not remove to ensure a safe operation.

Assembly

BEFORE FIRST USE
Before first, use remove all promotional stickers and packaging material. Carefully unpack the microwave oven and keep all the packing material until all the parts of the microwave oven have been found and the appliance has been assembled. It is recommended to keep all the packing material in a safe place in case you wish to repack the product for shipping purposes.
To remove any dust that may have accumulated during packing, wash the turntable roller and glass turntable in warm soapy water, rinse in clean water then dry thoroughly. Wipe the interior and exterior of the microwave oven with a soft, damp cloth then dry thoroughly.

ASSEMBLING THE GLASS TURNTABLE

• Insert the turntable roller into position in the intended space in the oven cavity base.
• Place the glass turntable on top of the turntable roller, matching the indents of turntable roller at the centre area.


INSTALLATION AND TURNING ON THE MICROWAVE OVEN

• Select a level surface that provides enough open space for the intake and/or outlet vents.
• A minimum clearance of 20cm is required between the microwave and any adjacent walls.
• Leave a minimum clearance 20cm above the microwave.
• Do not remove the legs from the bottom of the microwave.
• Blocking the intake and/or outlet openings can damage the microwave.
• Place the microwave as far away from radios and TV as possible.
• Operation of microwave may cause interference to your radio or TV reception.
• Plug your microwave into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.
• The microwave must not be placed in a cabinet.


• To avoid an electrical circuit overload, it is recommended that no other appliances are plugged into the same circuit as your microwave oven (or other products) when it is in use.
• Do not install oven over a range cooktop or other heat-producing appliances. If installed near or over a heat source, the oven could be damaged and the warranty would be void.
• Check the oven for any damage, such a misaligned or bent door, sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact a Sage service centre.
• Do not immerse the microwave oven, power cord or plug in water or any other liquid.

USING THE COMBI CRISP PAN

• The Combi Crisp pan is ideal for crisping up items that can become soggy in the microwave, such as pizza, chicken nuggets and fries. The Combi Crisp Pan can be used in either the High or Low position depending on the size of the food or how much browning is desired. To reduce the risk of injury or causing damage to the microwave oven, always place the Combi Crisp Pan securely in the centre of the turntable.
• Do not place plates or dishes of any kind on the Combi Crisp pan as they may overheat and become damaged.

The Combi Crisp pan and trivet are safe to use in microwave mode. But note that trivet and crisp pan can not be used at the same time and never on top of the other.
NOTE
Best to use the trivet in convection oven mode.
(e.g. for roasting)
NOTE
The non-slip silicone feet on the trivet are designed to help keep it steady and should NOT be removed.
The silicone on the crisp pan legs and trivets are safe in microwave mode to use.

• When the use of the Combi Crisp pan is required for the selected cooking function, the words 'USE PAN' or 'USE PAN LEGS' will appear on the screen.


The Combi Crisp pan surfaces and legs are hot during and after operation. This accessory is only to be used with the SMO870.

Functions

SETTING THE CLOCK - 12 OR 24-HOUR CLOCK DISPLAY
Press SET CLOCK on shortcuts panel . The clock can be set as 12- or 24-hour clock display.
When entering the SET CLOCK setting, '12' will flash. To select a 12-hour clock display, press START to confirm the selection.

To select a 24-hour clock display, turn the START/TIME or ADJUST dials clockwise. The number '24' will flash. Press the START button to confirm the selection.
The default time is 12:00. The highlighted digits will flash to show it can be adjusted.

Turn TIME dial to adjust hours and press START button to confirm.

Minutes now flash to show they can be adjusted. Turn TIME dial to adjust minutes and press START button to confirm.

NOTE
If you forget to press START to confirm hours or minutes, after 1 minute the microwave will automatically cancel your selection.

SETTING THE BEEP VOLUME
This setting allows you to choose the beep volume of your microwave oven.
Press BEEP VOL on shortcuts panel. The default beep volume is LOW.

Turn START or ADJUST dials to toggle between LOW, MEDIUM and HIGH volume. Each selection will sound the BEEP VOL selected.

NOTE
If you forget to press START to confirm BEEP VOL, after 1 minute the microwave will automatically confirm your selection.

MUTE
This program allows you to mute the sound of the microwave oven during operation.
When the MUTE program is selected, no tone will sound.
Open door and press MUTE button on shortcuts panel.
To return to the previous volume setting, press the MUTE button a second time OR press the BEEP VOL button on shortcuts panel.

SETTING THE UNIT MEASURE
Press UNITS on shortcuts panel .
You can change from kilograms (kg) to ounces (oz) and from Celsius (°C) to Fahrenheit (°F).
The default UNITS is kilograms (kg) and Celsius (°C). The highlighted kilograms (kg) will flash to show it can be adjusted. Turn START or ADJUST dial to toggle between kilograms (kg) and ounces (oz). Press START button to confirm.

SETTING CHILD LOCK
This setting allows you to lock the interface of the microwave oven. Press CHILD LOCK on shortcuts panel.
The CHILD LOCK symbol will be displayed on the LCD screen

To deselect CHILD LOCK, press the CHILD LOCK button again.
The CHILD LOCK symbol will disappear from the LCD screen and you will have full functionality of your microwave.

STANDBY
When the microwave has been idle for 1-minute, STANDBY mode will be activated. The backlight of the LCD screen will turn off and buttons will no longer be illuminated.

Standby mode when the time is not set.

Standby mode when the time is set.
To activate the microwave:

• Open the door OR;
• Press START OR;
• Turn any dial OR;
• Press any button

TURNTABLE OFF
The TURNTABLE OFF button allows you to stop the turntable rotation while cooking in the microwave. This setting is useful if using square dish that will constrain the rotation.
In order to activate the TURNTABLE OFF setting, press once on the button. 'Turntable off' will be displayed on the LCD screen.

Press once again to enable the turntable to rotate again.
At the end of the cooking cycle, the TURNTABLE OFF setting will automatically cancel itself.

TIME & POWER LEVEL ADJUSTMENT
Select different times and microwave power levels by simply turning the TIME and ADJUST dials.
The maximum microwave cooking time is 95 minutes (95:00).
There are 10 power levels available.

Turning the TIME Dial
Turn TIME dial to adjust the time.

The default time will be 30 seconds.

Turning The ADJUST Dial
When the ADJUST dial is turned clockwise HIGH will flash and 100% will be displayed.

When the ADJUST dial is turned counter clockwise the POWER LEVEL % will start to decrease from 100% to 10%, in 10% increments.

TEMPERATURE ADJUSTMENT
Turn the ADJUST dial counter clockwise to decrease the temperature in 10 degrees increments; and turn the ADJUST dial clockwise to increase the temperature. Default temperature and temperature ranges are as follows:
Fast Combi:

• Temp range = 150 – 230°C
• Default temp = 200°C

Air Fry:

• Temp range = 200 – 230°C
• Default temp = 200°C

Oven:

• Temp range = 60 – 230°C
• Default temp = 180°C

DYNAMIC TIME, POWER AND TEMPERATURE ADJUSTMENT
To suit your personal preference, adjustment of time, power and temperature are available when using the microwave in manual setting. Dynamic adjustments cannot be used on all SMART COOK settings or on SMART DEFROST setting (except when using DEFROST BY TIME).
An example of dynamic power adjustment can be seen below while using a SMART COOK function.

1. Press FOOD MENU button and select COOK on the menu.
2. Turn TIME/Select dial to select food type.

3. As the TIME/Select dial is turned the arrow shifts and points to what food type is selected. In this case RICE is selected.
4. Once you have chosen FOOD TYPE, turn the ADJUST dial to adjust quantity or weight.

5. Press START to begin cooking.
6. Using the ADJUST dial the power level can be increased or decreased at any time during the cooking program.


NOTE
Adjusting the power level while heating does not affect the time.
Following the steps on previous page, using the ADJUST dial, the temperature can also be increased or decreased at any time during the cooking program depending on the chosen FOOD TYPE from the FOOD MENU.
For example: Cake

NOTE
Adjusting the temperature while heating does not affect the time.

+30 SEC INSTANT START
Press START/Instant +30 button to begin cooking instantly for 30 seconds with 100% microwave power. Each additional press will increase the cooking time by 30 seconds.

WHEN COOKING IS FINISHED
At the end of any cooking cycle, the microwave will play the designed cycle finish tone, and the word End will flash on the screen. The word End will stay flashing on the screen for 5 minutes or until the door is opened.

STOP/CLEAR
Press STOP/CLEAR once to pause the current function.
Press twice to clear and return to default screen.
When in the default screen, press STOP/ CLEAR to show the clock. To return to the default screen press any button, turn any dial or open the door.

A BIT MORE™ BUTTON
Use A BIT MORE™ when cooking is finished and your food is not quite cooked or hot enough.

For example:
Press the FOOD MENU button.

Turn the TIME/Select dial to select SOFT VEG.

Press START to begin cooking.

Cooking process ends

At the end of the cooking process, if you think the food requires additional cooking time, you can select the 'A BIT MORE™' setting. Close the microwave door and press the A BIT MORE™ button to add A BIT MORE™ cooking time. The timer will start to count down.

NOTE
As soon as A BIT MORE™ button is pressed the microwave will start cooking.
If A BIT MORE™ is pressed and there is no previous food menu or SHORTCUT setting selected, the microwave will default to the basic mode and add 20 seconds at 100% power.

KEEP WARM
Keep Warm allows you to stop food going cold while completing other tasks. This program operates the oven at 70°C, from 5 minutes to 2 hours. The default time is 10 minutes.
To use the Keep Warm setting, open the door and the press KEEP WARM button on shortcuts panel.

FAVOURITE
The FAVOURITE setting will save your most used and favourite cook, reheat or defrost setting.
At the press of a button, your favourite program can be duplicated time after time. To set the microwave to your favourite setting: 7. Open the door and press and hold FAVOURITE button on shortcuts panel for 2 seconds.
Press START to begin your favourite setting.
NOTE
The microwave will save this setting for future use. Pressing FAVOURITE button next time will display your saved FAVOURITE setting on the shortcuts panel. To change your FAVOURITE setting at any time, repeat steps 1 and 2 above.

Cooking Functions

Depending on the FUNCTION and the FOOD TYPES selected, the MICROWAVE, OVEN, GRILL, AIR FRY or FAST COMBI icons will be displayed on the LCD SCREEN.

	Oven		Air fry
	Grill		Fast Combi
	Microwave

NOTE
Go to our website Sage.com to discover many recipes created for the Combi Wave™ 3-in-1 Microwave oven.

FAST COMBI

The FAST COMBI function is designed to cook your favourite dishes faster than in a traditional oven. The FAST COMBI function will alternatively use the microwave, the convection oven and the grill in order to reach the selected cooking temperature. This combination of the three functions helps the microwave reach the cooking temperature more quickly than a traditional oven, and maintain the temperature inside the cavity, for an optimal food result.
The FAST COMBI setting is ideal for cooking gratins, bake dishes, roast vegetables or different types of meat. Refer to the 'Instructions & Tips' sticker on the microwave. For best results, it is recommended to use the provided Combi Crisp pan except when cooking foods that require a specific baking dish or pan. Place other dishes or pans on the provided trivet for best results. Depending on the amount of food being cooked, use the Combi Crisp Pan in low or high position. Press 'FAST COMBI' button on the main interface to enter FAST COMBI function. Turn the START/ TIME dial to select the cooking time, from 1 to 90 minutes. Then turn the ADJUST to select the cooking temperature, from 150°C to 230°C.

At the end of the cooking program, allow the food items to stand for 5 minutes before removing and serving.

FROM FROZEN

The FROM FROZEN function is designed to perfectly cook different types of meat, from frozen to a perfectly cooked result. The function is using the microwave, the convection and the grill alternately in two different cooking stages.
NOTE
To use this function, it is recommended to season and marinate the meat before freezing.
Place the food item into the Combi Crisp pan, in the low position.
Press FROM FROZEN button on the main interface to enter FROM FROZEN function.
Select the desired type of meat between chicken, meat and fish by turning the START/ TIME or the ADJUST dials. Press Start to select.
Turn the ADJUST dial to adjust quantity or weight. Minimum amount is 200g and maximum amount is 1kg. Press START to begin cooking. Halfway through the cook program, the oven will beep and STIR/TURN will flash (except for the FISH setting). Open door or press STOP/CLEAR button once to pause. Turn the food items OVER and press START to continue. During FROM FROZEN, the different cooking stages will be displayed on the screen.
The first stage is designed to defrost the food, by using microwave only.

The second stage is designed to cook food using the suitable function for the food type.

Depending on the amount/weight selected, the final cooking time will vary from 16 to 60 minutes.
NOTE
When cooking chicken, rest meat, covered for five minutes after cooking cycle has finished.

AIR FRY

The AIR FRY function is designed to air fry food items and get crispy golden results in the microwave oven, thanks to the Element IQ^® system. Refer to the 'Instructions & Tips' sticker on the microwave.
Press AIR FRY button on the main interface to enter the AIR FRY function. The LCD screen will show 'AIR FRYER WILL PREHEAT. INSERT PAN'. Place the Combi Crisp pan in high position inside the microwave for the preheating cycle.
Turn the START/TIME dial to select the cooking time, from 1 to 60 minutes. Then turn the ADJUST to select the cooking temperature, from 200°C to 230°C.

At the end of the 3-minute preheating cycle, an alert tone will sound and the screen will indicate 'INSERT FOOD ON PAN'. Open the door to place the food on pan, and press START to continue.
Lay the food items flat in a single layer.

Halfway through the cook program, the oven will beep and STIR/TURN will flash. Open door or press STOP/CLEAR button once the pause. Turn the food items and press START to continue.

OVEN

The OVEN function is designed to cook food items using the convection oven.
The food needs to be placed in an oven-safe dish. Use the trivet to elevate the dish for better cooking results.

NOTE
It is highly recommended to use the trivet for this function, in order to allow the convection to circulate around the food while being cooked.
Press OVEN button on the main interface to enter the OVEN function. Turn the START/ TIME dial to select the cooking time, from 1 to 120 minutes. Then turn the ADJUST to select the cooking temperature, from 60°C to 230°C. Press the START/TIME dial to confirm the selection.
After confirming, the microwave oven will start preheating. The LCD screen will show 'OVEN IS PREHEATING.'

At the end of the preheating cycle, an alert tone will sound and the screen will indicate 'INSERT FOOD'. Open the door to place the food in the cavity, and press START to continue.

MICROWAVE

The MICROWAVE setting is designed to operate as a classic microwave function by adjusting the time and the power level. This is also the default function when activating the microwave oven.
Always use a microwave-safe dish or bowl when using the microwave function.
Press MICROWAVE button on the main interface to enter the MICROWAVE function. Turn the START/TIME dial to select the cooking time, from 1 second to 95 minutes. Then turn the ADJUST to select the power level, from 10% to 100% Press the START/ TIME dial to confirm the selection.

GRILL
The grill function is designed to gently brown your food item, by using the top heating elements.
Open the door and press the GRILL button on the shortcut panel to select the GRILL function.
Place the food item on the Combi Crisp pan, in high position.
Turn the START/TIME dial to select the cooking time, from 1 minute to 20 minutes. Press START to begin cooking.

FOOD MENU

In the FOOD MENU, choose between the SMART SETTINGS: COOK, REHEAT or DEFROST.
Then select from a list of most commonly used food types and press START. The microwave oven will automatically set the time and power level or temperature for the selected food types so no need to program this.

SMART COOK
The SMART COOK setting is designed to automatically cook at the correct power or temperature for the correct time.
Press FOOD MENU button, then select COOK with the START dial. Press START to confirm your selection.
Turn TIME/Select dial to select food type. As the TIME/Select dial is turned the arrow shifts and points to what food type is selected.

Once you have chosen FOOD TYPE, turn ADJUST dial to adjust quantity or weight.

Press START to begin cooking.

FOR BEST RESULTS

• Foods should be cooked in a microwave safe container, either plastic, Pyrex or ceramic.
• Moist foods will cook more evenly because microwave energy heats water molecules very efficiently. Add approximately 15mL to 20mL of water per 100g when cooking soft and hard vegetables.
• For optimal results, arrange larger and thicker foods such as broccoli or the thick end of a chicken drumstick around the edges of the turntable. This allows maximum penetration of the microwaves through the food during cooking.
• Stir foods such as casseroles and soups from the outside to the centre to distribute heat more evenly. Constant stirring is not necessary.
• Small pieces of food cook faster than large ones. Pieces similar in size and shape will cook more evenly when cooked together.
• Be careful when removing lids or plastic wrap from your microwave cooked foods. Steam can build up and cause serious burns on face or hands.

Popcorn
The SMART COOK POPCORN setting is designed to pop the maximum number of kernels in a 100g bag by using the microwave function.
Place the bag in the centre of the turntable. Press START to begin cooking.

Hard Vegetables
The SMART COOK HARD VEGETABLES setting is suitable for vegetables such as carrot, corn, sweet potato and beets. This setting uses the microwave function.
Cook times are based on vegetables from the refrigerator (approx. 5°C).
Minimum amount of hard vegetables cooked is 100g and maximum is 1kg.
Cut into even size of 1.2 to 2cm pieces to ensure even cooking throughout. Add 20mL of water per 100g of hard vegetables.
Cover with a vented microwave-safe plastic lid or vented microwave-safe plastic wrap.
Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Stir vegetables, close door and press START button to continue the cooking program.

Soft Vegetables
The SMART COOK SOFT VEGETABLES setting is suitable for vegetables such as broccoli, green beans, cauliflower, zucchini and peas. This setting uses the microwave function. Cook time is based on vegetables from the refrigerator (approx. 5°C).
Minimum amount of vegetables cooked is 100g and maximum is 500g. Add 1 tablespoon (15mL) of water per 100g of soft vegetables.
Cover with a vented microwave-safe lid or vented microwave-safe plastic wrap.
Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Stir vegetables, close door and press START button to continue the cooking program.

Rice
The SMART COOK RICE setting is suitable for white rice such as long grain rice, jasmine and basmati, by using the microwave function. Always use a deep microwave-safe bowl. Do not cover the bowl.
Minimum amount of rice is 1 cup (250g) and maximum is 2 cups (450g). Rinse rice with cold water until it runs clear before cooking. Add a 2:1 ratio of water to rice. (2 parts water to 1 part rice)
Allow rice to stand for 5 minutes before serving.

Bacon
The SMART COOK BACON setting is designed to cook bacon slices until crisp, by using the microwave function. Cook times are based on the bacon directly from the refrigerator (approx. 5°C).
Arrange bacon slices in a single layer on a plate. Turn the ADJUST dial to select number of slices and press START to begin cooking. You can select between 2 to 4 regular slices of bacon. If cooking thick-cut bacon, add another minute to the cooking time. Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Turn bacon over and press START to continue the cooking program. If cooking more than 2 slices, move the centre slices to the outside of the plate when turning them over to ensure even cooking.
NOTE
Rashers of bacon recommended.

Cake
The SMART COOK CAKE setting is designed to cook different types of cakes using the convection oven.
Use bakeware suitable for a convection oven. For best results use 19 - 22cm round cake pan and approximately 450g of batter. For packaged cake mixes, split batter into two cake pans, and cook in batches.
Place the bakeware on the trivet to bake the cake. Do not cover the food. Press START to begin the cooking program. Once cooking has finished, allow the cake to stand for 5 minutes.

Cookies
The SMART COOK COOKIES setting is designed to cook different types of cookies using the convection oven.
Place the cookies into the provided Combi Crisp pan with legs in high position to bake the cookies.
Press START to start the cooking program.
Once cooking has finished, allow the cookies to stand for 5 minutes.

Melt chocolate
At the press of a button, the SMART COOK MELT CHOCOLATE setting is designed to melt chocolate without overheating and seizing of the chocolate, using the microwave.
NOTE
The SMART COOK MELT CHOCOLATE setting was tested with dark chocolate. If using other types of chocolate, check at short intervals to prevent possible seizing of chocolate.
Choose a suitable glass bowl and do not cover. If using a block of chocolate, cut into 1cm pieces.
Turn ADJUST dial to select weight and press START button to commence melting. Minimum amount of chocolate is 50g and maximum is 400g.
Halfway through the program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Stir chocolate, close door and press START button to finish melting. At the end, some of the chocolate may still hold their shape. Stir until completely melted and smooth.
The SMART COOK MELT CHOCOLATE setting can also be selected from the SHORTCUTS panel.

Soften butter
The SMART COOK SOFTEN BUTTER setting is perfectly designed to soften butter suitable to cream immediately in a mixer, using the microwave.
The soften butter setting will soften butter that has been taken directly from the refrigerator (approx. 5°C).
The butter should be cut as a whole piece and placed onto a plate. Do not cover.
Turn ADJUST dial to select weight and press START button to commence softening. Minimum amount of butter is 125g and maximum is 500g.
NOTE
The butter should be soft enough to push your finger easily into the centre. The butter should not be melted.
The SMART COOK SOFTEN BUTTER setting can also be selected from the SHORTCUTS panel.

Pizza
The SMART COOK PIZZA setting is designed to cook whole frozen pizzas, using both microwave and grill.
The cook time is based on pizza that has been taken directly from the freezer (approx. -18°C). Place the pizza or the pizza slices into the provided Combi Crisp pan in high position to bake the pizza. Do not cover the food.
Press START to start the cooking program.
Once cooking has finished, allow the pizza to stand for 5 minutes.
NOTE
Pizzas smaller than 10'' requires less cooking time.

Chicken Nuggets
The SMART COOK CHICKEN NUGGETS setting is designed to air fry chicken nuggets in the microwave oven.
The cook time is based on chicken nuggets that have been taken directly from the freezer (approx. -18°C).
Turn the ADJUST dial to select the amount of chicken nuggets to air fry and press START to begin cooking. You can select from 200g to 500g of nuggets.
When selecting the SMART COOK CHICKEN NUGGETS setting, the LCD screen will show 'AIR FRYER IS PREHEATING. INSERT PAN'. Place the Combi Crisp pan in high position inside the microwave for the preheating program.
At the end of the 3-minute preheating program, an alert tone will sound and the screen will indicate 'INSERT FOOD ON PAN'. Open the door to place the food on pan, and press START to continue. Lay the chicken nuggets flat in a single layer.
Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Turn the chicken nuggets and press START to continue the cooking program.

Fries
The SMART COOK FRIES setting is designed to air fry French fries in the microwave oven.
The cook time is based on fries that have been taken directly from the freezer (approx. -18°C). Turn the ADJUST dial to select the amount of fries to air fry and press START to begin cooking. You can select from 200g to 500g of fries.
When selecting the SMART COOK FRIES setting, the LCD screen will show 'AIR FRYER IS PREHEATING. INSERT PAN'. Place the Combi Crisp pan in high position inside the microwave for the preheating program.
At the end of the 3-minute preheating program, an alert tone will sound and the screen will indicate 'INSERT FOOD ON PAN'. Open the door to place the food on pan, and press START to continue. Lay the fries flat in a single layer.
Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Turn the fries and press START to continue the cooking program.
At the end of the cooking program, allow the fries to stand for 5 minutes before removing and serving.

Chicken
The SMART COOK CHICKEN setting is suitable for fresh chicken pieces as well as cooking whole chickens. This setting is using both convection and grill, as well as microwave when cooking a whole chicken.
Cook times are based on chicken directly from the refrigerator (approx. 5°C).
Minimum amount of chicken to be cooked is 200g and maximum is 1.6kg.

• 200g to 500g suitable for chicken fillets and boneless chicken pieces.
• 1kg to 1.6kg suitable for chicken pieces with bones and whole chickens.

Use the provided Combi Crisp pan to cook the chicken. For chicken pieces, use the Combi Crisp pan in high position. For whole chicken, use the Combi Crisp pan in low position.
Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Turn the chicken pieces (not necessary when cooking a whole chicken) and press START to continue the cooking program.
Once cooking has finished, allow chicken to stand for 5 minutes.

Meat
The SMART COOK MEAT setting is designed to cook different type of meat.
Cook times are based on meat directly from the refrigerator (approx. 5°C).
Minimum amount of meat to be cooked is 200g and maximum is 2kg.

• 200g to 500g suitable for meat fillets, minced meat and meat in pieces.
• 750g to 2kg suitable for whole roasts.

Use the provided Combi Crisp pan to cook the meat. For 200g - 500g, use the Combi Crisp pan in high legs position. For 750g - 1kg, use the Combi Crisp pan in low legs position.
Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Turn the meat over and press START to continue the cooking program.
Once cooking has finished, allow the meat to stand for 5 minutes.

Fish
The SMART COOK FISH setting is designed to cook your fish without dry and overcooked edges, using the microwave, convection oven and grill.
Cook times are based on the fish directly from the refrigerator (approx. 5°C). Minimum amount of fish should not be less than 200g and not more than 800g.
Suitable for white fish fillets and salmon fillets; arrange in a single layer in the Combi Crisp pan in high legs position. Fold over the thin tail end of the fillets to prevent overcooking.
Once cooking has finished, allow fish to stand for 5 minutes.
NOTE
Oily fish with skin on recommended.

SMART REHEAT
The SMART REHEAT setting uses lower power levels to gently reheat food without drying or overcooking.
NOTE
While the microwave is reheating, time can be increased or decreased. Adjusting the reheating time does not affect selected weight or quantity.

Beverage
The SMART REHEAT BEVERAGE setting is suitable to reheat hot drinks such as coffee and tea that may have become cold. The BEVERAGE setting will warm your drink to approx.
60–65°C which is suitable to drink right away.
Position cups around the outside of the turntable. Turn the ADJUST dial to select the number of cups and press START to begin reheating. You can select the amount of beverage from 1 cup (250mL) to 4 cups (1000mL).
At the end of the reheat program, stir heated drinks and allow to stand for 1–2 minutes before consuming. Be aware, that overheating may scald or burn drinks.
NOTE
Use a ceramic cup or mug.

Leftovers
The SMART REHEAT LEFTOVERS setting is suitable for reheating a plate of leftovers from the refrigerator (approx. 5°C).
For even reheating, place food onto a microwavesafe plate or into a bowl. Cover food with a vented microwave-safe lid or vented microwavesafe plastic wrap (do not seal).
Turn the ADJUST dial to select the number of plates and press START to begin cooking. You can select the amount from 1 to 2 plates/bowls. When using 2 plates, use the trivet to place the plates on top of each other.
Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Stir the food in the plate and press START to continue the reheating program. When reheating 2 plates, it is recommended to switch the plates position (from top to bottom, and vice-versa) to ensure even reheating.
At the end of the reheat program, stir heated food and allow to stand for 1–2 minutes before consuming.

By time
The SMART REHEAT setting also enables you to select the reheat time, from a range to 1 minute to 95 minutes.
When reheating any food item, place the food onto a microwave-safe bowl or plate. Cover food with a vented microwave-safe lid or vented microwave-safe plastic wrap (do not seal).
Halfway through the cook program, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Stir/turn the food item and press START to continue the reheating program.

SMART DEFROST
The SMART DEFROST setting is designed to gently defrost food without overheating and drying out of edges.
Press the FOOD MENU button, then select COOK with the START dial. Press START to confirm your selection. An alert tone will sound.
Turn TIME/Select dial to select the food type. As the TIME/Select dial is turned the arrow shifts and points to what food type is selected

Once you have chosen FOOD TYPE, turn ADJUST dial to adjust quantity or weight.

Press START to commence defrosting. All unselected FOOD TYPES, the PRESS START and INPUT QUANTITY prompts are no longer displayed on the LCD screen. The TIME appears and begins to countdown.
NOTE
While the microwave is defrosting time can be increased or decreased. Adjusting the defrosting time does not affect selected weight or quantity.

FOR BEST RESULTS

• Defrost times are for thoroughly frozen foods that have been in the freezer for at least 24 hours and maintained at temperatures of –18°C or lower.
• When freezing meats, poultry and fish, use good quality plastic wrap, bags and containers.
• To separate meat, such as chicken pieces or steak, place wax paper or plastic film between each layer.
• Ensure that all air has been removed and packaging has been sealed securely.
• Label the packs with type and cut of meat, date and weight.
• After the defrost cycle, most foods will still be somewhat icy in the centre when removed from the microwave. Stand food for 5–15 minutes until completely thawed.
• Position foods in a single layer with thinner parts in the centre and thicker ends around the outside of the turntable.
• Remove any packaging and bags from frozen meats. If packaging is too frozen to remove, defrost for 3 minutes using the TIME DEFROST setting; remove packaging and continue with the SMART DEFROST setting.

Chicken
The SMART DEFROST CHICKEN setting is suitable to defrost either chicken pieces (legs, breasts) or a whole chicken. Minimum amount of chicken to defrost is 200g and maximum is 1kg.

• 200g to 750g - suitable for chicken fillets and chicken pieces.
• 1kg to 1.6kg - suitable for chicken pieces with bones and whole chickens.

For chicken pieces, position chicken pieces in a single layer in a microwave-safe dish, plate or container. Arrange thicker ends around the outside of the plate/container. Shield thinner pieces such as wings with foil to prevent overheating and cooking.
Halfway through the defrost setting, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Turn over chicken pieces and press START button to continue the defrost program. Once program has finished, remove chicken from microwave and stand 5-15 minutes to thaw completely.
For whole chickens, remove from original packaging. Place chicken, breast side down onto a in a microwave-safe dish, plate or container. Halfway through the defrost setting, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Turn chicken oven and press START button to continue the defrosting program.
After defrost program has ended, remove the chicken from the microwave. Rinse under tap water, making sure to wash the cavity well to loosen the icy core.
Place onto a clean plate and pat dry. Cover with cling film and refrigerate for 1–2 hours until completely thawed.

Meat
The SMART DEFROST MEAT setting is suitable to defrost any type of ground or diced meat such as beef, lamb and pork, as well as steaks and chops. Minimum amount of meat to defrost is 200g and maximum is 1kg.

• 200g to 500g - suitable for meat fillets, minced meat and meat in pieces.
• 750g to 2kg - suitable for whole roasts. Remove any packaging, foam trays and absorbent pads from the meat. Place directly onto a microwave-safe plate or shallow dish.

Halfway through the defrost setting, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Remove any defrosted meat and set aside in the refrigerator. If some ground meat is still thawed, remove from the microwave oven as well. Turn the frozen meat over and return to the microwave oven. Press START button to continue the defrost program. At the end of the program, remove meat and stand 5–15 minutes to thaw completely.

Fish

The SMART DEFROST FISH setting is programmed to gently thaw delicate fish fillets without cooking and heating the edges. Minimum amount of fish to defrost is 200g and maximum is 800g.
For best results, place frozen fillets in a single layer into a microwave-safe shallow dish.
Halfway through the defrost setting, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Turn fish pieces oven. Cover thin ends of fish fillets with a small strip of foil and return to oven. Press START button to continue the defrost program.
At the end of the program, the fish will still be somewhat icy in the centre. Remove from the microwave and stand for 5–15 minutes until completely thawed.
NOTE
Oily fish recommended.

Soup
The SMART DEFROST SOUP is suitable for defrosting frozen prepared soups directly from the freezer (approx. –18°C). Minimum amount of fish to defrost is 250mL and maximum is 1000mL.
Remove soup from any packaging and place into a microwave-safe bowl. Do not cover food. Halfway through the defrost setting, an alert tone will sound and STIR/TURN will flash. Open door or press STOP/CLEAR button once to pause. Break up any frozen pieces and press START button to continue the defrost program.

By time
The SMART DEFROST setting also enables you to select the defrost time, from a range to 1 minute to 95 minutes.
When defrosting any food item, place the food onto a microwave-safe bowl or plate, and do not cover.
Halfway through the defrost program, an alert tone will sound and will flash Stir/turn food.
Pause program and stir/turn the food item.
Press START button.

Hints & Tips

SOME IMPORTANT TIPS FOR MICROWAVE COOKING
To help equalize energy in the food so that it cooks evenly follow these helpful tips.

• Arrange foods with varying size ends, such as chicken drumsticks and broccoli with the thicker or tougher part positioned to the outside of the dish. This ensures the parts that require more cooking will receive more energy, so the food will cook evenly.
• Covering the dish during cooking holds in the heat and steam to speed up cooking time. Use a microwave safe lid or plastic wrap that has been vented by turning back one edge at the side of the dish to form a narrow vent to release excess steam.
• Choose cooking dishes that are shallow and preferably have straight sides. Shallow dishes enable the food to cook faster and straight sides prevent the edges from being overcooked.
• Arrange individual items such as ramekins or whole potatoes around the outside of the turntable. Make sure to leave space between items so the energy can penetrate from all sides.
• Use round shaped microwave dishes. Round shapes cook more evenly than square or rectangle dishes which absorb most of the energy in the corners causing food to overcook and toughen.
• Stir foods from the outside to centre of the dish once or twice during cooking to equalize heat and speed up microwaving.
• Turn medium to large food items over twice during microwaving. This enables even exposure to microwaves.
• Elevating some types of food such as cakes, roast vegetables and dough products can be advantageous. It allows more energy to penetrate the food from all sides, base and top. Use a microwave safe plastic or ceramic rack. If a rack is unavailable, use an upturned bowl or cup to elevate plates of food.
• Do not elevate any special browning dishes, jugs of sauce or custard, small quantities of food or mugs of beverages.
• Internal temperatures of foods continue to rise so that they continue cooking even after they have been removed from the microwave oven. It is better to undercook food as it will continue to cook once removed from the microwave.

MICROWAVE USTENSILS

• Containers, plates, dishes, etc. used in the microwave oven should always be microwave–safe. Check if stated on the underside of the utensil or contact the manufacturer.
• To test if a container, plate or dish is microwave–safe, place it into the microwave oven with 1 cup of cold water (in a microwave–safe cup) and heat on High (100%) Power for 1 minute. If the container is hot and the water is cold, the container is not suitable for microwave oven use. If the container is cold and the water is hot, then the container is suitable for microwave oven use.
• Microwave-safe cookware will not become hot by the microwave energy, but it will become hot from contact with hot food. When the food becomes hot, some of this heat is transferred to the dish. Always use oven mitts to remove hot dishes from the microwave.
• Metal containers and utensils should not be used in the microwave oven.

Care & Cleaning

• Remove the plug from the power outlet before cleaning.
• Keep the inside of the microwave oven clean. When food splatters or spilled liquids adhere to the microwave oven internal walls, wipe with a damp cloth. Mild detergent may be used if the cavity gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
• The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the microwave oven cavity, water should not be allowed to seep into the ventilation openings.
• Wipe the door and window on both sides of the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use an abrasive cleaner.
• Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the microwave oven door open to prevent it from accidentally turning on.
• If steam accumulates inside or around the outside of the oven door, wipe with a soft dry cloth. This may occur when cooking foods high in moisture or if the microwave oven is operated under high humidity conditions, this is normal.
• It is occasionally necessary to remove the glass turntable for cleaning. Wash the glass turntable in warm soapy water, rinse in clean water and dry thoroughly.
• The turntable roller and microwave oven floor should be cleaned regularly to ensure the glass turntable rotates correctly and avoids making excessive noise. Simply wipe the bottom surface of the microwave with a soft damp cloth. The turntable roller may be washed in mild soapy water, rinse in clean water and dry thoroughly. When removing the turntable roller from the cavity floor for cleaning, be sure to replace in the proper position.
• Remove odours from your microwave oven by combining a cup of water with the juice of one lemon in a deep microwave-safe bowl, microwave on High for 5 minutes. Wipe the microwave oven cavity thoroughly and dry with a soft cloth.
• When it becomes necessary to replace the oven light, please consult your Sage Service Centre to have it replaced.
• Please do not dispose this appliance with domestic rubbish; it should be taken to the appropriate disposal centre provided by the local council municipalities.
• If storing the microwave oven, press the STOP/CLEAR button, switch off at the power outlet then unplug the power cord. Ensure the microwave oven is completely cool, clean and dry. Secure the roller ring and glass turntable and close the door. Do not place heavy objects on top. Store the microwave oven upright.
• Wash the Combi Crisp Pan and Trivet in the top rack of the dishwasher. Alternatively, wash with warm soapy water, rinse with clean water and dry thoroughly. If required, remove Combi Crisp Pan legs by pinching inwards to detach them from base of pan.

Troubleshooting
