Sage the Vac Q SBL002 - Vacuum Pump Manual

Components

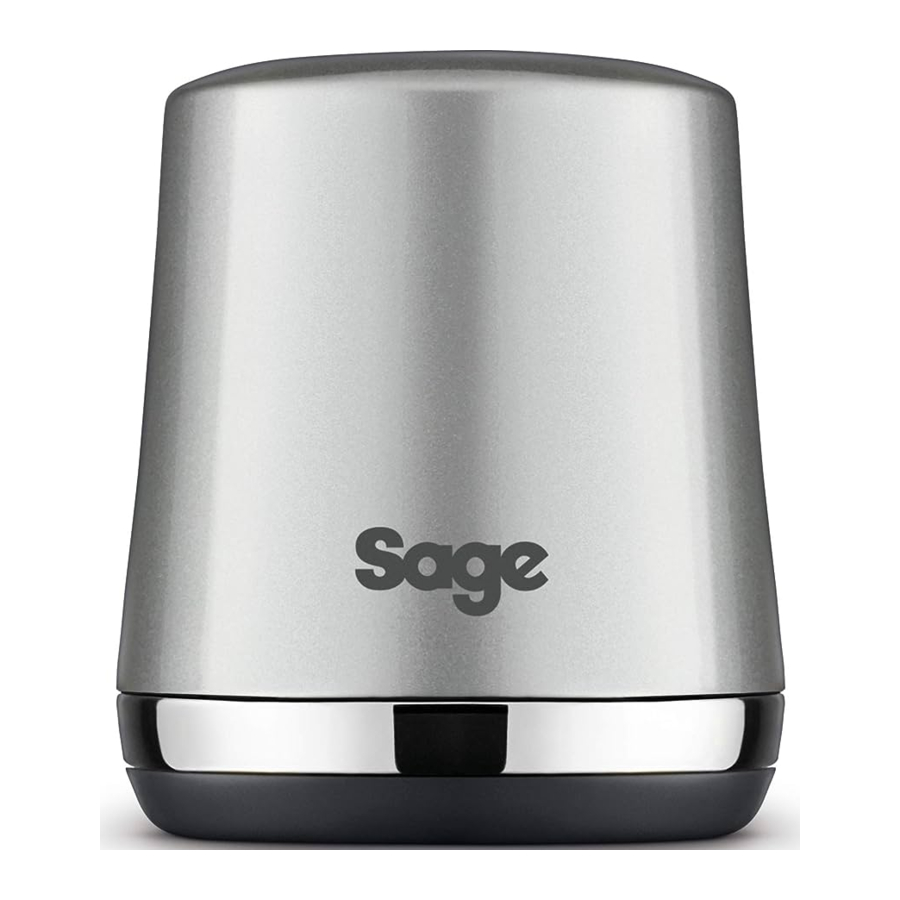

1. Vacuum Pump Housing
2. Power Button
3. Battery Compartment
4. Vacuum Pump Base
5. 4 x AA Batteries
6. Inner Cap with Vacuum Valve

FUNCTIONS

BEFORE FIRST USE

Remove and safely discard any packaging material or promotional labels before using the attachment for the first time.

1. Open the battery compartment cover by twisting the Vacuum Pump housing to the right side while holding the Vacuum Pump Base.

2. Insert the batteries correctly and press firmly to click into position.

3. Replace the Vacuum Pump Housing.

USING THE VACUUM PUMP

Applying a vacuum pressure within the blender jug before blending green smoothies and vegetable dips can enhance flavours, change the texture and improves the overall taste experience.

We do not recommend using the Vacuum Pump for all blending processes. For example, dairy based mixes taste better with air bubbles.

Also, if your food doesn't have a liquid element – herbs, spices, or nuts, for example - vacuum blending will not have a noticeable impact.

1. To get started, fill the blender with ingredients and close the lid firmly.
2. Replace the inner cap of the blender lid with the inner cap of the vacuum pump.
3. Place the Vacuum Pump on top of the Inner Cap with Vacuum Valve.

4. Press the POWER Button to turn on the Vacuum Pump. The Vacuum Pump will automatically stop once a vacuum pressure is reached.

5. Remove the Vacuum Pump from the blender lid.
6. Operate blender as per manual.
7. Press the Vacuum Valve to release vacuum pressure from the blender jug.

8. Remove the Inner Cap with Vacuum Valve for easy removal of the blender lid.

• Always wait until the Vacuum Pump has stopped before turning on the blender. Do not blend any ingredients while the Vacuum Pump is operating, as this could cause damage to the pump.
• Do not use the Inner Cap with Vacuum Valve for non-vacuum blending.

LIGHTS AROUND POWER BUTTON

A white LED ring will be visible around the Power Button when the Vacuum Pump is in operation.

If the battery becomes low, the LED ring will flash red for 5 seconds after vacuuming. In this case the Vacuum Pump won't be able to achieve vacuum pressure anymore.

Please change all 4 batteries and dispose of the old ones.

Care & Cleaning

INNER CAP WITH VACUUM VALVE

• Can be cleaned in dishwasher.
• For thorough cleaning remove the Vacuum Valve from Inner Cap for hand-cleaning.

VACUUM PUMP

• Always ensure the Vacuum Pump is kept clean after each use.
• Wipe the Vacuum Pump with a clean, damp cloth after each use. Do not use harsh abrasives or caustic cleaning products when cleaning this attachment.
• Ensure the Vacuum Pump is thoroughly dry after cleaning.

NOTE
Never immerse the Vacuum Pump in water or any other liquid. Do not place the Vacuum Pump in the dishwasher.

STORAGE
Store the Vacuum Pump on a flat, dry surface.
Always remove the batteries if the Vacuum Pump will not be used for six months or longer.

KEEP BATTERIES OUT OF REACH OF CHILDREN
Dispose of used batteries immediately and safely.
If swallowed, they can be life-threatening. If a battery has been swallowed, immediately seek medical help.
