Konig & Meyer 19745 Quick Start Manual

19745 Smartphone holder
- Universal holder suitable for all devices with a width 46-84 mm
- Particularly suitable for smartphones, flat devices and MP3 players
- Functioning of the operating controls is not affected
- Simply place in the holder and close the clamping jaw
- Released at the press of a button
- Moveable bars can be removed and the holder turned
- Smartphone operating controls are almost freely accessible -
- and if not: turn the holder 180° and mount it
- 4 different holding arms adjust to any Smartphone
- Clamps on tube diameters 7 - 30 mm
- Flexible holding arm (length 110 mm) for positioning as required
Thank you for choosing this product. These instructions contain information about the installation and use of the holder. We suggest you keep the
instructions in a safe place for later use.

SAFETY NOTES

- Use a suitable stand - the stand must be stable, able to accommodate the weight and have a tube ø 7-30 mm; e.g. K&M music stands (100/1 et seq.),
- for orchestral stands (118/1 et seq.) and
- microphone stands (200 et seq.), etc.
- Carefully place the smartphone in the holder and
- ensure it is held firmly in place
- Maneuver the holder with care; when adjusting we recommend first
- removing the smartphone and replacing it when adjustment is completed

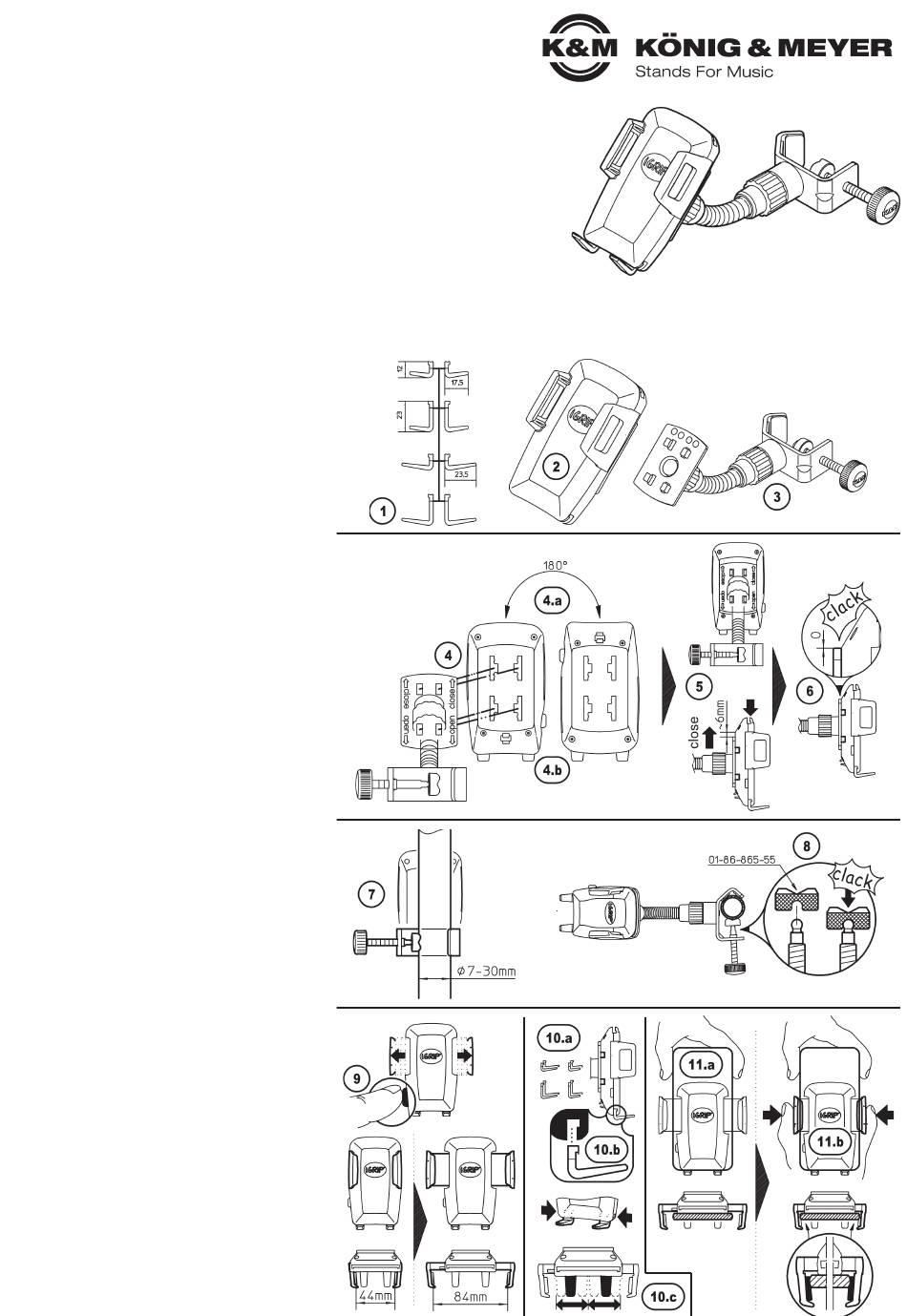

INSTALLATION INSTRUCTIONS (A-F)

A PREPARE THE STAND (see Safety Notes above)
B LAY OUT THE COMPONENTS for 19745 IN ORDER
B 1 Four holding arm pairs (2 heights, D depths)
B 2 Smartphone cradle
B 3 Holding arm with clamp (for tubes 7-30 mm)
C CONNECTING THE SMARTPHONE CRADLE TO THE HOLDING ARM
C 4 Place the smartphone cradle on the four hooks
C 4 of the holding arm plate...
C 4.a. The smartphone cradle can be turned 180°,
C 4.a. if needed (e.g. because of the connections/cables)
C 4.b. NOTE: the holding arms must always be mounted
C 4.b. NOTE: in the lower position: refer to Section 10.
C 5 ...and then slide the holding plate in the "close"
C 5 direction against the smartphone cradle until it
C 5 audibly clicks in place.
C 6 The correct position has been reached
C 6 when the holding plate sits firmly on the
C 6 side marked with "close".
D ATTACHING THE HOLDING ARM TO THE STAND TUBE
D 7 Hold the holding arm clamp on the stand tube
D 7 (7-30 mm) and attach by tightening the
D 7 knurled screw.
D 8 The knurled screw has a removable
D 8 protective plastic cap to protect the
D 8 surface of the tube (part no. 01-86-865-55).
E PLACING THE SMARTPHONE IN CRADLE
E NOTE:
E Suitable for devices with a width 46-84 mm
E 19 Press the button to part the sides
E 10.a Select the correct holding arms (4 options)
E 10.b Slide both holding arms in the corresponding
E 10.b. slots on the side of the smartphone cradle.
E 10.c The two lower bars can be slid to the right or left -
E 10.c accommodating a variety of smartphones.
E 10.c NOTE:
E 10.c The bars can be removed to aid installation.
E 10.c We stress the importance of BOTH bars being
E 10.c in place when the device is clicked in the cradle.
E 11.a Hold the smartphone with one hand and position
E 11.a centrally on the lower bars of the cradle...
E 11.b ...then close the two sides with the other
E 11.b hand until the device is held firmly between
E 11.b the moss rubber protectors.
