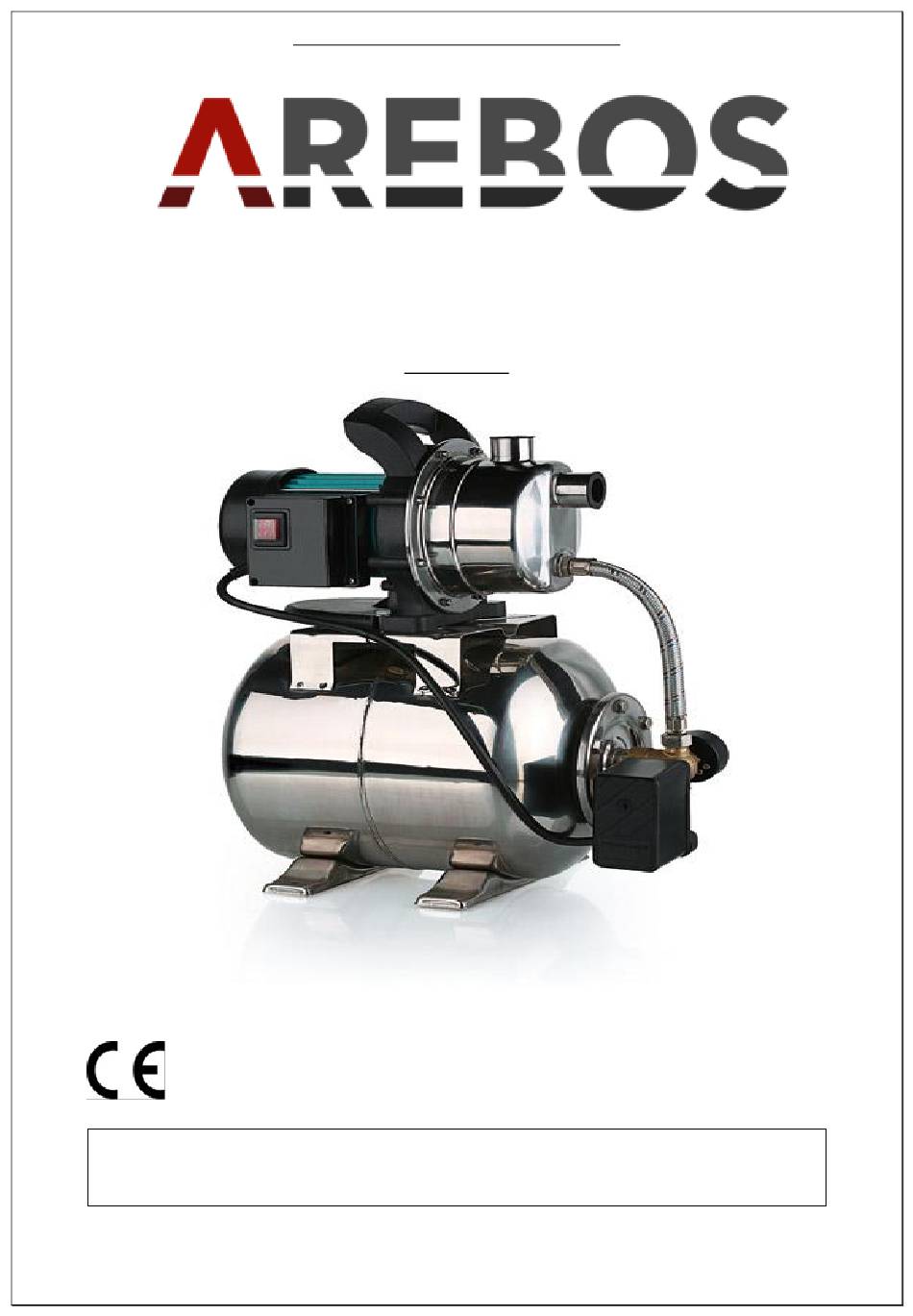

- Page 1 User’s Manual – A S Domestic waterworks 1200 W REBO Domestic waterworks 1200 W AR-HE-HWW1200 User’s Manual Please follow all security measures in this user’s manual to ensure a secure use.
-
Page 2: Table Of Contents
User’s Manual – A S Domestic waterworks 1200 W REBO Table of contents 1. Introduction and safety instructions ...... 3 1.1 Introduction ................3 1.2 Explanation of the symbols ............3 1.3 General safety instructions ............4 1.4 Specific safety instructions ............4 2. -
Page 3: Introduction And Safety Instructions
User’s Manual – A S Domestic waterworks 1200 W REBO Thank you for purchasing our product. Please read the operating instructions carefully before using the product for the first time. If you give the product to a third party, this instruction manual must also be handed over. -
Page 4: General Safety Instructions
User’s Manual – A S Domestic waterworks 1200 W REBO This product must not be disposed of with household waste! 1.3 General safety instructions • Your safety is of the most importance to us. Please make sure that you read this instruction booklet before attempting to install and use the appliance. - Page 5 User’s Manual – A S Domestic waterworks 1200 W REBO • This water pump must not be exposed to impurities such as sand, stones, sticky substances, etc. in the pumping liquid for a long time. Since the pumping liquids may contain corrosive chemical substances, it is of particular importance to prevent their action on the material of the pump body.
-
Page 6: Intended Use
• The pressure switch switches on the pump when the water pressure drops in the kettle. When the kettle is filled, the pump shuts off again. 4. Technical specifications Modell AR-HE-HWW1200 Performance 1200 W Voltage 230 V; 50 Hz Max. Capacity... -
Page 7: Assembly
User’s Manual – A S Domestic waterworks 1200 W REBO 5. Assembly 5.1 General • Prepare a level and stable location. • Place the device horizontally, against falling over and protected against flooding. • The domestic waterworks must be protected against rain and direct water jet. •... -
Page 8: Connect Pressure Line
User’s Manual – A S Domestic waterworks 1200 W REBO • Lay suction line always rising. If the suction height is more than 23 ft (7 m), a suitable suction hose must be installed. 5.3 Connect pressure line • The pressure line conveys the liquid to be conveyed from the pump to the extraction point. •... -
Page 9: Troubleshooting
User’s Manual – A S Domestic waterworks 1200 W REBO • Before every restart, fill the pump with pumped liquid until it overflows. Switching on without water filling destroys the pump. 7. Troubleshooting Problem Possible cause Solution - The pump body is not filled - Fill the pump with water. - Page 10 User’s Manual – A S Domestic waterworks 1200 W REBO - No power supply. - Check socket, cable, line, plug, Pump does not switch on. if necessary repair by electrician. - Device not switched on. - Switch on the device at the ON/OFF switch (switch to position I).
- Page 11 User’s Manual – A S Domestic waterworks 1200 W REBO - The filter sieve of the check - Clean the filter sieve. valve is blocked. - The intake water level is too - Dip the check valve deeper low. into the water. Inadequate water discharge.
- Page 12 User’s Manual – A S Domestic waterworks 1200 W REBO often. qualified personnel. - Too little pre-pressing - Increase pressure via the pressure in the pressure kettle. boiler valve. Before doing so, open a load in the pressure line (e.g. water faucet) to prevent the system from being pressurized.
-
Page 13: Cleaning, Maintenance And Storage
User’s Manual – A S Domestic waterworks 1200 W REBO 8. Cleaning, maintenance and storage • Under normal conditions, the water pump is maintenance-free. • Before carrying out any work on the device, remove the mains plug from the socket. •... -
Page 14: Emptying And Removing The Pump
User’s Manual – A S Domestic waterworks 1200 W REBO 8.5 Emptying and removing the pump • Store the pump dry and frost-proof. If there is a risk of frost and long periods of non-use (e.g. wintering), the pump must be completely drained. •... -
Page 15: Environmentally Friendly Disposal
You can obtain the addresses from your city or local government. You can find out about other return options created by us on our website www.arebos.de. The separate collection of Waste electrical or electronic equipment is intended... -
Page 16: Eu Declaration Of Conformity
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
