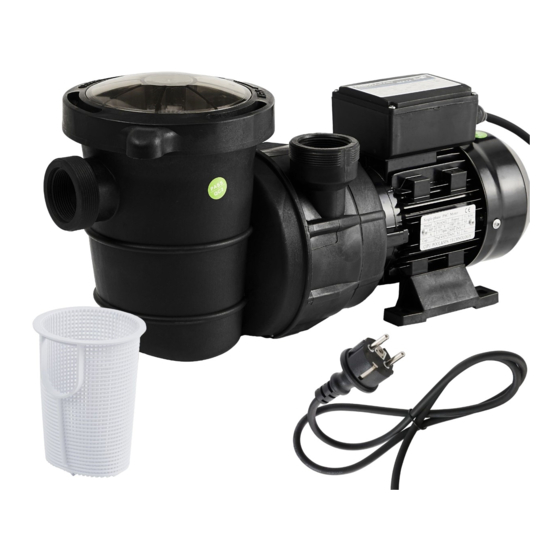

- Page 1 Original User Manual – A S Swimming Pool Pump REBO Swimming Pool Pump AR-HE-SP600S / AR-HE-SP800S Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
Original User Manual – A S Swimming Pool Pump REBO Table of Contents 1. Introduction and safety instructions ..3 2. Installation .......... 7 3. Maintenance ........9 4. Technical Data ........10 5. Trouble Shooting ....... 10 6. Part List ..........12 7. -
Page 3: Introduction And Safety Instructions
Original User Manual – A S Swimming Pool Pump REBO Thank you for purchasing our product. Please read the operating instructions carefully before using the product for the first time. If you give the product to a third party, this instruction manual must also be handed over. - Page 4 Original User Manual – A S Swimming Pool Pump REBO Warning of electrical voltage! Warning against automatic start! This product must not be disposed of with household waste! General safety instructions • Your safety is of the most importance to us. Please make sure that you read this instruction booklet before attempting to install and use the appliance.
- Page 5 Original User Manual – A S Swimming Pool Pump REBO • Only use original parts. These replaceable spare parts are designed and manufactured specifically for the device. If other spare parts are used, the warranty will be void and there is a risk of injury.
- Page 6 Original User Manual – A S Swimming Pool Pump REBO If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard The pump must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA The products mentioned in this manual are specially designed for the pre-filtering and re- circulation of water in swimming pools and spas.
-
Page 7: Installation
Original User Manual – A S Swimming Pool Pump REBO 2. Installation Adopt the latest technology when designing and manufacturing our pumps, a few simple precautions during installation will ensure years of trouble free operation. The pump suction line should not be smaller than 1 1/2" (40mm imperial) or 50mm true metric. - Page 8 If the pump will not prime, repeat step 1 and 2 above. The pumps are required AR-HE-SP600S worked or installed below the water level. Mechanical seals if running dry can be damaged rapidly and may need to be replaced.
-
Page 9: Maintenance
Original User Manual – A S Swimming Pool Pump REBO 3. Maintenance The strainer basket in the filter tank should be inspected and cleaned at regular intervals. Remove lid and lift out basket. Remove debris and hose off with clean water if necessary. Inspect the lid gasket, lubricate with SILICON based grease only if needed. -
Page 10: Technical Data
If supplementary instructions are required or if special problems arise, do not hesitate to contact the distributor or to address directly the manufacturer of the pump. 4. Technical Data Input TYPE REMARK H．Max Q．Max/min power AR-HE-SP600S 600W 265L 220~240 IPX5 Single- speed AR-HE-SP800S 800W 250L 5. - Page 11 Original User Manual – A S Swimming Pool Pump REBO Low flow Dirty filter Backwash or clean cartridge. Dirty skimmer and Clean skimmer and pump strainer. pump strainer Suction air leak See 1 Closed valve or blocked See 1 line Motor runs hot Supply to be correct by electrician.
-
Page 12: Part List
Original User Manual – A S Swimming Pool Pump REBO 6. Part List Parts Listing: AR-HE-SP600S Ref. No. Part No. Description 647252772000 Cover 65431042080 O-ring 647252704001 Basket 647252705080 Clip 647252703080 Strainer housing 647252702080 Pump cover 647252771 Impeller 65028003000 Seal assembly... - Page 13 Original User Manual – A S Swimming Pool Pump REBO Parts Listing: AR-HE-SP800S Ref. No. Part No. Description 647252772000 Cover 65431042080 O-ring 647252704001 Basket 647254201080 Pump housing 65431032080 O-ring 647254203080 Diffuser 647254271 Impeller 65431075080 O-ring 647254202080 Pump cover 65244005000 Gasket M8 65221009000 Screw M8X40 65028003000...
-
Page 14: Environmentally Friendly Disposal
You can obtain the addresses from your city or local government. You can find out about other return options created by us on our website www.arebos.de. The separate collection of Waste electrical or electronic equipment is intended... -
Page 15: Eu Declaration Of Conformity
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
