Series 550

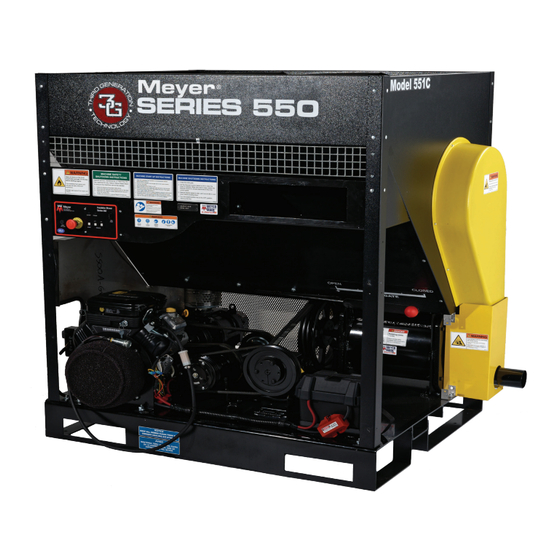

Meyer Insulation Blower
INSTALLATION, OPERATION &
MAINTENANCE INSTRUCTIONS
Read this manual carefully before installing, operating, or maintaining this equipment.
Failure to do so could result in serious injury or death.
Save this manual
Wm. W. Meyer & Sons, Inc.
1700 Franklin Blvd. • Libertyville, Illinois 60048-4407 • 847-918-0111 • Fax: 847-918-8183
email: sales@wmwmeyer.com ·meyercontractor.com or wmwmeyer.com
1
Advertisement
Related Manuals for Meyer 550 Series
Summary of Contents for Meyer 550 Series
- Page 1 Read this manual carefully before installing, operating, or maintaining this equipment. Failure to do so could result in serious injury or death. Save this manual Wm. W. Meyer & Sons, Inc. 1700 Franklin Blvd. • Libertyville, Illinois 60048-4407 • 847-918-0111 • Fax: 847-918-8183 email: sales@wmwmeyer.com ·meyercontractor.com or wmwmeyer.com...
-
Page 2: Table Of Contents
The safety of the operator and those people that may come into contact with the equipment is of great importance to Wm. W. Meyer & Sons, Inc. (“Meyer” “factory”). The decals, shields, guards, and other protective features designed, furnished, or recommended for this machine are there for your protection. - Page 3 Meyer is familiar. If you have any safety or operational questions pertaining to the design or application of the equipment, we encourage you to contact Meyer at (847) 918-0111.
- Page 4 Doors of the truck or trailer must be open during operation to allow for the movement of outside air through and to provide ventilation for the operator and the air-cooled engine. Guard and avoid dangerous parts. There are moving parts of this equipment that will crush and cut any body part that they contact, resulting in serious injury or death.
- Page 5 HAZARD IDENTIFICATION Principle of operation The insulation blowing machines that Meyer & Sons manufacturers and sells are machines that have rotating shafts with paddles, pins and vanes designed to break up and move compressed material (cellulose and fiberglass) from an open hopper into a pneumatic conveying line. Once in that line or hose, the material is propelled through the hose and exits into an open space (building attic) or an enclosed space (sidewall).
- Page 6 Safety Labels...
-
Page 8: Application And Models
SECTION II APPLICATION & MODELS The MEYER Model 551 INSULATION BLOWING MACHINE is designed to process and blow all of the currently available loose-fill insulations on the market today. This equipment must be used only for the purpose for which it was intended. Any other use could cause serious injury, costly damage to the equipment and will void the warranty. -
Page 9: Specifications And Installation
• In addition to inspecting damaged equipment, you should also check the condition of the safety labels to ensure they have not been damaged or come off. If they have, contact Meyer for replacements prior to installation. • Concealed Damage: If Equipment or goods are discovered to be damaged in shipment at a later date, contact the carrier and Meyer immediately. - Page 10 The engine and exhaust piping could be extremely hot and could cause burns or ignite a fire. Due to the variability of installations, Meyer cannot provide a guard for the engine exhaust piping. The installer of the equipment must take the necessary steps to guard this surface against contact by people or flammable materials.
-
Page 11: Machine Operating Instructions
SECTION V MACHINE OPERATING INSTRUCTIONS Prior to use, the operator must read and understand the entire manual and all the safety related information including all the warnings and guarding instructions. This includes but is not limited to reading and understanding the “IMPORTANT SAFETY INFORMATION” and “HAZARD IDENTIFICATION”... -
Page 12: Maintenance
For engine service or maintenance see the engine Operator’s Manual. Your Meyer 551 Insulation Blowing Machine is designed to be used with minimal maintenance for all its components. The following is only a guide; experience is the best guide for the right maintenance... - Page 13 EACH DESCRIPTION SHIFT HOURS HOURS HOURS HOURS INSPECT ALL DRIVES CHECK GUARDS DRIVE ALIGNMENT & TENSION CHECK ENGINE EXHAUST PIPE GREASE BLOWER BEARINGS GREASE HOPPER BEARINGS CHANGE ENGINE OIL FILTER CHANGE BLOWER OIL CHANGE GEAR BOX OIL CLEAN INLET SCREEN CHANGE SEALSTRIPS OIL DRIVE CHAINS CHECK ALL DRIVE SET SCREWS...
-
Page 14: Troubleshooting
SECTION VII TROUBLESHOOTING Lockout/Tagout the machine before performing any service including removing guards. Failure to do so could lead to serious injury or death. Machine is running but no material is discharging from hose. • Slide gate is in the closed position. •... - Page 15 • Too much material forced into hopper. • Clutch slipping during operation. • Too many hose reductions. • Obstruction at blower inlet. • Drive belts may be slipping. • Gear Box oil is low or empty. • Loose drive components. Engine runs but sometimes misfires while blowing material.
- Page 16 Read and understand the Operating Manual accompanying this equipment before performing any work. Additional safety label kits are available from Meyer upon request at no charge. This is part of our effort to ensure this equipment is installed, operated and maintained in the safest possible manner. Affix these labels in locations to achieve maximum visibility and thereby alert any personnel that may ever be on-site that a potential for injury could occur.
- Page 17 Locate all of the safety labels on your equipment and know their meaning before operating your SAFETY LABELS Insulation Blowing Machine.
- Page 18 NOTE: Contact Wm. W. Meyer & Sons, Inc. at 847-918-0111 for free replacement safety label kit.
-
Page 19: Safety Precautions
SERIES 550 INSULATION BLOWING MACHINE SAFETY PRECAUTIONS NEVER OPERATE THE MACHINE WITHOUT HOSE ATTACHED TO THE DISCHARGE TUBE NEVER OPERATE THE MACHINE WITHOUT GUARDS IN PLACE Photos for reference only. 292-M-001...
