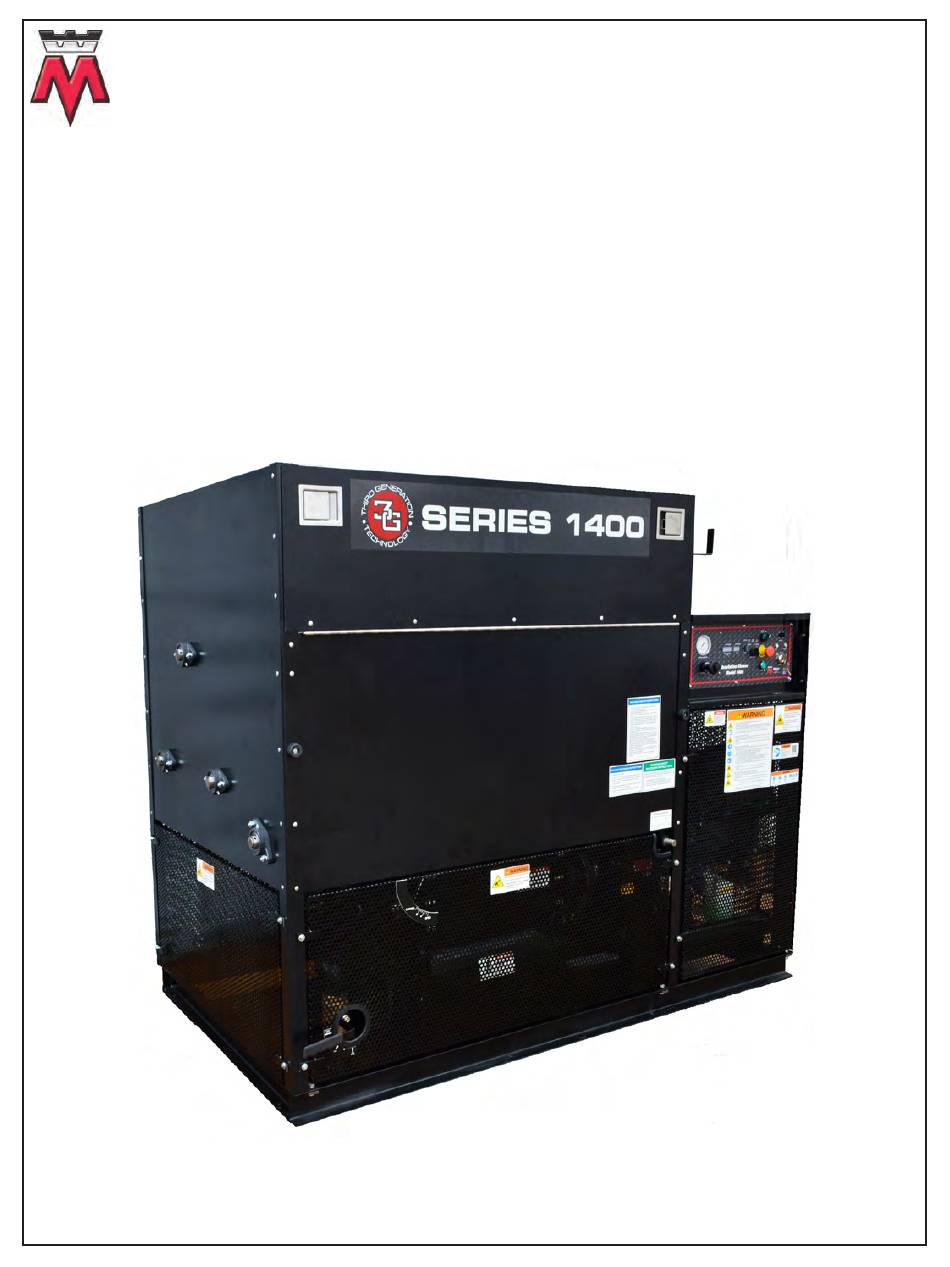

292-B-005 Rev. C
Effective 1-11-2017
Series 1400

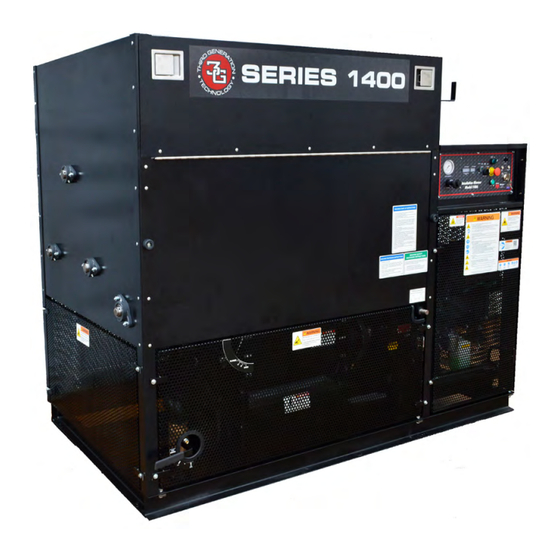

Meyer Insulation Blower
Models 1401, 1405 & 1406
INSTALLATION, OPERATION &
MAINTENANCE INSTRUCTIONS
Wm. W. Meyer & Sons, Inc.
1700 Franklin Blvd • Libertyville, Illinois 60048-4407 • 800-963-4458 • 847-918-0111 • Fax: 847-918-8183
e-mail: info@wmwmeyer.com · websites: http://www.meyercontractor.com or www.wmwmeyer.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Meyer 1400 Series
Summary of Contents for Meyer 1400 Series
- Page 1 Meyer Insulation Blower Models 1401, 1405 & 1406 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS Wm. W. Meyer & Sons, Inc. 1700 Franklin Blvd • Libertyville, Illinois 60048-4407 • 800-963-4458 • 847-918-0111 • Fax: 847-918-8183 e-mail: info@wmwmeyer.com · websites: http://www.meyercontractor.com or www.wmwmeyer.com...
-
Page 2: Table Of Contents
The safety of the operator and those people that may come into contact with the equipment is of great importance to Wm. W. Meyer & Sons, Inc. “Meyer”. The decals, shields, guards and other protective features designed, furnished or recommended for this machine are there for your protection. - Page 3 1-1 GENERAL SAFETY INFORMATION • Equipment is to be operated by trained qualified personnel only. • Always read and follow the operating and safety procedures. • Do not operate without all guards and safety equipment installed in the proper location and in working order.
- Page 4 1-3 SAFETY LABELING...
-
Page 7: Applications - Intended Use Of Equipment
Lading that the carrier has and call their office immediately before the driver leaves your premises. Meyer cannot file a claim on your behalf; however, please let us know by phone and writing about any problems so that we can assist you with immediate replacement parts or information. - Page 8 MACHINE COMPONENTS • Feeder Assembly • Hopper Assembly • Control Panel/Electrical • Engine • Dual Clutch Drivetrain Two operators needed for safe operation. • One hose operator • One machine operator/loader Machine Installation The truck that the machine is to be mounted in should have a minimum body length of 22’ with a minimum GVWR of 21,000 lbs., double side door and a full width rear door.
-
Page 9: Operating Instructions
In addition; if flammable material comes in contact with these surfaces it could ignite. Due to the variability of installations Meyer cannot provide a guard for the engine exhaust piping. The installer of the equipment must take the necessary steps to guard this surface from contact. - Page 10 2. If there is a fuel odor, wait 10 minutes to allow the fuel vapor to dissipate before proceeding. 3. The blowing hose must be attached and the operator in position. 4. Check that the switch on the Remote Control Cord is in the OFF position. Connect the cord to the control panel.
-
Page 11: Maintenance
For engine service or maintenance see the engine Operator’s Manual. Your Meyer Series 1400 Insulation Blowing Machine is designed to be used with minimal maintenance for all its components. The following is only a guide; experience is the best guide for the right maintenance schedule for your machine. - Page 12 EACH DESCRIPTION SHIFT HOURS HOURS HOURS HOURS INSPECT ALL DRIVES CHECK GUARDS DRIVE ALIGNMENT & TENSION CHECK ENGINE EXHAUST PIPE GREASE BLOWER BEARINGS GREASE HOPPER BEARINGS CHANGE ENGINE OIL FILTER CHANGE BLOWER OIL CHANGE GEAR BOX OIL CLEAN INLET SCREEN (BLOWER) CHANGE SEALSTRIPS OIL DRIVE CHAINS CHECK ALL DRIVE SET SCREWS...
-
Page 13: Troubleshooting
SECTION VII TROUBLESHOOTING If the machine is not running properly check for the simple causes first; closed slide gate, broken chain, machine speed etc. Machine is running but no material is discharging from hose. • Slide gate is in the closed position. •... - Page 14 • Too much material forced into hopper. • Clutch slipping during operation. • Too many hose reductions. • Obstruction at blower inlet • Drive belts may be slipping. • Gear Box oil is low or empty. • Loose drive components. Engine runs but sometimes misfires while blowing material.
- Page 15 SAFETY SUPPLEMENT Effective 8-24-2016 ATTENTION INSTALLERS/OPERATORS FOR YOUR PROTECTION: 1. Read and understand the Operating Manual accompanying this equipment before performing any work. 2. Additional safety label kits are available from Meyer upon request at no charge. This is part of our effort to ensure this equipment is installed, operated and maintained in the safest possible manner. Affix these labels in locations to achieve maximum visibility and thereby alert any personnel that may ever be on-site that a potential for injury could occur. 3. Under no circumstances should this equipment be installed or operated in a manner that permits access to the interior of the insulation blowing machine. 4. Outlet connections must always have a hose attached. Always follow machine safety shutdown instructions before performing any work. 6. Always keep loose clothing, hands, feet or any parts of your body, tools and/ or any foreign objects away from the interior of hopper and hose. 7. Never remove the discharge hose that is attached to the machine without first powering OFF the machine. 8. Consult the Meyer factory if you have any questions regarding the proper installation, operation and maintenance of this equipment.
- Page 16 SAFETY LABELS Locate all of the safety labels on your equipment and know their meaning before operating your Insulation Blowing Machine.
- Page 17 NOTE: Contact Wm. W. Meyer & Sons, Inc. at 800-963-4458 for free replacement safety label kit.
- Page 18 SERIES 1400 INSULATION BLOWING MACHINE SAFETY PRECAUTIONS NEVER OPERATE THE MACHINE WITHOUT GUARDS IN PLACE NEVER OPERATE THE MACHINE WITHOUT HOSE ATTACHED TO THE DISCHARGE TUBE Photos for reference only. 292-O-001...
