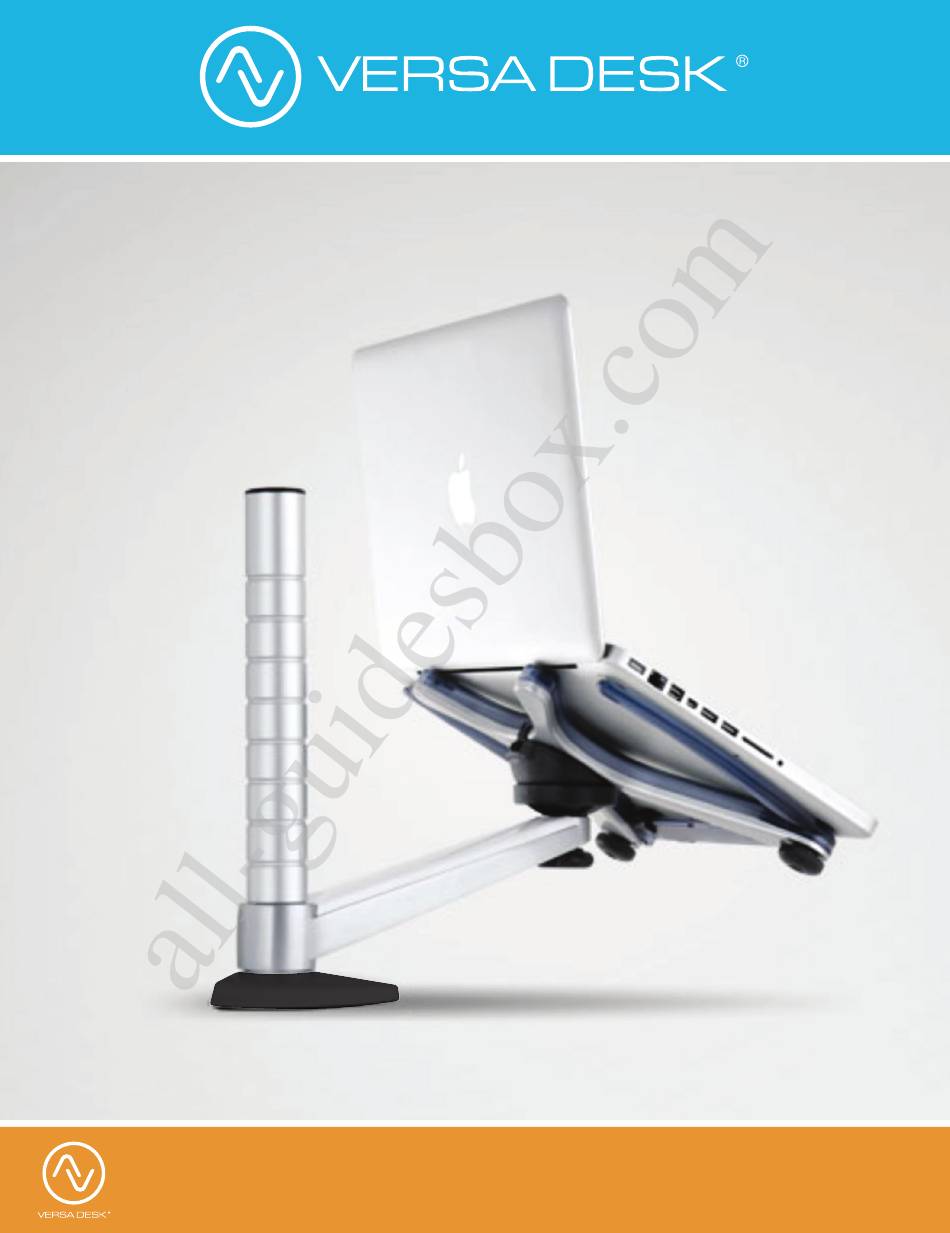

- Page 1 All manuals and user guides at all-guidesbox.com OmniView Laptop Arm Assembly Instructions Los Angeles, CA (800) 465 1660 support@versadesk.com...
- Page 2 All manuals and user guides at all-guidesbox.com Parts & Hardware Single ArmX1 Body(Mounted Post) Laptop Clip Shoe Nylon Clip Laptop Plate X1 4mm Hex Key Laptop Adapter Adjustable Clasp Components X1 Los Angeles, CA (800) 465 1660 support@versadesk.com...
- Page 3 All manuals and user guides at all-guidesbox.com Assembly Instructions Place laptop adapter align with Insert arm into the base stem, hole pattern(A), then install fix the nylon clip on right place. universal Joint(B), screw nut (C), tighten Clamp Screw (D). Los Angeles, CA (800) 465 1660 support@versadesk.com...
- Page 4 All manuals and user guides at all-guidesbox.com Assembly Instructions Slide Laptop plate into universal Joint(B), Fix the plate. Attention: Slide out laptop plate by Pressing it upwards. Snap plate clip shoe from central notch to both sides, then slide adjustable clasp along the grooves.
