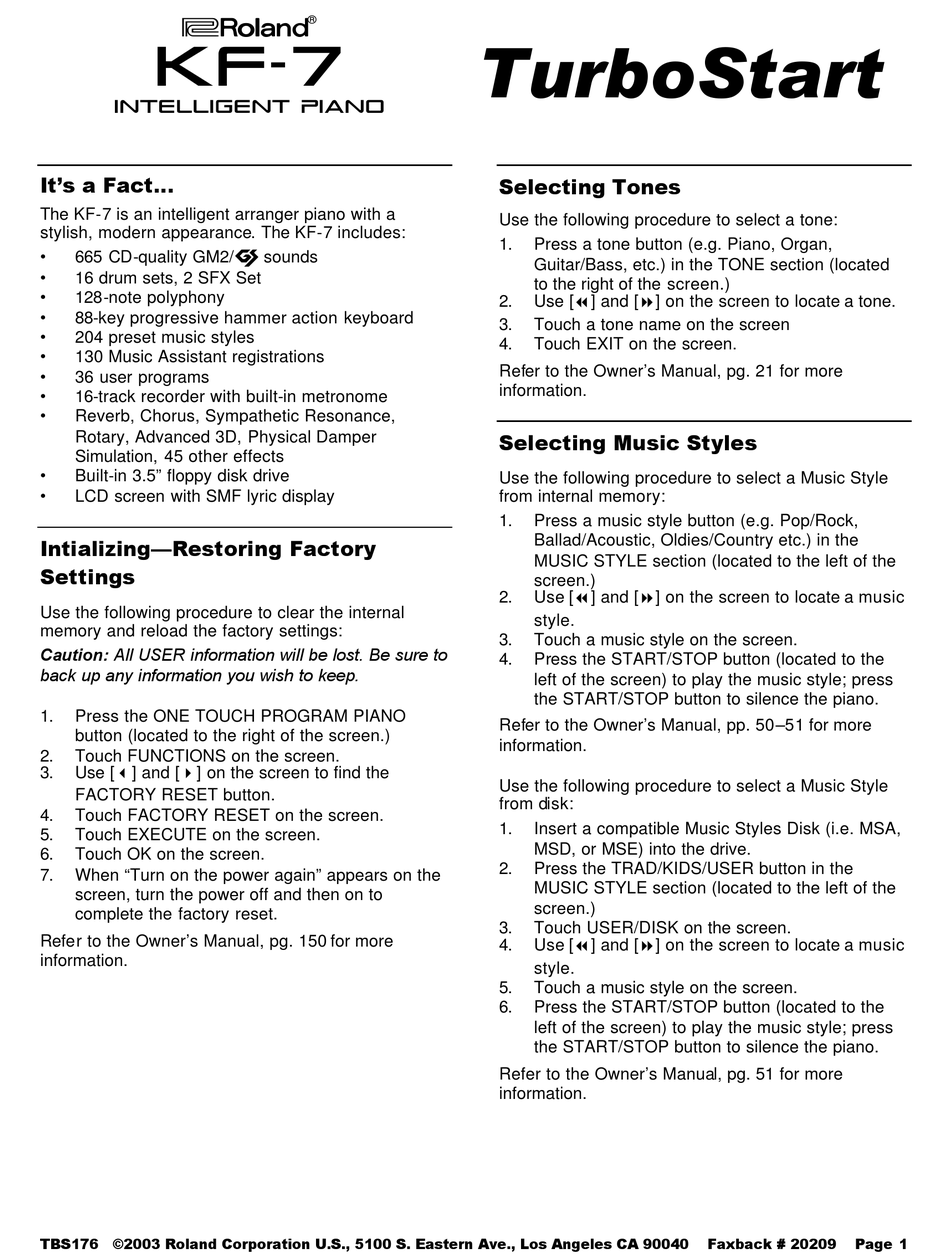

Roland TurboStart KF-7 Quick Start Manual

®ÂØÒňÎ
kF-7
intelligent piano
It's a Fact...
The KF-7 is an intelligent arranger piano with a
stylish, modern appearance. The KF-7 includes:
• 665 CD-quality GM2/© sounds
• 16 drum sets, 2 SFX Set
• 128-note polyphony
• 88-key progressive hammer action keyboard
• 204 preset music styles
• 130 Music Assistant registrations
• 36 user programs
• 16-track recorder with built-in metronome
• Reverb, Chorus, Sympathetic Resonance,
Rotary, Advanced 3D, Physical Damper
Simulation, 45 other effects
• Built-in 3.5" floppy disk drive
• LCD screen with SMF lyric display
Intializing—Restoring Factory
Settings
Use the following procedure to clear the internal
memory and reload the factory settings:
Caution: All USER information will be lost. Be sure to
back up any information you wish to keep.
1. Press the ONE TOUCH PROGRAM PIANO
button (located to the right of the screen.)
2. Touch FUNCTIONS on the screen.
3. Use [3] and [4] on the screen to find the
FACTORY RESET button.
4. Touch FACTORY RESET on the screen.
5. Touch EXECUTE on the screen.
6. Touch OK on the screen.
7. When "Turn on the power again" appears on the
screen, turn the power off and then on to
complete the factory reset.
Refer to the Owner's Manual, pg. 150 for more
information.
TBS176 ©2003 Roland Corporation U.S., 5100 S. Eastern Ave., Los Angeles CA 90040
®
TurboStart

Selecting Tones

Use the following procedure to select a tone:
1. Press a tone button (e.g. Piano, Organ,
Guitar/Bass, etc.) in the TONE section (located
to the right of the screen.)
2. Use [7] and [8] on the screen to locate a tone.
3. Touch a tone name on the screen
4. Touch EXIT on the screen.
Refer to the Owner's Manual, pg. 21 for more
information.

Selecting Music Styles

Use the following procedure to select a Music Style
from internal memory:
1. Press a music style button (e.g. Pop/Rock,
Ballad/Acoustic, Oldies/Country etc.) in the
MUSIC STYLE section (located to the left of the
screen.)
2. Use [7] and [8] on the screen to locate a music
style.
3. Touch a music style on the screen.
4. Press the START/STOP button (located to the
left of the screen) to play the music style; press
the START/STOP button to silence the piano.
Refer to the Owner's Manual, pp. 50–51 for more
information.
Use the following procedure to select a Music Style
from disk:
1. Insert a compatible Music Styles Disk (i.e. MSA,
MSD, or MSE) into the drive.
2. Press the TRAD/KIDS/USER button in the
MUSIC STYLE section (located to the left of the
screen.)
3. Touch USER/DISK on the screen.
4. Use [7] and [8] on the screen to locate a music
style.
5. Touch a music style on the screen.
6. Press the START/STOP button (located to the
left of the screen) to play the music style; press
the START/STOP button to silence the piano.
Refer to the Owner's Manual, pg. 51 for more
information.
Faxback # 20209 Page 1
