Summary of Contents for MPMan MP709

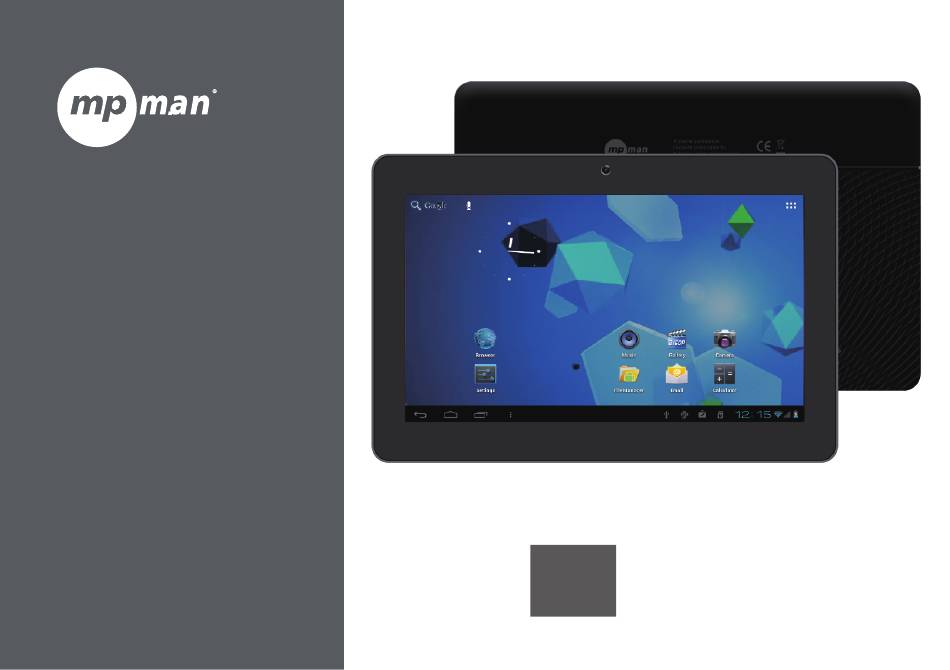

- Page 1 For Model No. User Manual MP709...
- Page 2 This manual contains important safety precautions and information of correct use. Please be sure to read this manual carefully before use so as to avoid any accidents. Do not place the product in hot, wet or dusty environment, especially in summer, do not leave the product inside a car with all windows closed.
-
Page 3: Specification
Specification Hardware Software 7” Capacitive Touch screen (800x480 pixel) Android 4.0.4 ICS Capacitive multi-touch (5 touch) point function Google browser CPU : Allwinner A13 cortex A8 processor Wi-Fi connection RAM : DDR3 512MB (3D accelerator possible for 3D games) e-Book function (all e-book formats supported by application) Wi-Fi (IEEE802.11 b/g/n) for internet connection 1080P HD le playback USB host for OTG function... - Page 4 Nomenclature Power Important Notice Charger Speaker - If the device is freezing or stuck, press the reset button(a small hole) or long press power button for 7seonds. - When the performance is slow after using some applications, it is recommended to Camera close running application in setting menu.
-
Page 5: Power On/Off
1. Power On/Off 2. Desktop After turning on the device, desktop displays with shortcut icons and arrow panel at the right side Page 4... -
Page 6: Standby Mode(Screen Off Mode) / Unlock The Screen
3. Standby mode(Screen off mode) / Unlock the screen Page 5... -
Page 7: System Settings
4. System settings On the desktop, press menu button and select system settings. Page 6... -
Page 8: Wireless And Networks
Press system settings 1. Wireless & networks 2. Sound Set up each setting as you like. Wi-Fi settings - Press Wi-Fi settings, then the device will automatically search the available Wi-Fi signals. Select the network you want to connect with. Page 7... - Page 9 3. Display 4. Storage Set up each setting as you like. Check device memory and microSD card status. Unmount SD card – Unmount the SD card for safe removal. Page 8...
- Page 10 5. Battery 6. Apps Check battery usage status. Manage downloaded or running applications. Downloaded All installed application are listing. Page 9...
- Page 11 Keep pressing an application to manage. Running services Press Uninstall to uninstall the selected application. View and control currently running services. Page 10...
-
Page 12: Account & Sync
7. Account & sync Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes your account with the device. Emails are automatically downloaded into the device. 8. Location services Google’s location service - Let apps use data from sources such as WiFi and mobile networks to determine your approximate location Page 11... - Page 13 9. Security Screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern. Make passwords visible – Show password as you type. Unknown sources - If you want to allow installation of non-Market Applications, Press Unknown sources and presses OK. Page 12...
-
Page 14: Language And Input
10. Language & input Language – Choose your preferable language. Keyboard & input method – Change keyboard & keyboard settings. On Language & input settings, if you need other languages besides English on keyboard, press the relevant keyboard and enter the chosen Keyboard settings, select Keyboards, press the language you need. -
Page 15: Date And Time
11. Date & time Set date & time and format 12. Developer options Set options for application development 13. About tablet See status, legal information, ETC Page 14... -
Page 16: How To Connect/Disconnect The Device With/From The Computer
How to connect/disconnect the device with/from the computer On main desktop, connect the device with the PC, touch right side of the status bar on the bottom of desktop Page 15... - Page 17 Press “USB connected”, select “Turn on USB storage”. The device is recognized at Explorer of the computer. Now you can use it as an external storage. Page 16...
-
Page 18: How To Install Applications(.Apk File) Into The Device
How to install Applications(.apk file) into the device Method 1. Connect the device with internet. See above [1.Wireless & networks] in order to connect internet. Run “Opera mobile” and search the applications you want to install. Follow the instruction on the screen for installation. Method 2. -
Page 19: How To Make Desktop Icons
How to make desktop icons Press the upper right side icon of desktop, the pop-up displays. Page 18... - Page 20 Shortcuts Widgets Long press your desired APK icon and put it Long press your desired wiget icon and put it on the desktop. on the desktop. Wallpaper Long press the desktop, press Wallpapers and select one of categories of wallpaper. Select one you desire and press Set wallpaper.
-
Page 21: Change Input Method
Change Input Method If your device was installed with other more input method, long press setting icon of keyboard, and the pop-up displays. Select the installed keyboard, then the keyboard will appear with your desired language you installed. Page 20... - Page 22 Specification Android 4.0.4 ICS ARM cortex A8 processor SDRAM DDR3 512MB (3D accelerator possible for 4D games) Display 7" 800 x 480 Capacitive touch panel Multi-touch screen Yes : 5 point multi-touch 4 / 8 / 16GB 3.5ø earphones Audio port 1 x 5pin micro USB port (support USB host and OTG) ...
- Page 23 Page 23...
- Page 24 For more information please check our website www.mpmaneurope.com Page 24...
