Summary of Contents for Etic Telecom XSLAN

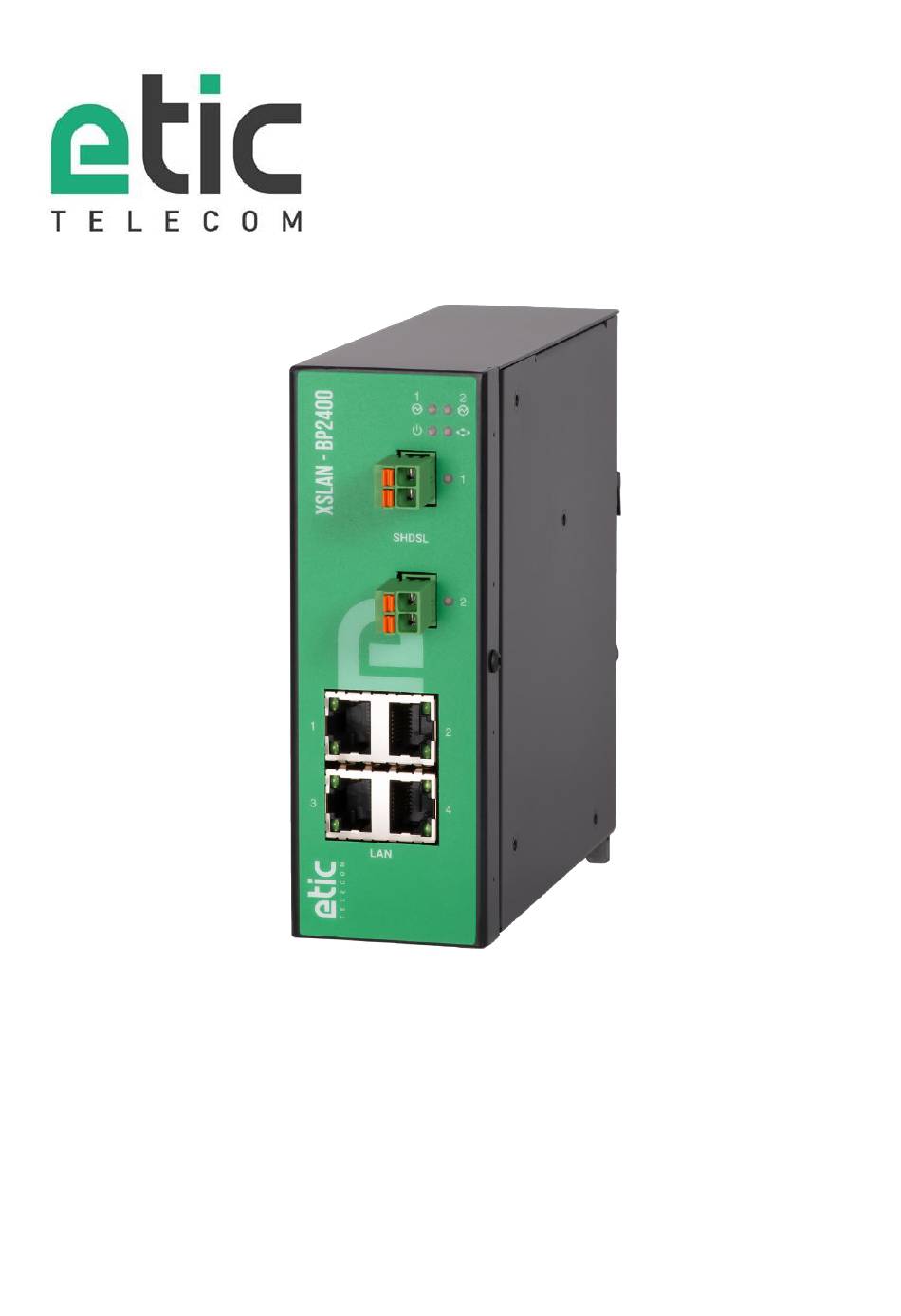

- Page 1 XSLAN SHDSL Switch _________________ USER GUIDE _________________ DOC_DEV_XSLAN_User_guide_A...
- Page 2 The XSLAN SHDSL switch is designed and manufactured by ETIC TELECOM 405 rue Lavoisier 38330 MONTBONNOT SAINT MARTIN FRANCE TEL : + (33) (0)4-76-04-20-05 E-mail : hotline@etictelecom.com web : www.etictelecom.com Page 2 DOC_DEV_XSLAN_User_guide_A...
- Page 3 DECLARATION OF CONFORMITY The manufacturer, ETIC Telecom – 405 rue Lavoisier – 38330 Montbonnot Saint Martin – France, Hereby declares under sole responsibility that the listed products conform to the Electromagnetic Compatibility (EMC) Directive 2014/30/UE , the Low Voltage Directive (LVD) 2014/35/UE , the Restriction of the use of certain Hazardous Substances (RoHS) Directive 2011/65/UE.
-
Page 5: Table Of Contents
Redundancy solutions: RSTP and proprietary failsafe ring............... 17 The by-pass function ........................... 18 The loop VPN function ........................18 MACSec secure link ..........................19 Other functions of the XSLAN family ....................19 INSTALLATION ........................... 21 Description ..............................21 Dimensions ............................21 Sides .............................. - Page 6 TABLE OF CONTENTS Restoring the factory settings ........................33 Protecting the access to the administration server..................34 Configuration steps ............................34 ANNEX 1 : SHDSL data rate versus distance ................35 Page 6 DOC_DEV_XSLAN_User_guide_A...
-
Page 7: Overview
In the rest of the document the term " XSLAN " is used to designate the product. Products Identification The XSLAN is an industrial Ethernet switch that provides 1 to 4 SHDSL ports to extend the Ethernet transmission up to several kilometers using any existing copper pair. - Page 8 OVERVIEW XSLAN models XSLAN-1400 XSLAN-1220 XSLAN-2400 XSLAN-2220 XSLAN-BP2400 XSLAN-BP2220 XSLAN-4200 XSLAN-BP4200 Page 8 DOC_DEV_XSLAN_User_guide_A...
-
Page 9: Specifications
Plug & play Automatic adaptation of the data rate Transmission delay for a 256 bytes frame from one Ethernet port of an XSLAN to the Latence Ethernet port of another XSLAN through an SHDSL link: < 2 ms at 5.6 Mb/s... - Page 10 OVERVIEW ETHERNET & IP Ethernet 10/100 Mb/s Half/Full duplex Auto MDI/MDIX Switch Store and forward - 1024 addresses MAC Redundancy RSTP - IEEE 802.1D / 802.1Q Fail safe ring Loop VPN VLAN IEEE 802.1Q IPV4 and IPV6 IP address LAN – SHDSL routing IP router Multicast and broadcast filtering Static routes...
-
Page 11: Emc & Environment Compliances
OVERVIEW EMC & Environment compliances EMC Immunity, EN61000-6-2 Standard Criteria Port Level passed EN61000-4-2 +/-4kv contact Enclosure +/-8kv air discharge EN61000-4-3 Enclosure 10V/M AM @ 1khz 80Mhz to 3Ghz Radiated EN61000-4-4 SHDSL +/- 2kv Burst Power supply +/- 2kv Ethernet +/- 2kv EN61000-4-5 +/- 5kv common mode (Normal and Telecom... - Page 12 OVERVIEW Climatic Standard Test Level EN 60068-2-1 -40 °C - 16 hours – Non-operating Cold -40 °C - 16 hours – Operating EN 60068-2-2 +85 °C - 16 hours – Non-operating Dry heat +70 °C - 16 hours – Operating EN 60068-2-14 -25 °C to +70 °C –...
-
Page 13: Product Overview
They are named XSLAN-2XXX hereafter. The products which can be connected to four twisted pair. They provide four SHDSL interfaces. The references of that products are XSLAN-4200 or XSLAN-BP4200 depending on whether or not they have a by-pass. XSLAN-1XXX Point to point link on a single twisted pair Two XSLAN-1XXX extend Ethernet over one twisted pair. - Page 14 Thanks to the Store and Forward principle, the number of switches is not limited. Point to multipoint link The XSLAN-2XXX allows you to interconnect a central site with two remote sites. Page 14 DOC_DEV_XSLAN_User_guide_A...
-
Page 15: Xslan-4200
XSLAN-4200 Additional features compared to XSLAN-2XXX: Point to point link on four twisted pairs Two XSLAN-4200 extend Ethernet over two, three or four 1 to 4 twisted pairs aggregated twisted pairs. The data rate is the sum of the data rate on each pair: up to 22,8 Mb/s on 3,7 Km and 60 Mb/s on 0,7 Km (see table in Annex 1). - Page 16 OVERVIEW Point to multipoint link - Concentrator The XSLAN-4200 allows you to interconnect a central site with four remote sites.. XSLAN-1XXX XSLAN-1XXX Point to multipoint link with doubled data rate The XSLAN-4200 allows you to interconnect a central site with two remote by aggregating pairs 2 by 2.
-
Page 17: Highlighted Features
STU-C is able to automatically change to STU-R mode if it detects the presence of a STU-C on the remote side. Thus, two XSLAN configured both in STU-C will find a way to connect. One of the two will switch to STU-R. -
Page 18: The By-Pass Function
When the network is a daisy chain – that case is very frequent in industrial applications - and when, however, it is not possible to build a failsafe structure like a ring, the XSLAN-BP offers a very useful function called the “By-pass function”. -
Page 19: Macsec Secure Link
RS485 or RS422 serial interface to the Ethernet network. IP routing and filtering The XSLAN can remove the broadcast frames on the SHDSL link by routing the IP frames, and thus limiting the unwanted traffic on the SHDSL link. VLAN The XSLAN features VLAN : Each Ethernet port can be assigned to a particular VLAN. - Page 20 The XSLAN manages the authentication of devices connected to its Ethernet ports by querying a central Radius server. SNMP The XSLAN can be monitored by an SNMP manager and supports the main MIB of an Ethernet switch and the SHDSL MIB. Configuration The products are configured using a browser in HTTP or HTTPS.
-
Page 21: Installation
INSTALLATION INSTALLATION Description Dimensions All dimensions in millimeters. Page 21 DOC_DEV_XSLAN_User_guide_A... -
Page 22: Sides
INSTALLATION Sides Front side Rear side LED indicators SHDSL terminal blocks (1 to 4*) DIN rail mounting Ethernet connectors (2 or 4*) RS232 connector* RS485 terminal block* Push button Ground terminal *depending on model Bottom side Power supply 1 terminal block Digital input and output terminal block Power supply 2 terminal block Page 22... -
Page 23: Connectors
Position Signal Function Digital input 0V Digital input Digital output + (max 50Vdc - 0,1A) Digital output - XSLAN-1XXX or XSLAN-2XXX or XSLAN-4200 2 positions terminal block : SHDSL1 & SHDSL2 & SHDSL3 & SHDSL4 Position Signal Function Line SHDSL line... - Page 24 Signal ground N.C. CTS - 106 Clear to send RTS - 105 Request to send OUT = Signal supplied by the XSLAN IN = Signal supplied by the external device XSLAN-X2220 RJ45 connector : RS232 (To connect a DTE) Position...
-
Page 25: Push Button
Green Connected Lower LED 1 to 4 Flashing green traffic on the link XSLAN-1220, XSLAN-2200, XSLAN-BP1220 RS232 Characters received from the RS232 serial interface Characters transmitted to the RS232 serial interface RS485 Characters received from the RS485 serial interface Characters transmitted to the RS485 serial interface... -
Page 26: Safety Instructions
Power supply The XSLAN provides a dual power inputs allowing a redundancy power supply. The supply voltage must be regulated and strictly between 10 and 60 Volt DC (nominal: 12 – 48 VDC). At power up the inrush current can reach 20 A for 100 µs. -
Page 27: Isolation And Earthing
INSTALLATION Isolation and earthing The enclosure of the XSLAN is metallic ; For safety and EMC reasons, the ground terminal (on the underside) must be connected to the protective earth of the installation. The minus polarity of the supply voltage is common with the minus voltage of the electronic board (usually called 0V) and is isolated from the enclosure. -
Page 28: Digital Input And Output
Type of cable Twisted pair cable The XSLAN SHDSL switch is designed to be connected to one or several telephone grade twisted pairs. The conductor diameter must be included between 0.4 mm and 1 mm. A cable may be composed of several twisted pairs. -
Page 29: Shield Earthing
However, if the line is vulnerable to thunderstorms, for example if it is an air line, or if it is several kilometers long, or if the installation is in a very exposed area, it is recommended to protect each XSLAN with a surge protector, as described below. -
Page 30: Daisy Chain Or Ring Connection
INSTALLATION 11.3 Daisy chain or ring connection If the SHDSL switches are connected to shape a daisy chain network or a ring network, we recommend to connect the lines as shown below. In that way, the configuration of each SHDSL switch will be similar. Port 1 Port 1 Port 1... -
Page 31: Preparing The Setup
PREPARING THE SETUP Connecting a PC for configuration Overview The XSLAN is configured using a PC with an HTML browser. No additional software is required. Online help: For most pages of the administration server an help page is available by clicking located at the top right of the page. -
Page 32: First Configuration
First configuration Step 1: Create or modify the PC TCP/IP connection Assign to the PC an IP address different but consistent with the factory IP address of the XSLAN. For the first configuration, assign for instance 192.168.0.1 to the PC. -
Page 33: Temporary Return To The Factory Settings
Temporary return to the factory settings If the IP address of the XSLAN could not be founded, or if it is impossible to access the administration server, for example, following a bad VLAN configuration, it is possible to restore the factory settings without losing the current configuration. -
Page 34: Protecting The Access To The Administration Server
PREPARING THE SETUP Protecting the access to the administration server • In the menu, choose Setup > Security > Administration rights • Enter a user name and password to protect the administration server. • Tick the Password protect the web site access checkbox If the username and password to access the administration server are lost, you have to temporarily return to the factory settings;... -
Page 35: Annex 1 : Shdsl Data Rate Versus Distance
ANNEX 1 ANNEX 1 : SHDSL data rate versus distance The table below shows the data rate which is possible to get on a SHDSL link depending on the wire diameter and the distance. These values are indicative in noise free environment. Distance versus data rate through one pair Data rate 192Kb/s... - Page 36 405 rue Lavoisier 38330 Montbonnot Saint Martin France Tel : +33 (0)4 76 04 20 00 contact@etictelecom.com www.etictelecom.com...
