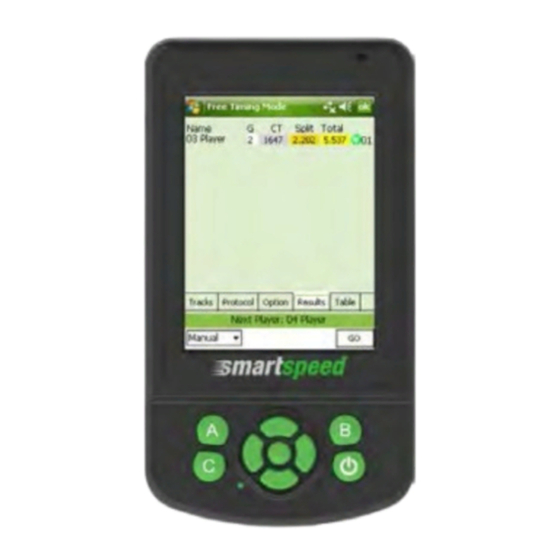

Fusion Sport SMARTSPEED Base Unit Quick Start Guide

GETTING STARTED

Your SMARTSPEED base unit is the command centre for the following Fusion Sport products:

• SMARTSPEED
• SMARTSPEED LITE
• SMARTJUMP
• SMARTSCAN (PDA Version)

OVERVIEW

Front view

* selected models only

Rear view

Bottom view

INSERTING BATTERY

1. Remove the battery cover by lifting the cover at the lowest point

2. Insert the battery matching the internal contacts with the labels facing up

3. Slide the top of the cover into the housing, then push down on the bottom, and then push down on the 6 tabs until they click into place.


CHARGING

DC

Full charge cycle ≈ 3 hours

USB

Full charge cycle ≈ 6 hours

ANTENNA OPERATIONS

Extending the antenna

Note: antenna extension is not required when connecting jump mat directly.

Correct antenna Positions

SD CARD

Please ensure the SD card is always installed during use.

PS2 INPUT (JUMPMAT)

PC CONNECTION

Your SMARTSPEED base unit can be connected to your PC for:

• Uploading team lists, new drills and software updates
• Downloading data

To connect, use one of the following methods:

• USB cable (Windows or Mac PC running Windows emulator such as parallels)
• Wifi or Bluetooth file transfer (Windows or Mac PCs)
• SD card file transfer (Windows or Mac PCs)

To connect with a USB cable, you may need to install 3rd party software from Microsoft. Links to these are available on the Fusion Sport website support page. Windows XP users will need to install MS Activesync. Windows 7 computers should connect automatically with the installed Windows Mobile Device Centre. If this is not pre-installed on your PC you can also download this for free from Microsoft.

SETTING THE DEVICE CHANNEL

Each SMARTSPEED system is set to a specific radio frequency channel. If your Base Unit does not recognise your SMARTSPEED or SMARTSPEED LITE units, the most likely cause is a mismatch in RF settings.

To learn more please read the SMARTSETUP User Guide, which can be found in www.fusionsport.com/support/documents

UPDATING SOFTWARE

Software updates are provided via the Fusion Sport website www.fusionsport.com/support/software

To check your current software version:

• Start the SMARTSPEED software on the device
• Go to the Help/About menu item.
• Check the software version and compare to the latest version number on the web.

Full instructions on how to update software or perform a clean install are provided in the support area.

Be sure to install the correct software for your PDA model (P-series). The file will be marked "_P".

Register for Client Access
Some resources on the website will require you to login as a client. Client access is free to all users. To register, please go to www.fusionsport.com/register

SMARTSYNC

SMARTSYNC is a free Windows (or Mac running Windows) based application used for managing your SMARTSPEED database.

With SMARTSYNC you can:

• Backup your results to your PC
• Sort, filter and organise your results files
• Export results to Excel or SMARTABASE
• Upload new teams and players to copy across to your Base Unit

Download SMARTSYNC free from the Fusion Sport website support area.

SUPPORT

www.fusionsport.com/support

Resources available include:

• User manuals
• Maintenance and troubleshooting information
• Software downloads
• Drill downloads and other templates

For further support please email support@fusionsport.com, or contact us via the Fusion Sport website.

Troubleshooting

In the rare event of unusual unit behaviour:

1. Make sure the unit is charged
2. Perform a soft reset (see front view)
3. Remove battery for 20 seconds and replace
4. Contact Fusion Sport

More detailed information is available on the website.

SPECIFICATIONS

Operating System
Windows CE 6.0 Professional

Screen
3.5" Transflective QVGA 240x320 pixels

Processor
800 MHz

Memory (RAM) / Memory Expansion
256MB (RAM), 2GB(ROM) / SDHC Slot

Battery Size
2600mAh User Replaceable

Charge
DC or USB

Connectivity
USB 2.0, Wifi IEEE 802.11b/g, Bluetooth 2.1 EDR

Speaker
1W

Keypad
5 way navigation + 3 user programmable function keys, power on/off, soft reset

Zigbee Communications Range
Up to 200m line of sight

Low Frequency RFID Range
Up to 20mm

Expansion Port
Smartjump Interface with visual feedback
